BRINNO MAC200DN Time Lapse Camera
SKU: MAC200DN
14 Months Battery Life Time Lapse Surveillance Camera
The Brinno MAC200DN is a battery powered portable security camera, triggered by Motion Detection (PIR) or a Fixed Capture Rate (Time Lapse) or Brinno’s new Hybrid Mode ® (Time Lapse +Motion Detection).
HYBRID ACTIVATED
<320 ft time lapse capture zone and <20+ ft motion activated zone = Never Miss a Shot
FAST PLAYBACK VIDEO
Automatically converts images into time lapse videos. The MAC200DN lets you review 8 hours of activity in a 1 minute time lapse video!
14 MONTHS BATTERY LIFE
2 D cell batteries can last for up to 14 months, so you can put away your power cords!
Outdoor Security 1,2,3!
Easy to set up outdoor security camera in 3 steps!
Dual Protection® Capture Mode
Time Lapse Capturing + Motion Activated
Capture any movement with either Motion Activation or a preset Time Lapse setting. The MAC200DN automatically converts photos into an easy to view/review Time Lapse Video. You can review an entire days activity in a couple of minutes!
Time Lapse Mode
In Time Lapse Mode, you can record at a distance of up to 320 feet using a 1 frame per second fixed capture rate.
Motion Mode
In Motion Mode, when the PIR motion sensor is triggered by any movement in a 20 feet zone, the camera captures 2-3 images per second for 5 seconds
Hybrid Mode
Hybrid Mode consists of time lapse + motion detection, the camera switches from 1 frame per second Time Lapse Mode to Motion Mode (2-3 images per second for 5 seconds) when a moving object enters the 20 feet motion zone.
BATTERY POWERED = WIRE-FREE
100% DIY, 100% Portable
Not a complicated DVR security system, no complicated power cord wiring to set up. 100% DIY. 100% Wire-free. 100% Portable.
Smart Night Vision
Set your latitude, the camera will automatically turn on Night Vision at sunset and turn off Night Vision at sunrise. So the camera can capture infrared images* at night and capture regular images in daylight.
CHECK MONTHLY ACTIVITY IN SEVERAL MINUTES VIDEO
Fast Playback Time Lapse Video
Set your latitude, the camera will automatically turn on Night Vision at sunset and turn off Night Vision at sunrise. So the camera can capture infrared images* at night and capture regular images in daylight.
100% DIY, 100% PORTABLE
Forget the power cord, Ethernet line or DVR system! The MAC200DN is your 100% DIY, 100% wire-free, 100% portable security camera you can use anywhere, anytime.
DUAL PROTECTION
Brinno’s new Hybrid Mode ® Preset time settings to take photos (Fixed capture rate)+ Motion Activation for video capture, provides unprecedented dual protection.
10X OUTLOOK RANGE
Images captured at a Fixed Capture Rate, in the Time Lapse mode, cover a range over 100 meters deep.
14 MONTHS BATTERY LIFE
The MAC200DN has unequaled battery life lasting up to 14 months on 2 D Cell batteries.
< 1 SEC. RAPID WAKE UP
Brinno’s MAC200DN has excellent power saving technology, by providing super long lasting standby time, combined with the ability to rapidly wake up! So you’ll never miss a shot!
FAST PLAYBACK VIDEO
Brinno’s MAC200DN captures and converts thousands of photos into a Time Lapse video.
WEATHER RESISTANT, SAFE FOR OUTDOOR USE
Water-proof, Outdoor Security Camera
We know most construction site are outdoors; in order to let you capture your entire construction project in any weather, we provide a weather resistant housing to protect your construction camera.
Water-proof, Outdoor Security Camera

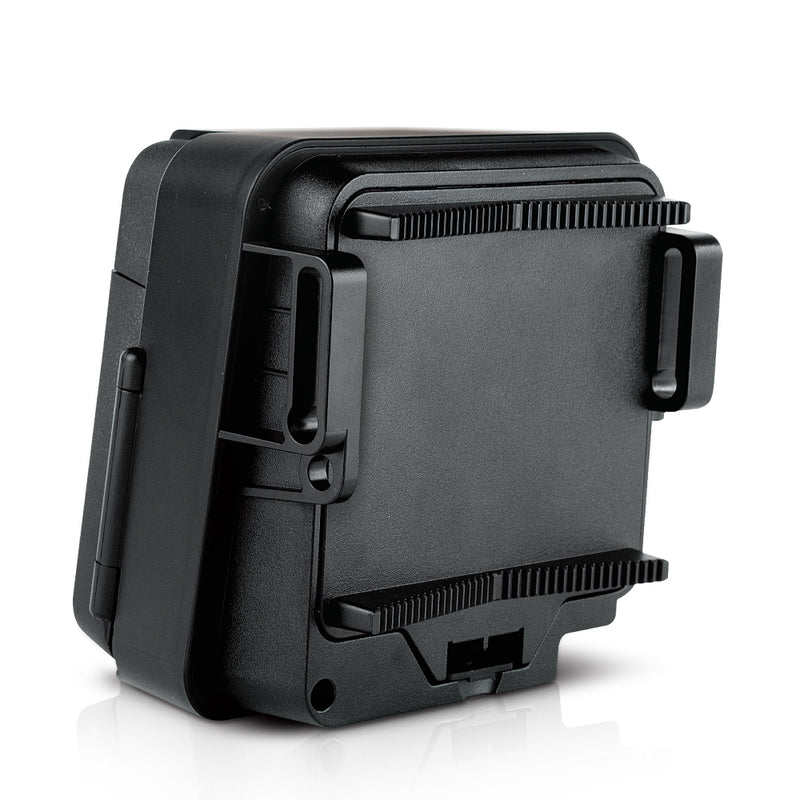

We offer multiple points to secure your MAC200DN
Specification
| Model | MAC200DN | MAC200 |
|---|---|---|
| LCD Screen | 1.44" TFT LCD | |
| Waterproof | IPX4 |
| Capture Mode | - |
|---|---|
| Motion Activated | PIR motion detection (captured 2~3 frames per second) |
| Time Lapse | Fixed Capture Rate (captured 1 frame per time interval) |
| Hybrid | Combine Time lapse and Motion activated mode |
| Motion Sensor | - |
|---|---|
| Detect Distance | 6 m |
| Detect Angle | 100° |
| Night Vision option | - |
|---|---|
| ON (Always turn Night Vision on) | ON (Always turn Night Vision on) |
| OFF (Always turn Night Vision off) | - |
| AUTO (the camera will auto turn Night Vision on at sunset, turn Night Vision off at sunrise ) | - |
| Image Sensor | - |
|---|---|
| Type | 1/4" CMOS sensor |
| Resolution | 1.3 Mega pixel |
| Pixel size | 2.8 um |
| Sensitivity | 2500 mV/lux-sec (Good low light quality) |
| Optics Lens | - |
|---|---|
| Aperture | f2.0 |
| Field of View | 70° |
| Focus Distance | 3.0 mm (Actual)
28 mm (35mm equivalent) |
| Sensitivity | 60 cm(Minimum) |
| Recording | - |
|---|---|
| Video | Fast Playback Time Lapse Video |
| Format | AVI |
| Resolution | 720P( 1280x 720) |
| Memory Storage | SD Card (Supported up to 32 GB) |
| Power | - |
|---|---|
| Power source | 2x D cell Batteries |
| Battery Life | 14 months* |
| External Power | DC IN: 5V 1A |
| Camera Body Dimension | - |
|---|---|
| Size (DxWxH) | 4.17x4.33x3.07 in (106x110x78 mm) |
| Weight | 9.7 oz (275 g) (without batteries) |
| Color | Black |
NOTE: Batteries last 14 months usage under time lapse mode. (time interval setting: 5 minutes.)
- The estimated battery life are tested under room temperature conditions of 25 degrees Celsius.
- Battery life may vary based on environmental conditions, temperature, and many other factors; actual results will vary.
