VOLKTEK INS-840GM 16 Ports GbE DNV GL Certified Unmanaged Switch
SKU: INS-840GM
Product Highlights
- 16 x 10/100/1000 RJ45 ports for multi-axis robots and their auxiliary machines like PLCs, HMI, and printers in automation
- Flow Control keeps flow at a constant rate to avoid overflow
- Industrial QoS prioritizes PROFINET packets and 802.1p Tag for industrial applications with third-party devices
- DNV GL Marine Approval, communication standard for safe and reliable marine operations
- Operating temperatures-40℃~75℃ (-40°F~167°F) and IP30 metal housing
Features
Safety and High Performance in Industrial Marine Applications
This device is tested and certified for safe use in demanding conditions characteristic of Industrial and Marine Applications, to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over-voltage, over-current, and reverse polarity, including the following: Shock (IEC 60068-2-27) | Freefall (IEC 60068-2-32) | Vibration (IEC 60068-2-6) | DNVGL-CS-0339:2016 | DNVGL-RU-SHIP-Pt4Ch9:2018 | IEC-60945, IACS E10 (Rev.6 2014) | LR certify environmental category ENV1, ENV2, and ENV3
Time-Efficient Installation
Auto-MDI/MDIX (medium dependent interface / MDI crossover) on all ports allow automatic communication once the switch is plugged.
Eco-friendly Green Ethernet Design
This eco-friendly design allows the switch to automatically adjust power consumption and conserve energy during low data activity periods, which concurrently helps to lower operational costs and protect the planet.
Redundant Power System

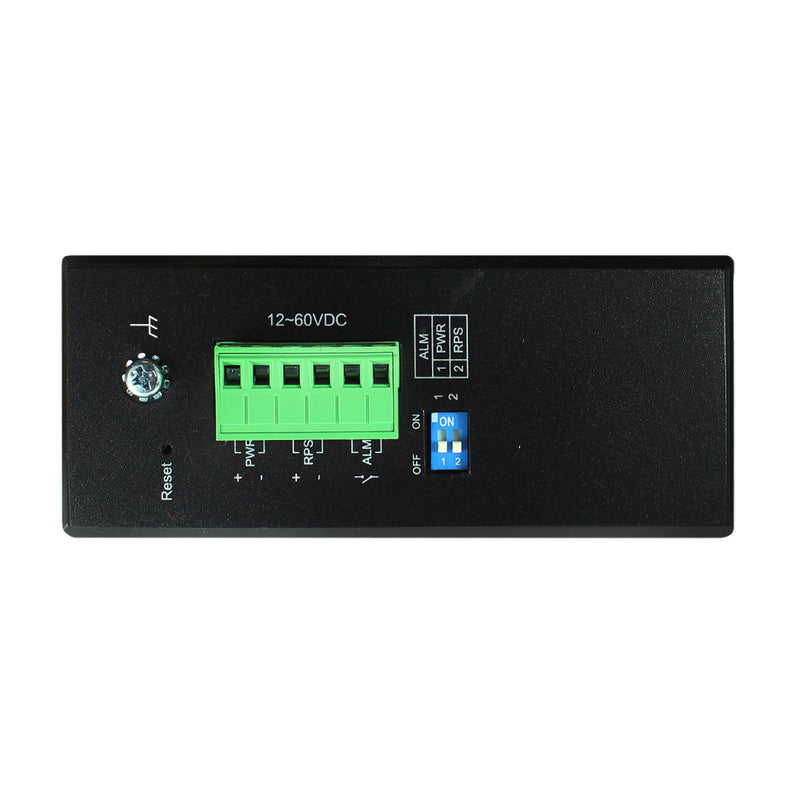

To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
Interface
| Ports | 16 x 10/100/1000Base-T (RJ45) |
|---|---|
| Connectors | Terminal Block |
| DIP Switch | PWR, RPS, ALM, 1000, LNK/ACT |
Power
| Primary/Redundant inputs | 12~60VDC |
|---|---|
| Connection | Terminal Block |
| Power Consumption | 12W (12V/1A) |
| Reverse Polarity | Present |
| Overload current | Present |
Mechanical and Environment
| Housing | Aluminum (IP30 Protection) |
|---|---|

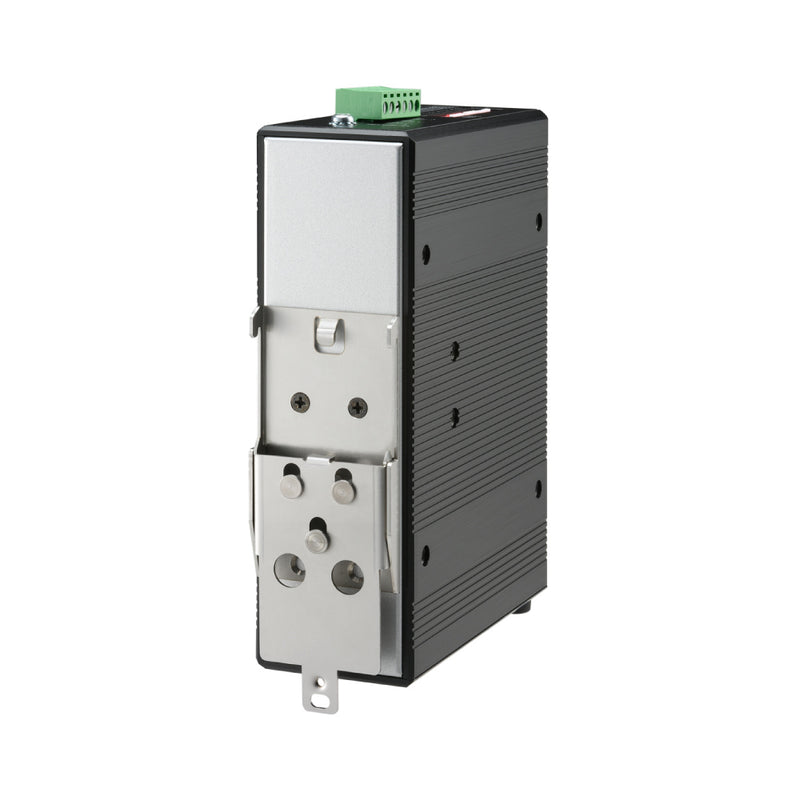

| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 840 g (1.8 lb) |
| Dimension (WxHxD) | 50 x 165 x 120 mm (1.97 x 6.50 x 4.72 in) |
Ordering Information
| Model | Description |
|---|---|
| INS-840GM | Unmanaged 16 x 10/100/1000 RJ45 Industrial Switch, DNV GL Marine Approval |
