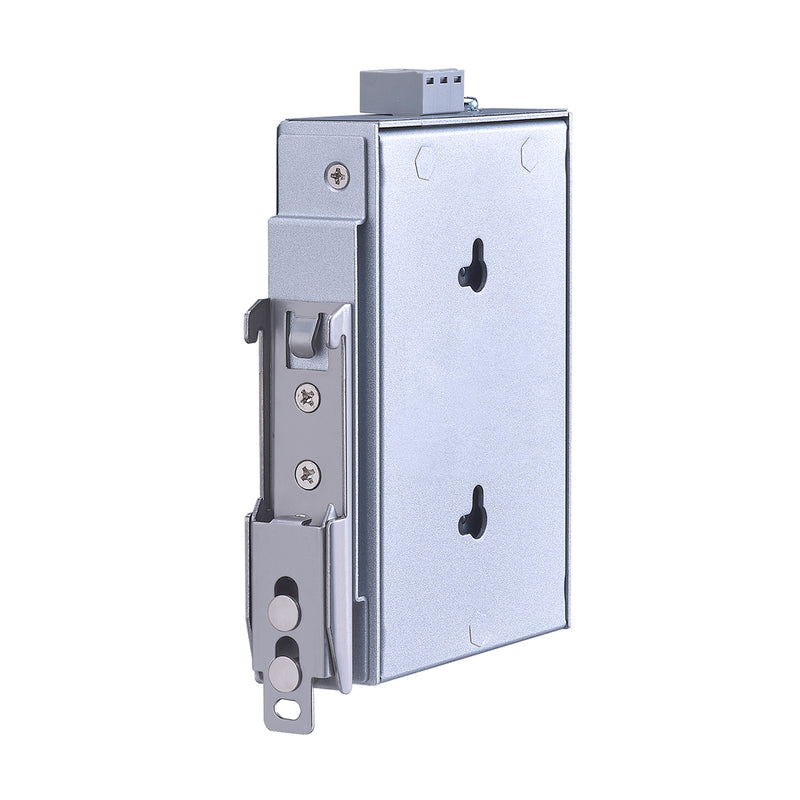

VOLKTEK INS-8405M 5 Ports GbE DNV GL Certified Unmanaged Switch

SKU: INS-8405M
VOLKTEK INS-8405M 5 Ports GbE DNV GL Certified Unmanaged Switch
VOLKTEK INS-8405M 5 Ports GbE DNV GL Certified Unmanaged Switch
VOLKTEK INS-8405M 5 Ports GbE DNV GL Certified Unmanaged Switch
VOLKTEK INS-8405M 5 Ports GbE DNV GL Certified Unmanaged Switch
VOLKTEK INS-8405M 5 Ports GbE DNV GL Certified Unmanaged Switch
VOLKTEK INS-8405M 5 Ports GbE DNV GL Certified Unmanaged Switch

VOLKTEK INS-8405M 5 Ports GbE DNV GL Certified Unmanaged Switch

SKU: INS-8405M
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
INS-8405M is a 5-port, 10/100/1000 RJ45 downlink unmanaged industrial switch for very elementary communication between controllers and devices in automation settings. It offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications. The switch offers various in-built traffic optimization and network performance features to prioritize PROFINET industrial protocol communication, and QoS Tagged data 802.1p/Tag QoS prevent the loss of data during communication, and stable transmission.

This switch is built with industrial-grade components, enclosed in IP30 metal to protect the device from tools and hazards. This device is Certified DNV GL approved for safe use in marine applications. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • 5 x 10/100/1000 RJ45 ports downlink for multiple Ethernet speed applications
  • Optimizes network performance with Flow Control and QoS for enough bandwidth
  • It prioritizes transmission for industrial applications using PROFINET packets and 802.1p/Tag QoS
  • DNV GL Marine Approval, communication standard for safe and reliable marine operations
  • Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 metal housing
Features

Robust Electrical and Electromagnetic Safeguard

Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.

Simple Installation

Auto-MDI/MDIX (medium dependent interface / MDI crossover) on all ports for easy connection with other switches and hubs.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3 Nway Auto-negotiation
IEEE 802.3x Flow Control

Interface

Ports5 x 10/100Base-TX (RJ45)
LED PanelPWR, 100, LNK/ACT

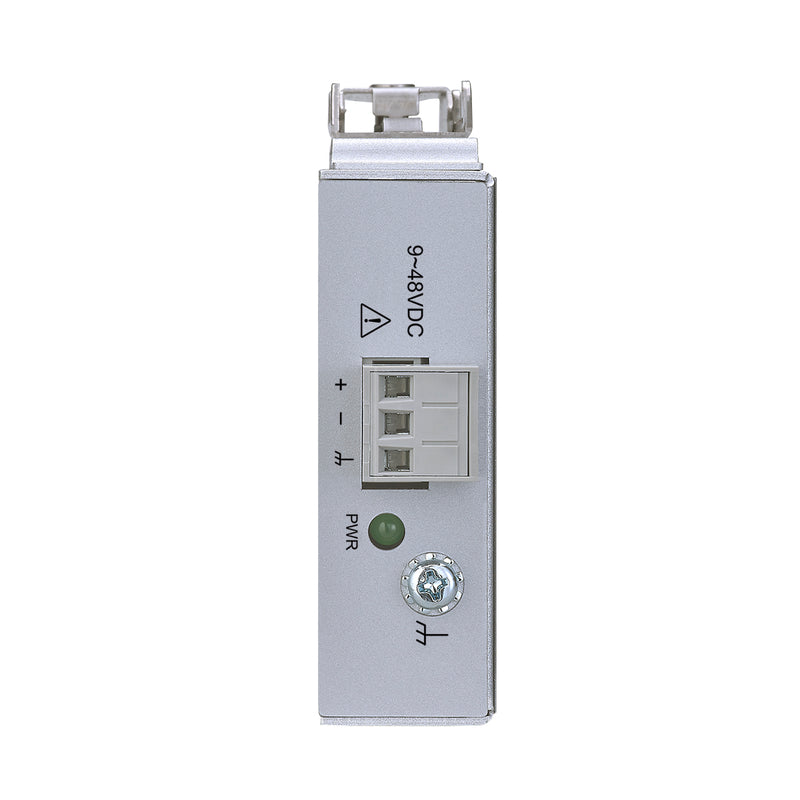

Power

Input Voltage9~48V DC
ConnectionTerminal Block
Power Consumption4W
Surge Protection 6KV
ESD Protection 8KV

Mechanical and Environment

HousingAluminum (IP30 Protection)
MountingDIN-Rail, Wall Mount
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight160 g (0.3 lb)
Dimension (WxHxD)23.6 x 111.5 x 73.8 mm (0.93 x 4.39 x 2.90 in)

Ordering Information

ModelDescription
INS-8405M Unmanaged 5 x 10/100/1000 RJ45 Industrial Switch, DNV GL Marine Approval
