VOLKTEK IEN-9428-RW 8 Ports GbE Railway Certified Unmanaged Switch with 2 SFP Ports

SKU: IEN-9428-RW
VOLKTEK IEN-9428-RW 8 Ports GbE Railway Certified Unmanaged Switch with 2 SFP Ports
VOLKTEK IEN-9428-RW 8 Ports GbE Railway Certified Unmanaged Switch with 2 SFP Ports
VOLKTEK IEN-9428-RW 8 Ports GbE Railway Certified Unmanaged Switch with 2 SFP Ports
VOLKTEK IEN-9428-RW 8 Ports GbE Railway Certified Unmanaged Switch with 2 SFP Ports
VOLKTEK IEN-9428-RW 8 Ports GbE Railway Certified Unmanaged Switch with 2 SFP Ports
VOLKTEK IEN-9428-RW 8 Ports GbE Railway Certified Unmanaged Switch with 2 SFP Ports

VOLKTEK IEN-9428-RW 8 Ports GbE Railway Certified Unmanaged Switch with 2 SFP Ports

SKU: IEN-9428-RW
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
IEN-9428-RW is an 8-port 10/100/1000 RJ45 downlink and 2-port FX/GbE SFP uplink unmanaged industrial-grade switch designed to meet the thermal requirements and environmental conditions of railway applications. The downlink ports connect to industrial devices and controllers. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches or the control center.

To keep a stable transmission of video and data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE. The device allows users to change data priority and speed settings pushing the DIP switch.

This switch is built with industrial-grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits places like tunnels.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • 8 x 10/100/1000 RJ45 ports and 2 x FX/GbE SFP uplink ports for long-distance connectivity to control center and cascading
  • Optimizes network performance with Flow Control and QoS for enough bandwidth
  • It prioritizes transmission for industrial applications using EIP (EtherNet/IP), PROFINET, and GOOSE packets
  • Gives transmission priority to devices and peripherals connected to Port #1 and #2
  • Railway Approval EN 50155, EN 50121-4, EN 61373 Certifications, communication standards for safe and reliable railway operations
Features

Robust Electrical and Electromagnetic Safeguard

Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.

Redundant Power System

To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event.

Eco-friendly Green Ethernet Technology

IEEE 802.3az Energy Efficient Ethernet (EEE) compliant with Green Ethernet technology capable of automatic adjustment of power consumption.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3z1000BASE-SX/LX
IEEE 802.3Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE 802.1pClass of Service

Interface

Ports8 x 10/100/1000BASE-T (RJ45)
2 x 100FX/GbE SFP Slots

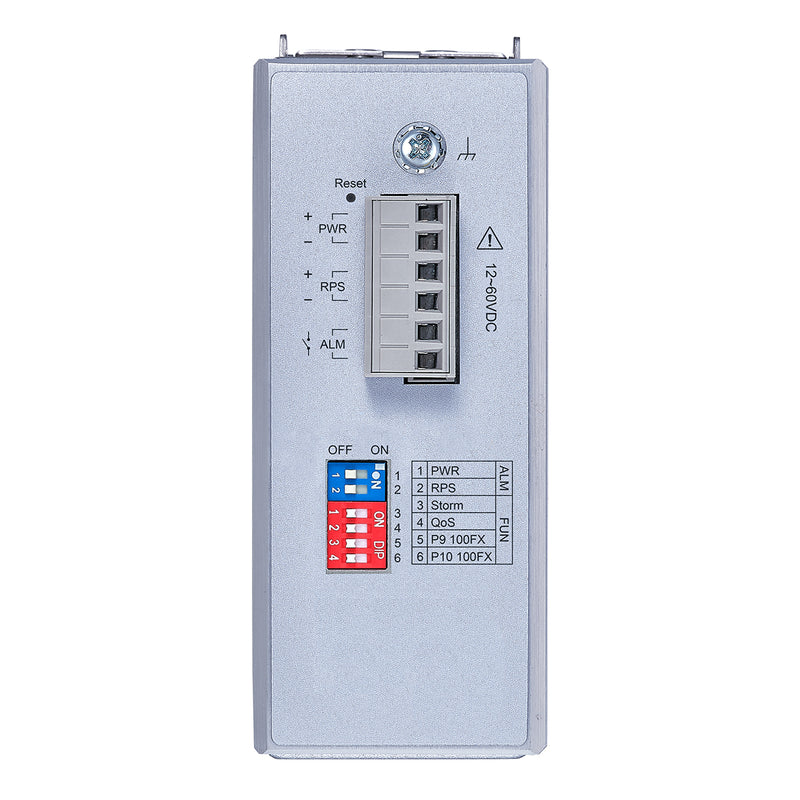

DIP Switch Power voltage drop alarm setting (PWR & RPS),
 Broadcast strom control setting (STORM),
 Port-based QoS setting (QoS on P1 & P2),
 Fiber port speed setting (100FX on P9 & P10)v
LED Panel PWR, SFP, 1000, LNK/ACT

Power

Input Voltage 20V~60VDC
Power Consumption System: 13W
Connection Teminal Block
Alarm RelayOne relay output with current carrying capacity of 1 A @ 24V DC

Mechanical and Environment

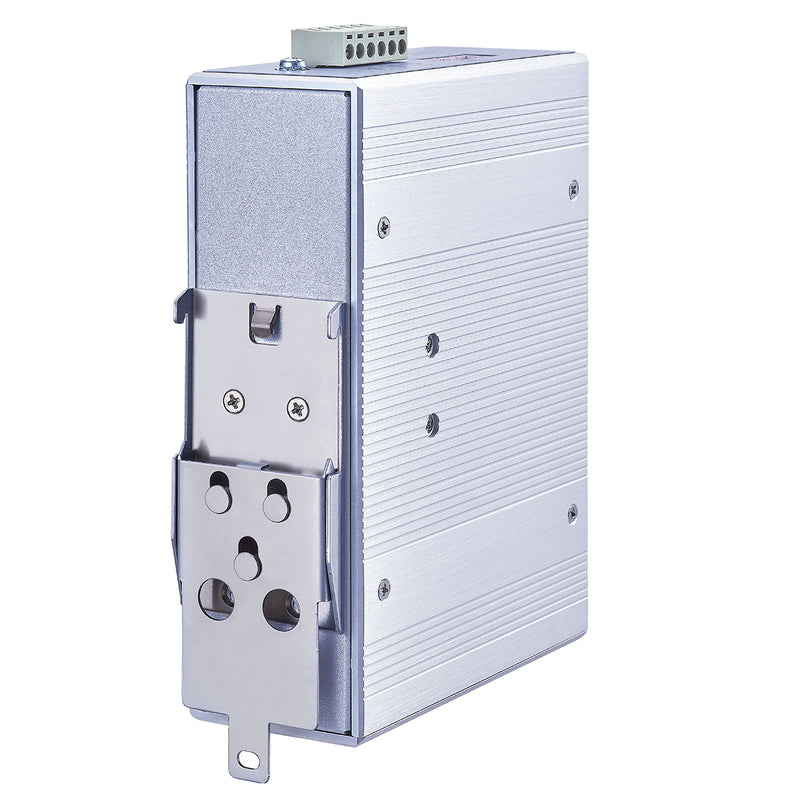

HousingAluminum (IP30 protection)
Mounting Kit DIN-Rail, Rack-mount
Operating Temperature -40°C~75°C (-40°F~167°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity 5 to 95% RH (non-condensing)
Weight930 g (2.0 lb)
Dimension (WxHxD) 50 x 164.9 x 122.2 mm (1.97 x 6.49 x 4.81 in)

Ordering Information

ModelDescription
IEN-9428-RW Unmanaged 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Industrial Switch, Railway Approval
