VOLKTEK IEN-8648-PN 8 Ports GbE PROFINET Compliance Managed Switch with 4 SFP Ports
SKU: IEN-8648-PN
Product Highlights
- 8 x 10/100/1000 RJ45 ports and 4 x GbE SFP uplink ports for long-distance, noise-free to control devices and daisy chain connection
- Optimizes network performance with Storm and Flow Control and QoS for enough bandwidth
- DIP control lets users decide important port settings by pushing a simple switch
- PROFINET Compliant, communication standard in industrial applications
- Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 Aluminum housing
Features
Accident Proof
Engineered to withstand electromagnetic interference, electrostatic discharge, power surge, over-voltage, over-current, and reverse polarity in the event of an accident.
SFP Digital Diagnostic Monitoring
The DDM feature monitors SFP real-time parameters to diagnose faults efficiently. Users receive automatic warning messages through e-mail and relay output with real-time alarm messages.
Network Segmentation and Improved Traffic
VLANs to segment the network into smaller parts and organize them into separate broadcast domains to control traffic, limit broadcast traffic, and reduce broadcast storms. At the same time, the switch offers the GVRP protocol to eliminate unnecessary network traffic.
Network Redundancy
Volktek's industrial switches redundant ring architecture enhances network reliability and makes them ideal for deploying secure automation network systems in tough outdoor industrial environments, such as ITS, maritime, mining, and manufacturing systems. With Volktek Xpress Ring there are various choices of ring topologies, including Xpress Ring, Dual Xpress Ring, Dual Homing, in rapid recovery time (<20ms @ 250 switches). G.8032v2, Ethernet Ring Protection Switching (ERPS) protocol, provides protection for Ethernet traffic in a multiple ring topology with a fast recovery time (less than 50ms).VLANs to segment the network into smaller parts and organize them into separate broadcast domains to control traffic, limit broadcast traffic, and reduce broadcast storms. At the same time, the switch offers GVRP protocol to eliminate unnecessary network traffic.
Redundant Power System
To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3u | 100BASE-FX |
| IEEE 802.3z | 1000BASE-SX/LX |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
| IEEE 802.3ad | Link Aggregation |
| IEEE 802.1AB | LLDP |
| IEEE 802.1ad | QinQ |
| IEEE 802.1D | STP |
| IEEE 802.1w | MSTP |
| IEEE 802.1p | Class of Service |
| IEEE 802.1Q | VLAN Tagging |
| IEEE 802.1X | Port Authentication |
| IEEE 1588v2 | PTP |
Interface
| Ports | 8 x 10/100/BASE-T
4 x FX/GbE SFP Slots 1 x RJ45 Console Port |
|---|---|

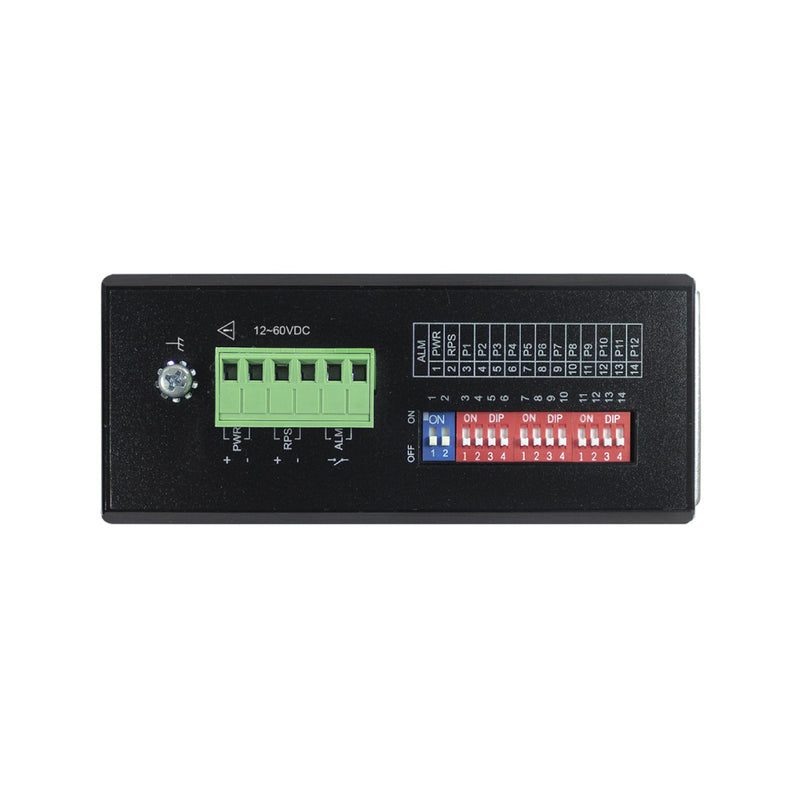

| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Panel | PWR, RPS, ALM, POST, LASER ON, 1000, LNK/ACK, OFF LINE,100v |
Power
| Input Voltage | Primary inputs：12~60VDC
Redundant inputs：12~60VDC |
|---|---|
| Connector | Teminal Block |
| Power Consumption | System：18W |
| Alarm Relay | One relay output, 1 A @ 24V DC |
Mechanical and Environment
| Housing | Metal Case (IP30 protection) |
|---|---|

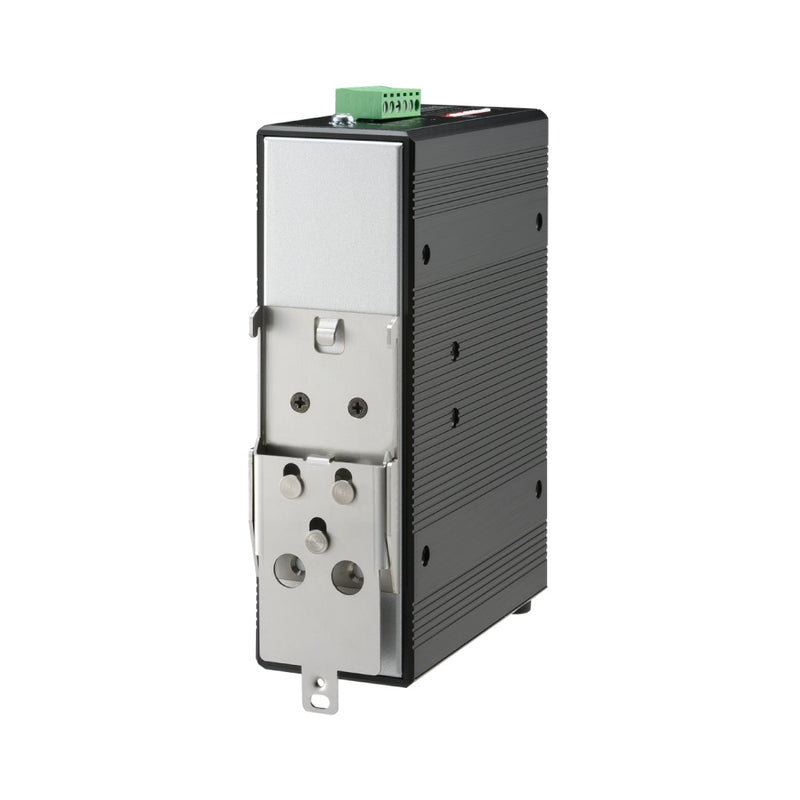

| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 860 g (1.9 lb) |
| Dimension (WxHxD) | 50 x 165 x 122.2 mm (1.97 x 6.50 x 4.81 in) |
Ordering Information
| Model | Description |
|---|---|
| IEN-8648-PN | Managed 8 x 10/100/1000 RJ45 & 4 x GbE SFP Industrial Switch, PROFINET Approval |
