VOLKTEK INS-8624 4 Ports GbE Managed Switch with 2 SFP Ports

SKU: INS-8624
VOLKTEK INS-8624 4 Ports GbE Managed Switch with 2 SFP Ports
VOLKTEK INS-8624 4 Ports GbE Managed Switch with 2 SFP Ports
VOLKTEK INS-8624 4 Ports GbE Managed Switch with 2 SFP Ports
VOLKTEK INS-8624 4 Ports GbE Managed Switch with 2 SFP Ports
VOLKTEK INS-8624 4 Ports GbE Managed Switch with 2 SFP Ports
VOLKTEK INS-8624 4 Ports GbE Managed Switch with 2 SFP Ports

VOLKTEK INS-8624 4 Ports GbE Managed Switch with 2 SFP Ports

SKU: INS-8624
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way

INS-8624 is a high-performance 4-port 10/100/1000 RJ45 downlink, and 2-port multi-rate FX/GbE SFP uplink managed industrial switch designed for communication between controllers and devices in automation settings. The SFP ports offer long-distance, noise-free fiber transmissions that adapt to Fast and Gigabit Ethernet speeds. It is used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. It offers auto-negotiation on all its ports and Modbus TCP to aggregate devices easily in industrial Ethernet applications.

The switch optimizes traffic with Storm, and Flow Control, and QoS - it prioritizes industrial data packets, prevents the loss of data during communication, and offers a stable transmission. It has a topology map to visualize the network and complies with cybersecurity standards to safeguard the network from vulnerabilities.


This switch is built with industrial-grade components and enclosed in an IP30 aluminum case with high thermal conductivity, which protects the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F), it suits extreme industrial applications. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
Datasheet
Product Highlights
  • 4 x 10/100/1000 RJ45 ports and 2 x FX/GbE SFP uplink ports for long-distance connectivity to control devices
  • Topology Map for network monitoring
  • Optimizes network performance with Storm and Flow Control and QoS
  • Operating temperature -40℃~75℃ (-40°F~167°F) and an IP30 Aluminum housing
Features

Robust Electrical and Electromagnetic Safeguard

Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.

Redundant Power System

Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.

Fiber Connectivity with Dual SFP Ports

Dual Gigabit SFP slots for future expansion of fiber-based daisy chain topologies.

Port-based and IEEE 802.1Q VLAN

GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) for segmentation of large networks into smaller parts and separate broadcast domains.

Efficient Traffic Prioritization

Effective QoS mechanisms for priority assignment, transmission of dedicated traffics to specific applications, and allocation of appropriate bandwidth to mission-critical communications.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3u 100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE 802.3adLink Aggregation
IEEE 802.3azEnergy Efficient Ethernet (EEE)
IEEE 802.1ABLLDP
IEEE 802.1DSTP
IEEE 802.1wRSTP
IEEE 802.1pClass of Service
IEEE 802.1QVLAN Tagging
IEEE 802.1XPort Authentication

Interface

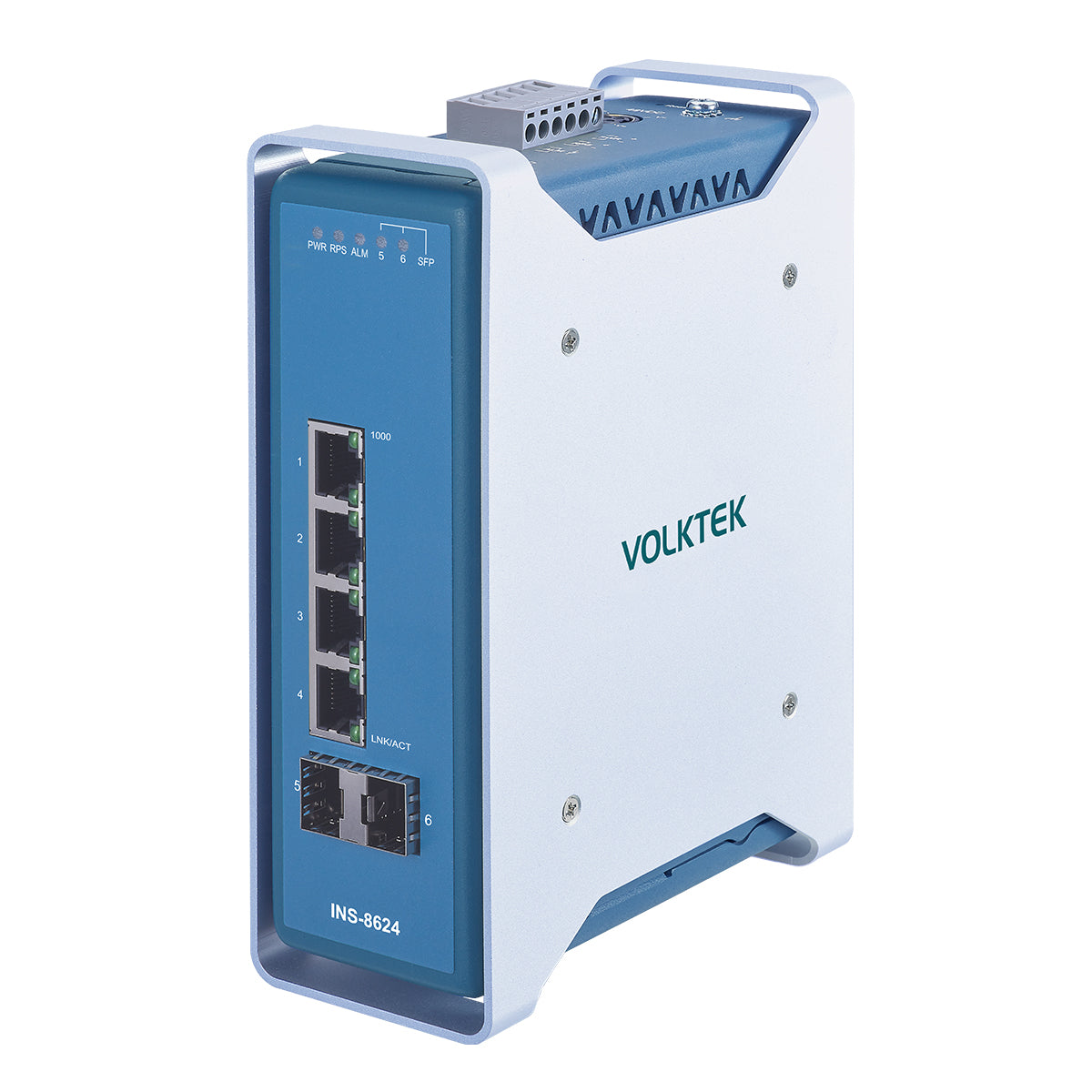

Ports4 x 10/100/1000BASE-T (RJ45)
 2 x GbE SFP Slots

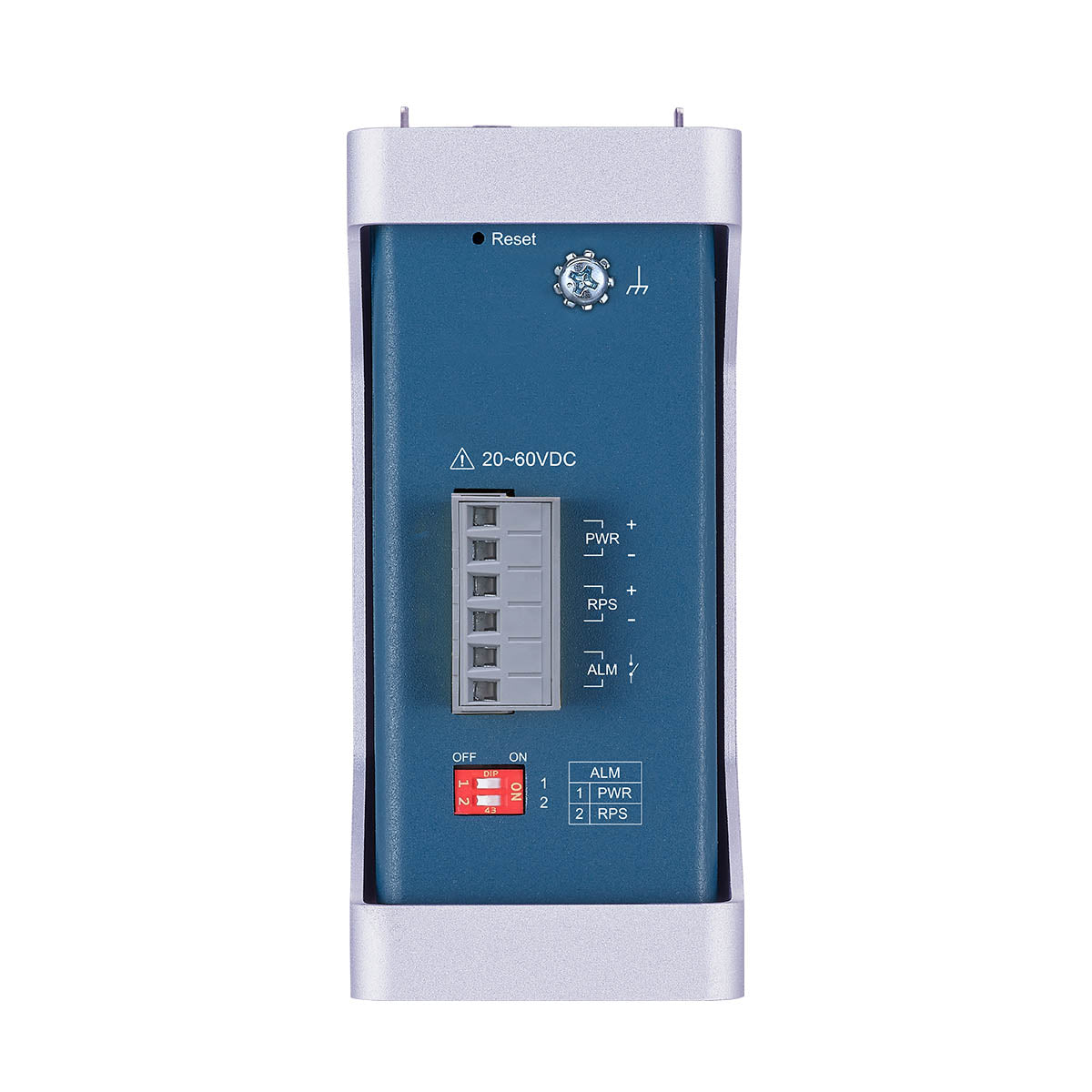

DIP SwitchPrimary/Redundant Power Voltage Drop Alarm setting
LED Panel PWR, RPS, ALM, SFP, 1000, LNK/ACT

Power

Input VoltagePrimary inputs：20~57VDC
 Redundant inputs：20~57VDC
Connector Teminal Block
Power Consumption10W
Alarm Relay One relay output, 1 A @ 24V DC

Mechanical and Environment

HousingMetal Case (IP30 protection)

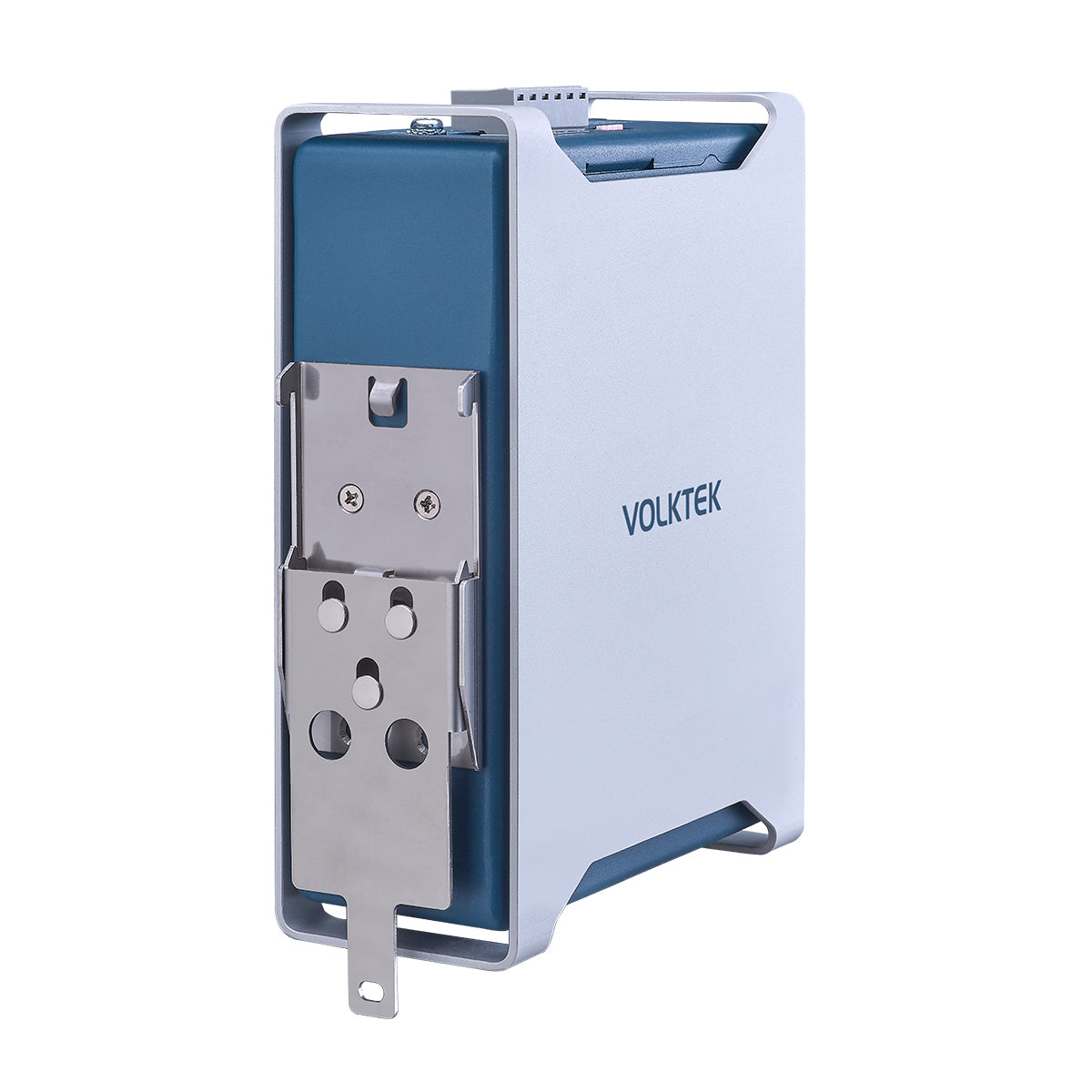

MountingDIN-Rail
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight725 g (1.6 lb)
Dimension (WxHxD)50 x 164.9 x 122.2 mm (1.97 x 6.49 x 4.81 in)

Ordering Information

ModelDescription
INS-8624 Managed 4 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch
