VOLKTEK INS-8615 5 Ports GbE Managed Switch with 1 SFP Port
SKU: INS-8615
Product Highlights
- 5 x 10/100/1000 RJ45 ports and 1 x FX/GbE SFP uplink ports for long-distance connectivity to control devices
- Topology Map for network monitoring
- Energy Efficient Ethernet (IEEE 802.3az) standard to reduce power consumption
- Optimizes network performance with Storm and Flow Control and QoS
- Operating temperature -40℃~75℃ (-40°F~167°F) and IP30 metal housing
Features
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.
Efficient Network Monitoring and Management
SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring.
Port-based and IEEE 802.1Q VLAN
SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring.
Efficient Traffic Prioritization
Effective QoS mechanisms for priority assignment, transmission of dedicated traffics to specific applications, and allocation of appropriate bandwidth to mission-critical communications.
Gigabit Connectivity
5 10/100/1000Base-T ports and 1 Gigabit SFP slot for long-distance transmission via fiber port.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3u | 100BASE-FX |
| IEEE 802.3z | 1000BASE-SX/LX |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
| IEEE 802.3ad | Link Aggregation |
| IEEE 802.3az | Energy Efficient Ethernet (EEE) |
| IEEE 802.1AB | LLDP |
| IEEE 802.1D | STP |
| IEEE 802.1w | RSTP |
| IEEE 802.1p | Class of Service |
| IEEE 802.1Q | VLAN Tagging |
| IEEE 802.1X | Port Authentication |
Interface

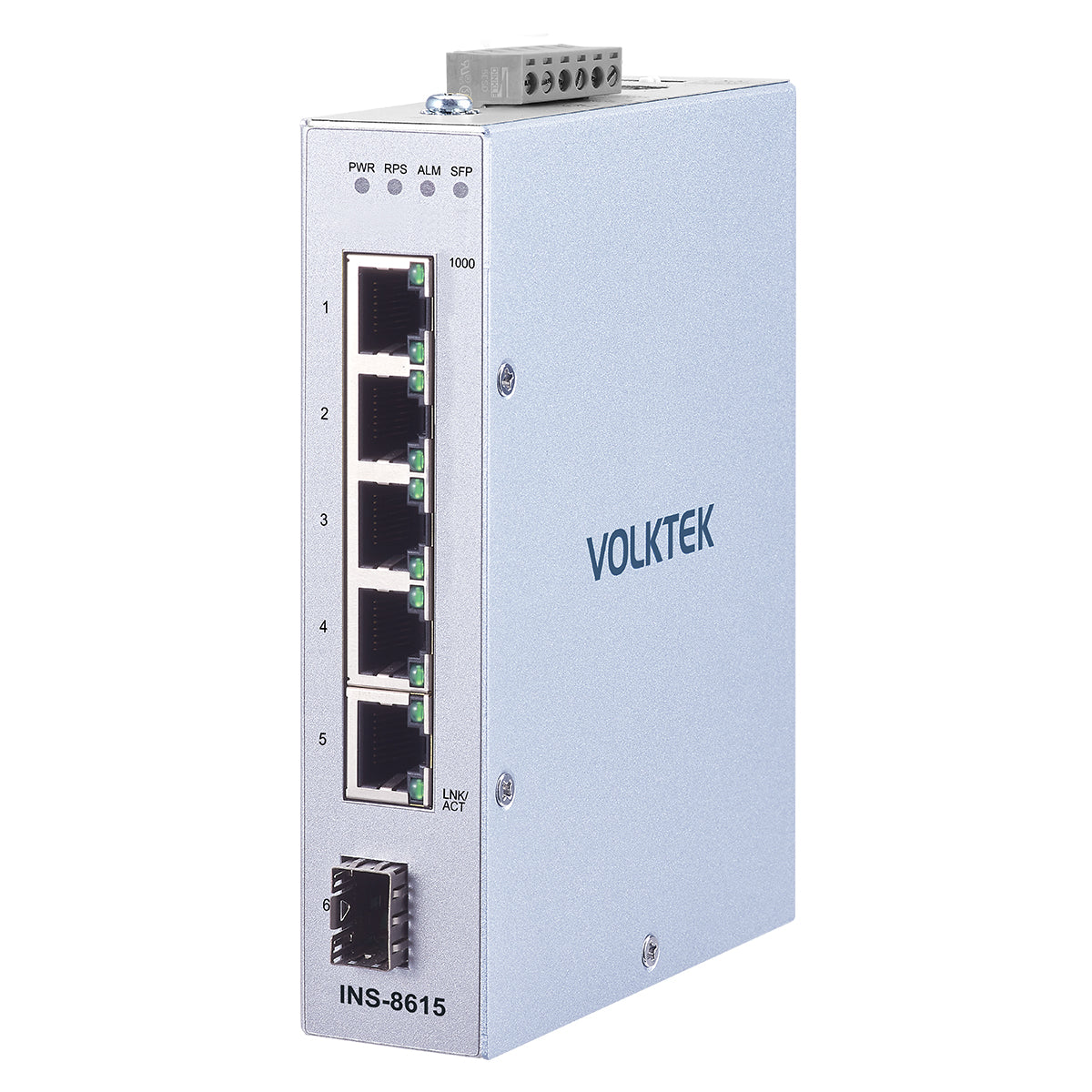

| Ports | 5 x 10/100/1000BASE-T (RJ45)
1 x GbE SFP Slot |
|---|---|

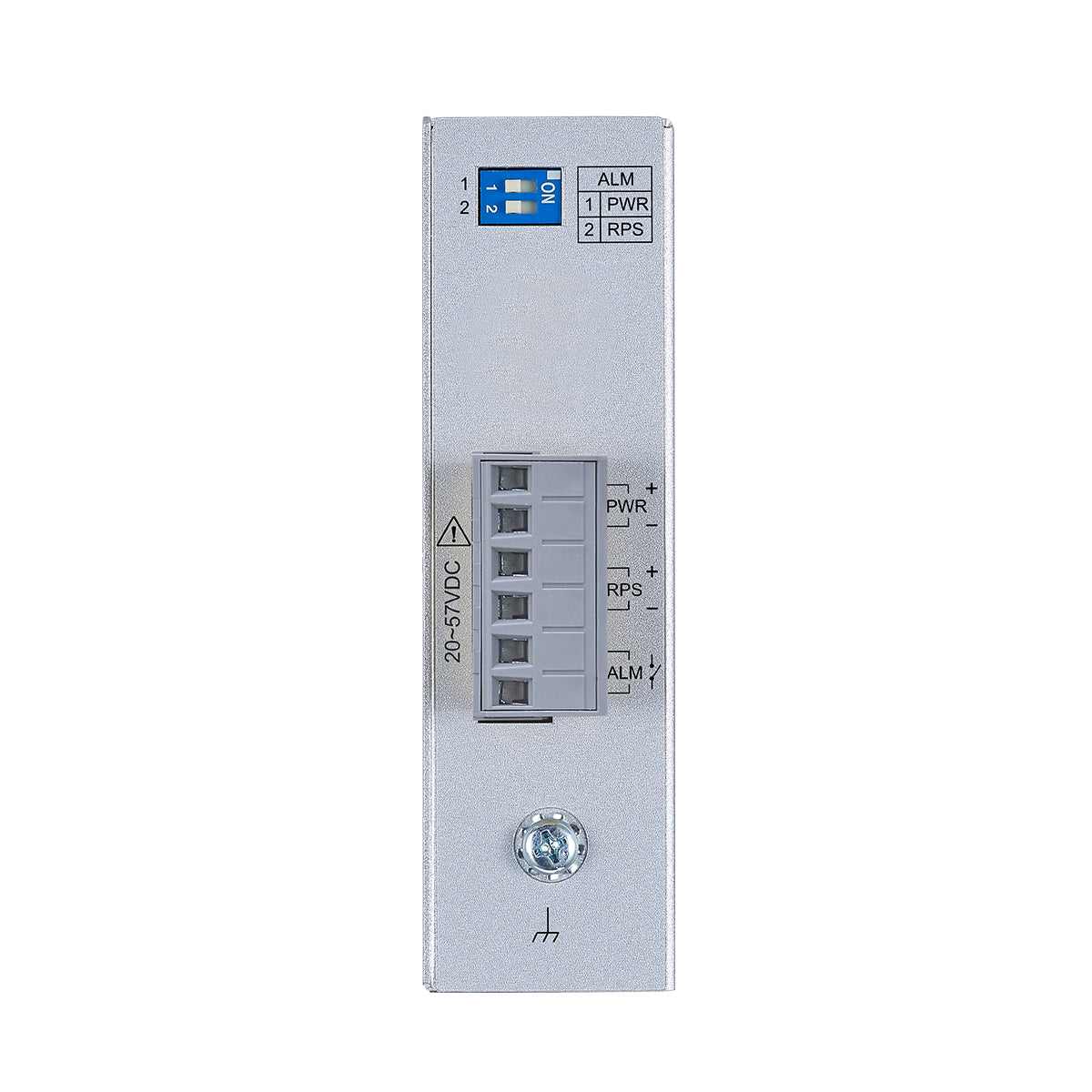

| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Indicator | PWR, RPS, ALM, SFP, 1000, LNK/ACT |
Power
| Input Voltage | Primary inputs：20~57VDC
Redundant inputs：20~57VDC |
|---|---|
| Connector | Teminal Block |
| Power Consumption | 10W |
| Alarm Relay | One relay output, 1 A @ 24V DC |
Mechanical and Environment
| Housing | Metal Case (IP30 protection) |
|---|---|

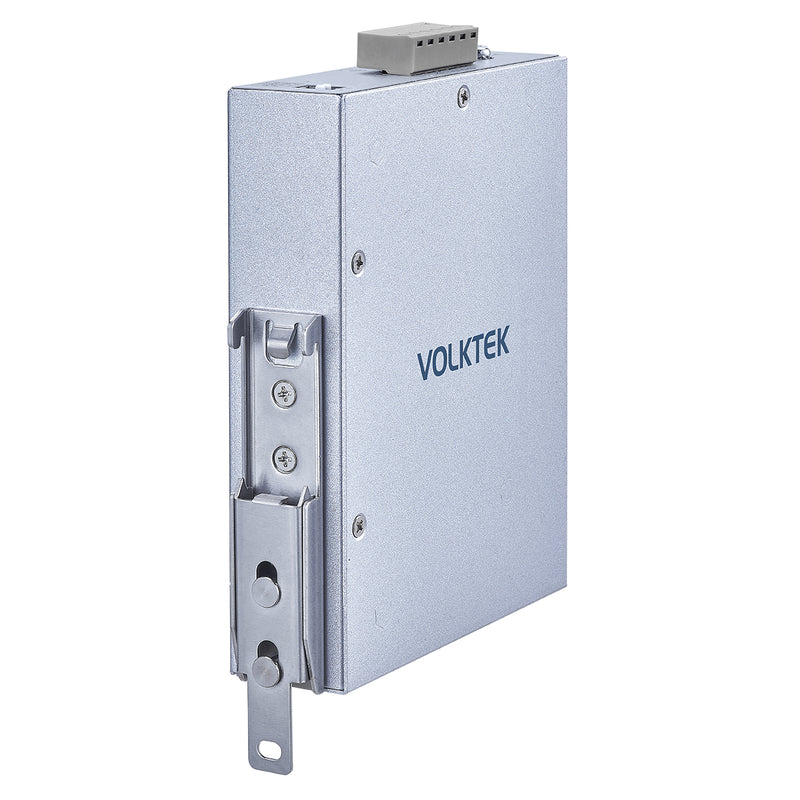

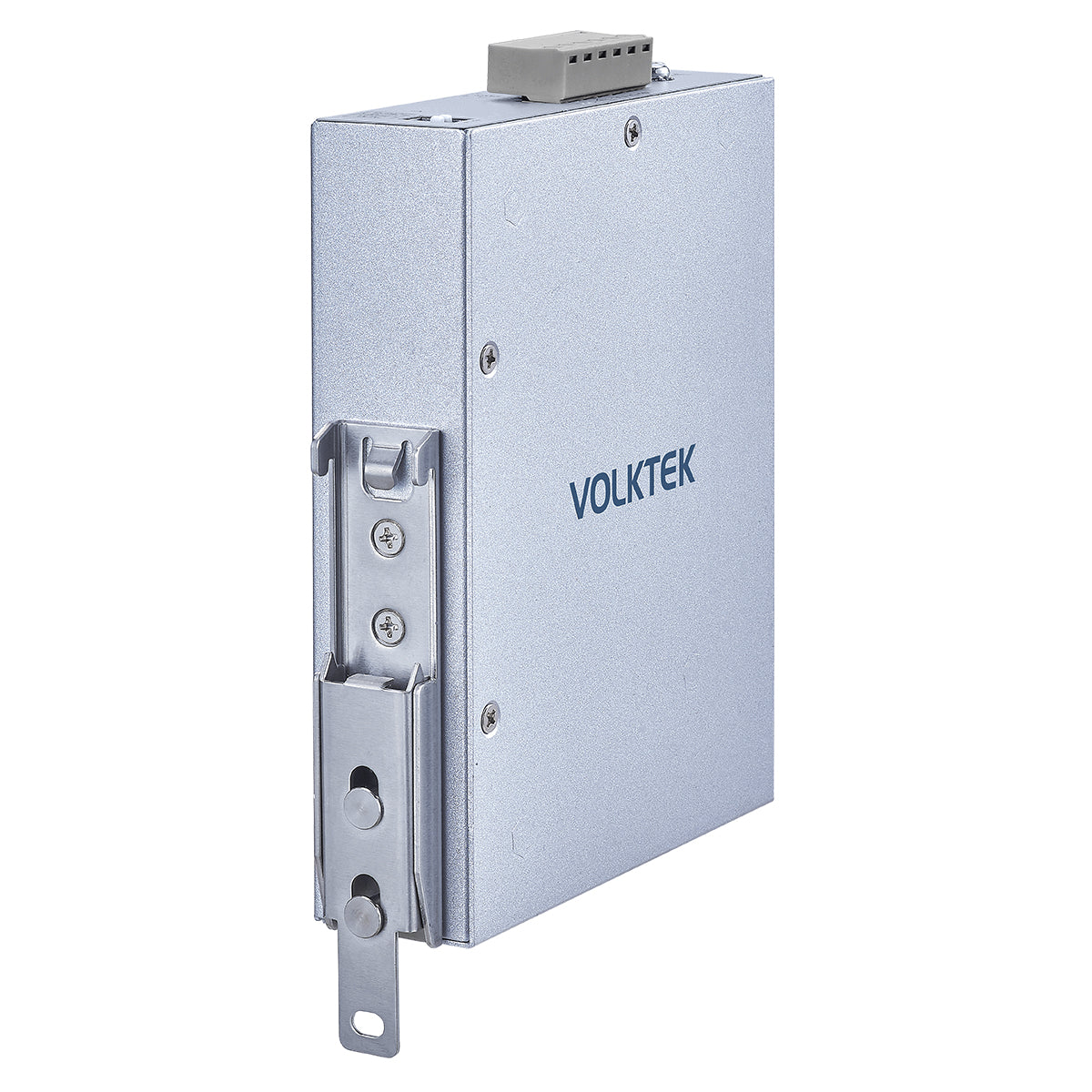

| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 515 g (1.1 lb) |
| Dimension (WxHxD) | 31 x 139.4 x 118.2 mm (1.22 x 5.49 x 4.65 in) |
Ordering Information
| Model | Description |
|---|---|
| INS-8615 | Umanaged 5 x 10/100/1000 RJ45 & 1 x GbE SFP Industrial Switch |
