VOLKTEK INS-8415 5 Ports GbE Unmanaged Switch with 1 SFP Port

SKU: INS-8415
VOLKTEK INS-8415 5 Ports GbE Unmanaged Switch with 1 SFP Port
VOLKTEK INS-8415 5 Ports GbE Unmanaged Switch with 1 SFP Port
VOLKTEK INS-8415 5 Ports GbE Unmanaged Switch with 1 SFP Port
VOLKTEK INS-8415 5 Ports GbE Unmanaged Switch with 1 SFP Port
VOLKTEK INS-8415 5 Ports GbE Unmanaged Switch with 1 SFP Port
VOLKTEK INS-8415 5 Ports GbE Unmanaged Switch with 1 SFP Port
VOLKTEK INS-8415 5 Ports GbE Unmanaged Switch with 1 SFP Port
VOLKTEK INS-8415 5 Ports GbE Unmanaged Switch with 1 SFP Port

VOLKTEK INS-8415 5 Ports GbE Unmanaged Switch with 1 SFP Port

SKU: INS-8415
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
INS-8415 is an unmanaged 5-port, 10/100/1000 RJ45 downlink, and 1-port GbE SFP uplink industrial switch for communication between controllers and devices in automation settings. The device can be used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. Additionally, it offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications.

The switch offers various in-built traffic optimization and network performance features to prioritize important industrial data packets, prevent the loss of data during communication, and stable transmission.

This switch is built with industrial grade components, enclosed in an IP30 metal case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
Sold Out
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
LOGITECH M310T Wireless Mouse
LOGITECH M310T Wireless Mouse
LOGITECH M310T Wireless Mouse
Enquire with us
Datasheet
Product Highlights

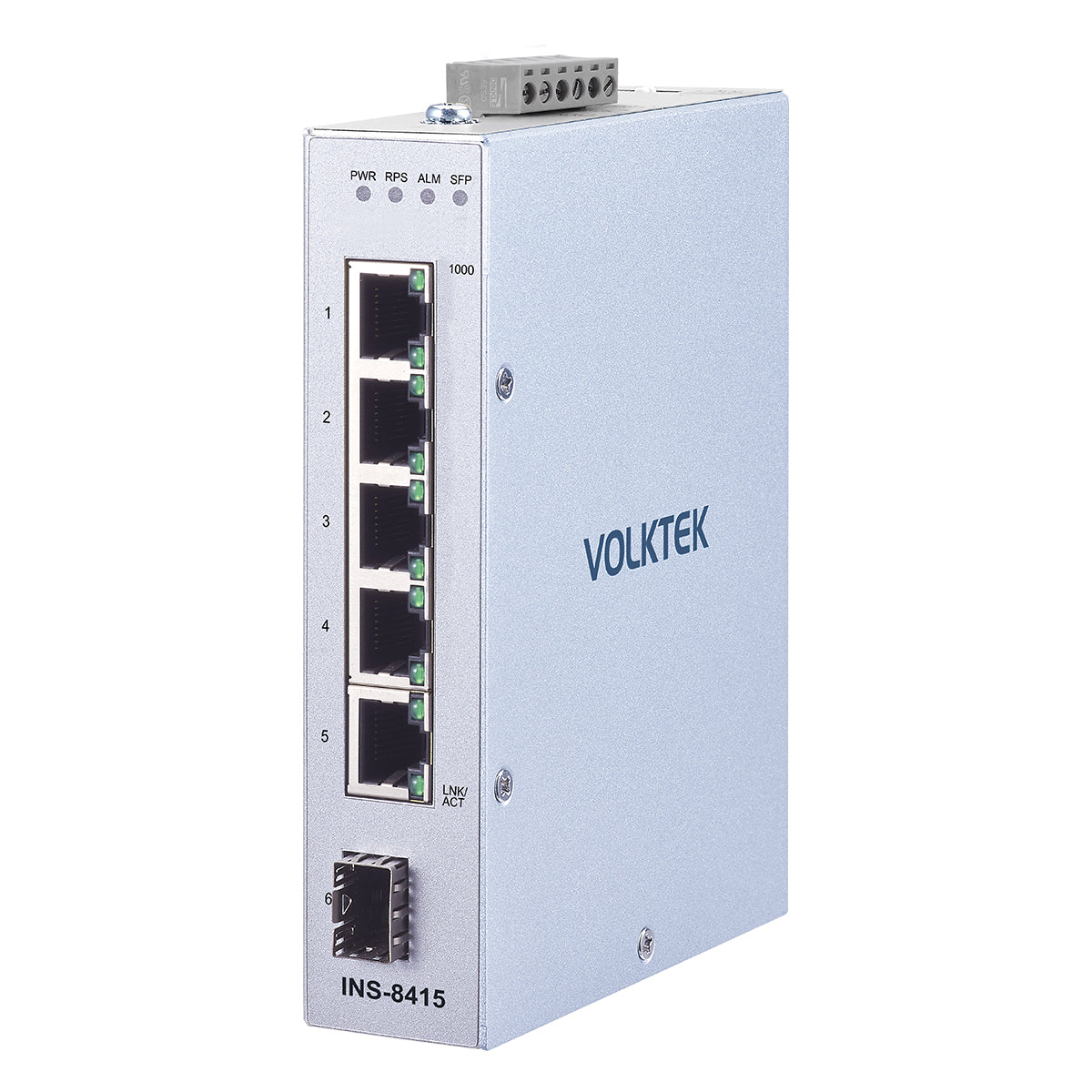

  • 5 x 10/100/1000 RJ45 ports and 1 x GbE SFP uplink port for long-distance fast-speed connectivity
  • Auto-negotiation ports allow operation without extra device installation
  • Industrial QoS prioritizes EIP (EtherNet/IP), PROFINET, and GOOSE packets
  • Redundant Power Supply and Alarm Relay Contact on Terminal Block to ensure non-stop operations
  • Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 metal housing
Features

Robust Electrical and Electromagnetic Safeguard

Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.

Simple Installation

Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3 Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE 802.1pClass of Service

Interface

Ports5 x 10/100/1000BASE-T (RJ45)
 1 x GbE SFP Slot
DIP SwitchPrimary/Redundant Power Voltage Drop Alarm setting
LED Indicator PWR, RPS, ALM, SFP, 1000, LNK/ACT

Power

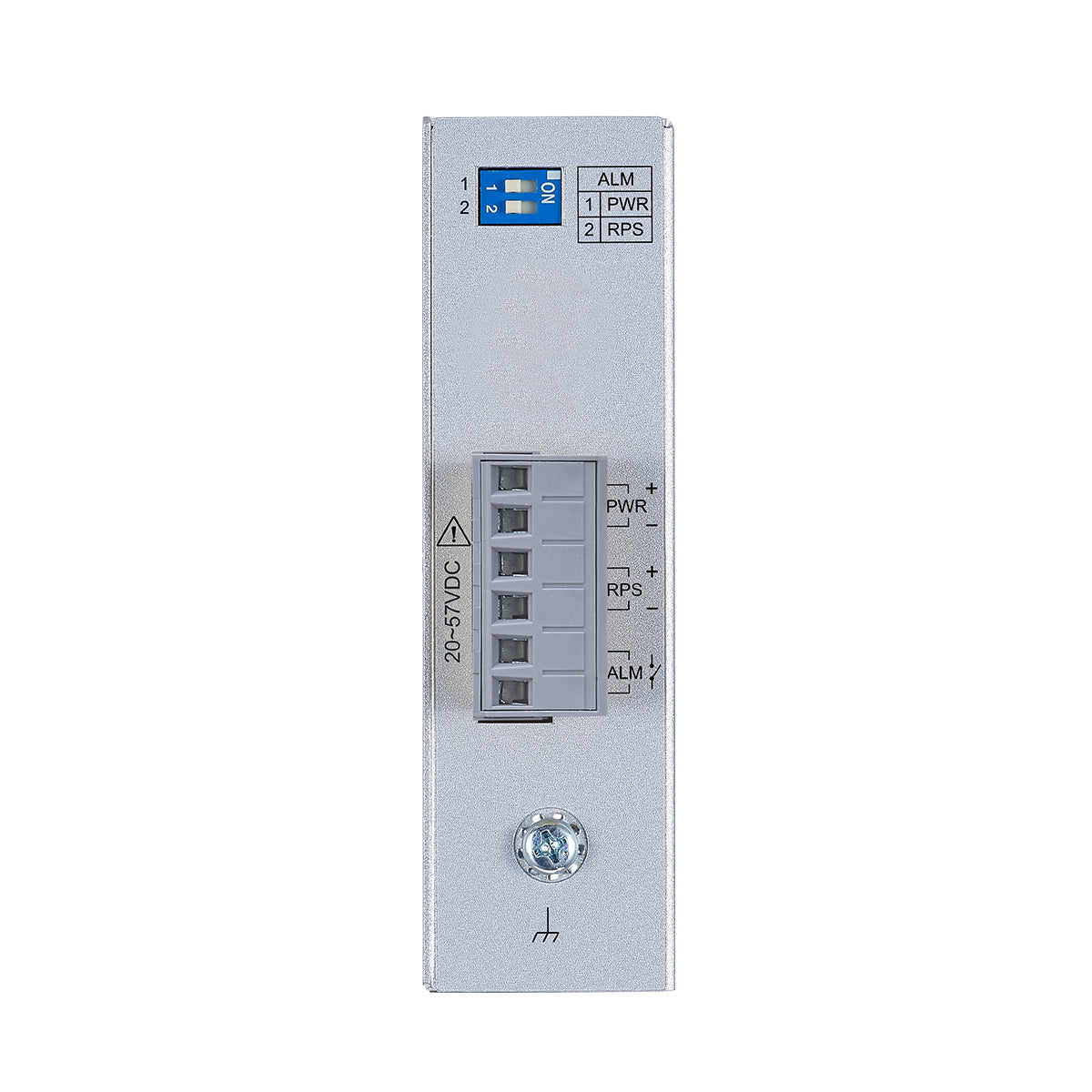

Input VoltagePrimary: 20~57V DC
Redundant: 20~57V DC
Connector Terminal block, Mini-DIN
Power Input Polarity ProtectionPresent
Power Voltage Drop Alarm Primary/Redundant Power Input
Alarm Relay One relay output, 1 A @ 24V DC
Power Consumption10W

Mechanical and Environment

HousingMetal Case (IP30 protection)

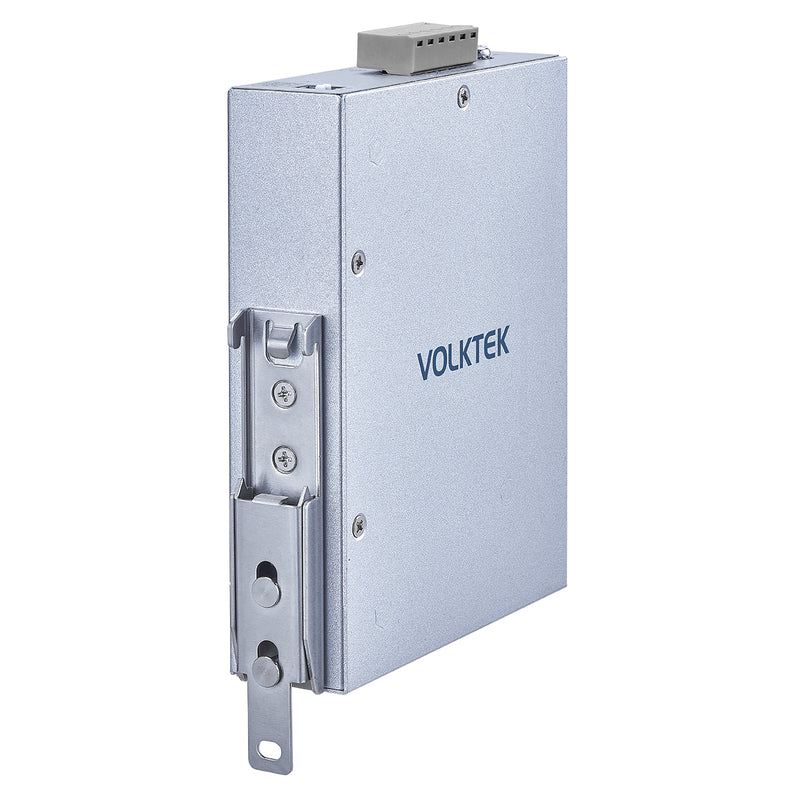

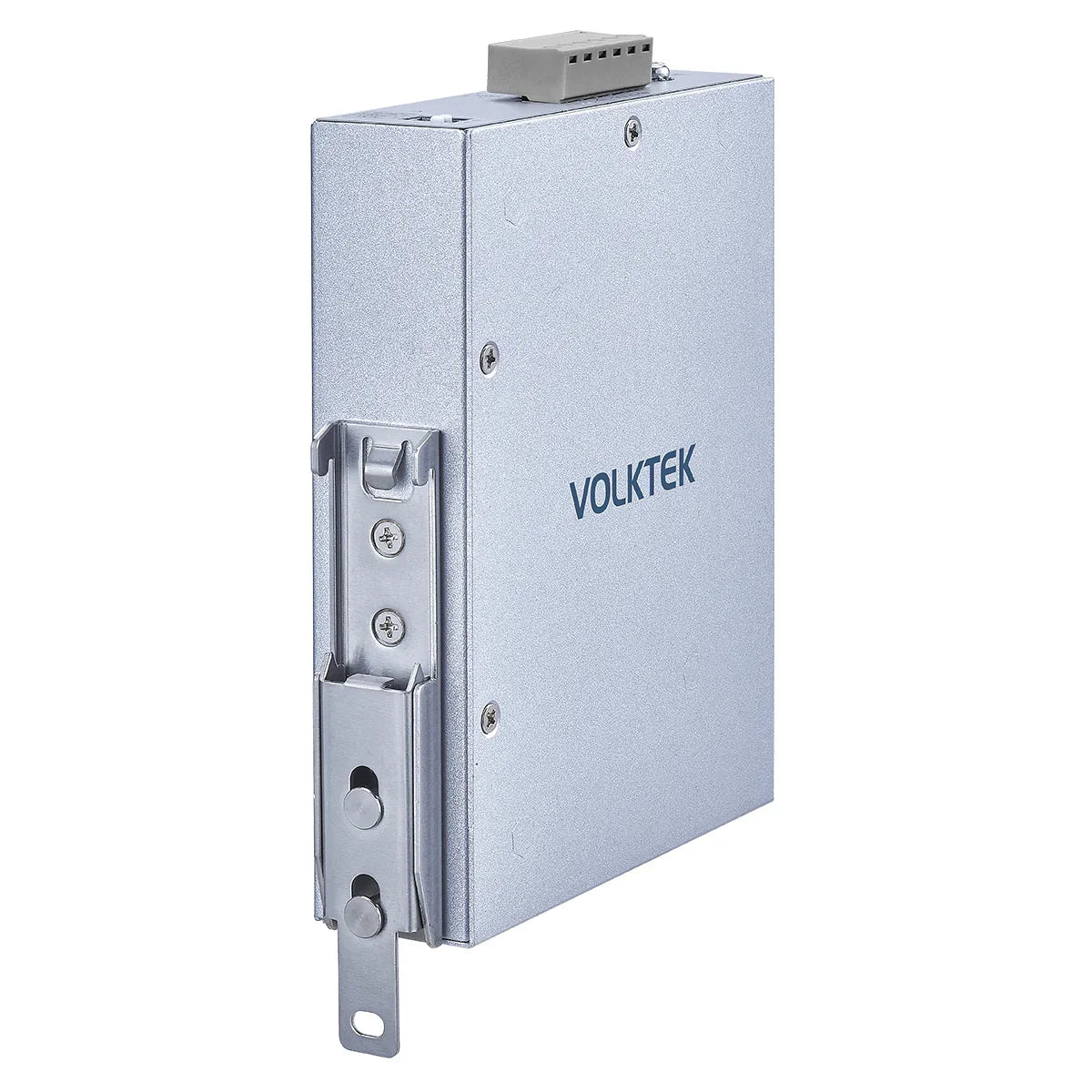

MountingDIN-Rail, Wall Mount (Optional)
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight510 g (1.1 lb)
Dimension (WxHxD)31 x 139.4 x 118.2 mm (1.22 x 5.49 x 4.65 in)

Ordering Information

ModelDescription
INS-8415 Umanaged 5 x 10/100/1000 RJ45 & 1 x GbE SFP Industrial Switch
