VOLKTEK INS-8405A 5 Ports GbE Unmanaged Switch

SKU: INS-8405A
VOLKTEK INS-8405A 5 Ports GbE Unmanaged Switch
VOLKTEK INS-8405A 5 Ports GbE Unmanaged Switch
VOLKTEK INS-8405A 5 Ports GbE Unmanaged Switch

VOLKTEK INS-8405A 5 Ports GbE Unmanaged Switch

SKU: INS-8405A
Regular price Enquire with us
Enquire with us /
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way

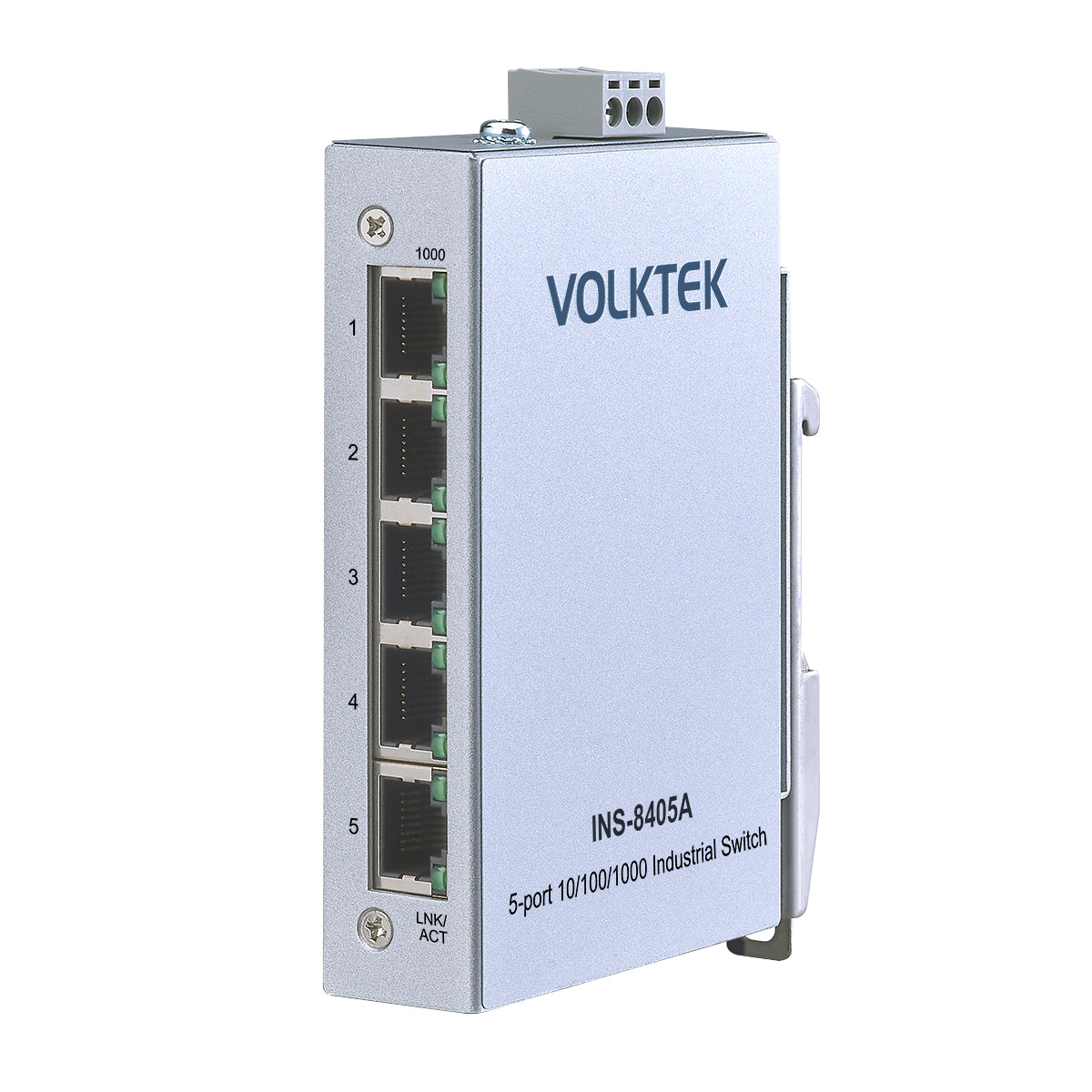

INS-8405A is an unmanaged 5-port, 10/100/1000 RJ45 downlink industrial switch for very elementary communication between controllers and devices in automation settings. It offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications. The switch offers various in-built traffic optimization and network performance features with Storm and Flow Control and is VLAN aware to improve the transmission of data and increase safety in the communication of devices. This switch is built with industrial-grade components, enclosed in an IP30 metal case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40°C~75°C (-40°F~167°F) it suits extreme industrial environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
Sold Out
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us Enquire with us
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us Enquire with us
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
Enquire with us Enquire with us
LOGITECH BRIO 4K Webcam
LOGITECH BRIO 4K Webcam
LOGITECH BRIO 4K Webcam
Enquire with us Enquire with us
Product Highlights
  • 5 x 10/100/1000 RJ45 ports downlink for multiple Ethernet speed applications
  • Auto-negotiation ports allow operation without extra device installation
  • Optimizes network performance with Flow & Storm Control
  • VLAN Passthru makes transmission of data more efficient
  • Resistant to interference in environments with multiple types of machinery
  • Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 metal housing
Features

Ruggedized Components Designed for Harsh Industrial Environments

Built with industrial-grade components, good thermal conductivity, and enclosed in an IP30 metal case, this Ethernet switch is resistant to extreme environments, vibration, EMI (electromagnetic interference), ESD (electrostatic discharge), power surge, over-voltage, over-current, and reverse polarity. It withstands operation at extreme temperatures between -40°C~75°C (-40°F~167°F). It follows international safety standards like CE, FCC, and ROHS for safe operation.

Quick and Convenient Installation with Auto-negotiation

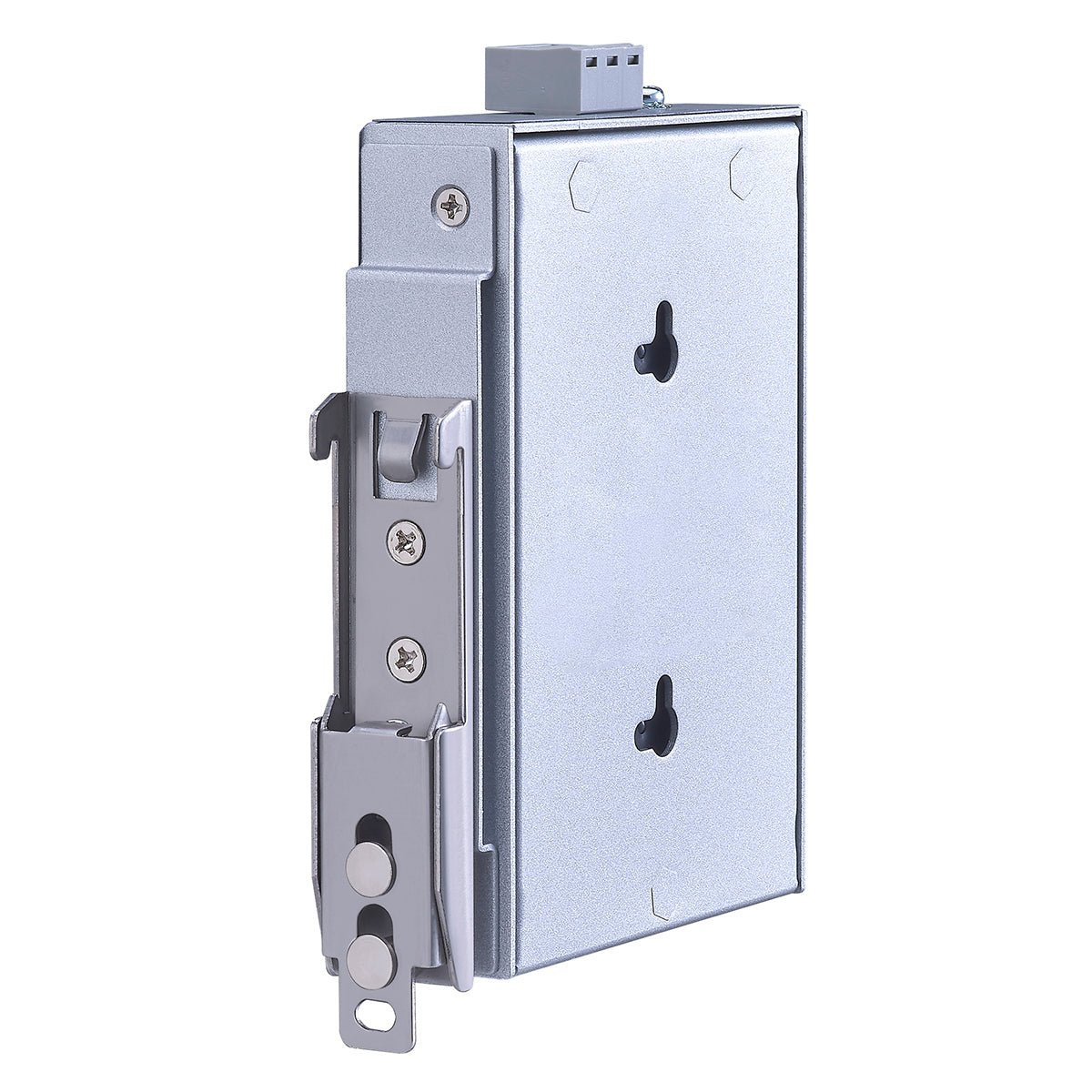

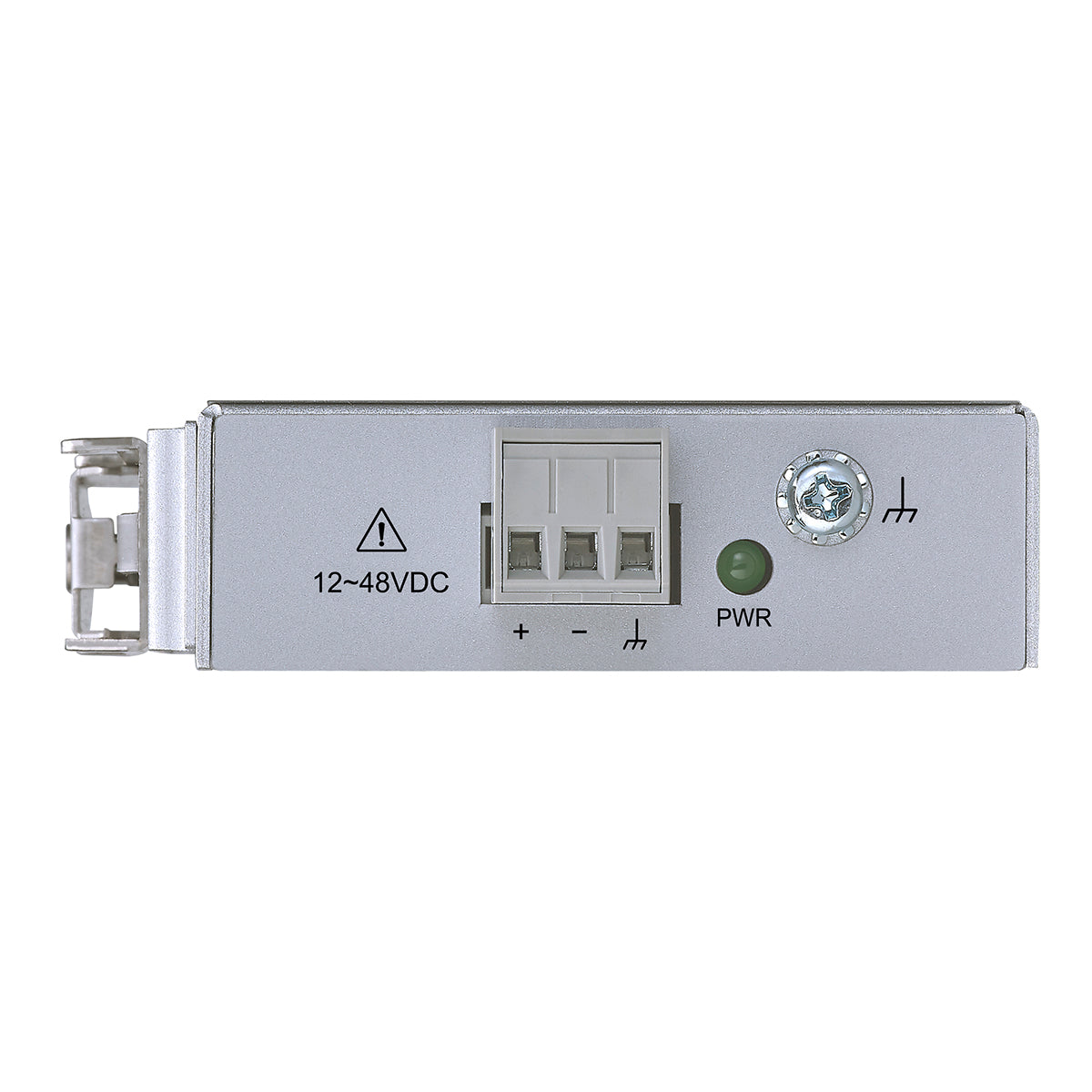

INS-8405A works as soon as it is connected and makes installation convenient. One 12~48VDC power supply connects to the 3-pin terminal block for power. The 10/100/1000 Mbps ports use MDI/MDI-X connection for auto-negotiation to work as soon as connected to other network devices at the required speed without extra software installation needed. The LED light displays when the device is in operation. The slim and small design allows it to fit at different locations for many devices to operate in the same network and can be mounted to a standard TH35 DIN rail.

Traffic Control Mechanisms to Optimize Bandwidth Usage

Traffic control mechanisms regulate excessive traffic to avoid delay, data loss and connection issues between devices. INS-8405A offers mechanisms such as Flow and Storm Control that prevent devices from overwhelming each other during the exchange of data and to keep the flux at a tolerable rate, hence keeping devices working within their capacity and avoiding the network from collapsing.

Intelligent VLAN Data Forwarding

INS-8405A is aware enough to read the source and destination of VLAN tagged data packets. This unmanaged switch delivers VLAN packets without changing or dropping them assuring operational data in industrial fields is delivered safely across devices.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE802.3azClass of Service

Interface

Ports 5 x 10/100/1000BASE-T (RJ45)
LED Panel PWR, 1000, LNK/ACT

Power

Input Voltage12~48VDC
Connection Terminal Block
Power Input Polarity ProtectionPresent
Current Overload Protection Present
Power Consumption3W

Mechanical and Environment

HousingAluminum (IP30 Protection)
Mounting DIN-Rail, Wall Mount
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Operating Humidity5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight160 g (0.3 lb)
Dimension (WxHxD)23.6 x 111.5 x 73.8 mm (0.93 x 4.39 x 2.90 in)

Ordering Information

ModelDescription
INS-8405A Unmanaged 5 x 10/100/1000 RJ45 Industrial Switch
