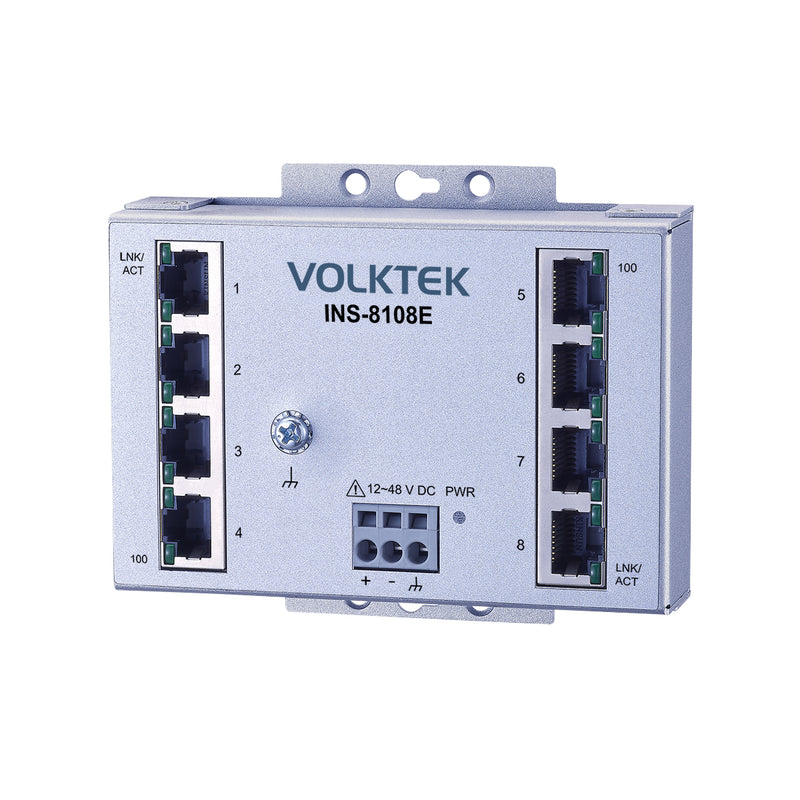

VOLKTEK INS-8108E 8-Ports FE Unmanaged Switch
SKU: INS-8108E
Product Highlights
- 8 x 10/100 RJ45 ports for Fast Ethernet speed application devices with Premium features
- Auto-negotiation ports allow operation without extra device installation
- Keeps flow at a constant rate to avoid overflow and prevents data storms with Flow and Storm Control
- Prevents packet loss with VLAN Pass-through by forwarding VLAN packets
- Industrial QoS prioritizes EIP (EtherNet/IP), PROFINET, and GOOSE packets
- Operating temperatures -40℃~75℃ (-40°F~167°F) and aluminum housing
Features
Protected Against Unpredictable and Harsh Environment
Engineered to withstand electrostatic discharge, power surge, over-voltage, over-current, high-vibration, and reverse polarity in the event of an accident.
Simple Installation and Compact Size
Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.
Broadcast Storm
Monitors traffic storm levels of the incoming broadcast packet rate and limits over an interval of time to prevent unnecessary traffic and safeguard performance.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
| IEEE 802.1p | Class of Service |
Interface
| Ports | 5 x 10/100BASE-TX (RJ45) |
|---|---|
| LED Panel | PWR, 100, LNK/ACT |
Power
| Input Voltage | Primary inputs 12~48VDC, Redundant inputs 12~48VDC |
|---|---|
| Connector | Terminal Block |
| Power Input Polarity Protection | Present |
| Power Consumption | 1.8W (Max) |
Mechanical and Environment
| Housing | Aluminum (IP30 Protection) |
|---|---|
| Mounting | DIN-Rail, Wall Mount (optional) |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 145 g (0.32 lb) |
| Dimension (WxHxD) | 109.2 x 73.8 x 30.73 mm (4.3 x 2.9 x 1.2 in) |
Ordering Information
| Model | Description |
|---|---|
| INS-8108E | Premium Unmanaged 8 x 10/100 RJ45 Industrial Switch |
