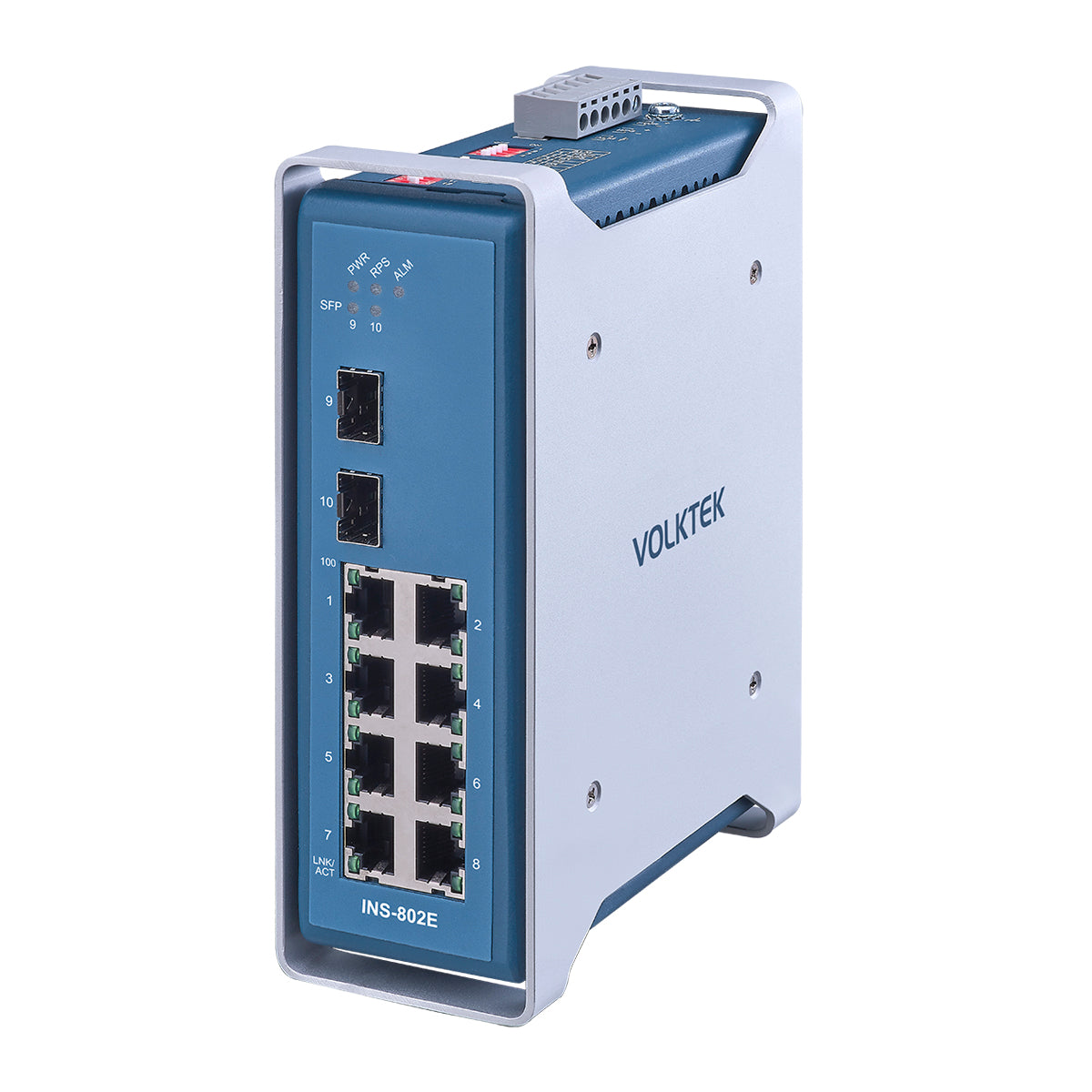

VOLKTEK INS-802E 8 Ports FE Unmanaged Switch with 2 GbE SFP Ports

SKU: INS-802E
VOLKTEK INS-802E 8 Ports FE Unmanaged Switch with 2 GbE SFP Ports
VOLKTEK INS-802E 8 Ports FE Unmanaged Switch with 2 GbE SFP Ports
VOLKTEK INS-802E 8 Ports FE Unmanaged Switch with 2 GbE SFP Ports

VOLKTEK INS-802E 8 Ports FE Unmanaged Switch with 2 GbE SFP Ports

SKU: INS-802E
Regular price Enquire with us
Enquire with us /
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
The INS-802E is an unmanaged industrial switch equipped with 8-port 10/100Base-TX, and 2-port FX/GbE SFP, dual fiber uplinks and redundant DC power inputs, an ideal solution for deployment in multiple high-speed automation systems. With its dry-contact smart alarm, the INS-802E initiates an alarm function that can be seen and heard on the factory floor in the event of any malfunction. The INS-802E operates in wide temperatures ranging from -40°C to 75°C and absorbs higher than normal degrees of vibration and shock, making it perfectly suitable and safe choice for harsh industrial environments.

This switch is built with industrial grade components, enclosed in an IP30 aluminum case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
Sold Out
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us Enquire with us
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us Enquire with us
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
Enquire with us Enquire with us
LOGITECH BRIO 4K Webcam
LOGITECH BRIO 4K Webcam
LOGITECH BRIO 4K Webcam
Enquire with us Enquire with us
Product Highlights
  • 8 x 10/100 RJ45 & 2 x FX/GbE SFP ports for Fast Ethernet speed application devices with Premium features
  • Auto-negotiation ports allow operation without extra device installation
  • Keeps flow at a constant rate to avoid overflow and prevents data storms with Flow and Storm Control
  • Prevents packet loss with VLAN Pass-through by forwarding VLAN packets
  • Industrial QoS prioritizes EIP (EtherNet/IP), PROFINET, and GOOSE packets
  • Operating temperatures -40℃~75℃ (-40°F~167°F) and aluminum housing
Features

It's Accident Proof

Engineered to withstand electromagnetic interference, electrostatic discharge, power surge, over-voltage, over-current in the event of an accident.

Redundant Power System

To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event.

Simple Installation and Compact Size

Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.

Comprehensive QoS

Supports IEEE 802.1p Quality of Service (QoS) which enhances bandwidth utilization to ensure time-sensitive data gets delivered efficiently to mission-critical applications without any delay even during a burst of high traffic.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100Base-TX/FX
IEEE 802.3z1000Base-SX/LX
IEEE 802.3 Nway Auto-negotiation
IEEE 802.3x Flow Control
IEEE802.1pClass of Service
IEEE 802.310BASE-T

Power

Input VoltagePrimary inputs: 12 ~ 48VDC
Redundant inputs: 12 ~ 48VDC
ConnectionTerminal Block
Power Input Polarity ProtectionPresent
Power Voltage Drop Alarm Present
Power Consumption 12W (Max)
Alarm RelayOne relay output, 1 A @ 24V DC
ESD ProtectionPresent

Mechanical and Environment

HousingAluminum (IP30 protection)

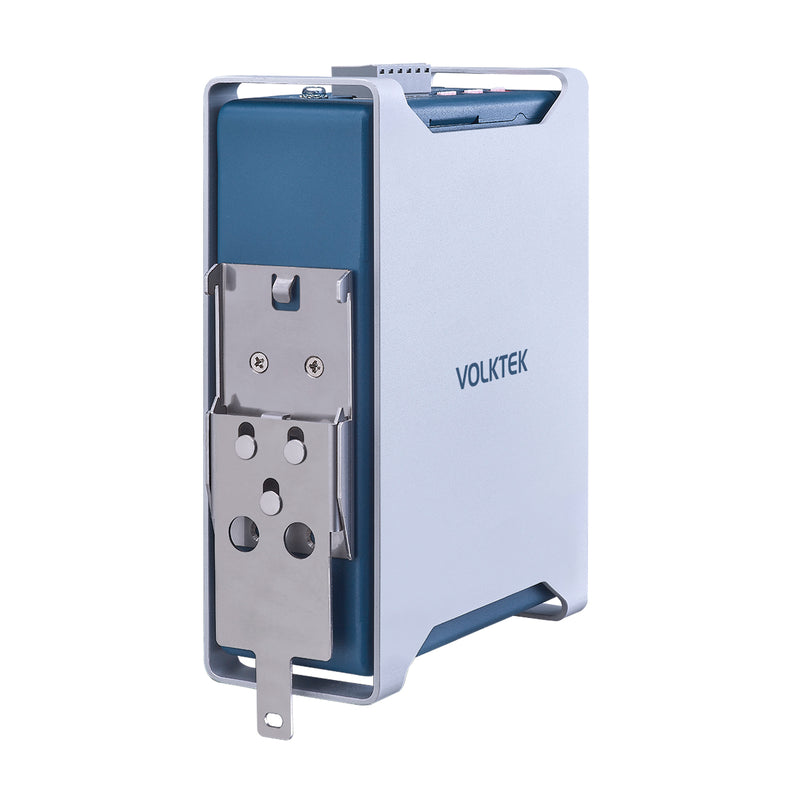

MountingDIN-Rail
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight780g
Dimension (WxHxD)50 x 161.5 x 119.9 mm (1.97 x 6.36 x 4.72 inch)

Ordering Information

ModelDescription
INS-802E Premium Unmanaged 8 x 10/100 RJ45 & 2 x FX/GbE SFP Industrial Switch
