VOLKTEK INS-801E 5 Ports FE Unmanaged Switch

SKU: INS-801E
VOLKTEK INS-801E 5 Ports FE Unmanaged Switch
VOLKTEK INS-801E 5 Ports FE Unmanaged Switch
VOLKTEK INS-801E 5 Ports FE Unmanaged Switch
VOLKTEK INS-801E 5 Ports FE Unmanaged Switch
VOLKTEK INS-801E 5 Ports FE Unmanaged Switch
VOLKTEK INS-801E 5 Ports FE Unmanaged Switch

VOLKTEK INS-801E 5 Ports FE Unmanaged Switch

SKU: INS-801E
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way

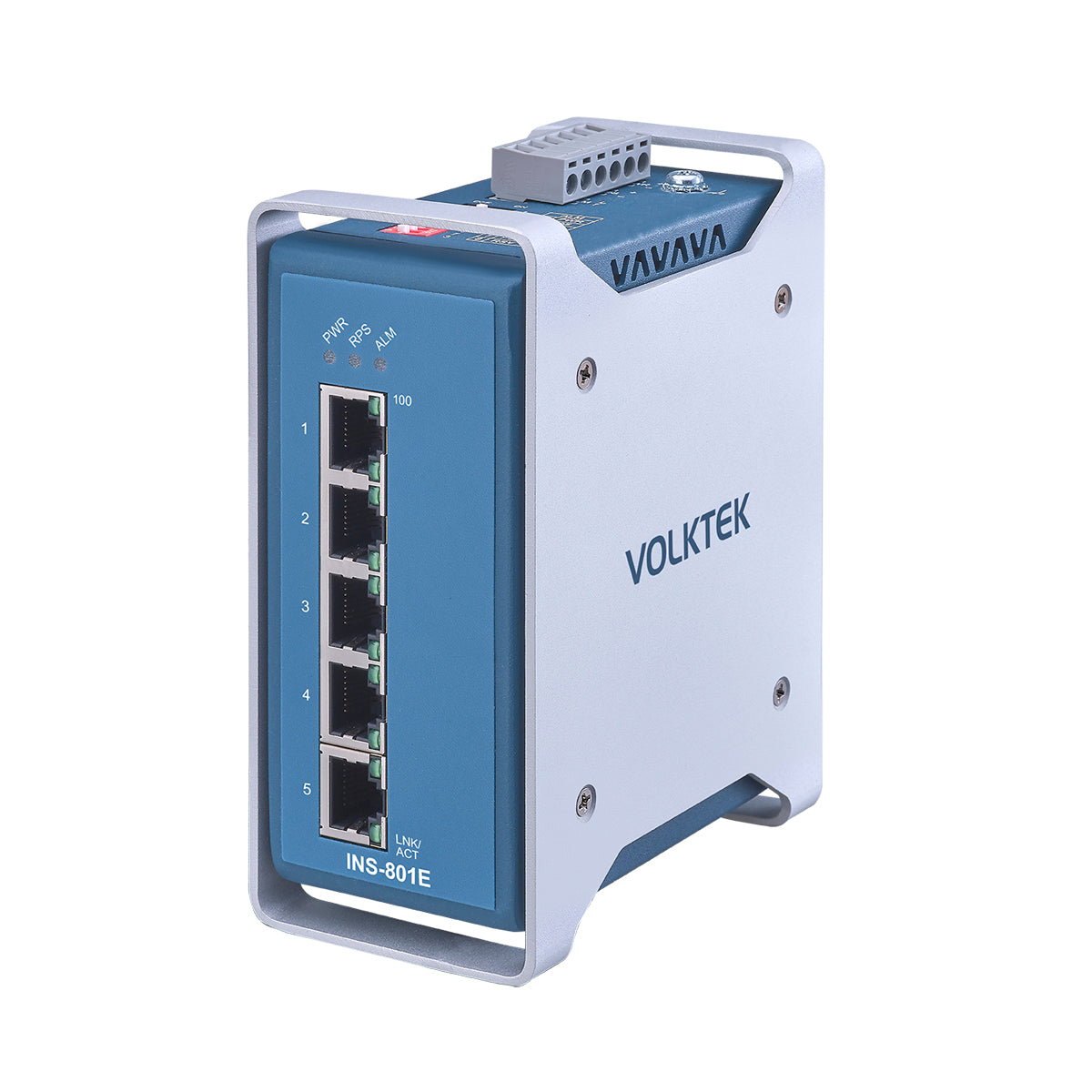

INS-801E is an unmanaged 5-port, 10/100 RJ45 downlink industrial switch for very elementary interconnection between devices with Premium features. It offers auto-negotiation on all its ports to aggregate devices easily in industrial Ethernet applications. The switch offers in-built traffic optimization to have stable performance and prevents packet loss by transporting VLAN packets without modifying them. Additionally, it prioritizes data with industrial QoS priority for Ethernet/IP, PROFINET, and GOOSE packets.

This switch is built with industrial grade components, enclosed in an IP30 aluminum case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
Datasheet
Product Highlights
  • 5 x 10/100 RJ45 ports for Fast Ethernet speed application devices with Premium features
  • Auto-negotiation ports allow operation without extra device installation
  • Keeps flow at a constant rate to avoid overflow and prevents data storms with Flow and Storm Control
  • Prevents packet loss with VLAN Pass-through by forwarding VLAN packets
  • Industrial QoS prioritizes EIP (EtherNet/IP), PROFINET, and GOOSE packets
  • Operating temperatures -40℃~75℃ (-40°F~167°F) and aluminum housing
Features

Protected Against Unpredictable and Harsh Environment

Engineered to withstand electrostatic discharge, power surge, over-voltage, over-current, high-vibration, and reverse polarity in the event of an accident.

Simple Installation and Compact Size

Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.

Broadcast Storm

Monitors traffic storm levels of the incoming broadcast packet rate and limits over an interval of time to prevent unnecessary traffic and safeguard performance.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE 802.1pClass of Service

Interface

Ports 5 x 10/100BASE-TX (RJ45)

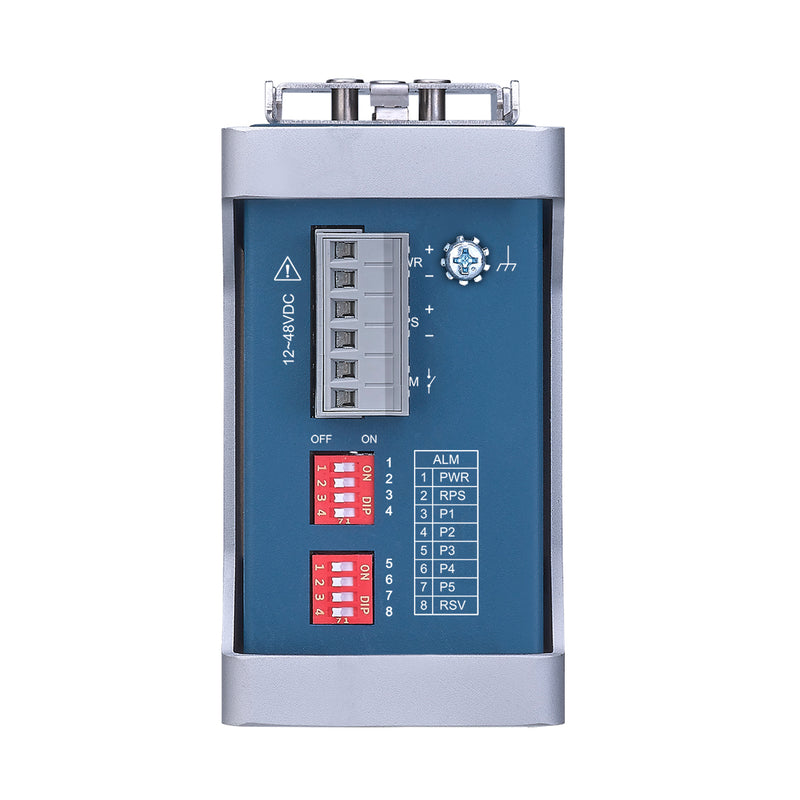

DIP Switch PWR, RPS, P1 ~ P5
LED PanelPWR, RPS, ALM, 100, LNK/ACT

Power

Input VoltagePrimary inputs 12~48VDC,  Redundant inputs 12~48VDC
Connector Terminal Block
Max Power Consumption2.05W (Max)
Alarm Relay One relay output, 1 A @ 24V DC
Reverse Polarity Protection Present
Over Load Protection Present

Mechanical and Environment

HousingAluminum (IP30 Protection)

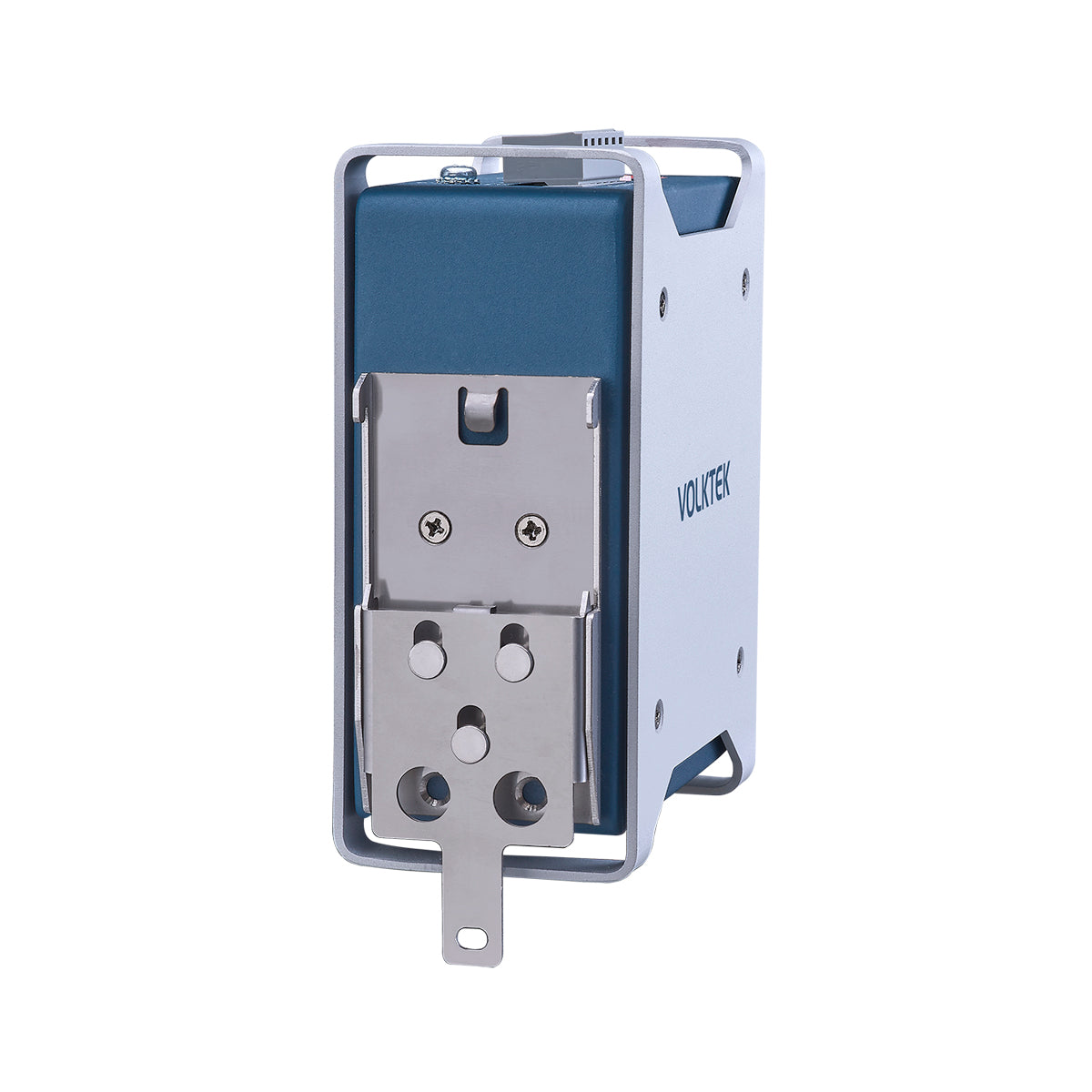

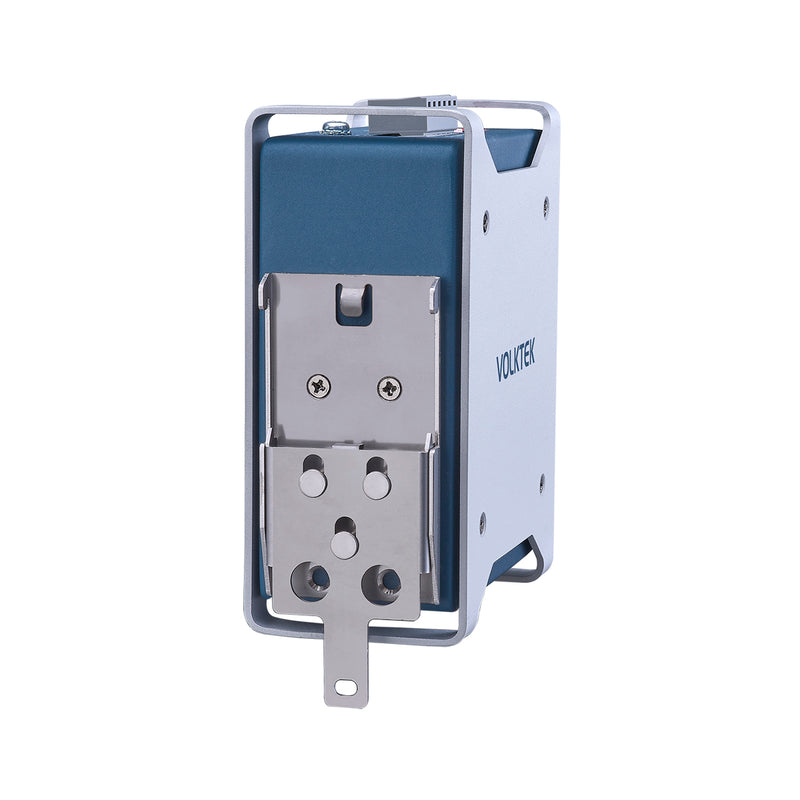

Mounting DIN-Rail
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Operating Humidity5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight459.1g
Dimension (WxHxD)49.6x121.4x100mm (1.95x4.78x3.9inch)

Ordering Information

ModelDescription
INS-801E Premium Unmanaged 5 x 10/100 RJ45 Industrial Switch
