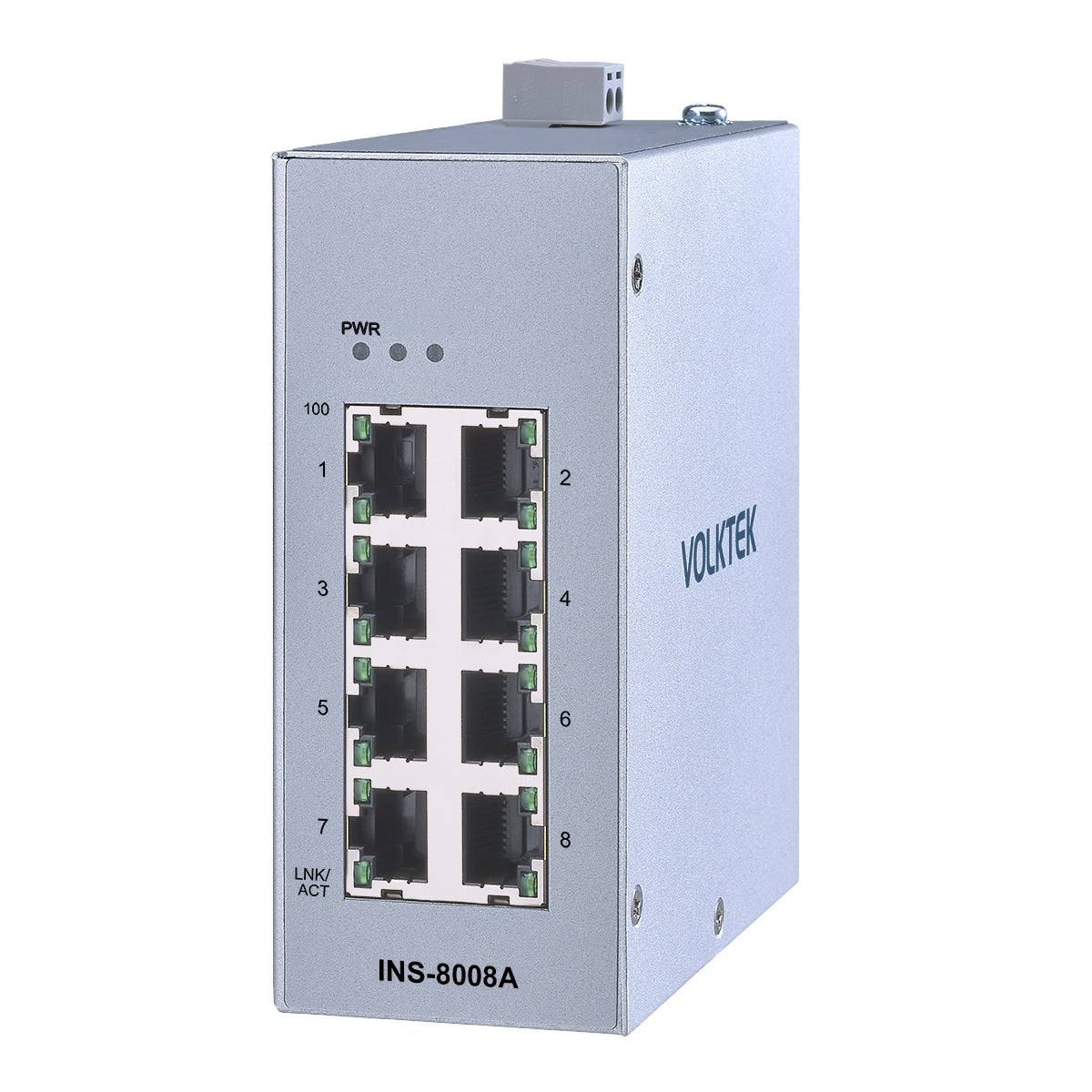

VOLKTEK INS-8008A 8-Ports FE Unmanaged Switch
SKU: INS-8008A
Product Highlights
- 8 x 10/100 RJ45 ports for Fast Ethernet speed application devices
- Auto-negotiation ports allow operation without extra device installation
- Keeps flow at a constant rate to avoid overflow and prevents data storms with Flow and Storm Control
- Prevents packet loss with VLAN Pass-through by forwarding VLAN packets
- Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 metal housing
Features
Protected Against Unpredictable and Harsh Environment
Engineered to withstand electrostatic discharge, power surge, over-voltage, over-current, high-vibration, and reverse polarity in the event of an accident.
Simple Installation and Compact Size
Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.
Broadcast Storm
Monitors traffic storm levels of the incoming broadcast packet rate and limits over an interval of time to prevent unnecessary traffic and safeguard performance.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3 | Nway Auto-Negotiation |
| IEEE 802.3x | Flow Control |
Interface
| Ports | 8 x 10/100BASE-TX (RJ45) |
|---|---|
| LED Panel | PWR, 100, LNK/ACT |
Power
| Input Voltage | 12V~48V DC, 0.2A max |
|---|---|

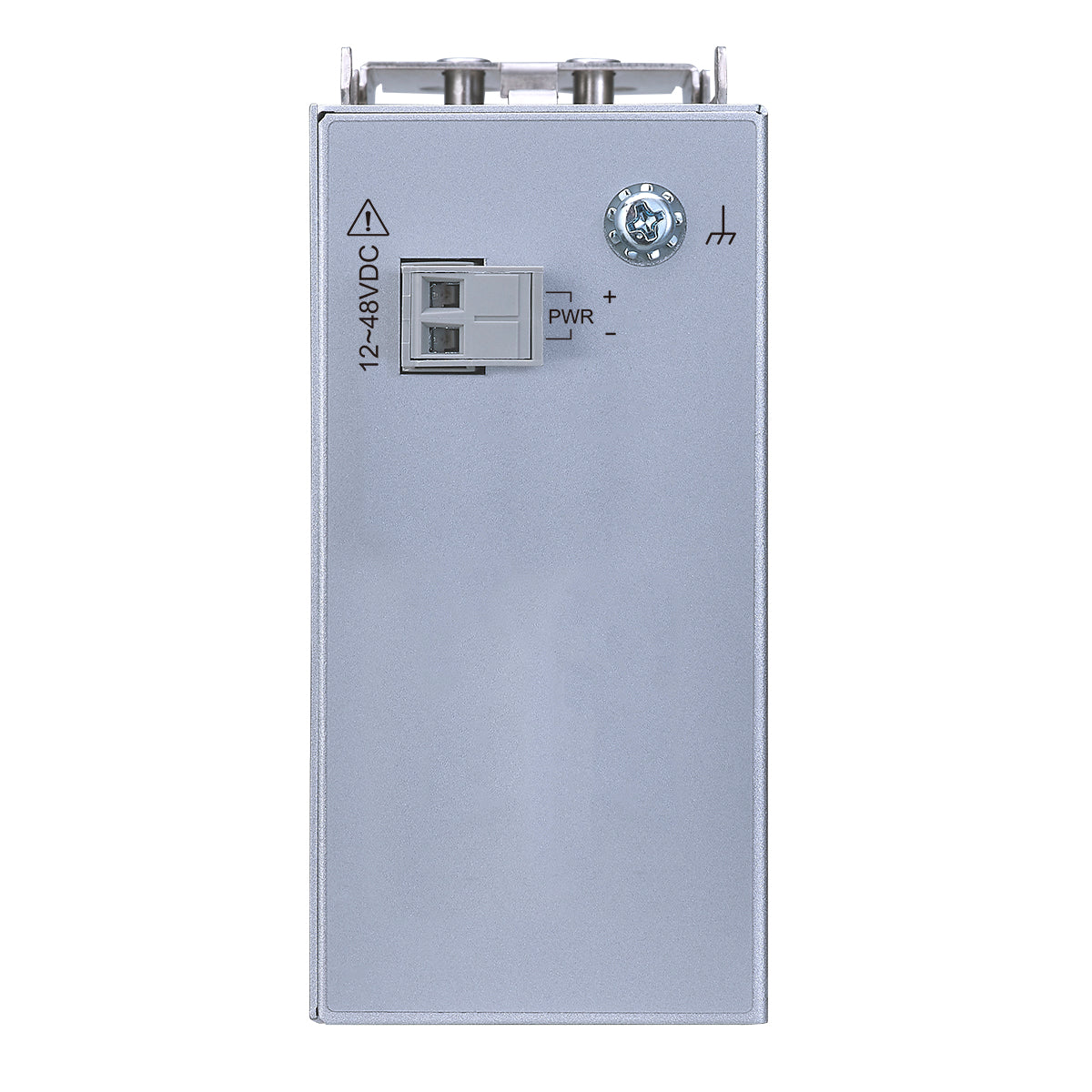

| Connection | Terminal Block |
| Power Input Polarity Protection | Present |
| Current Overload Protection | Present |
| Power Consumption | 3W |
Mechanical and Environment
| Housing | Metal Case (IP30 Protection) |
|---|---|

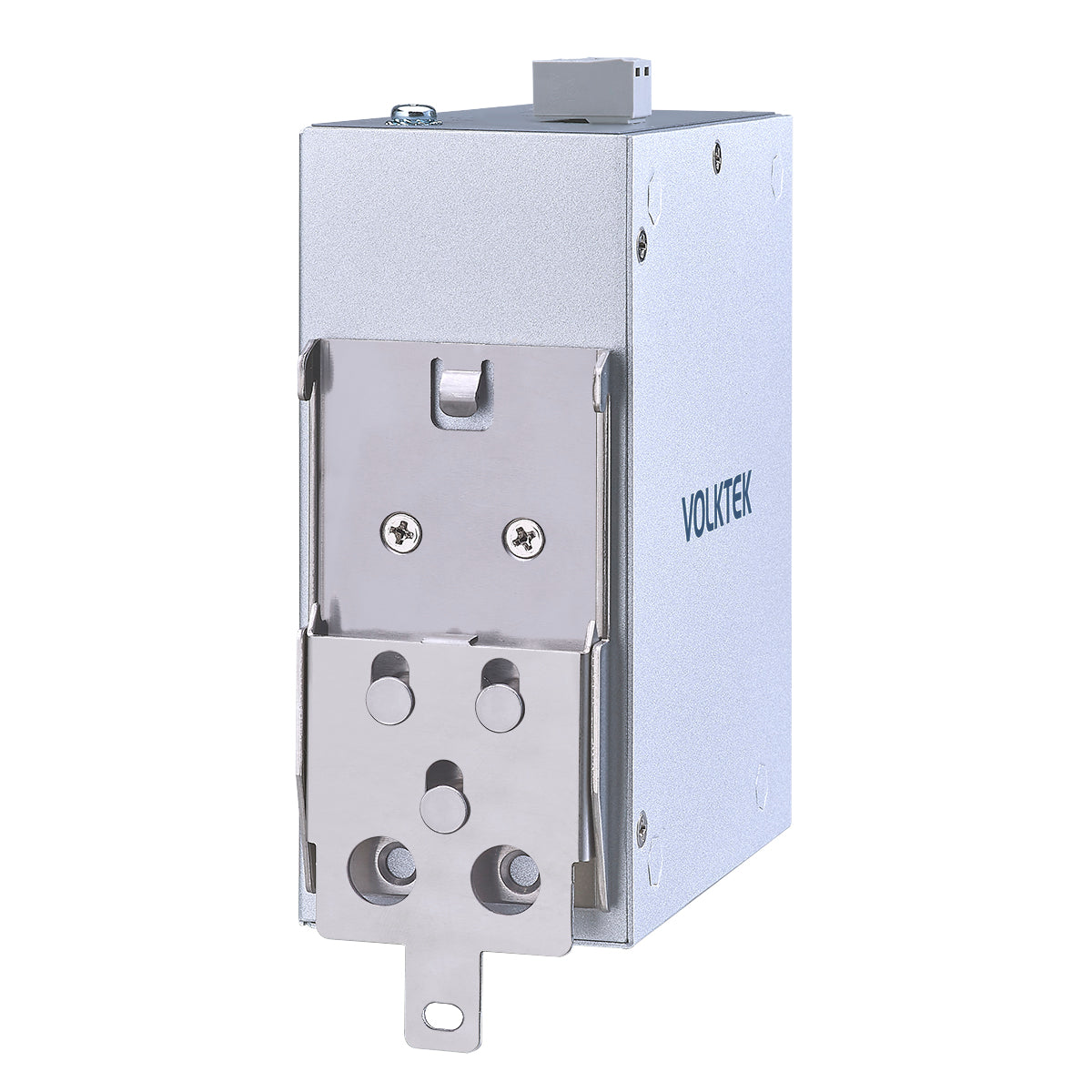

| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 435 g (1.0 lb) |
| Dimension (WxHxD) | 50 x 119.2 x 99.9 mm (1.97 x 4.69 x 3.93 in) |
Ordering Information
| Model | Description |
|---|---|
| INS-8005A | Unmanaged 8 x 10/100 RJ45 Industrial Switch |
