VOLKTEK INS-8005E 5-Ports FE Unmanaged Switch

SKU: INS-8005E
VOLKTEK INS-8005E 5-Ports FE Unmanaged Switch
VOLKTEK INS-8005E 5-Ports FE Unmanaged Switch
VOLKTEK INS-8005E 5-Ports FE Unmanaged Switch

VOLKTEK INS-8005E 5-Ports FE Unmanaged Switch

SKU: INS-8005E
Regular price Enquire with us
Enquire with us /
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
INS-8005E is an unmanaged 5-port, 10/100 RJ45 downlink industrial switch with Premium features for very elementary interconnection between devices, but high traffic requirements. It offers auto-negotiation on all its ports to aggregate devices easily in Industrial Ethernet applications. The device can be used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. Additionally, it offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications. Prioritizes data with industrial QoS priority for Ethernet/IP, PROFINET, and GOOSE packets.

The switch offers various in-built traffic optimization and network performance features to prioritize important industrial data packets, prevent the loss of data during communication, and stable transmission; like flow control and VLAN Passthru. It prioritizes industrial protocols for industrial applications, like Ethernet/IP, PROFINET, and GOOSE packets. Additionally, it offers per-port and 802.1p Tag Quality of Service to ensure the delivery of high-priority data.

This switch is built with industrial grade components, enclosed in an IP30 metal case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
Sold Out
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us Enquire with us
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us Enquire with us
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
Enquire with us Enquire with us
LOGITECH BRIO 4K Webcam
LOGITECH BRIO 4K Webcam
LOGITECH BRIO 4K Webcam
Enquire with us Enquire with us
Product Highlights
  • 5 x 10/100 RJ45 ports for Fast Ethernet speed application devices with Premium features
  • Auto-negotiation ports allow operation without extra device installation
  • Keeps flow at a constant rate to avoid overflow and prevents data storms with Flow and Storm Control
  • Prevents packet loss with VLAN Passthru by forwarding VLAN packets without dropping or modifying them
  • Industrial QoS (EIP (EtherNet/IP), PROFINET, and GOOSE packets), per-port priority, 802.1p Tag
  • Operating temperatures-40℃~75℃ (-40°F~167°F) and IP30 metal housing
Features

It's Accident Proof

Engineered to withstand electromagnetic interference, electrostatic discharge, power surge, over-voltage, over-current in the event of an accident.

Redundant Power System

To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event.

Simple Installation and Compact Size

Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.

Comprehensive QoS

Supports IEEE 802.1p Quality of Service (QoS) which enhances bandwidth utilization to ensure time-sensitive data gets delivered efficiently to mission-critical applications without any delay even during a burst of high traffic.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u100BASE-TX
IEEE 802.3100BASE-TXNway Auto-Negotiation
IEEE 802.3x Flow Control
IEEE 802.1p Class of Service

Interface

Ports5 x 10/100Base-TX (RJ45)
LED PanelPWR, 100, LNK/ACT

Power

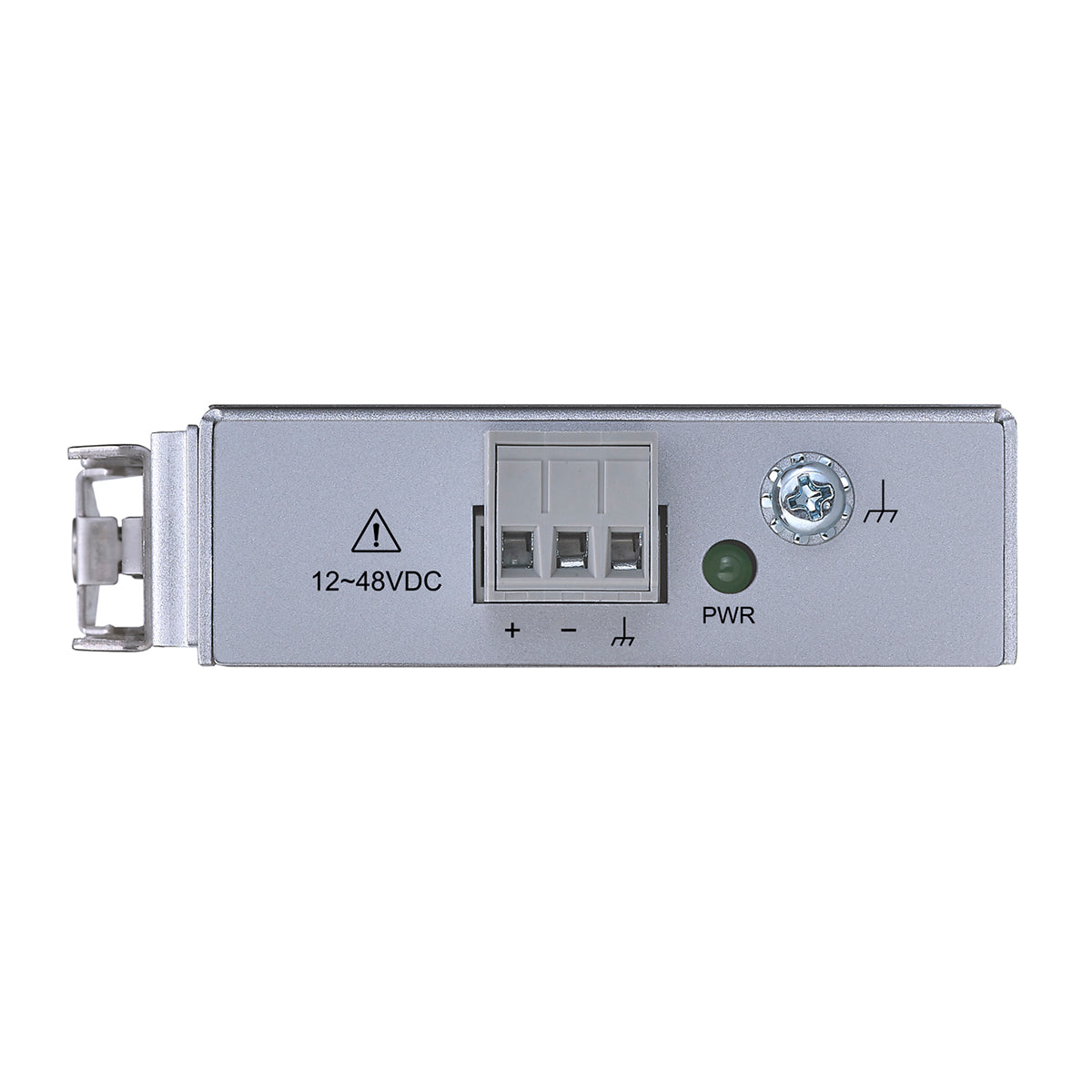

Input Voltage12~48VDC
ConnectionTerminal Block
Power Input Polarity ProtectionPresent
Current Overload Protection Present
Power Consumption 3W

Mechanical and Environment

HousingAluminum (IP30 Protection)
MountingDIN-Rail, Wall Mount
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight160 g (0.3 lb)
Dimension (WxHxD)23.6 x 111.5 x 73.8 mm (0.93 x 4.39 x 2.90 in)

Ordering Information

ModelDescription
INS-8005E Premium Unmanaged 5 x 10/100 RJ45 Industrial Switch
