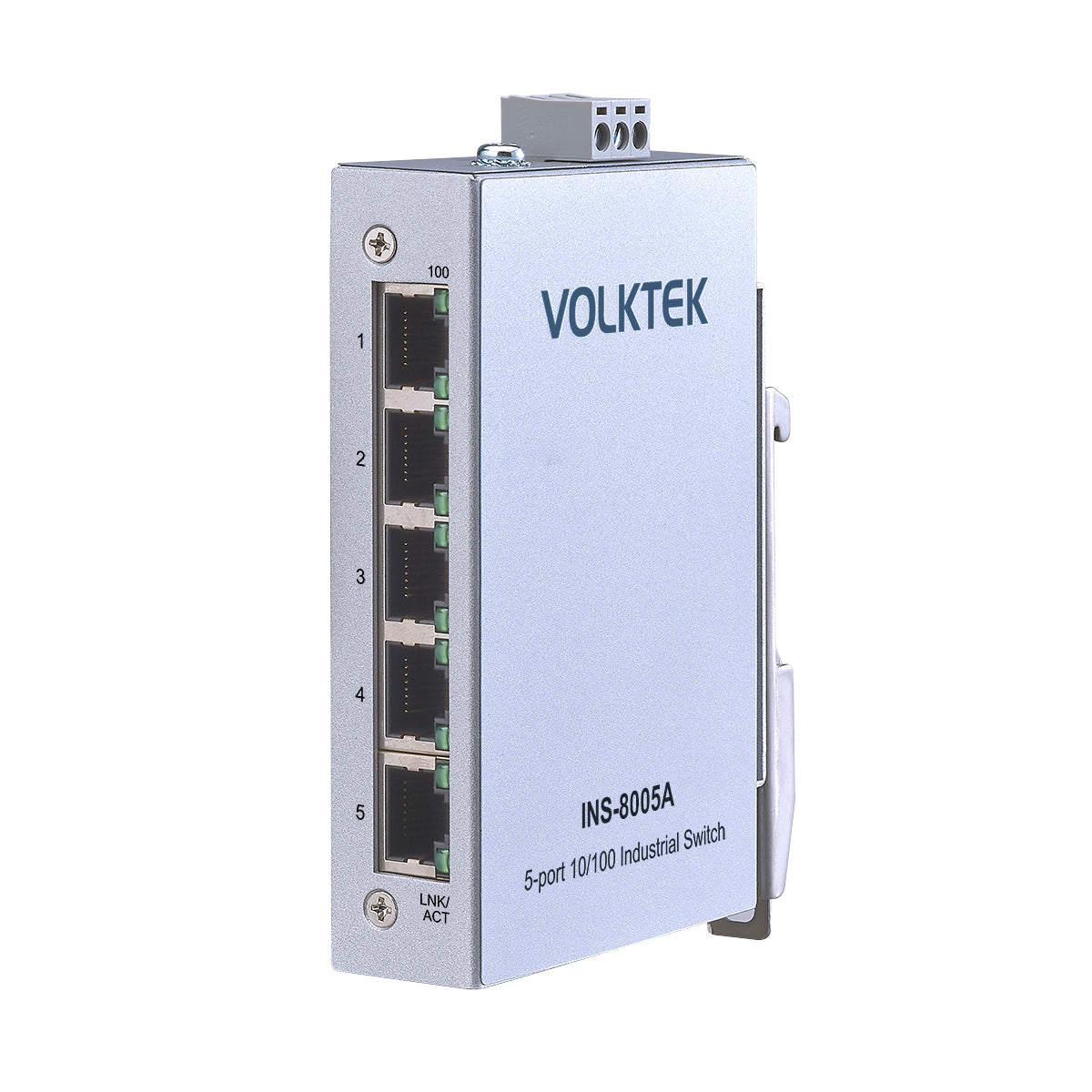

VOLKTEK INS-8005A 5-Ports FE Unmanaged Switch

SKU: INS-8005A
VOLKTEK INS-8005A 5-Ports FE Unmanaged Switch
VOLKTEK INS-8005A 5-Ports FE Unmanaged Switch
VOLKTEK INS-8005A 5-Ports FE Unmanaged Switch
VOLKTEK INS-8005A 5-Ports FE Unmanaged Switch
VOLKTEK INS-8005A 5-Ports FE Unmanaged Switch
VOLKTEK INS-8005A 5-Ports FE Unmanaged Switch

VOLKTEK INS-8005A 5-Ports FE Unmanaged Switch

SKU: INS-8005A
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
INS-8005A is an unmanaged 5-port, 10/100 RJ45 downlink industrial switch for very elementary interconnection between devices. It offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications. The switch offers in-built traffic optimization to have stable performance and prevents packet loss by transporting VLAN packets without modifying them.

This switch is built with industrial grade components, enclosed in an IP30 metal case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
Sold Out
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
LOGITECH M310T Wireless Mouse
LOGITECH M310T Wireless Mouse
LOGITECH M310T Wireless Mouse
Enquire with us
Datasheet
Product Highlights
  • 5 x 10/100 RJ45 ports for Fast Ethernet speed application devices
  • Auto-negotiation ports allow operation without extra device installation
  • Keeps flow at a constant rate to avoid overflow and prevents data storms with Flow and Storm Control
  • Prevents packet loss with VLAN Passthru by forwarding VLAN packets without dropping or modifying them
  • Resistant to interference in environments with multiple types of machinery
  • Operating temperatures-40℃~75℃ (-40°F~167°F) and IP30 metal housing
Features

Robust Electrical and Electromagnetic Safeguard

Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.

Simple Installation

Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u100BASE-TX
IEEE 802.3Nway Auto-Negotiation
IEEE 802.3x Flow Control

Interface

Ports5 x 10/100Base-TX (RJ45)
LED PanelPWR, 100, LNK/ACT

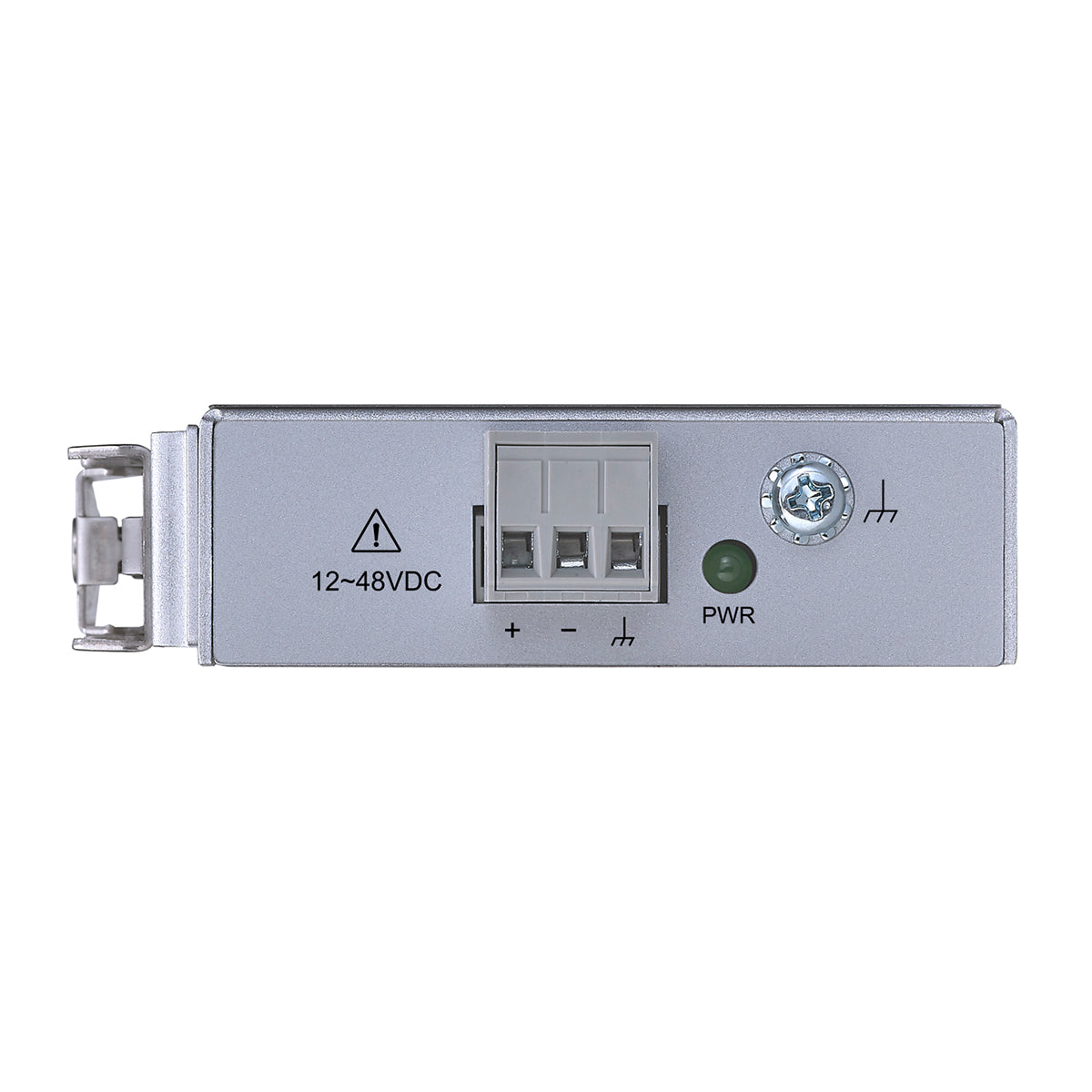

Power

Input Voltage12~48VDC, 0.2A max
ConnectionTerminal Block
Power Input Polarity ProtectionPresent
Current Overload Protection Present
Power Consumption 3W

Mechanical and Environment

HousingAluminum (IP30 Protection)
MountingDIN-Rail, Wall Mount
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight180 g (0.4 lb)
Dimension (WxHxD)23.6 x 111.5 x 73.8 mm (0.93 x 4.39 x 2.90 in)

Ordering Information

ModelDescription
INS-8005A Premium Unmanaged 5 x 10/100 RJ45 Industrial Switch
