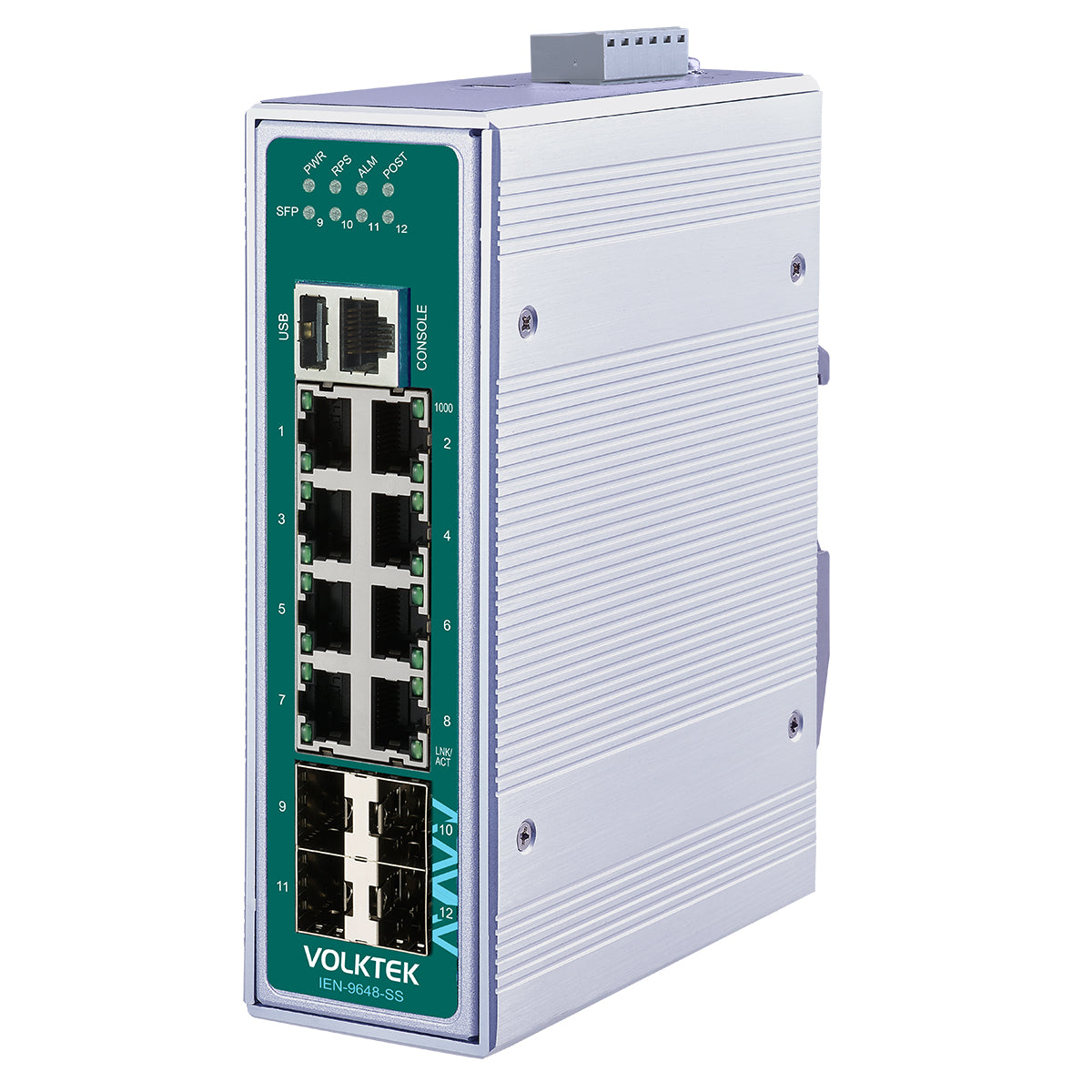

VOLKTEK IEN-9648-SS 8 Ports GbE Substation Certified Managed Switch with 4 SFP Ports
SKU: IEN-9648-SS
Product Highlights
- 8 x 10/100/1000 RJ45 ports and 4 x GbE SFP uplink ports for long-distance to control devices and daisy chain
- 1 x Console Port for command-line interface and USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files
- Embedded Topology Map is compatible with third-party devices and supports communication with legacy and advanced industrial devices
- Optimizes network performance with Storm and Flow Control and QoS
- IEEE 1613 and IEC 61850-3 Certifications for safe and reliable substation applications
- Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 Aluminum Housing
Features
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.
Port-based and IEEE 802.1Q VLAN
GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) for segmentation of large networks into smaller parts and separate broadcast domains.
Firmware Auto Backup
Auto backup of firmware to the secondary memory and activation of it from there in case of loss of the primary memory.
Redundant Power SystemRedundant Power System
Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.
Efficient Network Monitoring and Management
SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring.
Efficient Traffic PrioritizationEfficient Traffic Prioritization
Effective QoS (Quality of Service) mechanisms for priority assignment, transmission of dedicated traffics to specific applications, and allocation of appropriate bandwidth to mission-critical communications.
Redundant Ring for Fast Network Recovery
Xpress Ring for detection and recovery of link failure in milliseconds.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3z | 1000BASE-SX/LX |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
| IEEE 802.3ad | Link Aggregation |
| IEEE 802.1AB | LLDP |
| IEEE 802.1ad | QinQ |
| IEEE 802.1D | STP |
| IEEE 802.1w | RSTP |
| IEEE 802.1s | MSTP |
| IEEE 802.1p | Class of Service |
| IEEE 802.1Q | VLAN Tagging |
| IEEE 802.1X | Port Authentication |
| IEEE 1588v2 | PTP |
Interface
| Ports | 8 x 10/100/1000BASE-T (RJ45)
4 x GbE SFP Slots 1 x RJ45 Console Port 1 x USB Port |
|---|---|

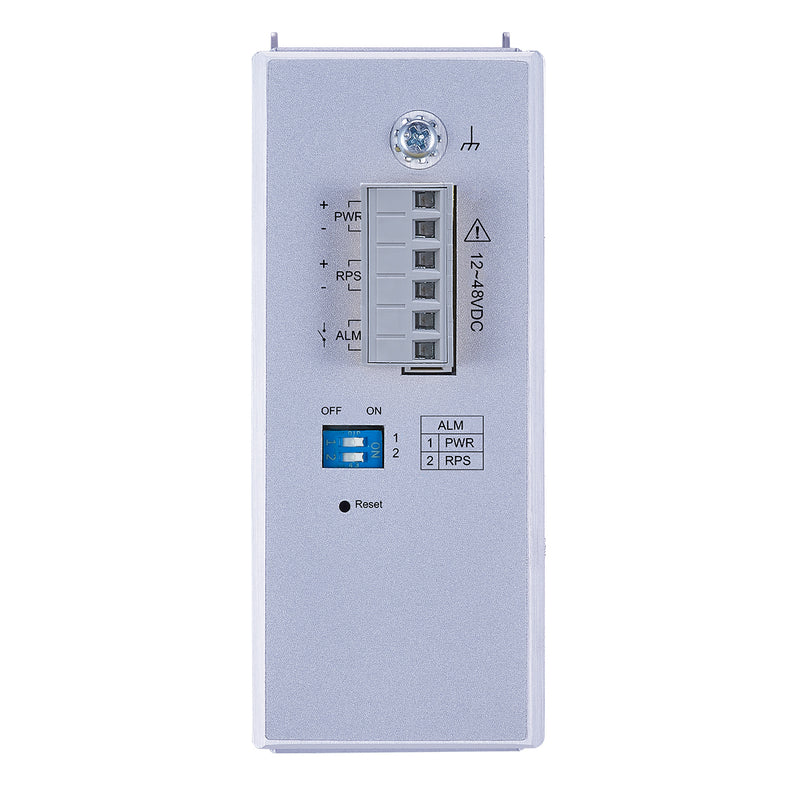

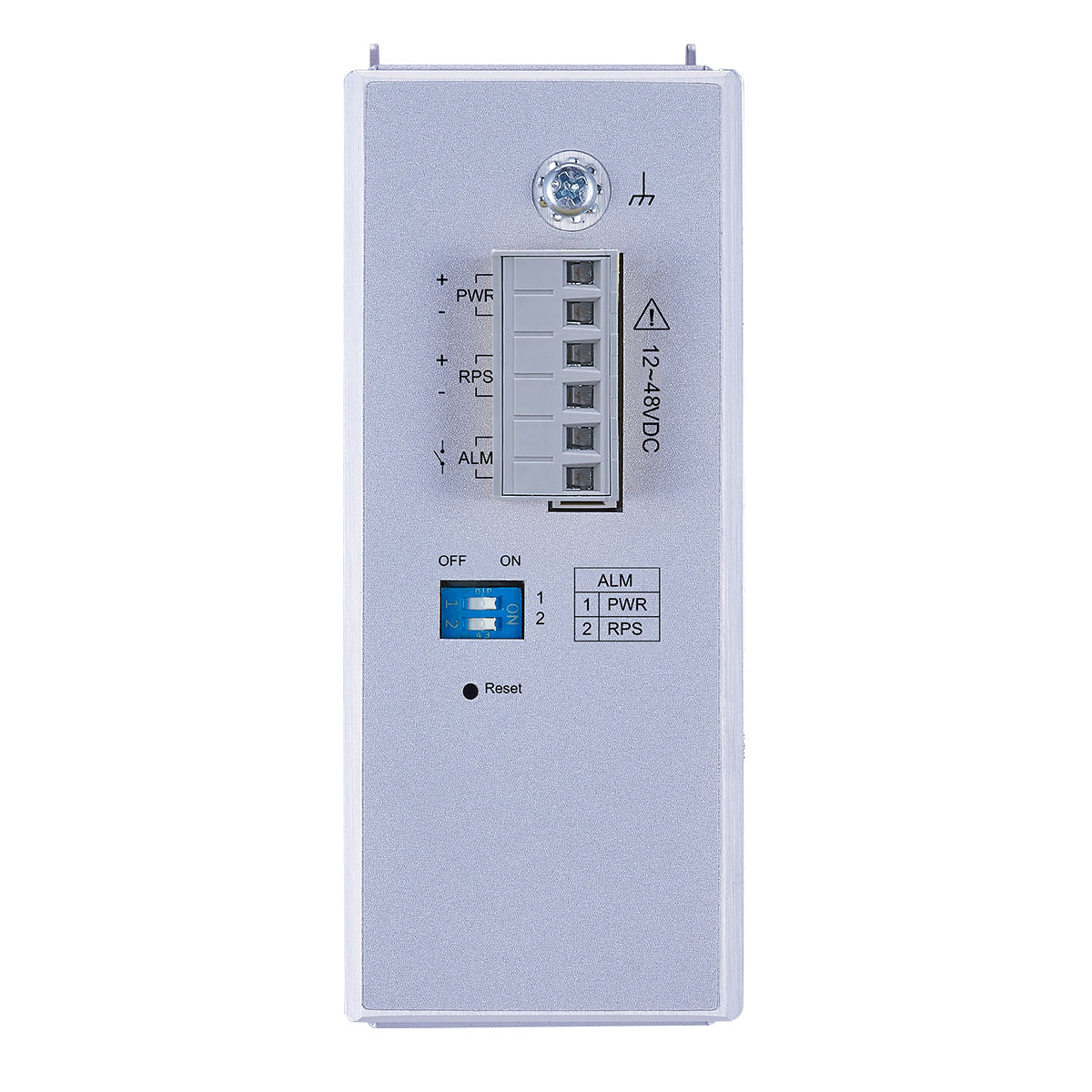

| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Panel | PWR, RPS, ALM, POST, 1000, 10/100, SFP, LNK/ACT |
Power
| Input Voltage | Primary inputs：12V~48VDC Redundant inputs：12V~48VDC |
|---|---|
| Connector | Teminal Block |
| Power Consumption | System：18W |
| Alarm Relay | One relay output, 1 A @ 24V DC |
Mechanical and Environment
| Housing | Metal Case (IP30 protection) |
|---|---|

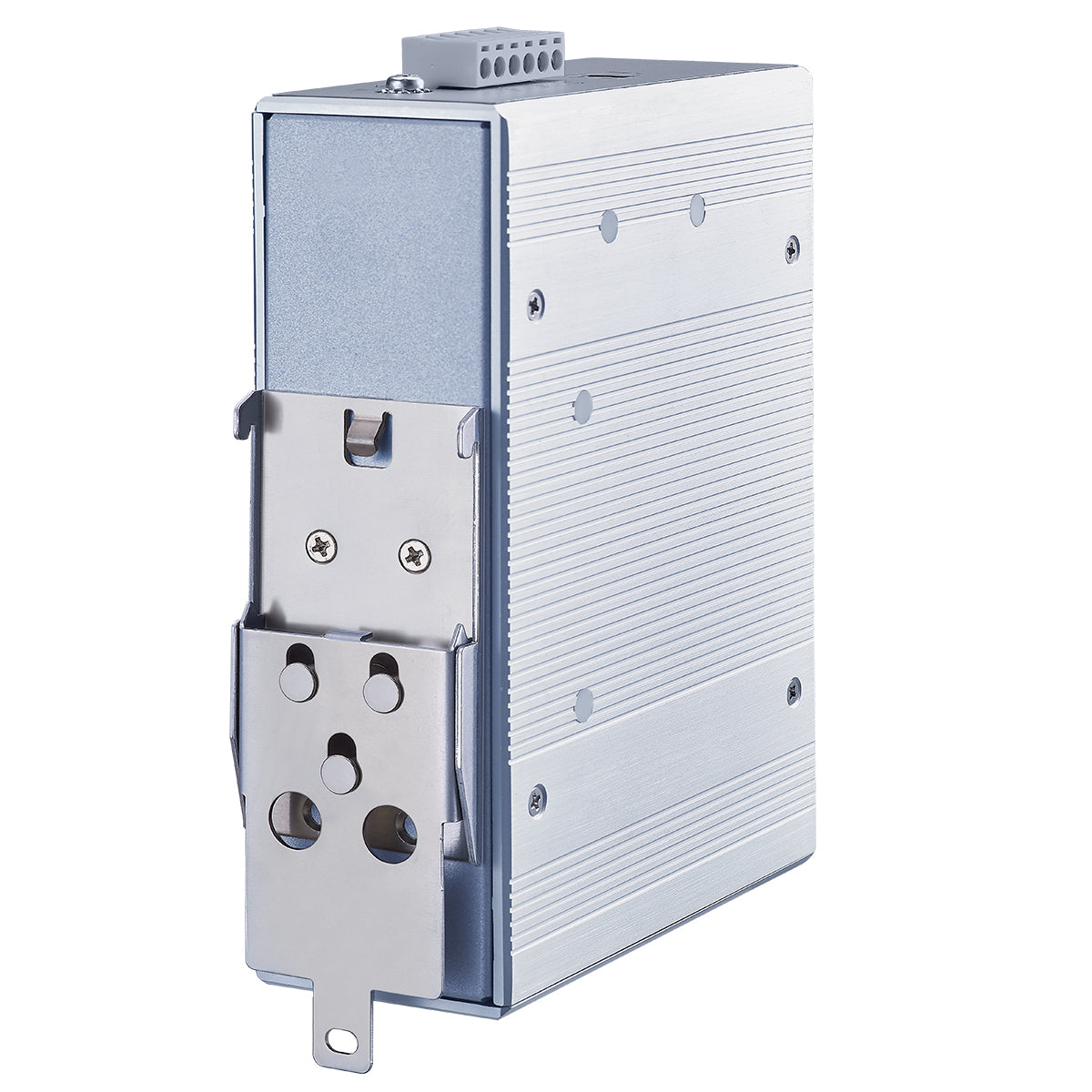

| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 955 g (2.1 lb) |
| Dimension (WxHxD) | 50 x 164.9 x 122.2 mm (1.97 x 6.49 x 4.81 in) |
Ordering Information
| Model | Description |
|---|---|
| IEN-9648-SS | Managed 8 x 10/100/1000 RJ45 & 4 x GbE SFP Industrial Switch, Substation Approval |
