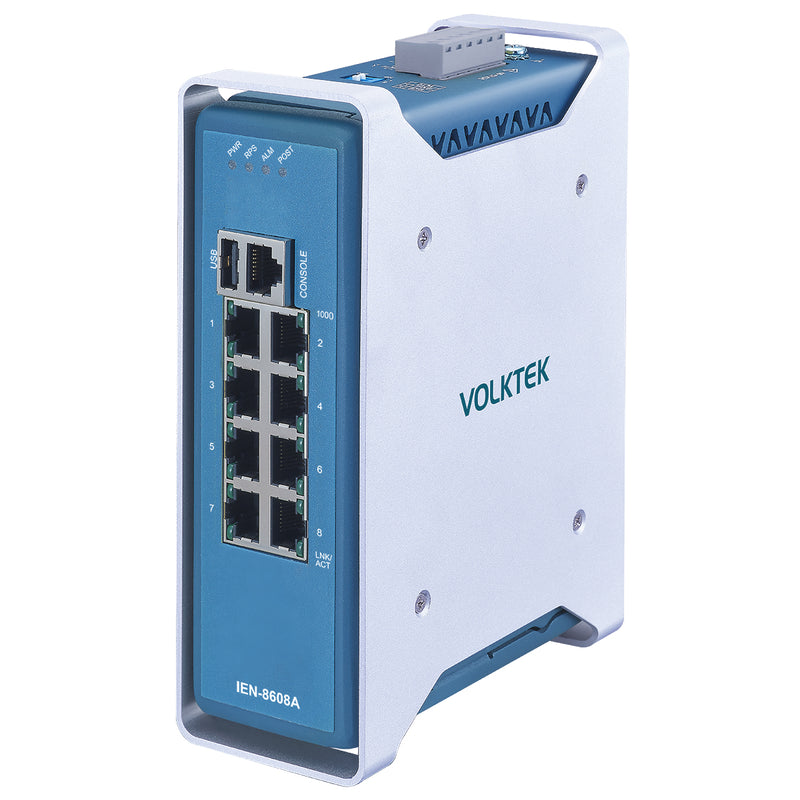

VOLKTEK IEN-8608A 8 Ports GbE Managed Switch

SKU: IEN-8608A
VOLKTEK IEN-8608A 8 Ports GbE Managed Switch
VOLKTEK IEN-8608A 8 Ports GbE Managed Switch
VOLKTEK IEN-8608A 8 Ports GbE Managed Switch

VOLKTEK IEN-8608A 8 Ports GbE Managed Switch

SKU: IEN-8608A
Regular price Enquire with us
Enquire with us /
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
INS-8608A is a high-performance 8-port 10/100/1000 RJ45 downlink managed industrial switch designed for communication between controllers and devices in automation settings. It is used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. It offers auto-negotiation on all its ports and Modbus TCP to aggregate devices easily in industrial Ethernet applications.

The RJ45 type console port allows outbound network troubleshooting when networks go wrong. The USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files to manage network status offline. The switch optimizes traffic with Storm, and Flow Control, and QoS - it prioritizes industrial data packets, prevents the loss of data during communication, and offers a stable transmission. It has a topology map to visualize the network and complies with cybersecurity standards to safeguard the network from vulnerabilities.

This switch is built with industrial-grade components and enclosed in an IP30 aluminum case with high thermal conductivity, which protects the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F), it suits extreme industrial applications. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
Sold Out
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us Enquire with us
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us Enquire with us
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
ARLO Pro 5 VMC4060P 2K Quad HD Wireless HDR Security Camera
Enquire with us Enquire with us
LOGITECH BRIO 4K Webcam
LOGITECH BRIO 4K Webcam
LOGITECH BRIO 4K Webcam
Enquire with us Enquire with us
Product Highlights
  • 8 x 10/100/1000 RJ45 ports for industrial devices like PLCs, HMI, and printers in automation
  • 1 x Console Port for command-line interface and USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files
  • Topology Map for network monitoring
  • Supports Modbus TCP communication with legacy and advanced industrial devices
  • Optimizes network performance with Storm and Flow Control and QoS
  • Operating temperature -40℃~75℃ (-40°F~167°F), and IP30 Aluminum housing
Features

Robust Electrical and Electromagnetic Safeguard

Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.

Port-based and IEEE 802.1Q VLAN

GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) for segmentation of large networks into smaller parts and separate broadcast domains.

Firmware Auto Backup

Auto backup of firmware to the secondary memory and activation of it from there in case of loss of the primary memory.

Redundant Power System

Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.

Efficient Network Monitoring and Management

SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring.

Efficient Traffic Prioritization

Effective QoS mechanisms for priority assignment, transmission of dedicated traffics to specific applications, and allocation of appropriate bandwidth to mission-critical communications.

Redundant Ring for Fast Recovery

Xpress Ring for rapid detection and recovery of link failure in milliseconds and ERPS (Ethernet Ring protection Switching), Dual Homing, LACP (Link Aggregation Control Protocol), and RSTP (Rapid Spanning Tree Protocol) for continuous and consistent operation.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE 802.3adLink Aggregation
IEEE 802.1ABLLDP
IEEE 802.1adQinQ
IEEE 802.3azEnergy Efficient Ethernet (EEE)
IEEE 802.1DSTP
IEEE 802.1wRSTP
IEEE 802.1sMSTP
IEEE 802.1pClass of Service
IEEE 802.1QVLAN Tagging
IEEE 802.1XPort Authentication
IEEE 1588v2PTP

Interface

Ports8 x 10/100/1000BASE-T (RJ45), 1 x RJ45 Console Port, 1 x USB Port

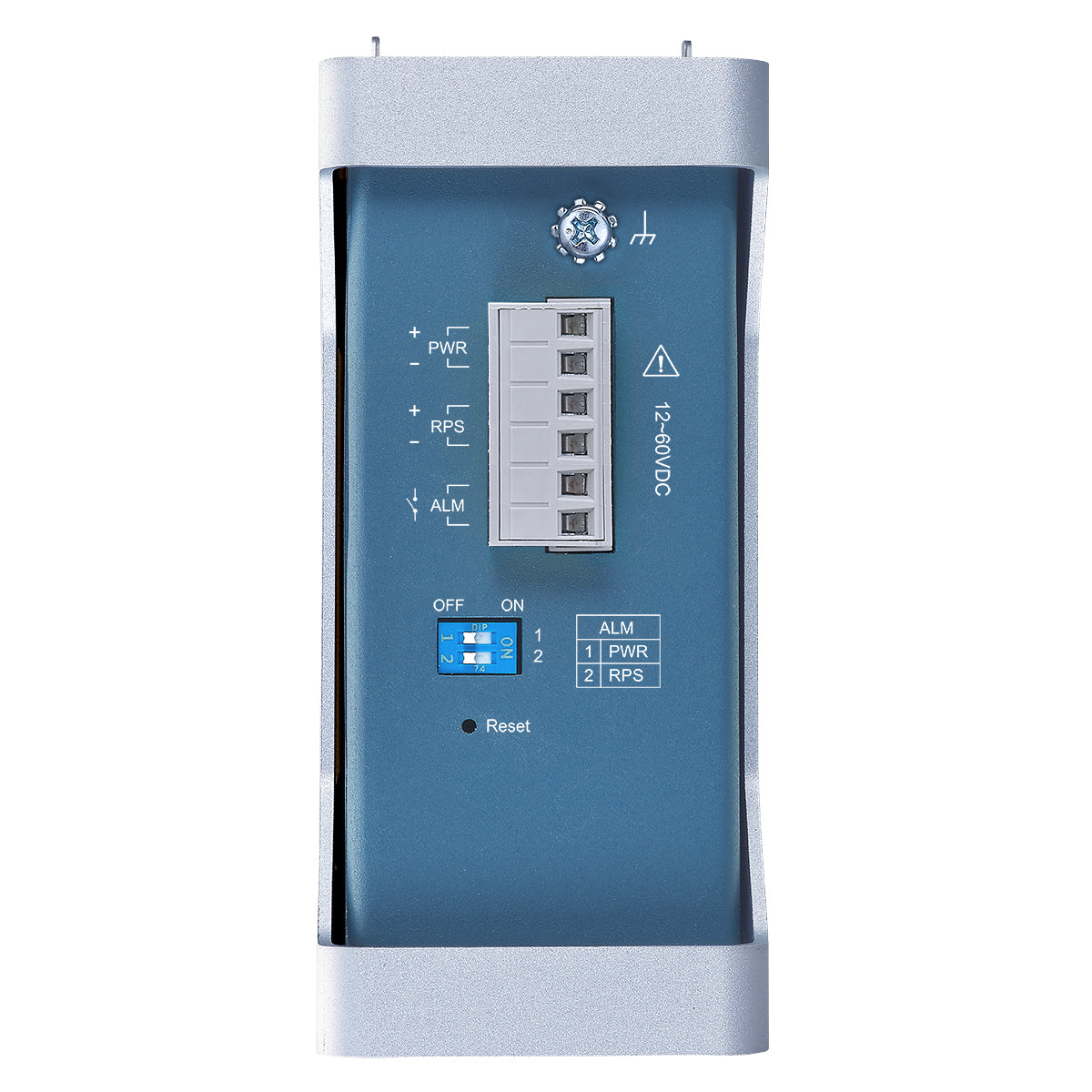

DIP Switch Primary/Redundant Power Voltage Drop Alarm setting
LED PanelPWR, RPS, ALM, POST, 1000, LNK/ACT

Power

Input VoltagePrimary inputs:12~60VDC ,  Redundant inputs:12~60VDC
DIP Switch Teminal Block
LED PanelSystem:15W
IEEE 802.3One relay output, 1 A @ 24V DC

Mechanical and Environment

HousingAluminum (IP30 Protection)

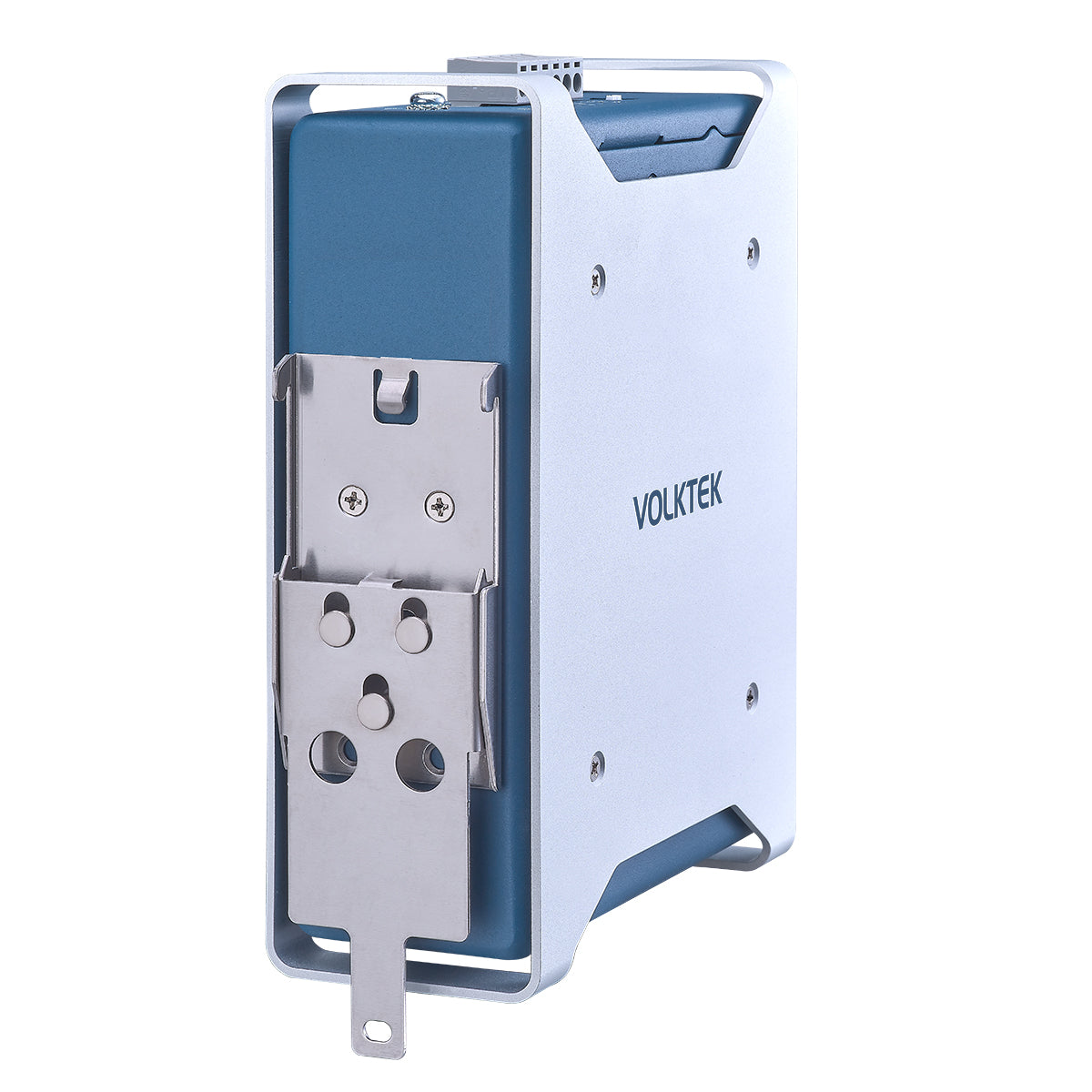

Mounting DIN-Rail
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Operating Humidity5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight935 g (2.0 lb)
Dimension (WxHxD)50 x 164.9 x 122.2 mm (1.97 x 6.49 x 4.81 in)

Ordering Information

ModelDescription
IEN-8608A Managed 8 x 10/100/1000 RJ45 Switch
