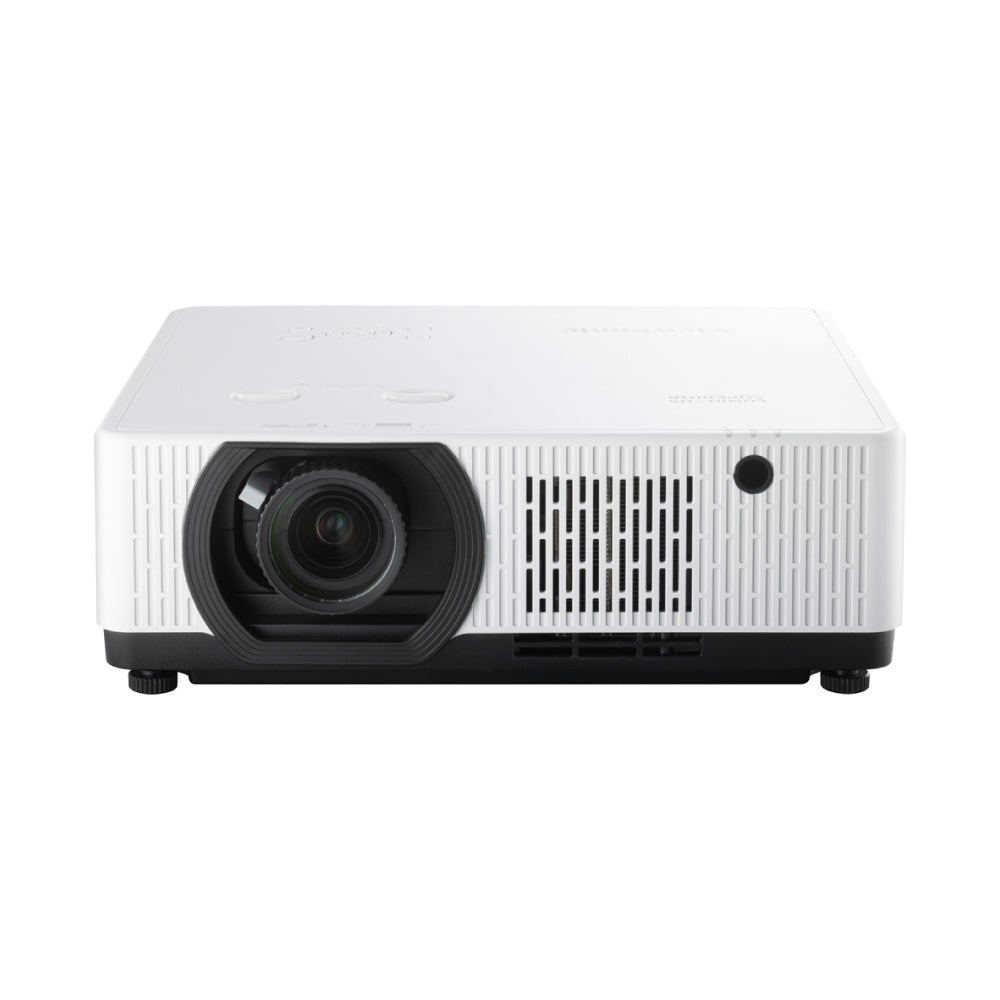

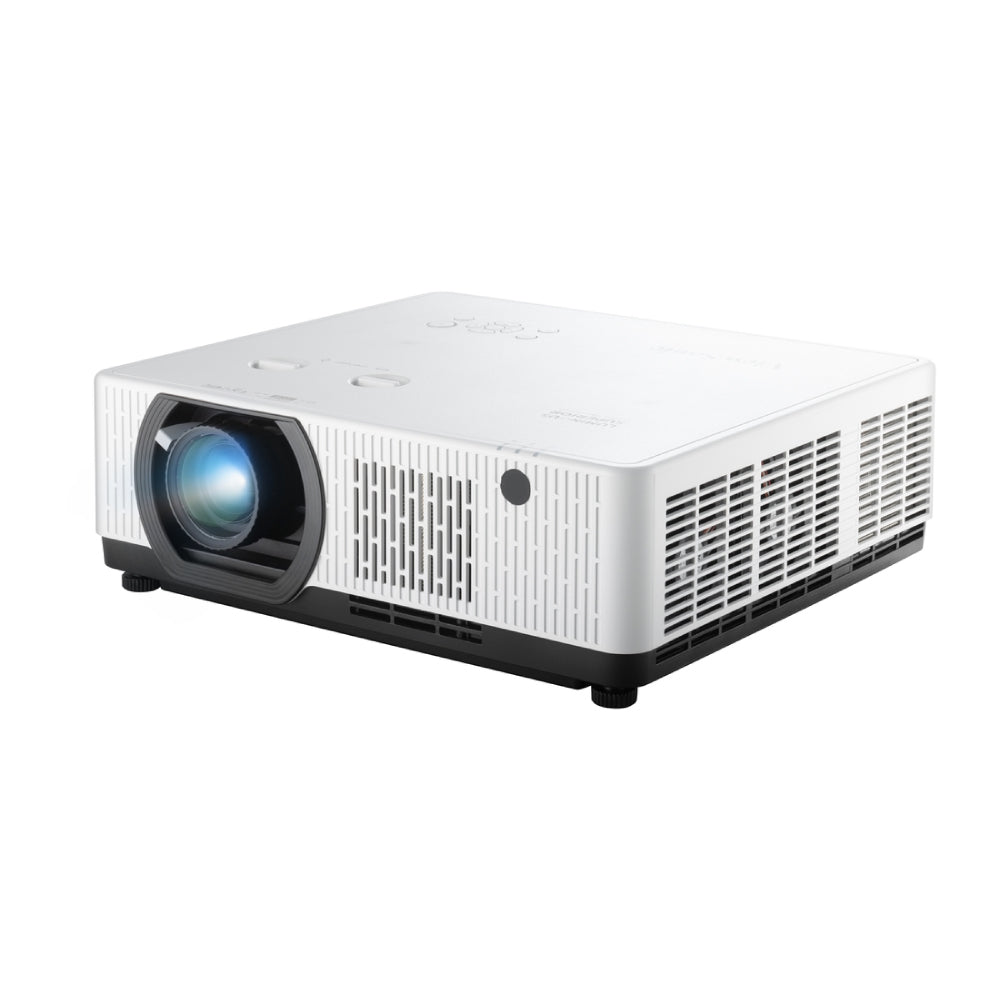

VIEWSONIC LSC700-4K 7,000 ANSI Lumens 4K Laser Installation Projector
OVERVIEW
The LSC700-4K is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Equipped with 4K resolution and HDR/HLG support, it delivers professional-quality presentations and stunning visuals. Utilizing 2nd generation laser phosphor technology, this projector offers 7,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300”. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC700-4K offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
Ultimate Viewing Experience with 4K HDR
Experience 4K crystal-clear details and dynamic visuals powered by HDR/HLG support. The projector features dual HDMI 2.0/HDCP 2.2 ports for original 4K quality content, bringing your presentations, creative works, and sports viewing to life.
4K HDR
Bright Images for Large Venues

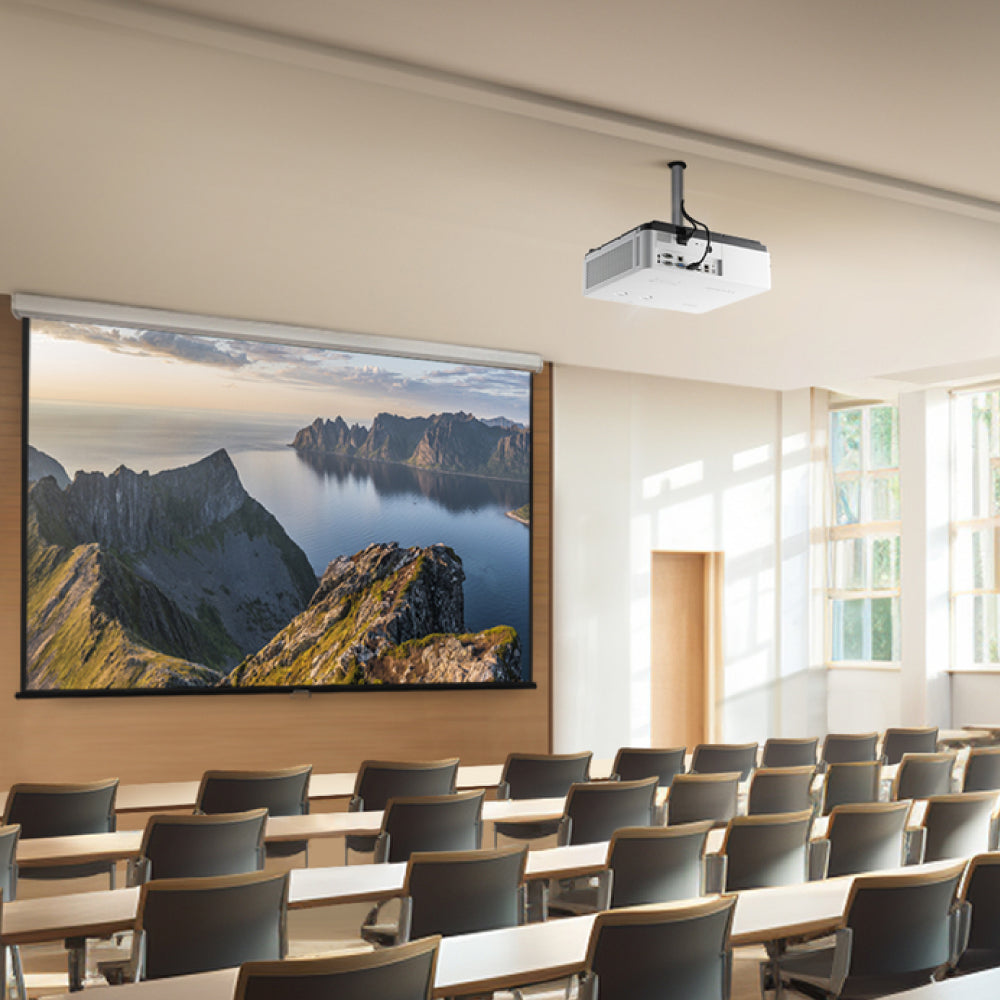

Delivering 7,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
7,000 ANSI Lumens
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Up to 300”
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
21:9 for MTR
Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
H/V Lens Shift, Keystone Correction, 1.6x Optical Zoom
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Up to 30,000-hour Lifespan
Centralized Control for Management Efficiency
The LSC700-4K is certified for Crestron and Q-SYS, and compatible with AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Comprehensive LAN Control

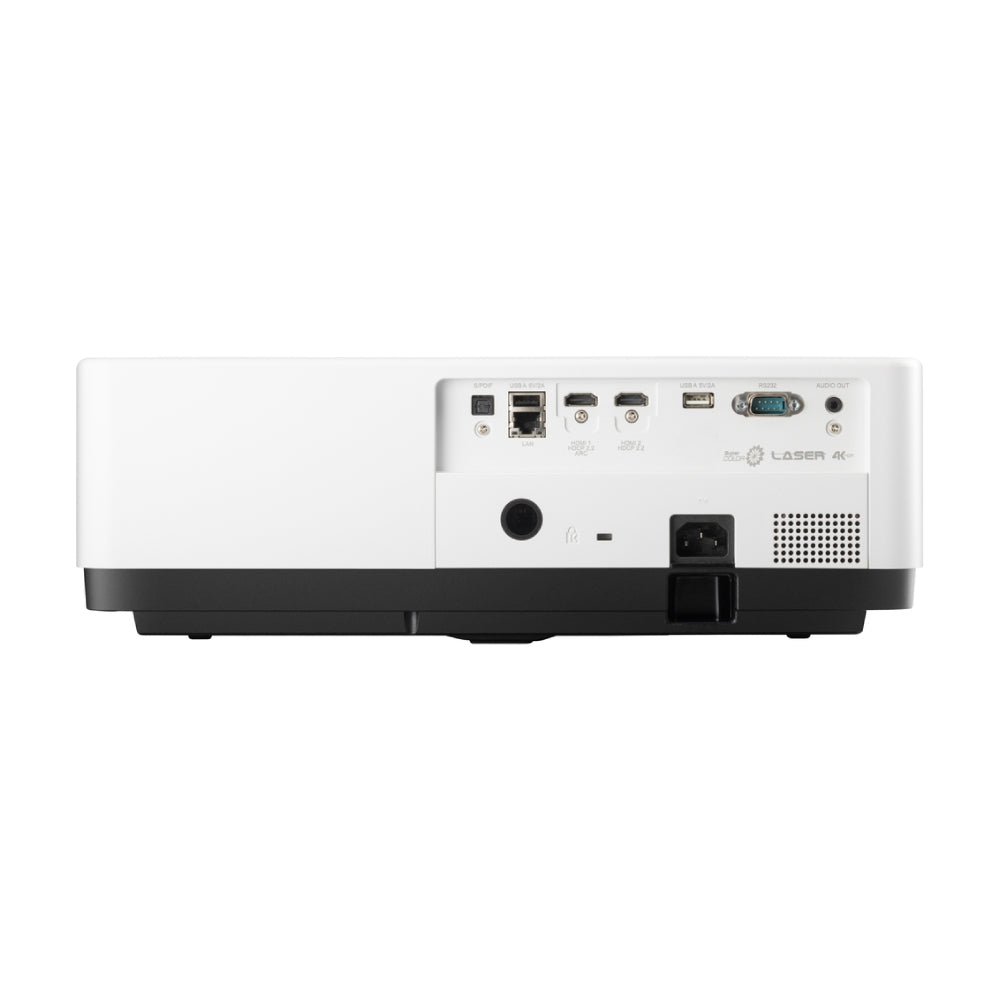

Dimensions & I/O Ports
- 1. Zoom Ring
- 2. Focus Ring
- 3. Front IR
- 4. Rear IR
- 5. RJ45
- 6. S/PDIF
- 7. USB-A (5V/2A)
- 8. HDMI 2.0/HDCP 2.2
- 9. USB-A (5V/2A)
- 10. RS232
- 11. Audio Out
- 12. AC In
- 13. LED Indicator
- 14. Keypad
- 15. Lens Shift Control Knob*2
Specifications
Projection System
3LCD (3x0.64" with MLA)
Native Resolution
WUXGA with 4K Enhancement
Brightness
7000 (ANSI Lumens)
Brightness (Center Lumens)
7600
Contrast Ratio
3000000:1
Display Color
1.07 Billion Colors
Light Source Type
Laser Phosphor
Light Source Life (hours) with Normal Mode
20000
Light Source Life (hours) with SuperEco Mode
30000 (Eco)
Lens
F=1.5-2.08, f=17.2-27.7mm
Projection Offset
0%+/-5%
Throw Ratio
1.2-2.0
Optical Zoom
1.6X
Digital Zoom
1.0x-2.0x
Image Size
30"-300"
Throw Distance
0.80-13.35m(100"@2.66m)
Keystone
H:+/-25° , V:+/-30°
Auto Keystone
+/- 30° (V)
Lens Shift V. Range
+66%, 0%
Lens Shift H. Range
+29%, -29%
Audible Noise (Normal)
37dB
Audible Noise (Eco)
26dB
Input Lag
32ms
Resolution Support
VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency
15K-135KHz
Vertical Scan Rate
24-85Hz
Input
HDMI
2(HDMI 2.0, HDCP 1.4/2.2)
Audio-in (3.5mm)
1
USB Type A
2 (5V/2A)
RJ45 Input (Internet)
Yes
Output
Audio-out (3.5mm)
1
Audio-out (HDMI ARC)
1(share with HDMI Input)
S/PDIF
1
Speaker
16W
USB Type A (Power)
2(USB2.0 - 5V/2A,share with USB A Input)
Control
RS232 (DB 9-pin male)
1
RJ45 (LAN control)
1(share with RJ45 Internet)
USB Type A (Services)
1(share with USB A Output)
Others
Power Supply Voltage
100-240V+/- 10%, 50/60Hz(AC in)
Power Consumption
Normal: 380W
Standby: <0.5W
Operating Temperature
0~40℃
Carton
Brown
Net Weight
7.9kg (17.42 lbs)
Gross Weight
10.1kg (22.27 lbs)
Dimensions (WxDxH) with Adjustment Foot
405x358x137mm (15.9x14.1x5.4 in)
Packing Dimensions
510x498x260mm (20.1x19.6x10.2 in)
OSD Language
English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Vietnamese, Thai, total 23 languages
User Guide Language
English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
Standard Accessory
Power Cord
1
Remote Control
1
QSG
Yes
Air Filter
Yes
Optional Accessory
Air Filter
RSPL
Wall/Ceiling Mount
PJ-WMK-007
