Meet Mineola MICro. Small Box. Big Mic Energy.

The Mineola MICro seamlessly connects microphones and analog audio sources to the Dante ecosystem in an ultra-compact form factor. Featuring a high-quality mic preamp, 48V phantom power, XLR and TRS combo connectivity, PoE and USB C power, integrated DSP and WebUI control, MICro is the mount anywhere Dante mic preamp you’ve been looking for.

Mic pres. Yes plural.

Mic pres. Yes plural. MICro has two inputs and each has its own high quality mic preamp. Dynamic or condenser, we’ve got you.

PoE with Phantom Power.

Mineola streamlines setups by combining Power over Ethernet (PoE) with 48V Phantom Power on both XLR inputs.

Total Dante Software Compatibility.

Mineola MICro is 100% compatible with all Dante software products including Dante Controller, Dante Virtual Soundcard (DVS), Dante Domain Manager, Dante Connect, and Dante Director.

DSP control via WebGUI

DSP control via WebGUIThe built-in DSP WebGUI makes managing your Dante Bridge super easy and delivers even more value to this little powerhouse. With the WebGUI, every feature is at your command.

Configure Audio Precisely
Adjust input and output settings, manage EQ profiles, and control audio delay for Analogue and Dante outputs.

Save and Recall
Presets Create up to 5 customizable presets for quick scene changes, perfect for dynamic setups.

Monitor and Manage Network Settings
Switch between DHCP and Static IP modes, configure Telnet ports, and use the domain name for quick access.

Advanced System Utilities
Modify passwords, reboot the system, update firmware, and export/import settings with ease.

Streamlined Setup
Control everything from input sources to auto-standby times, all through an easy-to-use interface.

Locking Connectors. Designed for Live.

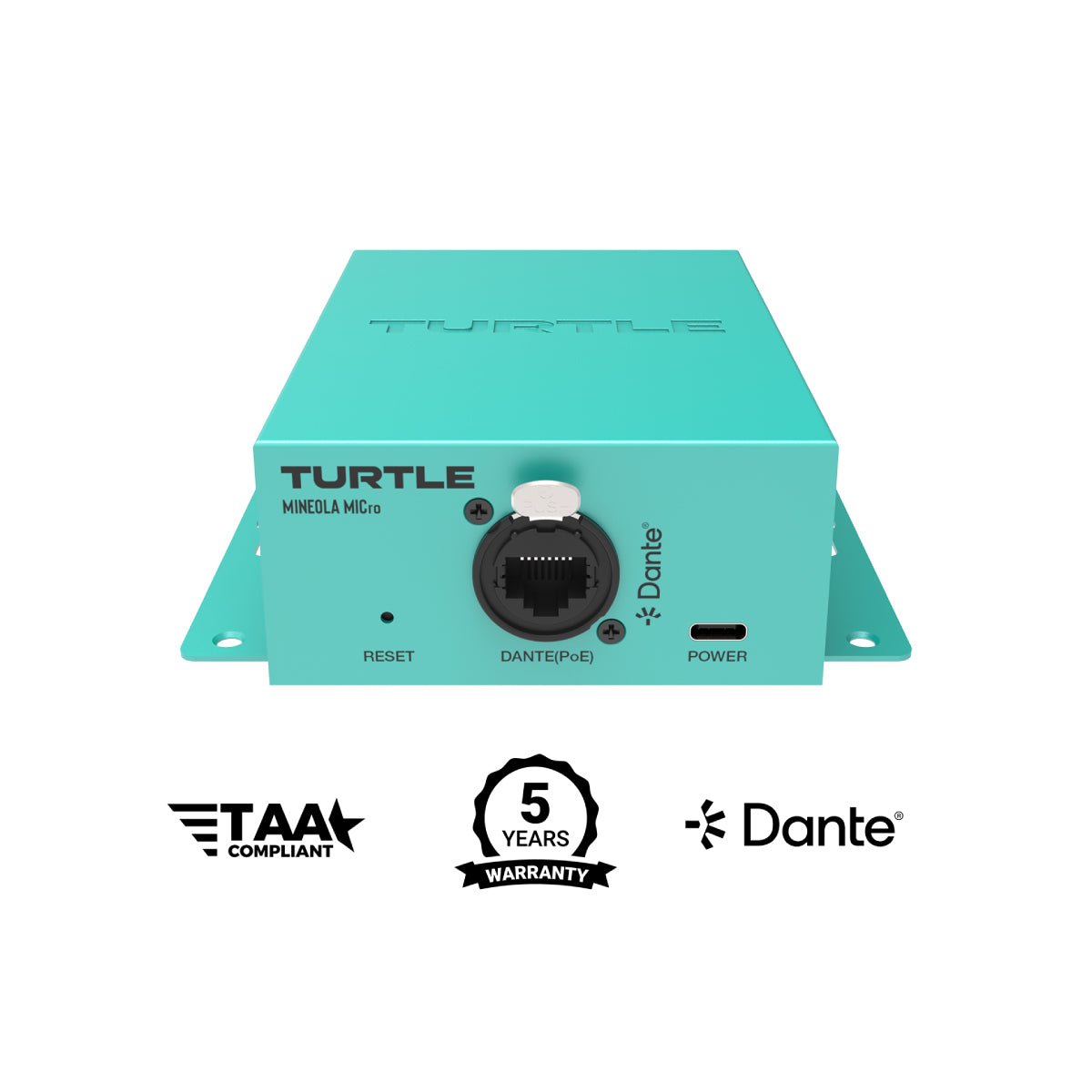

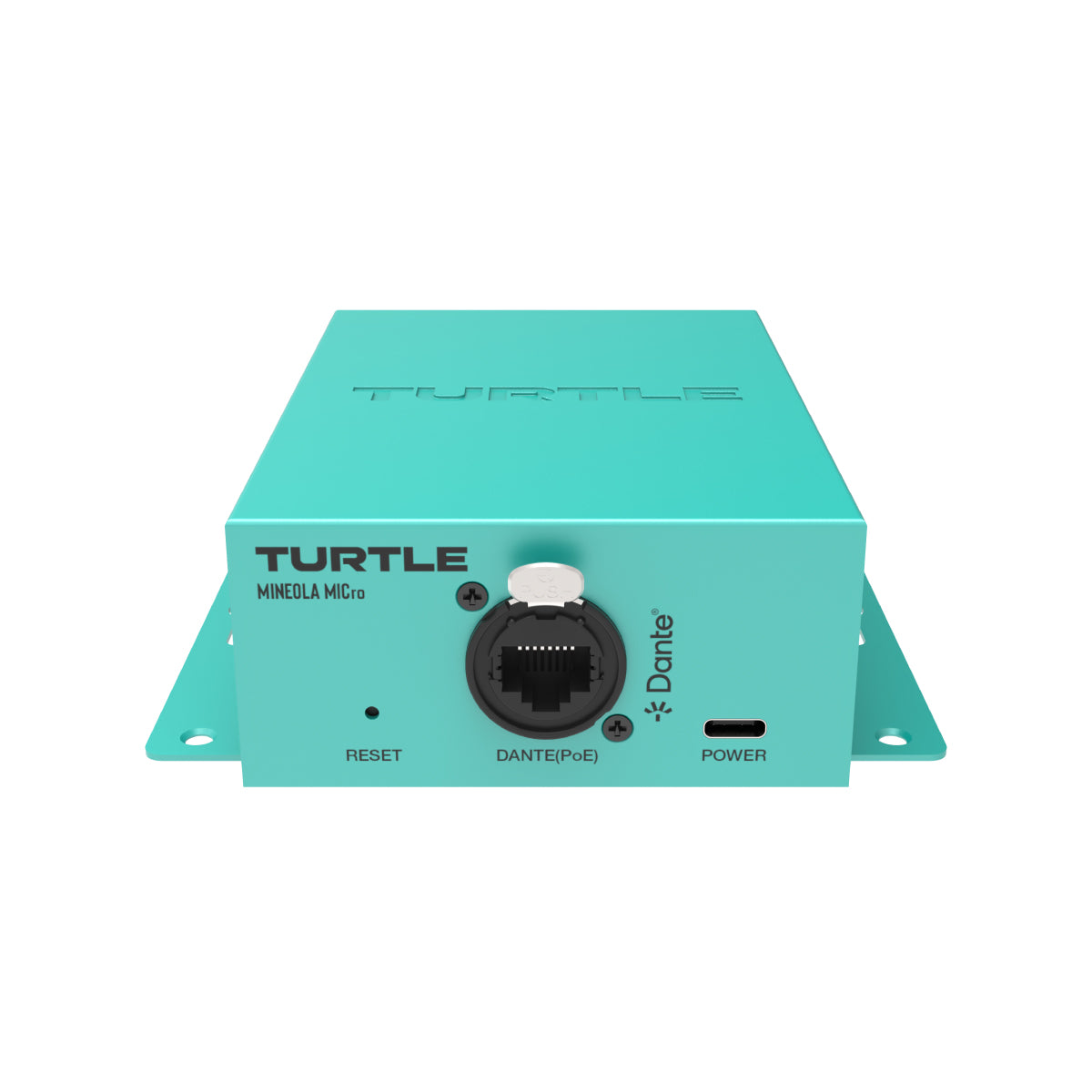

Mineola MICro features locking connectors providing maximum security in live environments. The PoE network port is a locking Neutrik etherCON connector, and of course the XLR connectors are locking too.

Studio Quality Audio. Live.

Supporting Dante audio sampling rates up to 96kHz at 24 bit, MICro delivers pristine audio performance for demanding professional environments. Installed or on tour, MICro won’t let you down.

One Connector. Two connections.

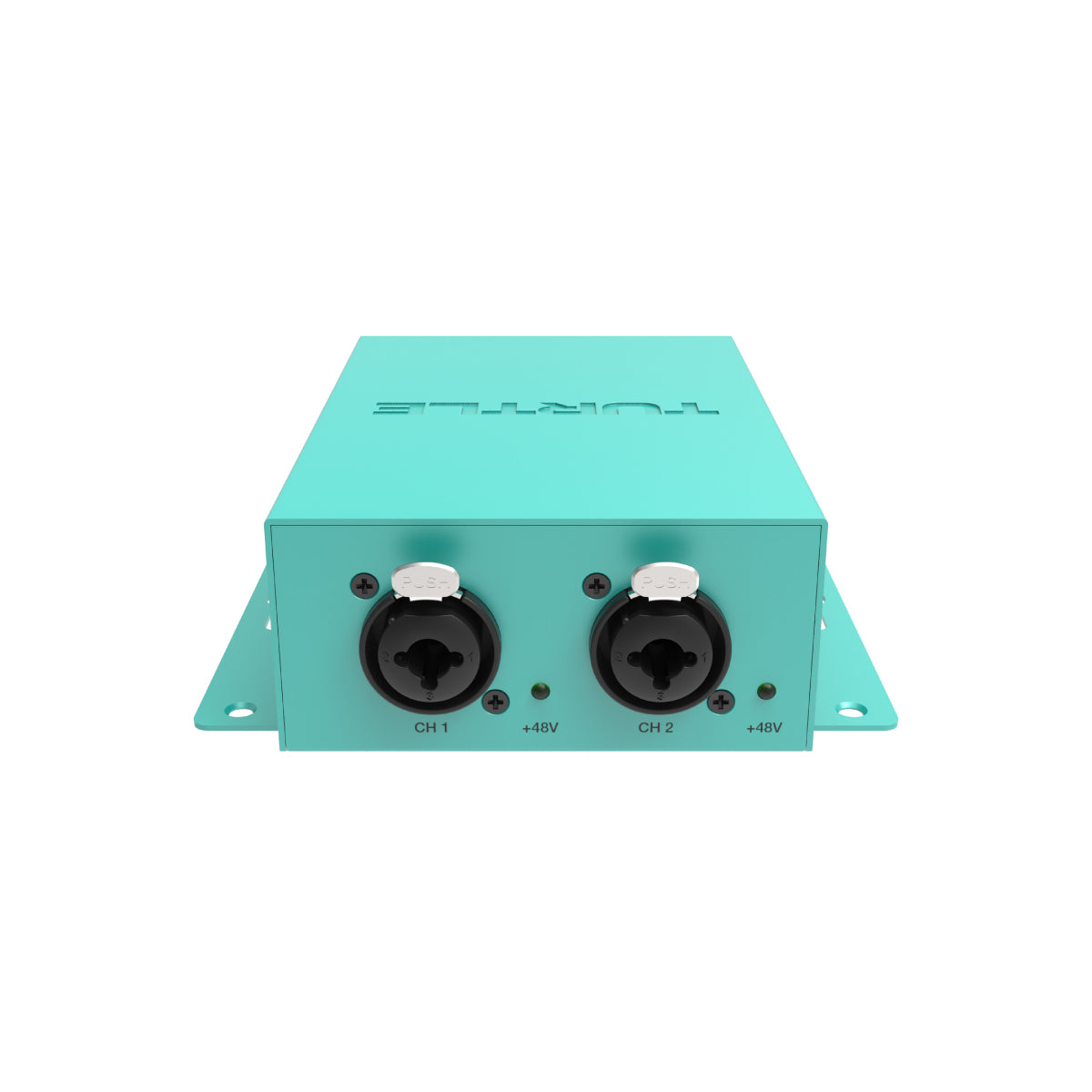

XLR and TRS combo connectors give MICro the flexibility to handle microphones and line level audio sources through a single input. One connector, more possibilities.

Mount Anywhere.

Included mounting ears make installation fast and flexible across permanent installs and live productions. Under tables, inside racks, under lecterns, side of stage, or wherever audio needs to join the network.

Tested in the Harshest Conditions

Tested in the Harshest Conditions Mineola was deployed in the extreme conditions of Survivor Québec in Panama, delivering rock-solid Dante audio across a fully mobile broadcast setup. With constant setup and teardown, long transport routes, and exposure to heat, humidity, and salt air, the system was pushed far beyond typical install environments.

Despite the challenges, Mineola provided a stable and flexible audio backbone for the entire production, handling critical signal paths without interruption. Built for real-world reliability, it proved itself where performance isn’t optional, and failure simply isn’t an option.

MICro. The cleverest product name ever?

Mineola MICro is a small form factor and is built for microphone inputs. Our marketing team really hit it out of the park with the uber-clever name and formatting of the capital and lower-case letters. MIC highlights the mic preamps and ro signifies the tiny form factor. It was so clever we gave them a few days off. And then we changed the locks.

Q SYS. Bitfocus. OpenAVC. Open API.

MICro integrates seamlessly with native Q SYS plugin support, Bitfocus Companion integration, OpenAVC, and an open API for custom workflows. Push buttons, automate actions, or build something entirely your own. You’re in control.

Latency. Your Call.

Configure Dante latency with support for 2, 3, 5 or 10 milliseconds to suit your network design and integration.

AES67 lives here too.

Mineola Fam supports AES67 and Dante. Toggle between Dante and AES67 within Dante Controller.

Overview

The Mineola MICro seamlessly connects microphones and analog audio sources to the Dante ecosystem in an ultra-compact form factor. Featuring a high-quality mic preamp, 48V phantom power, XLR and TRS combo connectivity, PoE and USB C power, integrated DSP and WebUI control, MICro is the mount anywhere Dante mic preamp you’ve been looking for.
