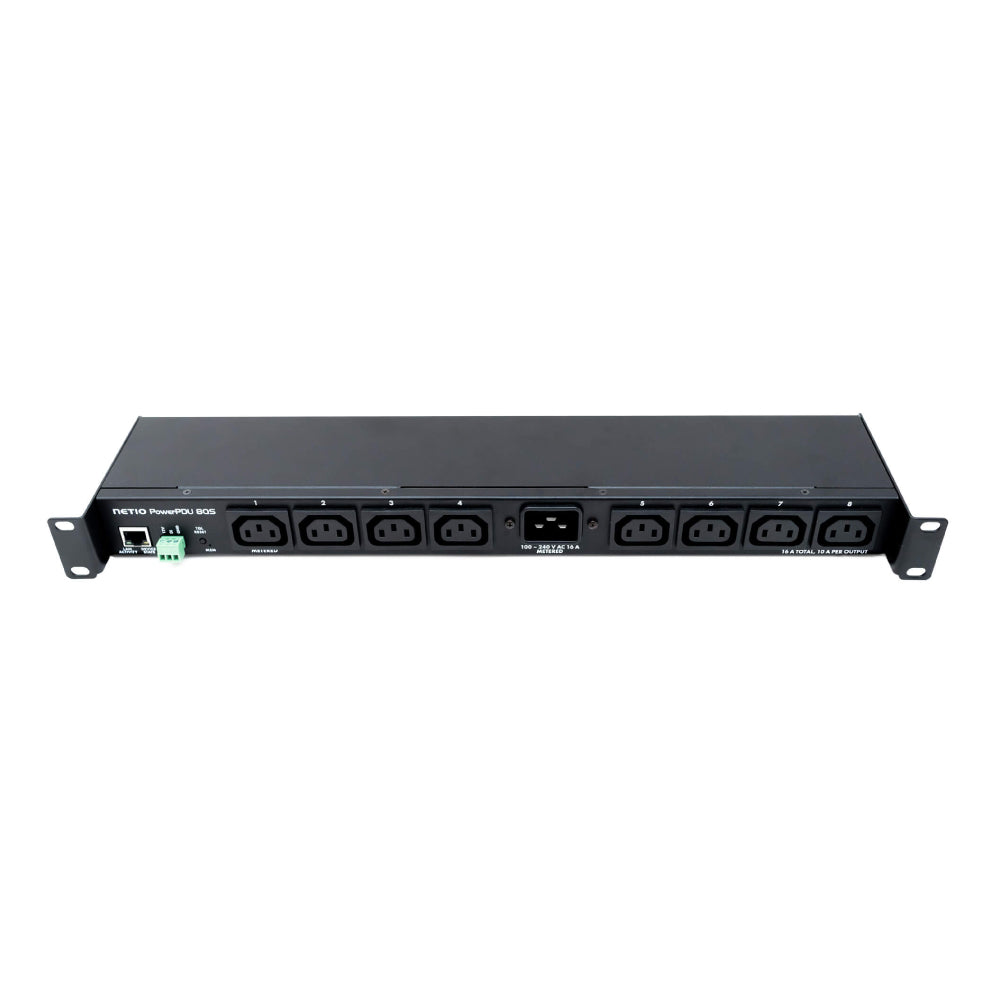

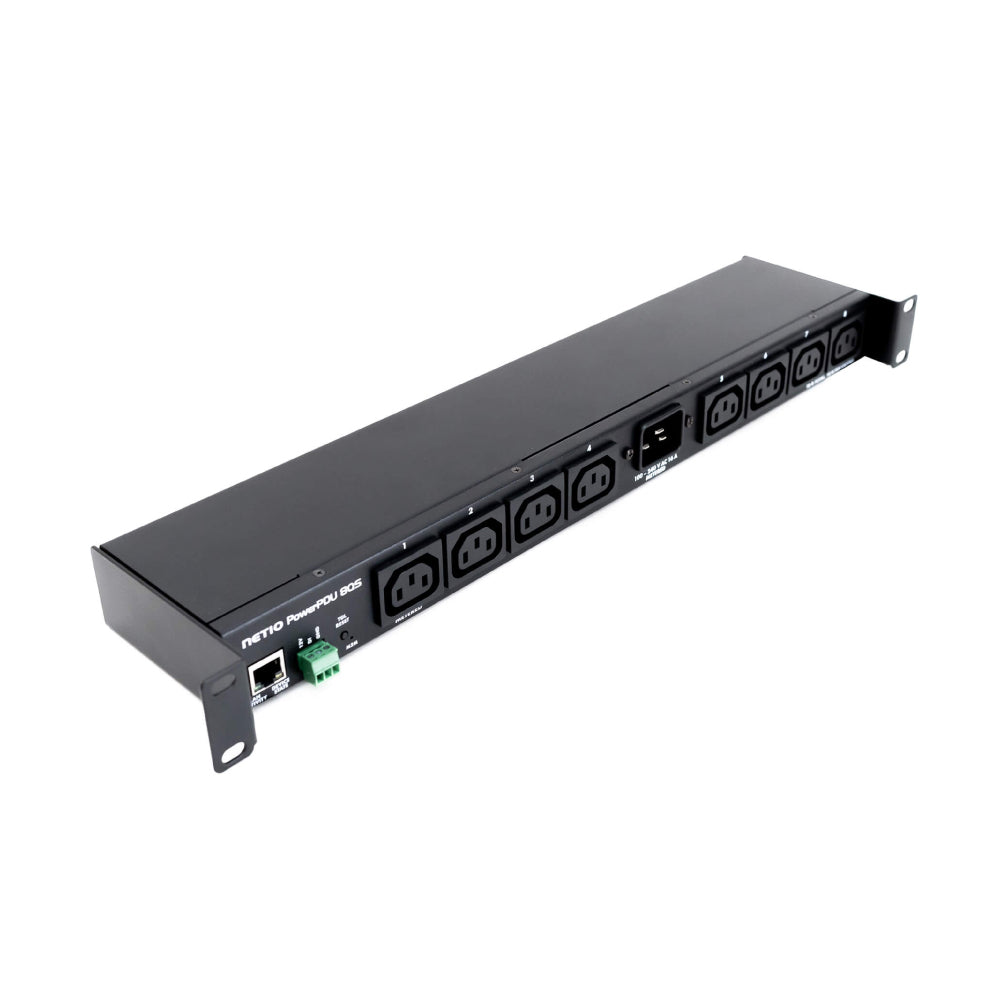

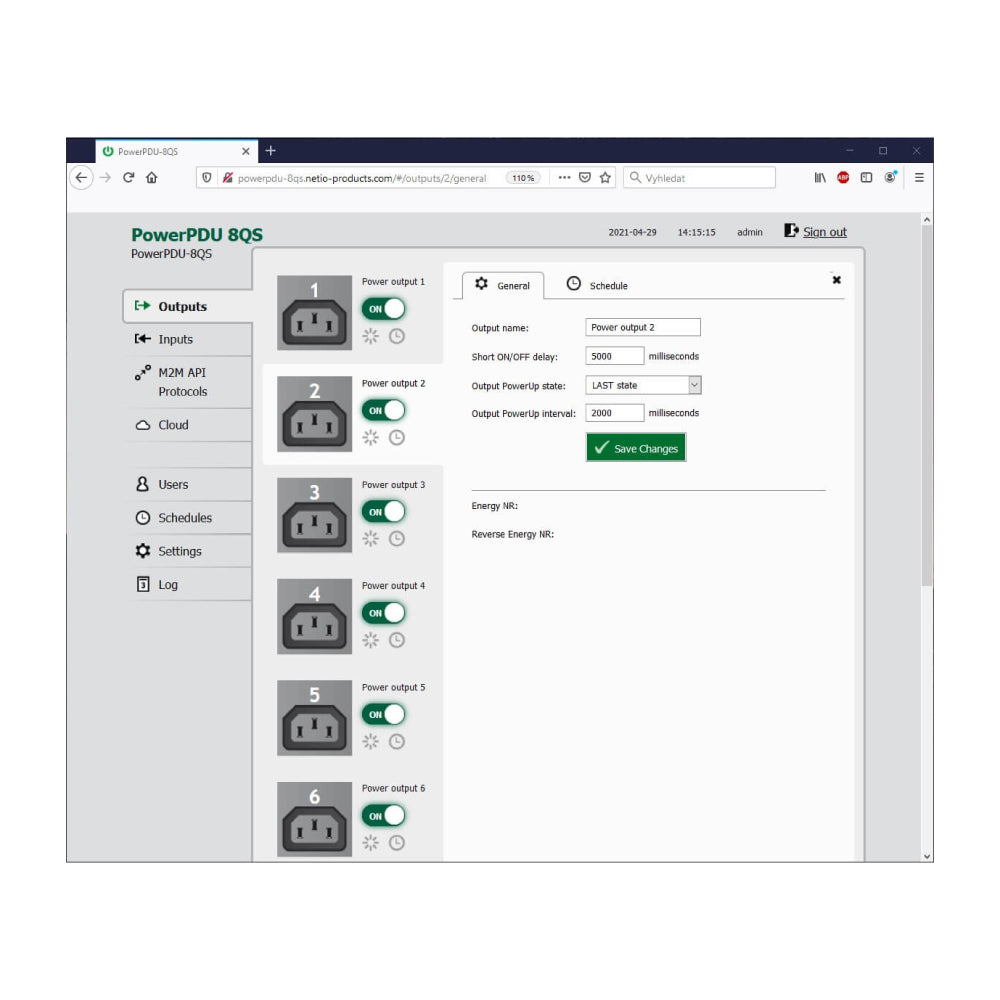

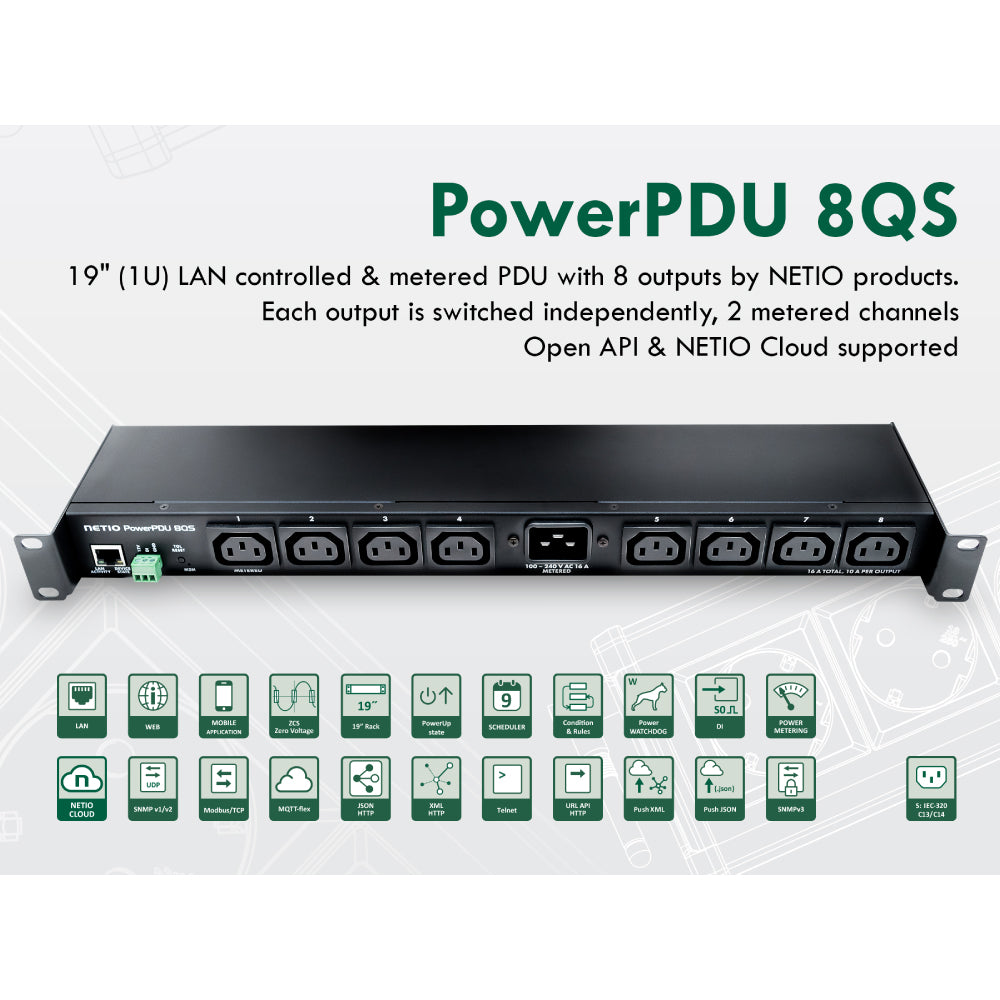

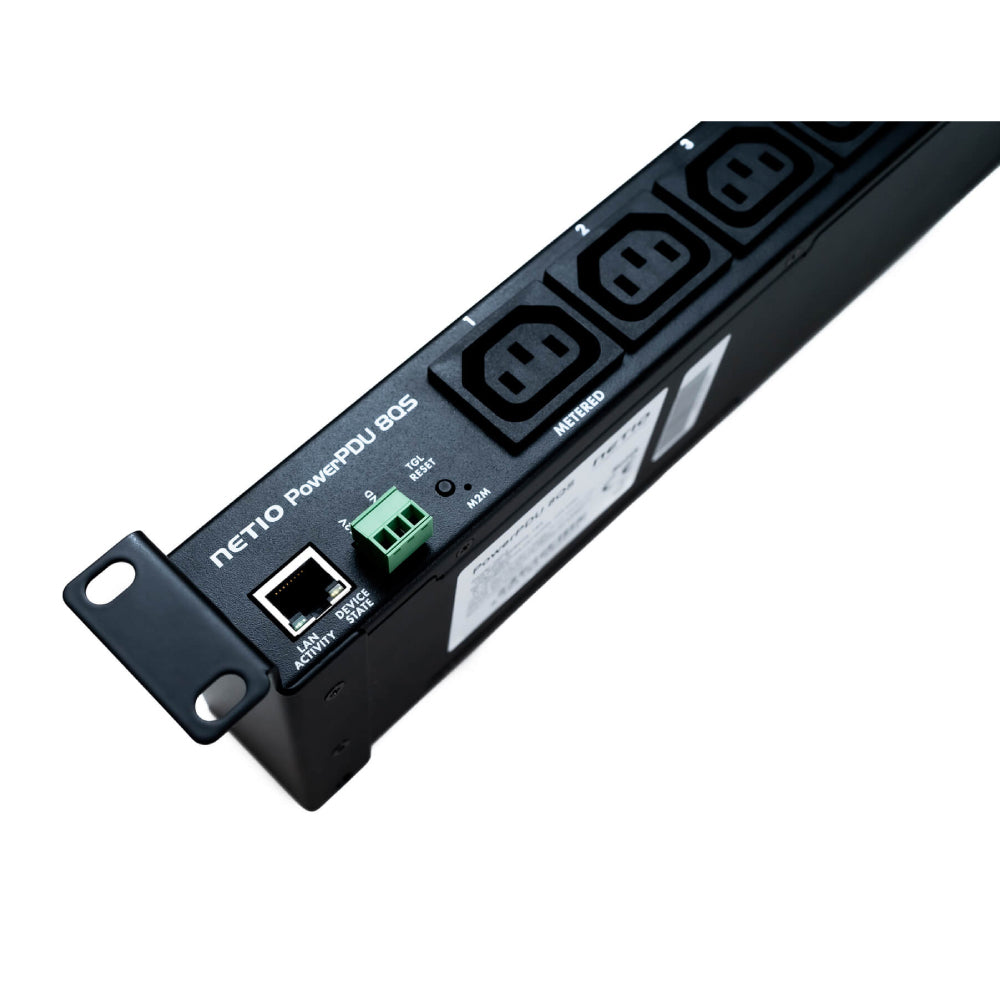

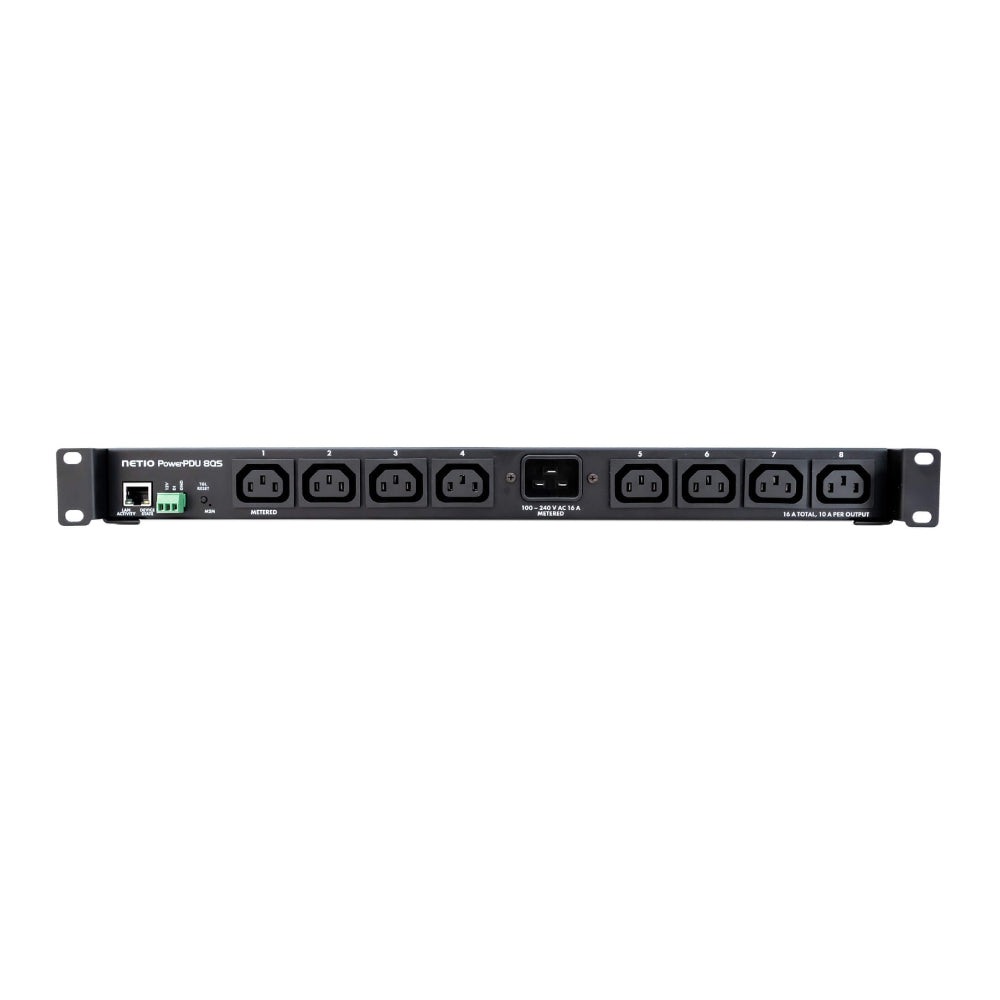

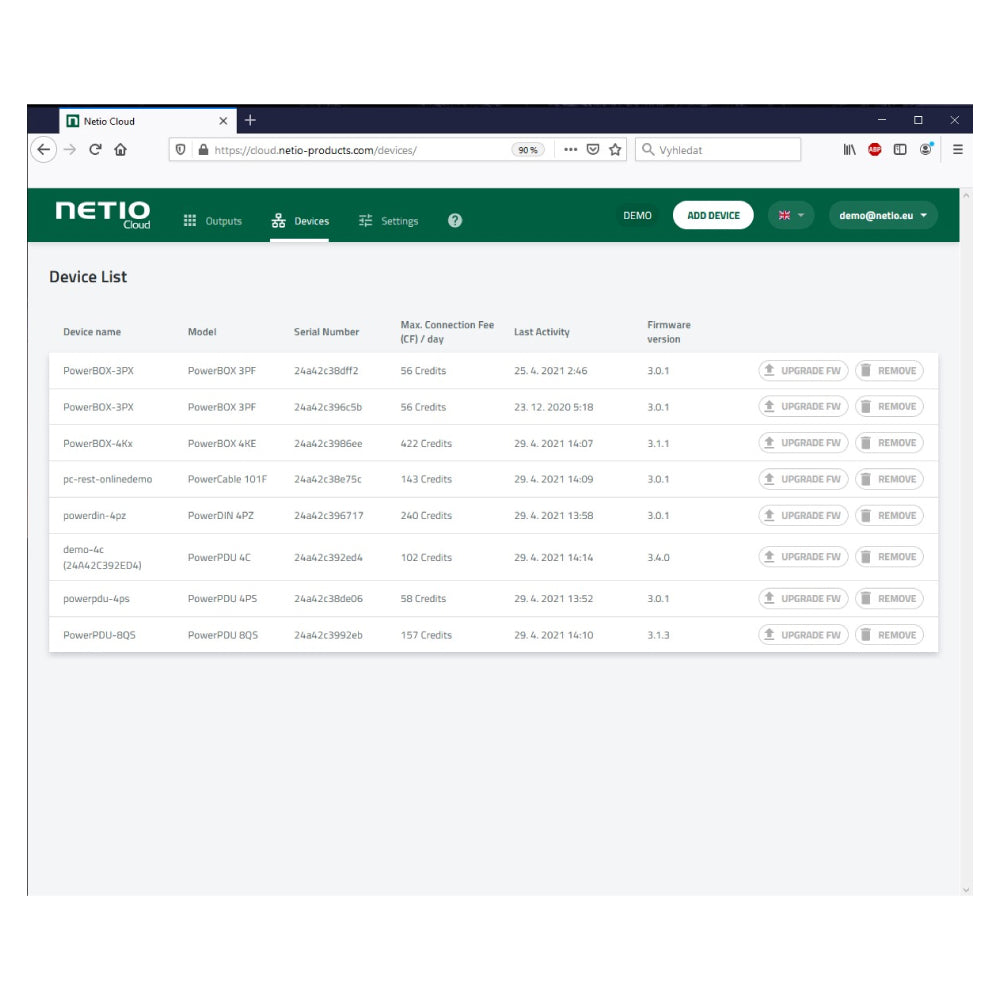

PowerPDU 8QS is a PDU (Power Distribution Unit) with eight power outputs (8x IEC-320 C13) controlled and metered over a LAN. It fits into a 19" cabinet (1U). Each output can be switched on/off individually over the network via web interface, NETIO Cloud service or the mobile app. Open API enables integration into a third party systems. Electrical metering is performed on two channels - whole PDU (at the input) and Output1 separately. DI (Digital Input) can control the outputs or count S0 pulses and is available through API.

Key features:

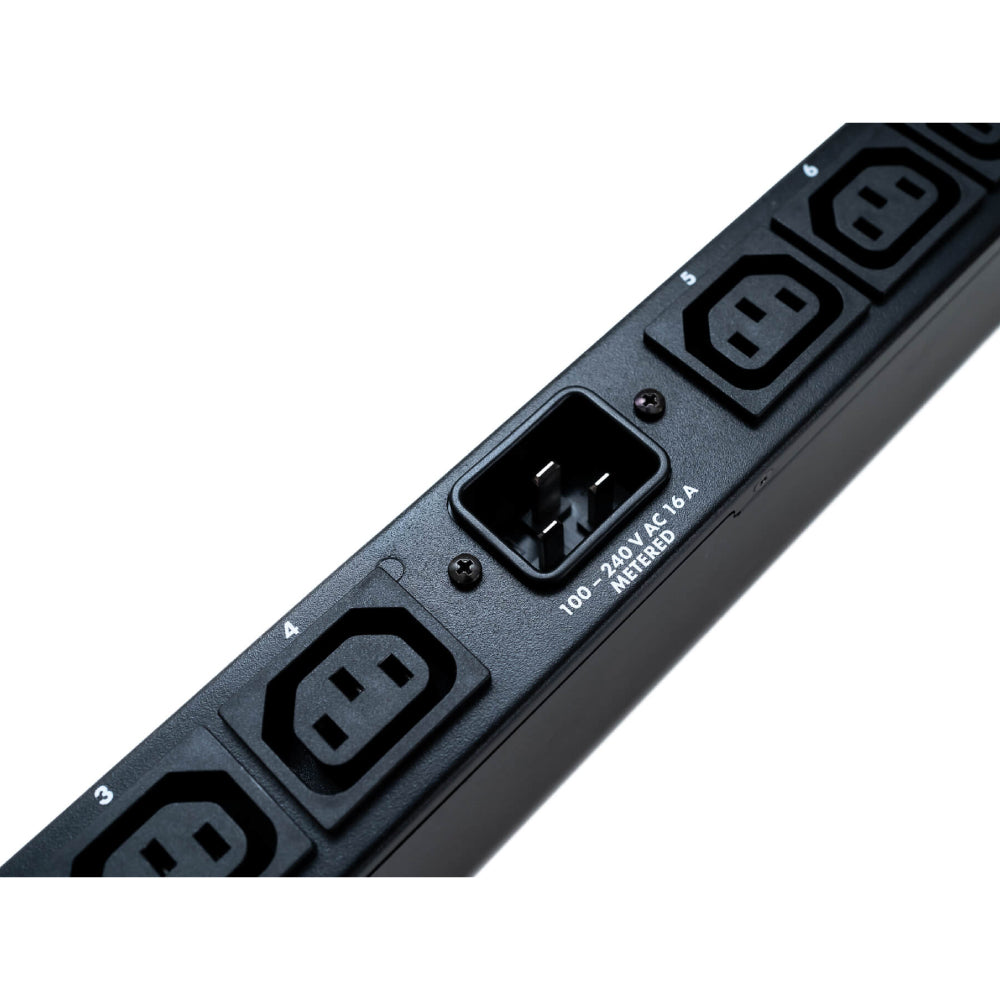

• Power input: IEC-320 C20 (110/230V AC), max 16A
• Power output: 8x IEC-320 C13, max 10A each
• Each output: On/Off (relay SPST-NO, IOC)
• PowerUp State: Default output state (On/Off/Last state)
• PowerUp Delay: Delay before switching output on

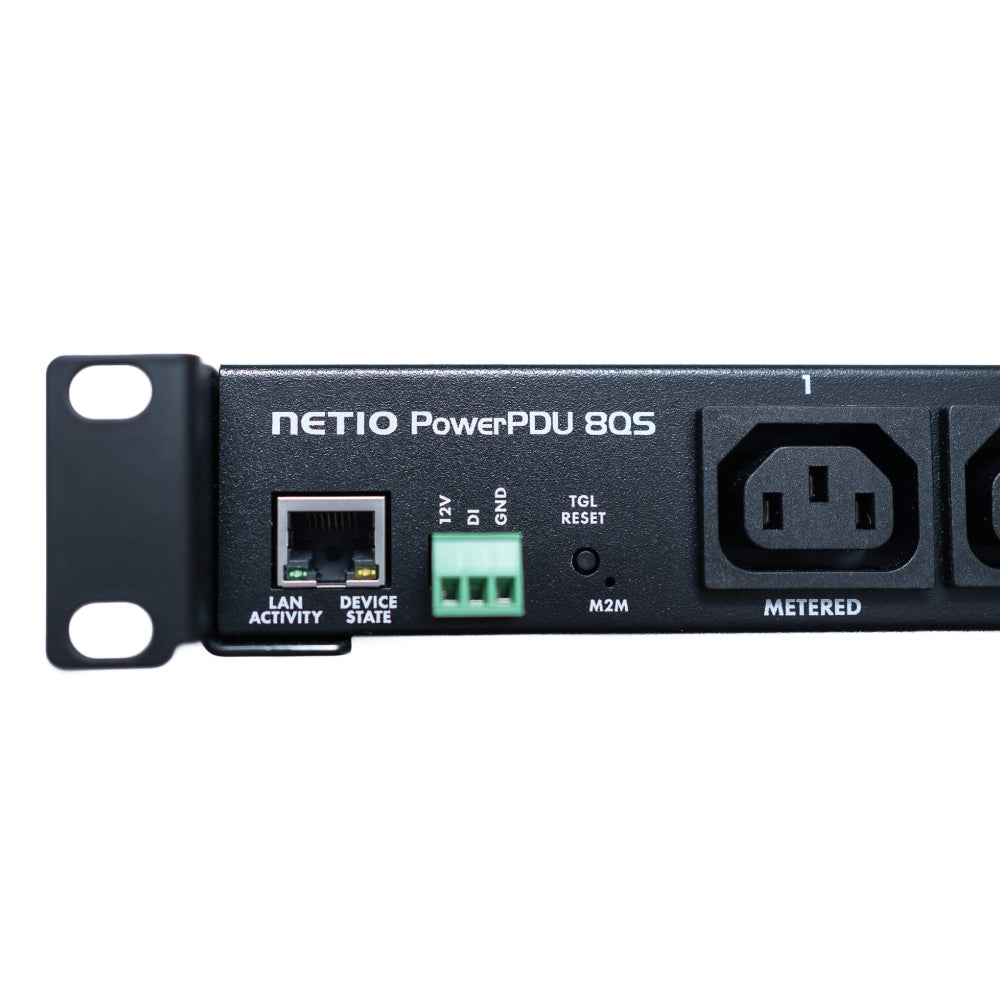

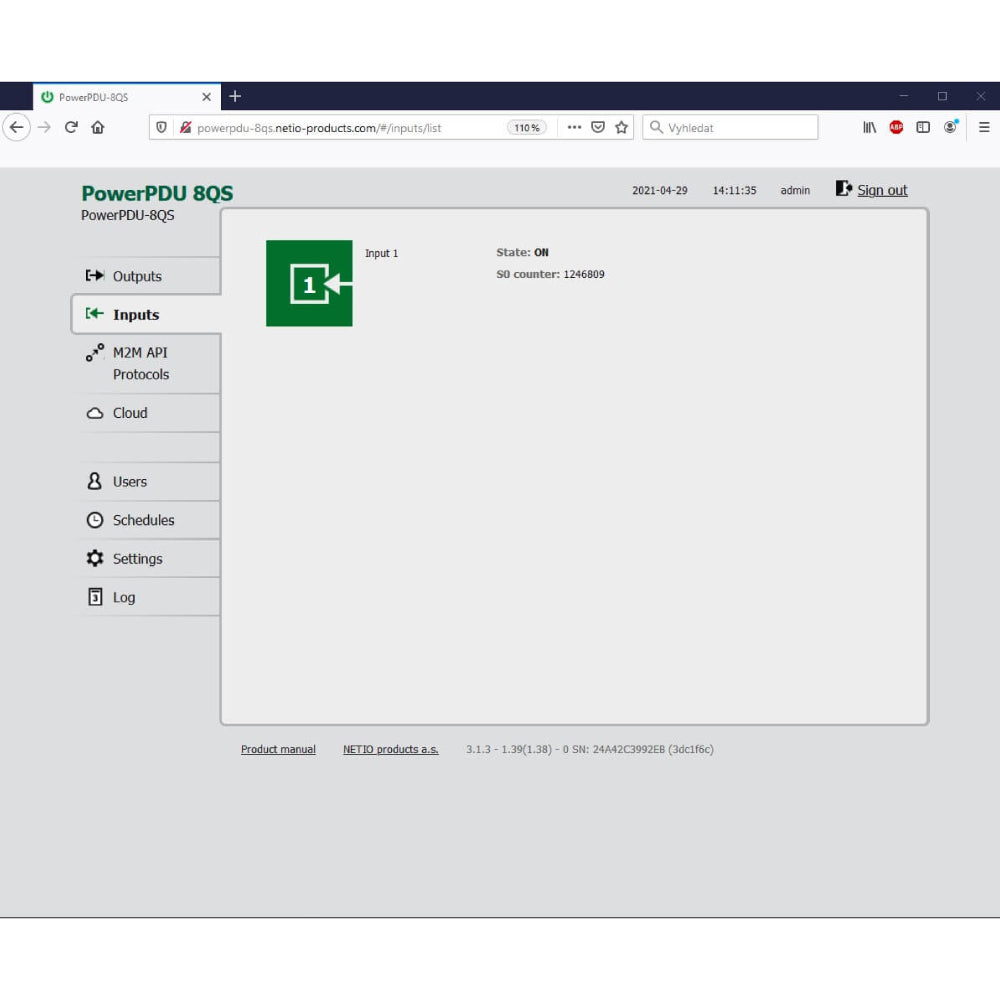

• 1x DI (Digital Input) with 12V DC (max 50mA)
• Each output can be switched on/off individually
• Methods for controlling each output:

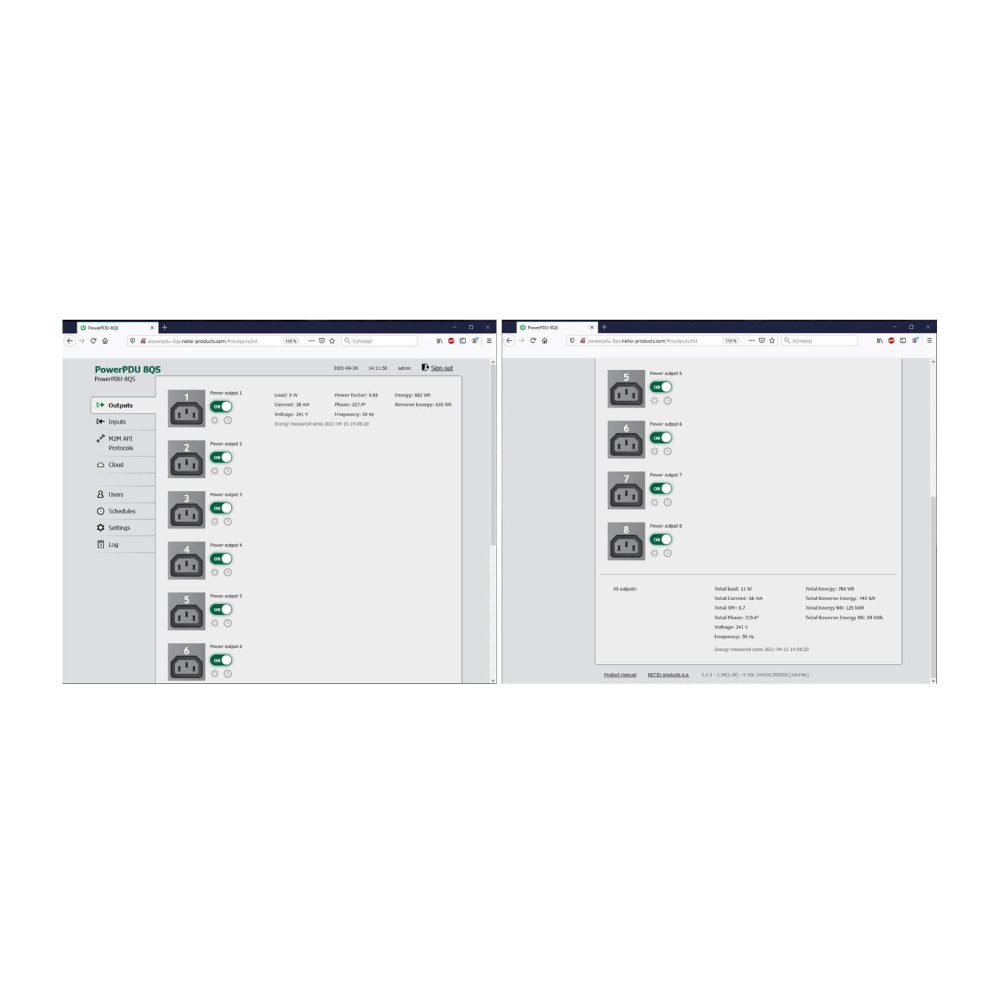

  •  WEB browser

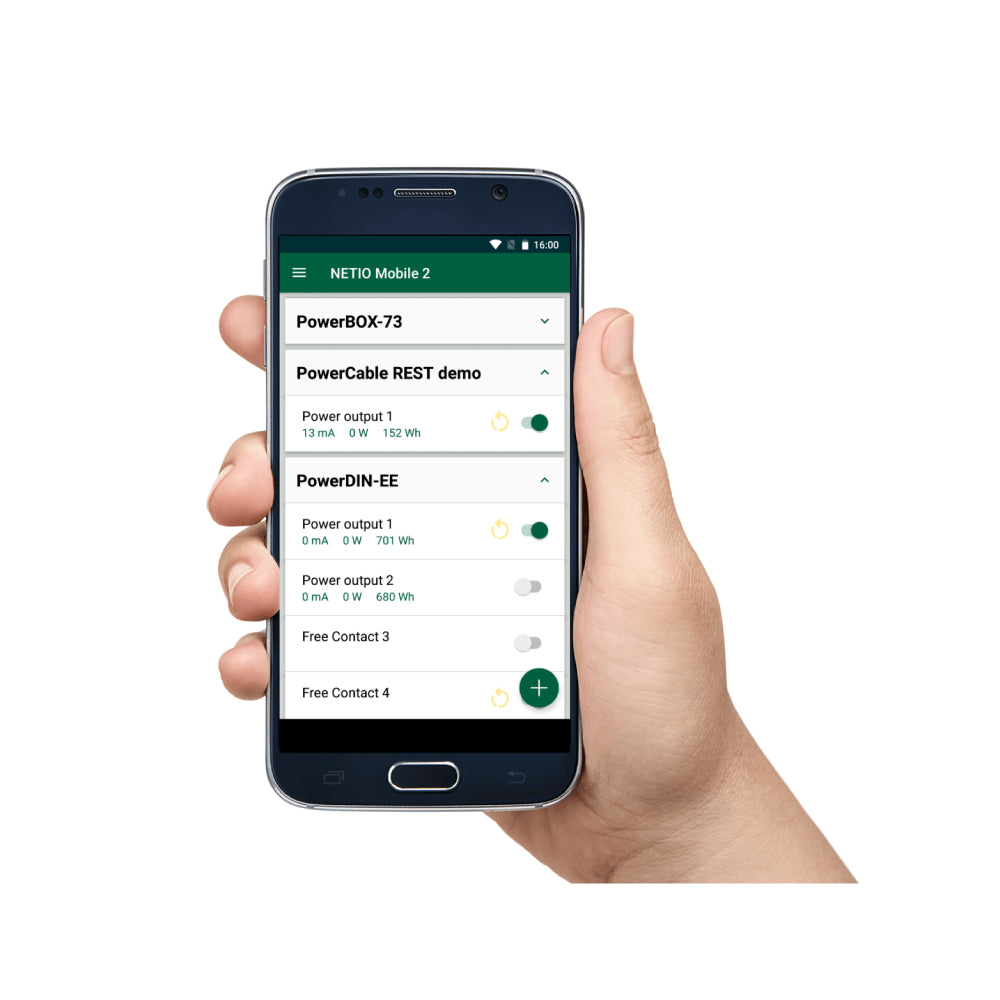

  •  Mobile App (NETIO Mobile2)

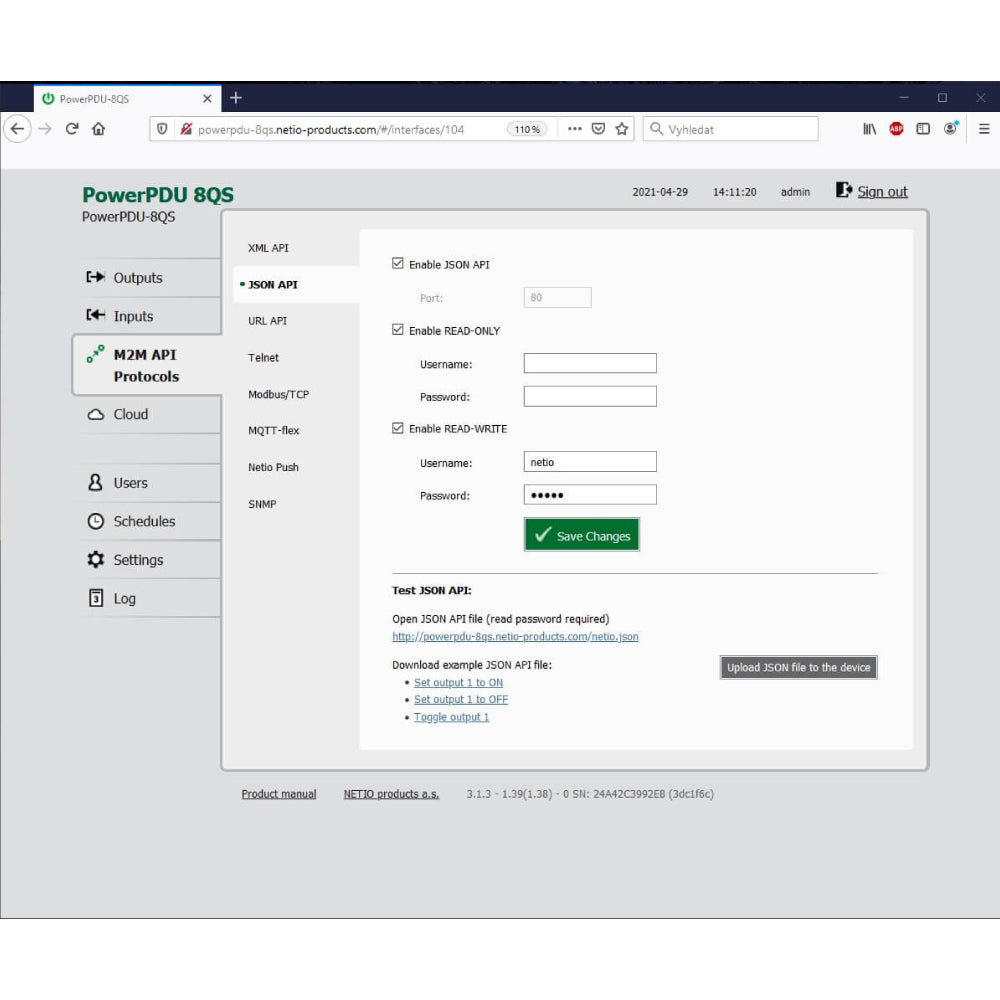

  • Open API (10 protocols)

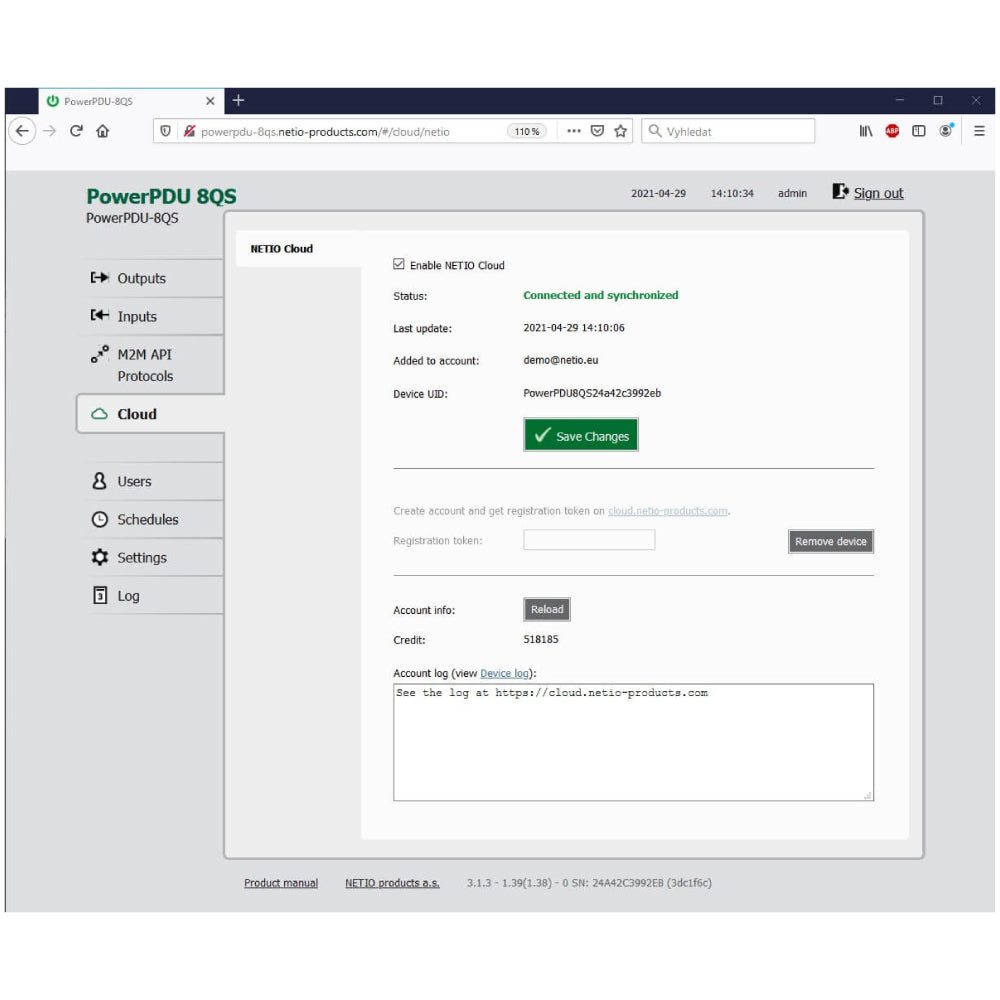

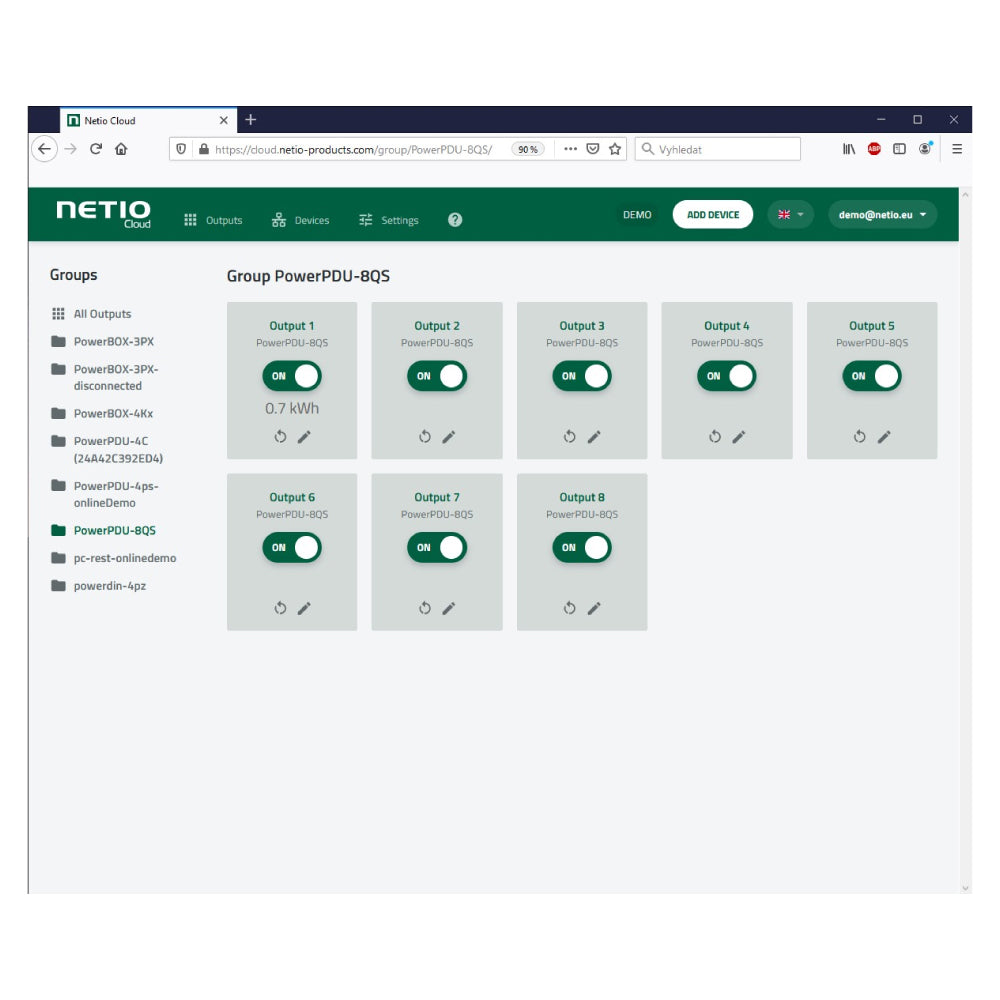

  •  NETIO Cloud
•  Ping Watchdog - autonomous ping restarter
• Power Watchdog - IDLE mode detection & restarter

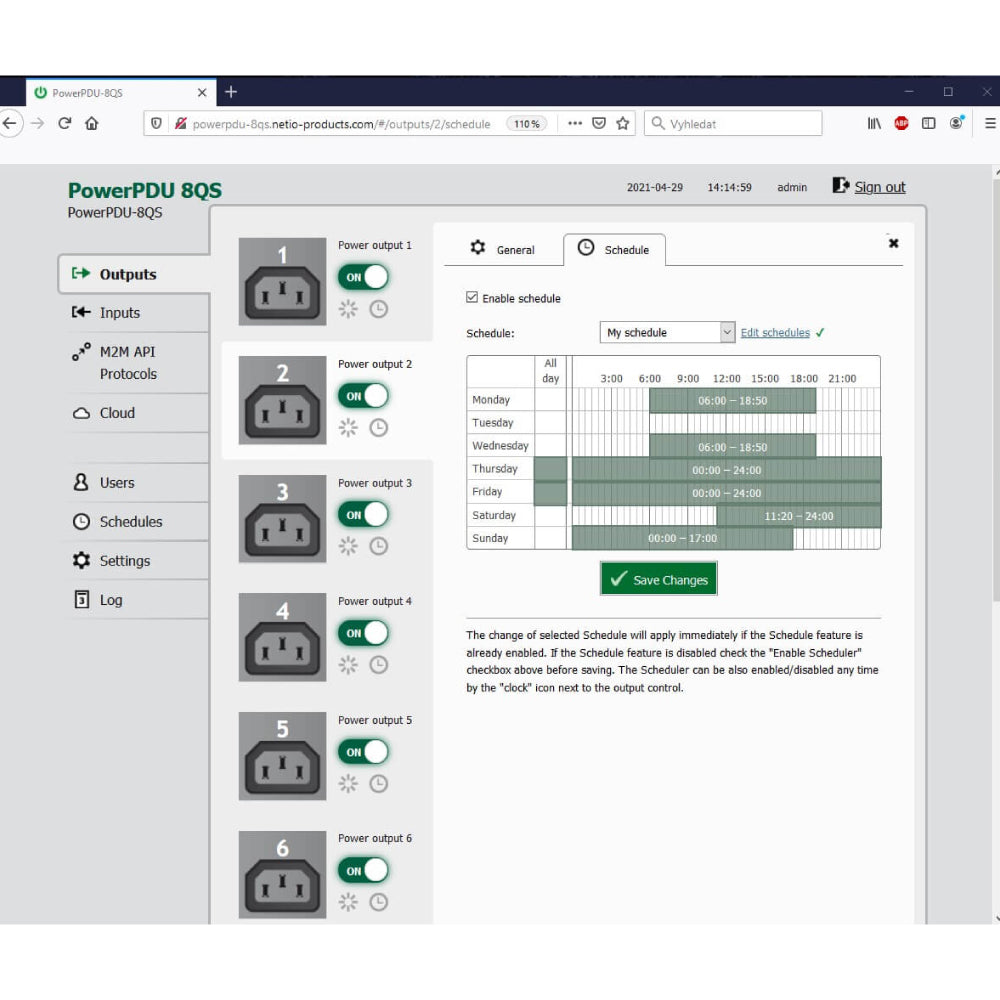

• Scheduler function: Time based switching
• AV drivers make it easy to connect NETIO sockets to a professional Audio/Video control systems such Crestron, QSYS, Kramer, Control4, RTI, Savant and more.
• Certification : CB, EMC, RoHS, KC, UL, FCC, CSA, ICES, AS/NZS
• Warranty : 6 years
