Peplink SIM Injector Mini
SKU: SIM-MINI-8-1E
SIM Injector Mini
SIM Management from Afar.
The best accessory we’ve ever made.
Durable, rugged, simple to use. Easy SIM management won’t be gated behind a paywall.
One Ethernet cable is all you need
Power your device through PoE and forgo the need for a nearby power outlet. Power through Microfit Connector is also available for more flexibility.
The best accessory we’ve ever made at
Durable, rugged, simple to use. Easy SIM management won’t be gated behind a paywall.

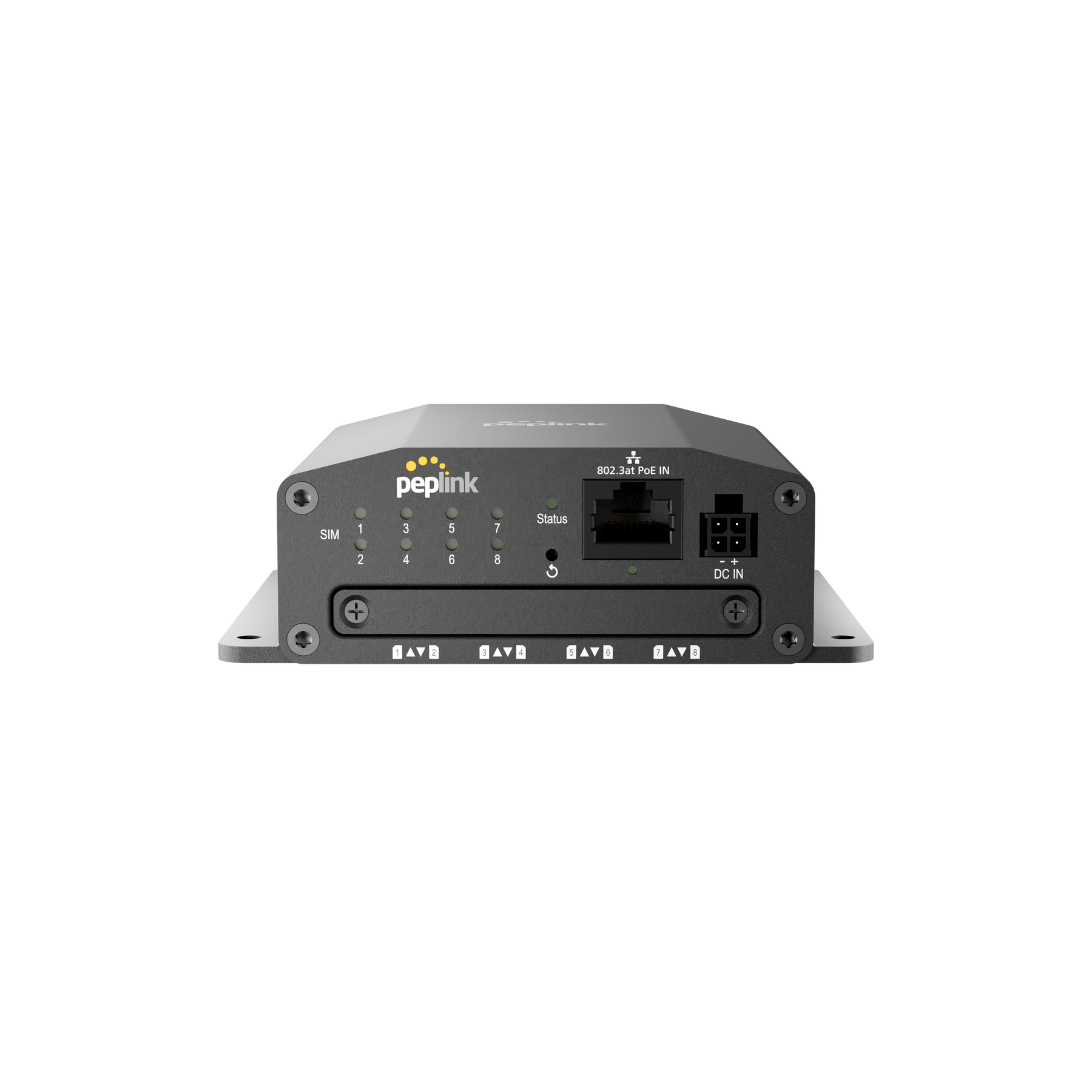

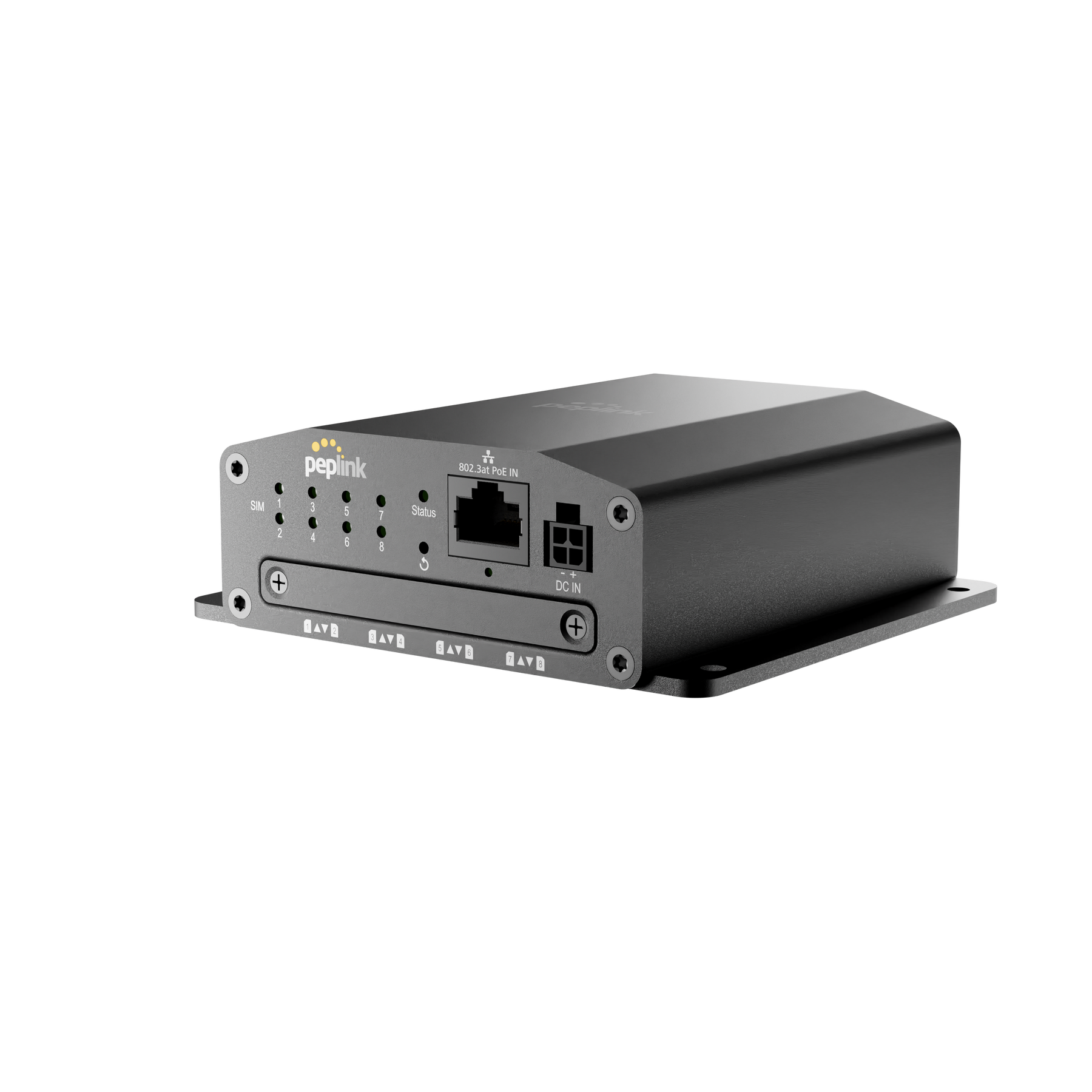

Ports and Connections
Product Overview
| Product | SIM Injector | SIM Injector Mini |
|---|---|---|
| SKU | SIM-BK8-4E-56V | SIM-MINI-8-1E |
| SIM Slots | 8x Active SIM Slots, Mini-SIM (2FF) | 8x Active SIM Slots, Nano-SIM (4FF) |
| LAN Interface | 4x 10/100/1000M Ethernet, PoE 802.3at Output Support* | 1x 10/100 Ethernet, PoE 802.3at Input Support |
| Power Input | DC Jack / Terminal Block: 12-56V | DC Jack: 10-30V / 802.3at PoE |
| Dimensions | 5 x 5.8 x 1.6 inches / 128 x 147 x 40 mm | 3.9 x 4.2 x 1.4 inches / 100 x 107 x 35 mm |
| Weight | 430 grams / 0.94 pounds | 244 grams / 0.54 pounds |
| Operating Temperature | -40° – 149°F / -40° – 65°C | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) | 15% – 95% (non-condensing) |
| Remarks | * 56V DC input is needed for 4x LAN ports to have 802.3at | - |
* 56V DC input is needed for 4x LAN ports to have 802.3at
Order Information
| Product Code | Description |
|---|---|
| SIM-MINI-8-1E | SIM Injector Mini |
Feature Add-On
| Product Code | Description |
|---|---|
| SVL-SIM-MINI-1Y | EssentialCare (1-Year) for SIM Injector Mini |
| SVL-SIM-MINI-2Y | EssentialCare (2-Year) for SIM Injector Mini |
| ECP-C-1Y | EssentialCare+ C (1-Year) |
| ECP-C-2Y | EssentialCare+ C (2-Year) |
| ECP-C-4Y | EssentialCare+ C (4-Year) |
Package Content
- 1x SIM Injector Mini
- 1x 12V 2A 4 Pin Power Supply (ACW-632)
Supported Models
- BR & Transit & UBR Series: BR1 Classic (HW3 or above), BR1 ESN, BR1 IP55 (HW4 or above), BR1 Mini (HW4 or above), BR1 Mini 5G (HW2 or above), BR1 Pro (HW5 or above), BR1 Pro 5G (HW2 or above), BR2, BR2 Micro, BR2 Pro (HW2 or above), Transit Core, Transit Duo Pro, Transit Mini, Transit Pro E, UBR LTE, UBR Plus
- Balance Series: Balance 20X ^, Balance 310 5G, Balance 310 Fiber 5G, Balance 310X, Balance 380X ^, Balance 580X ^
- Dome Series: Dome Pro Duo, Dome Pro LR, HD1 Dome, HD1 Dome Pro, HD2 Dome
- HD Series: HD2 IP67 (HW4 or above), HD2 Mini (HW2 or above)
- X Series: EPX ^, HD2 MBX, HD2 MBX 5G, HD4 MBX, HD4 MBX 5G, MBX Mini, PDX, SDX (HW3 or above) ^, SDX Pro ^
- FlexModule Series: FlexModule Mini, FlexModule Plus *
- Others: 5G Adapter, B One 5G (HW2 or above), B One Plus (HW2 or above), SFE (HW2 or above), SFE CAM
^ Balance 20X, Balance 380X, and Balance 580X require FlexModule Mini for SIM Injector Mini support, while SDX, SDX Pro, and EPX require a compatible FlexModule Plus.
* Please cross-check and confirm with the image below, the form factor of your FlexModule Plus.
Supported FlexModule Plus
Includes membrane marking ‘Cellular’
SIM slot size 4FF
Not Supported FlexModule Plus
Includes membrane marking ‘Main’
SIM slot size 2FF
