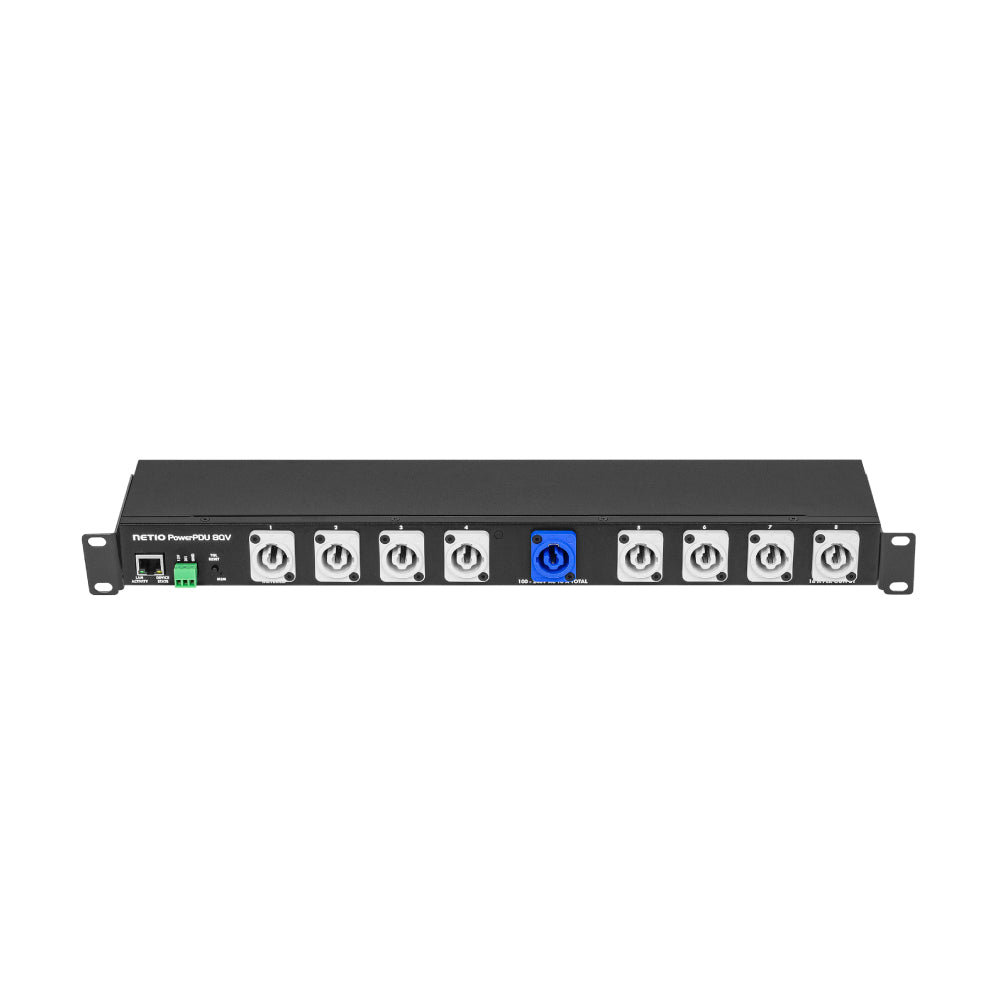

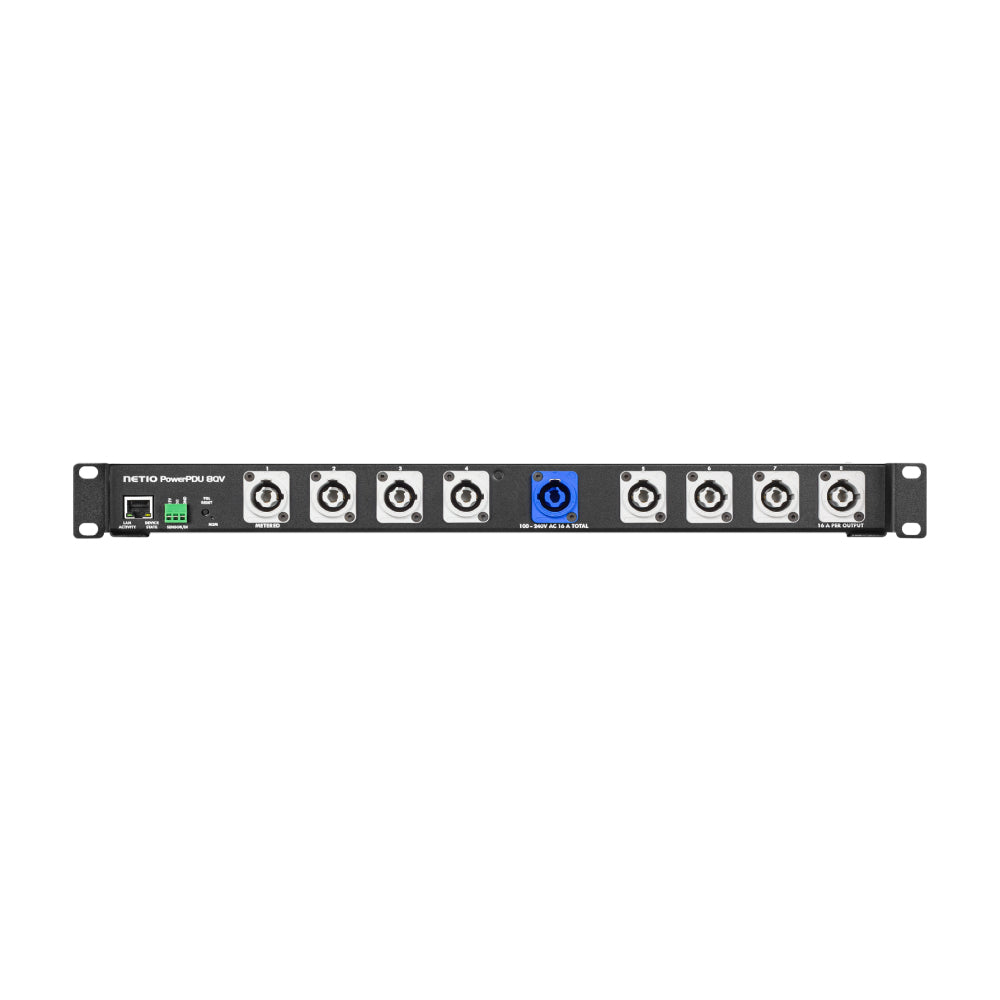

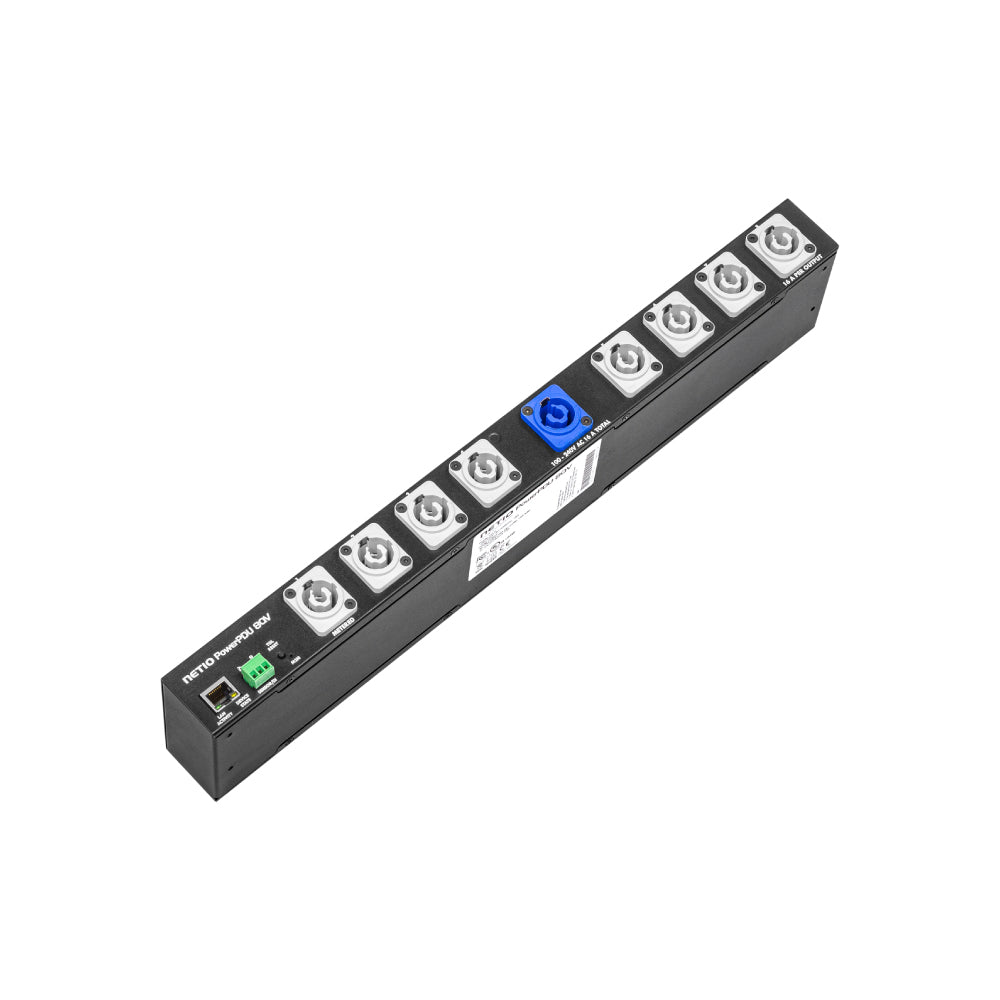

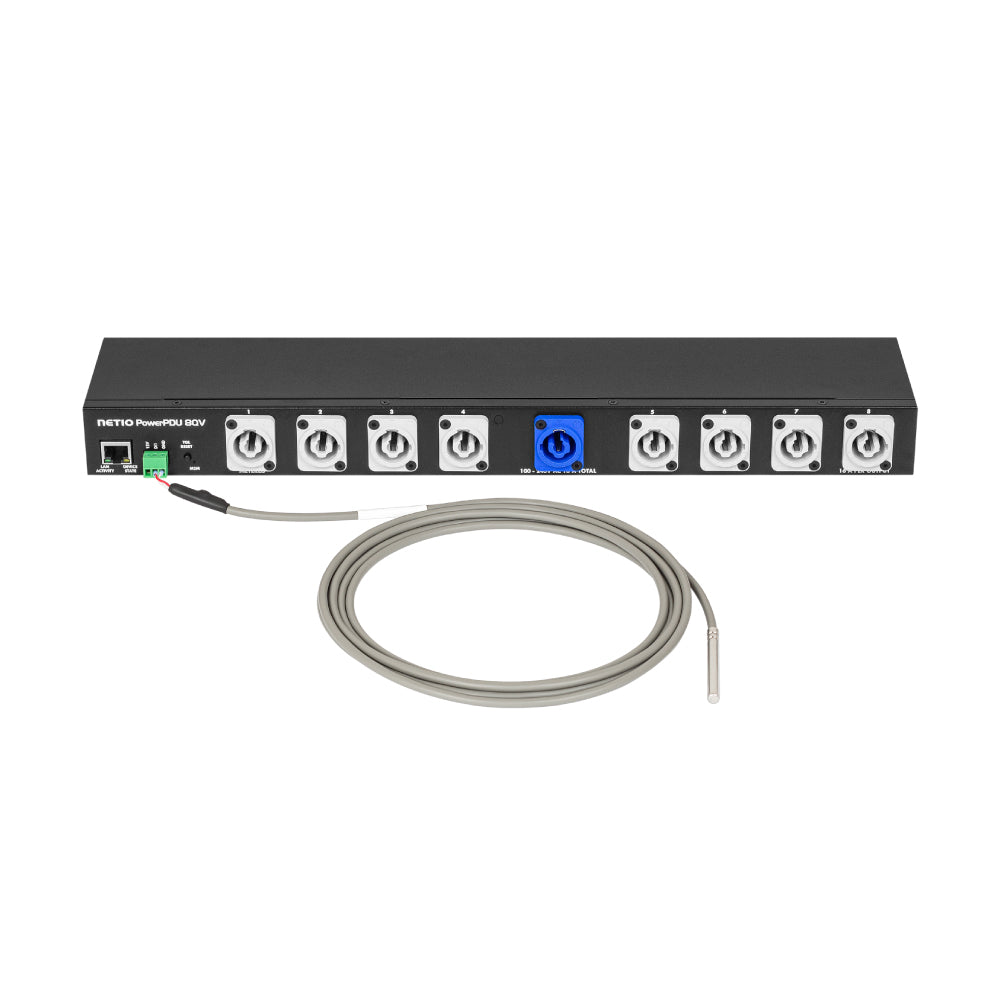

PowerPDU 8QV is a PDU (Power Distribution Unit) with 8 power outputs (8x powerCON) controlled and metered over a LAN. It fits into a 19" cabinet (1U). Each output can be switched on/off/toggle individually over the network via web interface, NETIO Cloud service or the mobile app. Open API enables integration with 3rd party systems. Electrical metering is performed on two channels - whole PDU (at the input) and Output1 separately. DI (Digital Input) is compatible with any dry contact (relay output) or NETIO temperature sensor.

Key features:

• Power input: powerCON (100/240V AC), max 16A
• Power output: 8x powerCON, max 16A each
• Each output: On/Off (relay SPST-NO)
• ZVS (Zero Voltage Switching): Yes
• PowerUp State: Default output state (On/Off/Last state)
• PowerUp Delay: Delay before switching output on
• Each output can be switched on/off individually
• Methods for controlling each output:
  •  WEB browser
  • Mobile App (NETIO Mobile2)
  • Open API (10 protocols)
  • NETIO Cloud
• Ping Watchdog - autonomous ping restarter
• Power Watchdog - IDLE mode detection & restarter
• Scheduler function: Time based switching
• AV drivers make it easy to connect NETIO sockets to a professional Audio/Video control systems such Crestron, QSYS, Kramer, Control4, RTI, Savant and more.
• Certification : RoHS, UL, FCC, CSA, ICES
• Warranty : 6 years
