SKU: MSM4320
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • Inventory on the way

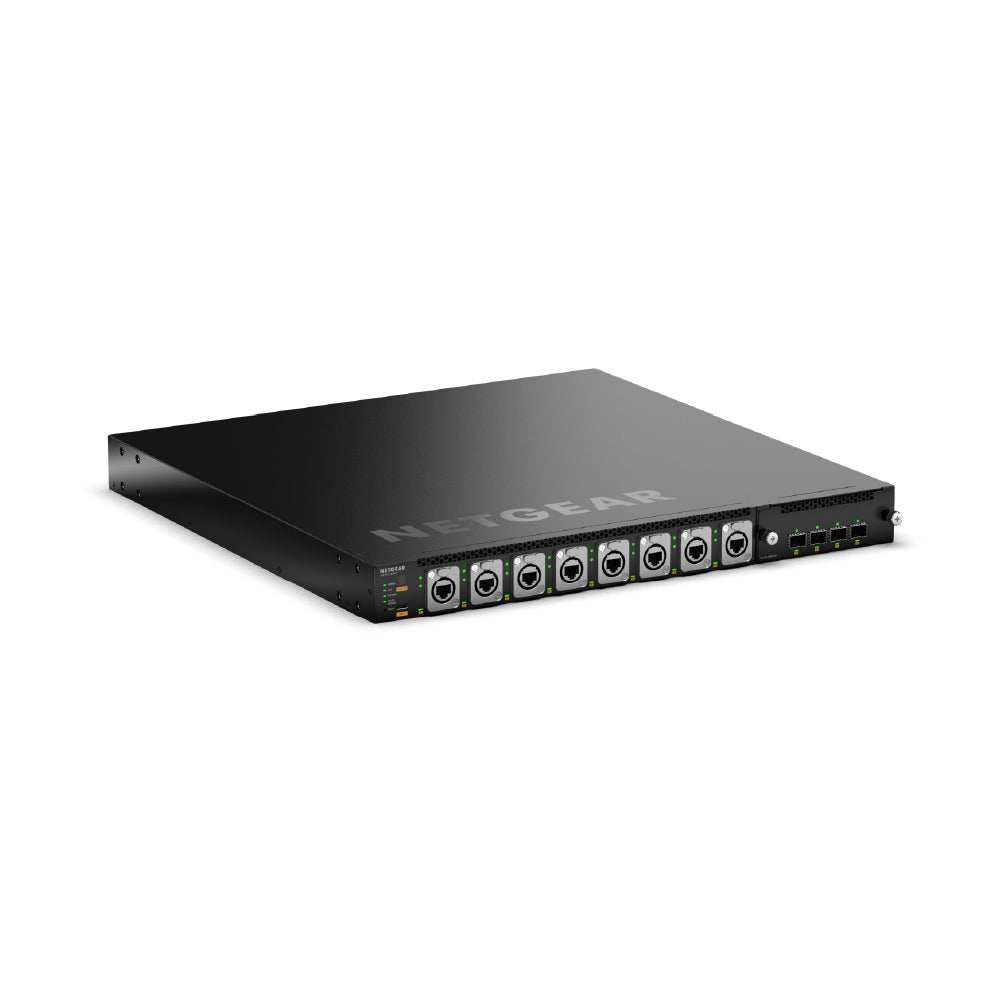

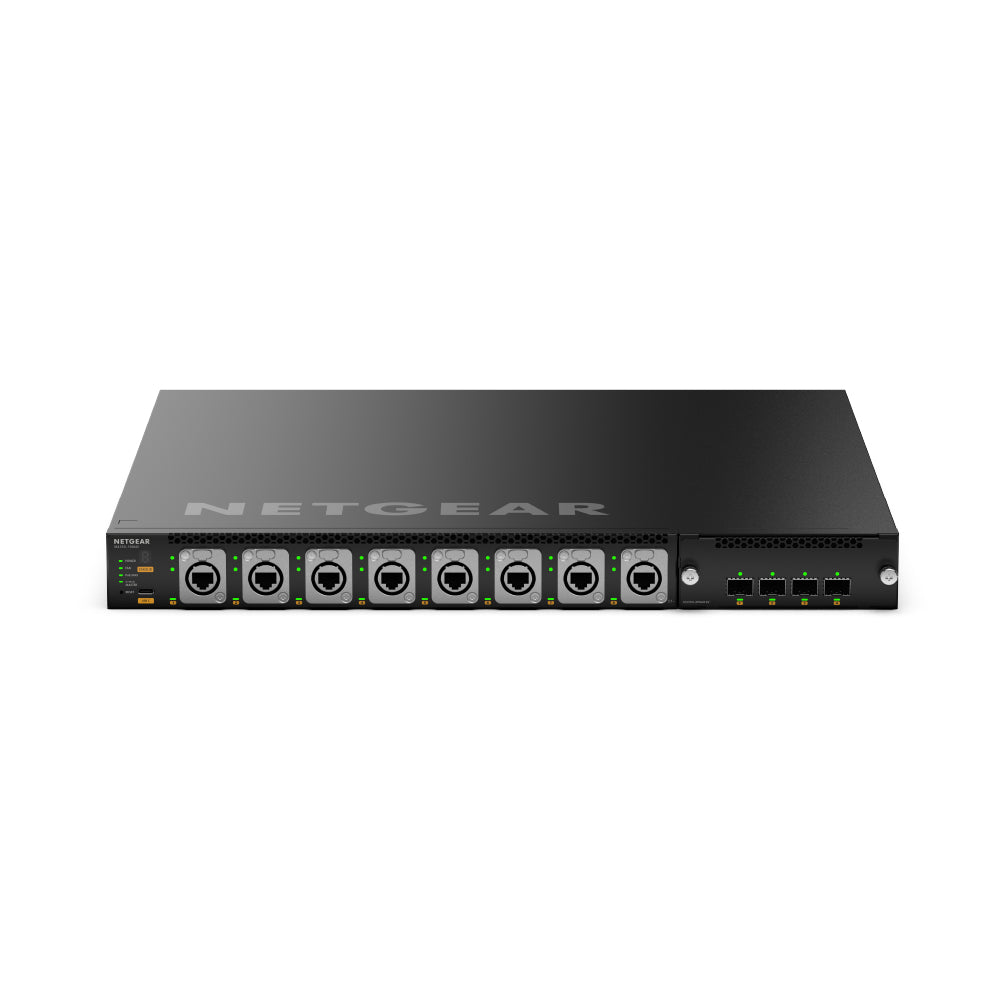

  • 16x 2.5G PoE++ ports incl. 8x Neutrik etherCON connectors with 4x 25G SFP28 uplinks
  • Two internal 800W power supplies providing 530W of redundant base PoE budget
  • Switch ships with one APM414V interface card with 4x 25G SFP28 ports

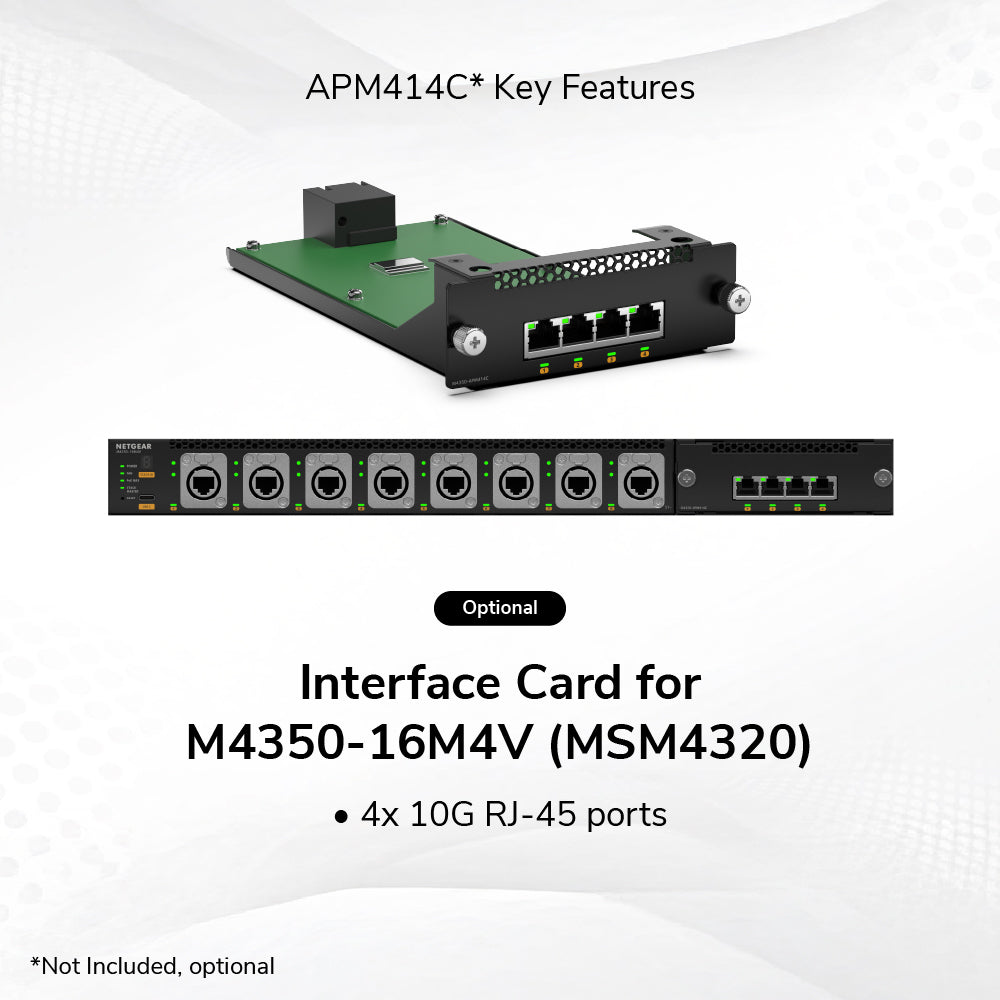

  • Optional APM414C Interface Card with 4x 10G RJ-45 ports

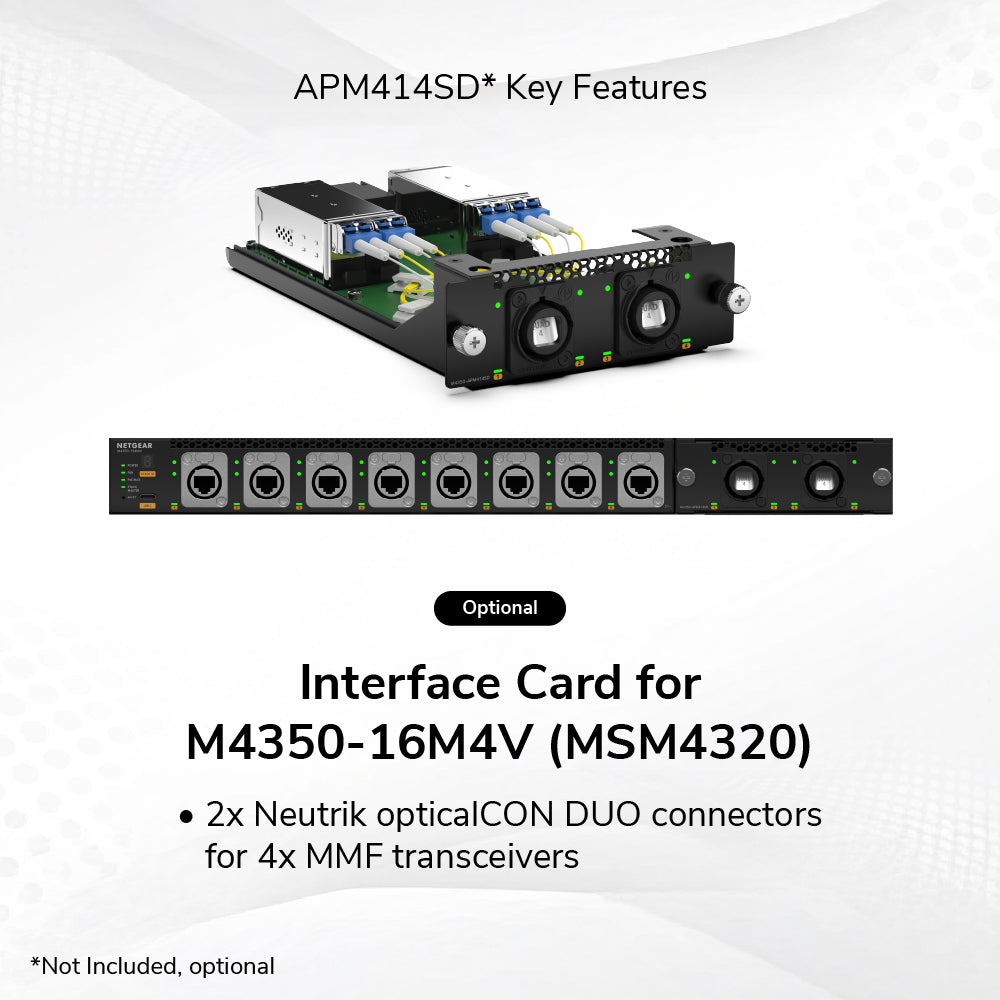

  • Optional APM414SD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x MMF transceivers
  • Optional APM414LD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x SMF transceivers

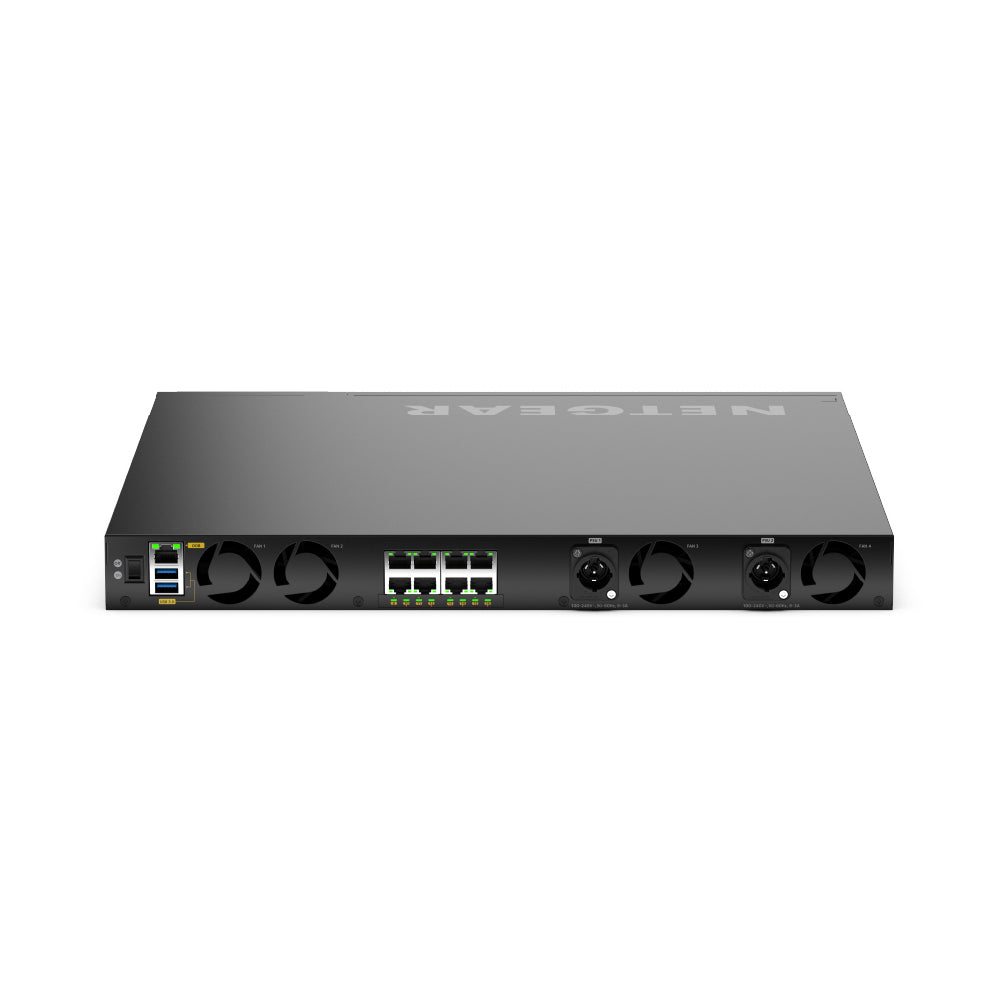

  • 2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, NETGEAR AV OS™, and NETGEAR Engage™ Controller speed up AV installations
  • SMPTE ST 2110 Grandmaster Clock and Boundary Clock for AES67 and ST2059-2 applications
  • Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from Switches
NETGEAR AV Line M4250-9G1F-PoE+ (GSM4210PD) 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch
NETGEAR AV Line M4250-9G1F-PoE+ (GSM4210PD) 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch
Enquire with us
NETGEAR GS308 8-Port Gigabit Ethernet Unmanaged Switch - Desktop, Sturdy Metal Fanless Housing
NETGEAR GS308 8-Port Gigabit Ethernet Unmanaged Switch
Enquire with us
Sold Out
NETGEAR ProSafe™ 8-Port Gigabit Unmanaged Desktop Switch (GS108GE)
NETGEAR ProSafe™ 8-Port Gigabit Unmanaged Desktop Switch (GS108GE)
Enquire with us
NETGEAR GS728TPP 28-Port PoE Gigabit Ethernet Smart Switch - Managed, Optional Insight Cloud Management, 24 x PoE+ @ 380W, 4 x 1G SFP, Desktop or Rackmount, and Limited Lifetime Protection
NETGEAR GS728TPPV3 28-Port Gigabit Ethernet Smart Managed Pro PoE Switch - with 24 x PoE+ @ 380W
Enquire with us
Sold Out
NETGEAR GS108LP 8-Port Gigabit Ethernet Unmanaged PoE Switch - with 8 x PoE+ 60W Upgradeable, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection
NETGEAR GS108LP 8-Port Gigabit Ethernet Unmanaged PoE Switch - with 8 x PoE+ @ 60W Upgradeable
Enquire with us
Sold Out
NETGEAR M4350-16M4V Fully Managed Switch (MSM4320)
NETGEAR M4350-16M4V Fully Managed Switch (MSM4320)
Enquire with us
Back to Switches
M4350 Datasheet
M4350 Brochure
M4350 Product Brief
m4350-av-over-ip-simplified_tcm167-150411.jpg__PID:d2c13f2e-0eca-4731-9b8b-575478df2985

Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design

Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration

Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

Artboard 6.jpg__PID:469c6804-6c2b-4778-9825-16413c11fd83

POWER AND THROUGHPUT

Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Artboard 2.jpg__PID:f1430c81-f622-496a-a03d-dc580d35afc9

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Artboard 7.jpg__PID:9c68046c-2b97-4858-a516-413c11fd8333

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

Artboard 3.jpg__PID:89469c68-046c-4b97-b858-2516413c11fd

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

M4350-16M4V Technical Specifications

msm4320-tech-specs-desktop_tcm167-171596.webp__PID:8c916018-7241-44c0-b507-2484eea2867c

Product Specifications

What's Included
  • 1x M4350-16M4V (MSM4320)
  • 1x Power Cord (Standard AC to C13)
  • 2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
  • 1x Console USB Type-C cable
  • 1x Rack-mounting standard bracket set
  • 1x Set of longer brackets for recessed mounting
  • 4x Rubber footpads for tabletop installation
  • 1x Installation guide
Technical Details
  • Width
    440mm
  • Depth
    432mm
  • Height
    43.2mm
  • Weight
    7.85kg (17.31lb)
  • Primary Port Speed
    2.5 Gigabit
  • Number of Ports
    20 (16 x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28)
  • IGMP Support
    Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support
    Yes, up to 12kb
  • AVB Support
    Yes, included
  • Acoustics
    Quiet Mode 35.6dB@25ºC
  • Power Consumption
    - With max PoE: 1359.8W/4,639.64Btu/hr
    - Without PoE: 109.6W/373.96Btu/hr
  • Standby w/o any port connection
     50.6W/170.60Btu/hr
  • PSU Compatible Models
    Internal only
  • Internal PSUs
    2 internal 800W PSUs with PowerCON connectors
  • Compatible Interface Cards
    - APM414SD (2x Neutrik opticalCON DUO for 4x MMF Transceivers)
    - APM414LD (2x Neutrik opticalCON DUO for 4x SMF Transceivers)
    - APM414V (4x Standard 25G SFP28 ports) ships with the switch
    - APM414C (4x Standard 10G RJ5 ports)
Management
  • NETGEAR Engage Controller
    Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive.
Warranty

This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty.
