VOLKTEK SEN-9428P-24V-SS 8 Ports GbE Substation Certified Unmanaged PoE+ Switch with 2 SFP Ports

SKU: SEN-9428P-24V-SS
VOLKTEK SEN-9428P-24V-SS 8 Ports GbE Substation Certified Unmanaged PoE+ Switch with 2 SFP Ports
VOLKTEK SEN-9428P-24V-SS 8 Ports GbE Substation Certified Unmanaged PoE+ Switch with 2 SFP Ports
VOLKTEK SEN-9428P-24V-SS 8 Ports GbE Substation Certified Unmanaged PoE+ Switch with 2 SFP Ports
VOLKTEK SEN-9428P-24V-SS 8 Ports GbE Substation Certified Unmanaged PoE+ Switch with 2 SFP Ports
VOLKTEK SEN-9428P-24V-SS 8 Ports GbE Substation Certified Unmanaged PoE+ Switch with 2 SFP Ports
VOLKTEK SEN-9428P-24V-SS 8 Ports GbE Substation Certified Unmanaged PoE+ Switch with 2 SFP Ports

VOLKTEK SEN-9428P-24V-SS 8 Ports GbE Substation Certified Unmanaged PoE+ Switch with 2 SFP Ports

SKU: SEN-9428P-24V-SS
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
SEN-9428-24V-SS is an 8-port 10/100/1000 PoE+ downlink and 2-port GbE SFP uplink unmanaged industrial grade switch designed to meet the thermal requirements and environmental conditions of surveillance and WAP Substation applications. This PoE+ switch features up to 8-port PSE (power sourcing equipment) ports with plug and play features to provide power to all the powered devices (PDs) as soon as they are connected. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches or the control center.

To keep a stable transmission of video and data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE. The device allows users to change data priority and speed settings pushing the DIP switch.

This switch is built with industrial grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. The wide input power range from 24V to 57V enables the device to operate in many substation applications without extra power outlet installation needed. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits demanding environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from Surveillance Ethernet
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
Enquire with us
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
Enquire with us
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
Enquire with us
Back to Surveillance Ethernet
Datasheet
Product Highlights
  • 8 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port
  • 2 x GbE SFP uplink ports for long-distance connectivity to control center and cascading
  • It prioritizes transmission for industrial applications using EIP (EtherNet/IP), PROFINET, and GOOSE packets
  • Wide input power range (24V to 57V) suits different environments
  • EEE 1613 and IEC 61850-3 certifications, communication standards for safe and reliable substation operations
  • Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 Aluminum housing
Features

Redundant Power System

Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.

Innovative Power Boost Technology

24V to 57V DC power-boosting with DC-to-DC converter for high-power requiring PoE/PoE+ devices.

High-Power Budget for PoE Devices

Up to 30W per port (IEEE 802.3af/at) powering to PoE+ devices.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3 Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE 802.3afPower over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3azEnergy Efficient Ethernet (EEE)
IEEE 802.1pClass of Service

Interface

Ports4 x 10/100/1000BASE-T (PoE RJ45)
1 x 10/100/1000BASE-T (RJ45)
2 x GbE SFP Slots

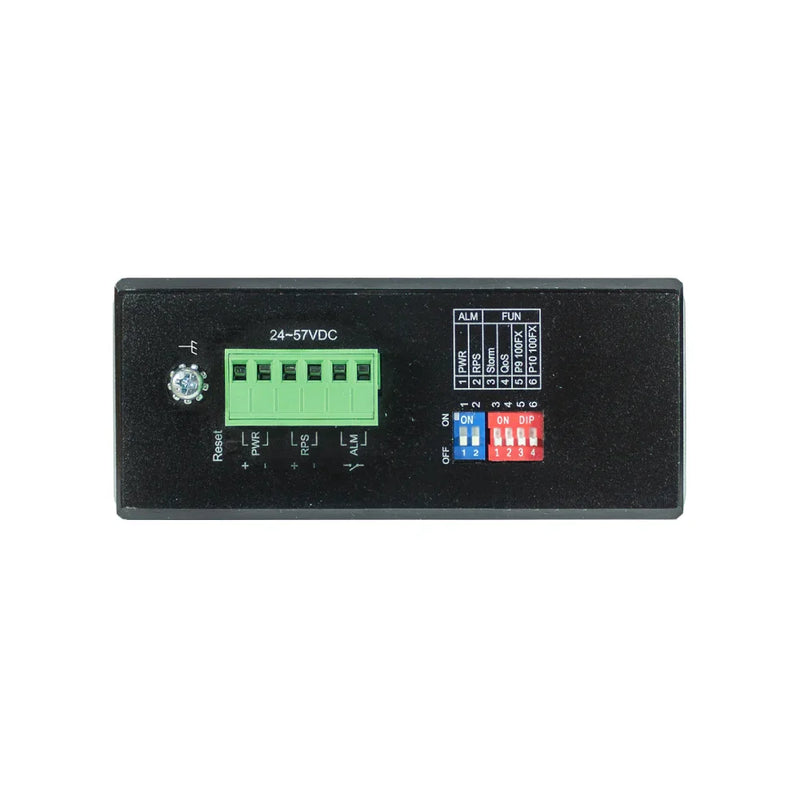

DIP SwitchPower voltage drop alarm setting (PWR & RPS),
 Broadcast strom control setting (STORM),
 Port-based QoS setting (QoS on P1 & P2),
 Fiber port speed setting (100FX on P9 & P10)
LED Panel PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT

Power

Input VoltagePrimary input: 24~57V DC
Redundant: 24~57V DC
Connector Teminal Block
Power ConsumptionSystem: 15W
PoE Power Budget: 124W @
24V DC 240W @ 48V DC
Alarm Relay One relay output with current carrying capacity of 1A @ 24V DC

Mechanical and Environment

HousingAluminum Case (IP30 protection)

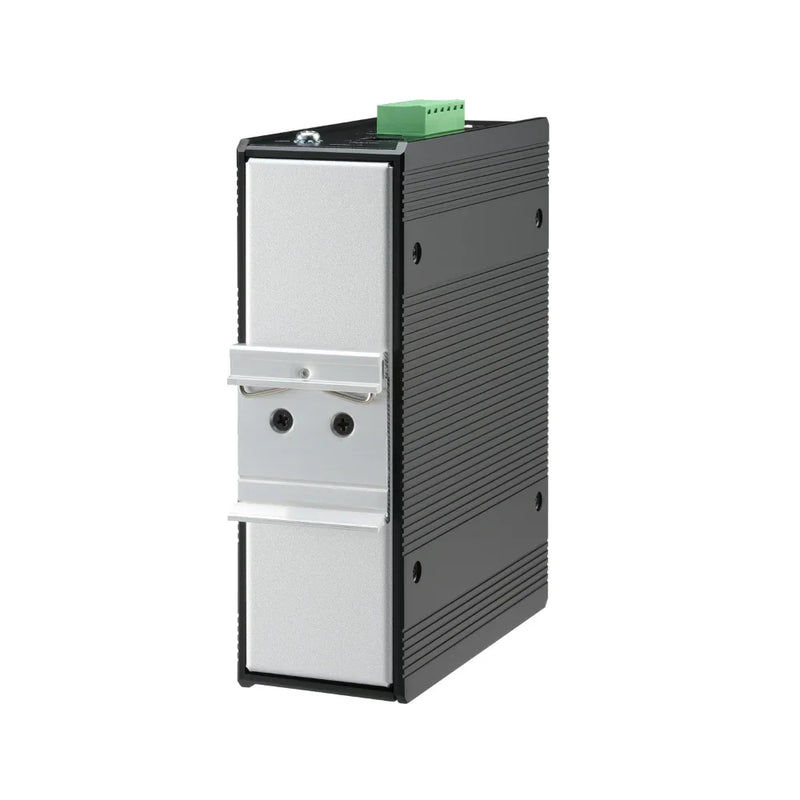

MountingDIN-Rail, Wall Mount/Rack-mount
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight930 g (2.1 lb)
Dimension (WxHxD)50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)

Ordering Information

ModelDescription
SEN-9428P-24V-SS Umanaged 8 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Switch, Substation Approval
