VOLKTEK SEN-9425P-24V-SS 4 Ports GbE Substation Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports

SKU: SEN-9425P-24V-SS
VOLKTEK SEN-9425P-24V-SS 4 Ports GbE Substation Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports
VOLKTEK SEN-9425P-24V-SS 4 Ports GbE Substation Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports
VOLKTEK SEN-9425P-24V-SS 4 Ports GbE Substation Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports
VOLKTEK SEN-9425P-24V-SS 4 Ports GbE Substation Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports
VOLKTEK SEN-9425P-24V-SS 4 Ports GbE Substation Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports
VOLKTEK SEN-9425P-24V-SS 4 Ports GbE Substation Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports

VOLKTEK SEN-9425P-24V-SS 4 Ports GbE Substation Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports

SKU: SEN-9425P-24V-SS
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
SEN-9425-24V-SS is a 4-port 10/100/1000 PoE+ downlink, 1-port 10/100/1000 RJ45 uplink, and 2-port GbE SFP uplink unmanaged industrial grade switch designed to work in Substation environments. This PoE+ switch features up to 4-port PSE (power sourcing equipment) ports with plug and play features to provide power to all the powered devices (PDs) as soon as they are connected.

To keep a stable transmission of video and data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE.

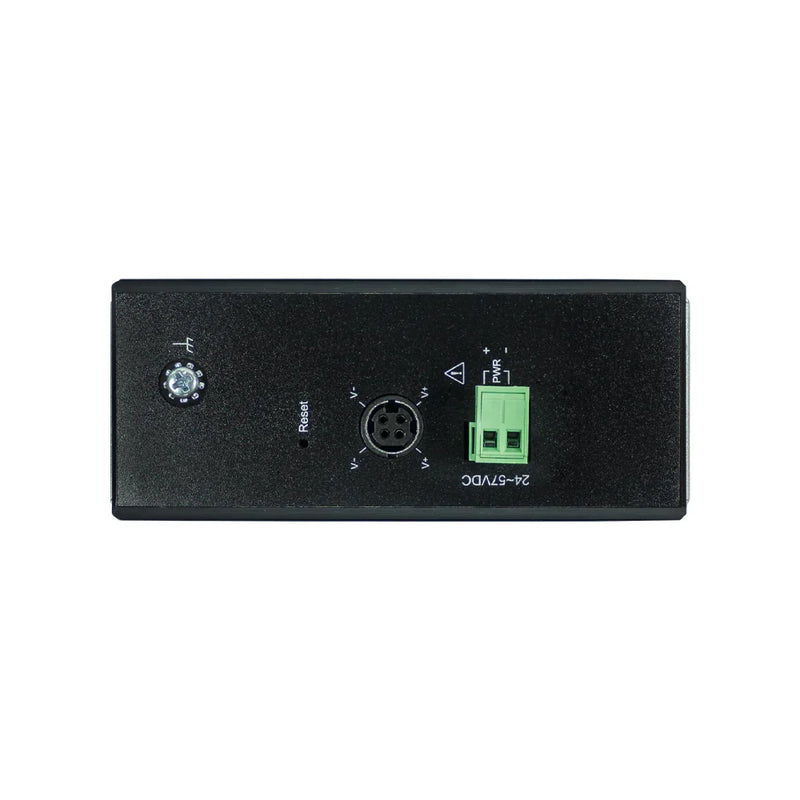

This switch is built with industrial grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. The wide input power range from 24V to 57V enables the device to operate in many substation applications without extra power outlet installation needed. The device has two power input methods, a 2-pin Terminal Block and a 4 pin mini-DIN that attaches firmly to the device avoiding it from disconnecting during strong vibrations. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits heavy industrial environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from Surveillance Ethernet
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
Enquire with us
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
Enquire with us
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
Enquire with us
Back to Surveillance Ethernet
Datasheet
Product Highlights
  • 4 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port
  • 1 x 10/100/1000 RJ45 and 2 x GbE SFP uplink ports for long-distance connectivity to control center and cascading
  • It prioritizes transmission for industrial applications using EIP (EtherNet/IP), PROFINET, and GOOSE packets
  • Wide input power range (24V to 57V) suits different environments
  • IEEE 1613 and IEC 61850-3 Certifications communication standard for safe and reliable substation operations
  • Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 Aluminum housing
Features

Redundant Power System

Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.

Innovative Power Boost Technology

24V to 57V DC power boosting with DC-to-DC converter for high-power requiring PoE/PoE+ devices.

High-Power Budget for PoE Devices

Up to 30W per port (IEEE 802.3af/at) powering to PoE+ devices.

DIN-Rail mountable Power Adapter (AC to DC)

DIN-Rail mountable power adaptor with 4-pin mini-DIN power connector.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3 Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE 802.3afPower over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3azEnergy Efficient Ethernet (EEE)
IEEE 802.1pClass of Service

Interface

Ports4 x 10/100/1000BASE-T (PoE RJ45)
1 x 10/100/1000BASE-T (RJ45)
2 x GbE SFP Slots
LED PanelPWR, SFP, PoE, 1000, LNK/ACT

Power

Input Voltage24~57V DC
Connector Teminal Block
Power ConsumptionSystem:
14W
 PoE Power Budget: 120W
Power Input Polarity Protection Present

Mechanical and Environment

HousingAluminum Case (IP30 protection)

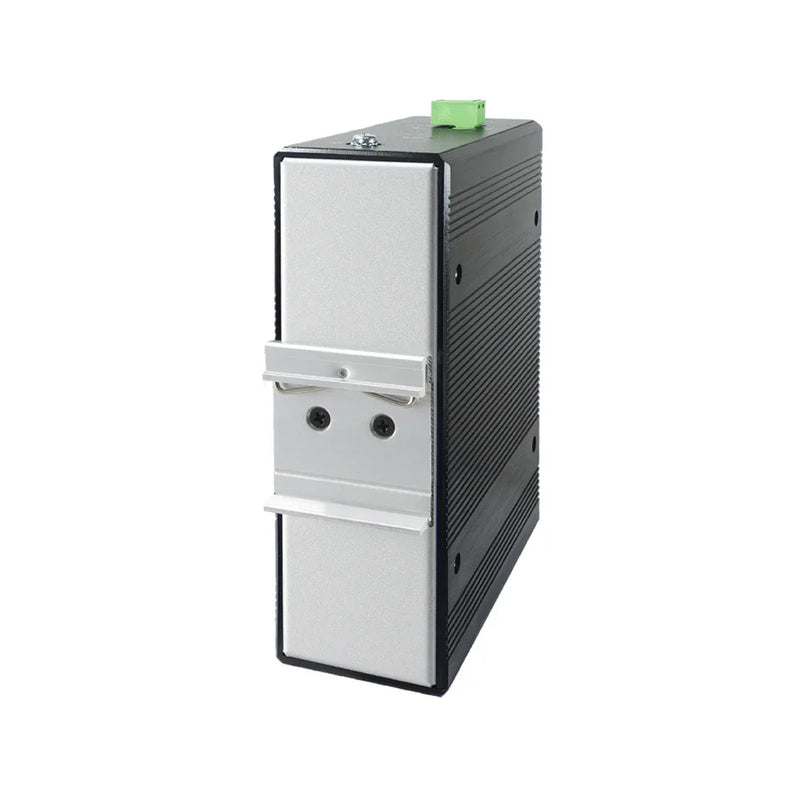

MountingDIN-Rail, Wall Mount/Rack-mount
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight869 g (1.92 lb)
Dimension (WxHxD)50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)

Ordering Information

ModelDescription
SEN-9425P-24V-SS Unmanaged 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 2 x GbE SFP Switch, Substation Approval
