VOLKTEK INS-8224P 4 Ports GbE Unmanaged PoE+ Switch with 2 SFP Ports
SKU: INS-8224P
Product Highlights
- 4 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port
- 2 x GbE SFP uplink ports for long-distance fast fiber connectivity to the control center and for cascading
- VLAN Passthru - forwards VLAN packets without dropping or modifying them to prevent packet loss
- Redundant Power Supply and Alarm Relay Contact on Terminal Block to ensure non-stop operations
- Operating temperature -10℃ to 60℃ (14°F~140°F) and IP30 metal housing
Features
PoE Applications: Smart Surveillance and Wireless Access Points
Compliant with Type 1 and Type 2 PoE (IEEE 802.3 at) this switch offers up to 30W per port for energy-efficient applications. The switch allows simple “plug-n-play” for PDs to interact with devices as soon as they are connected.
VLAN Passthru: Constant Wending packet transfer
This feature avoids the loss of data transmission in unmanaged switches which constantly drop VLAN tagged frames as damaged. The feature VLAN Passthru passes the VLAN tagged frames unchanged, allowing this unmanaged switch to continue with a stable transmission.
Power Failure Protection: Redundant Power Input & Relay Output Alarm
To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm. If the primary power supply stops working the switch will start using the alternative power supply automatically and trigger a notification alarm to notify technicians in the event of power failure.
Resistant to Extreme Environments
The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to harsh temperatures (-10℃ to 60℃ / 14°F~140°F) and resistance to interference makes this device infallible in hardened environments around multiple types of machinery.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3z | 1000BASE-SX/LX |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
| IEEE 802.3af | Power over Ethernet |
| IEEE 802.3at | Power over Ethernet Plus |
| IEEE 802.1p | Class of Service |
Interface
| Ports | 4 x 10/100/1000BASE-T (PoE RJ45)
2 x GbE SFP Slots |
|---|---|
| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Panel | PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT |
Power
| Input Voltage |
Primary inputs: 48~57V DC
Redundant inputs: 48~57V DC |
|---|---|
| Power Consumption |
System: 10W
PoE Power Budget: 120W |

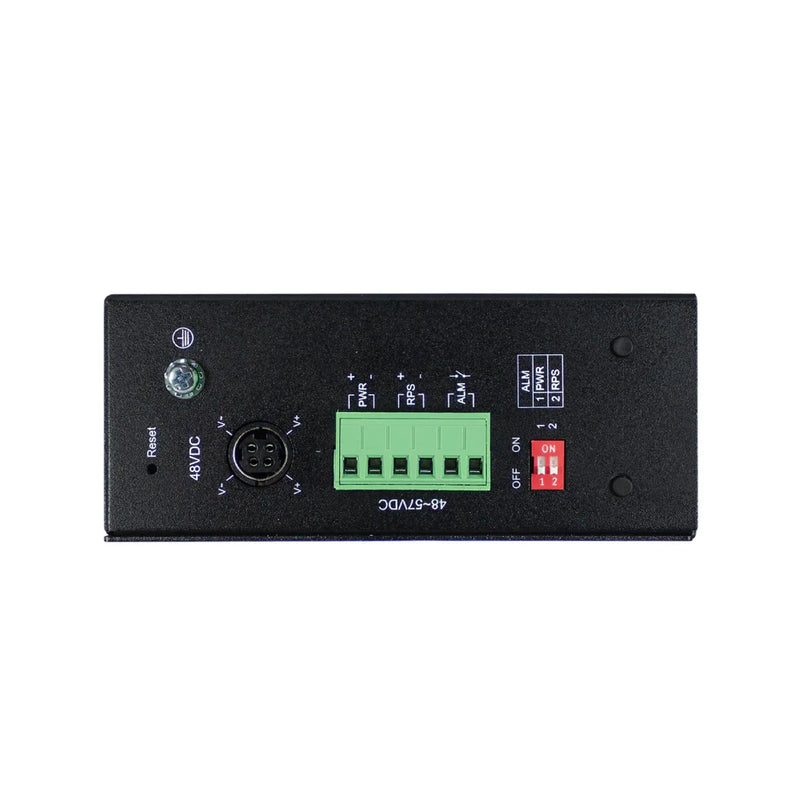

| Connection | Teminal Block, Mini-DIN |
| Alarm Relay | One relay output, 1A @ 24V DC |
Mechanical and Environment
| Housing | Aluminum (IP30 Protection) |
|---|---|

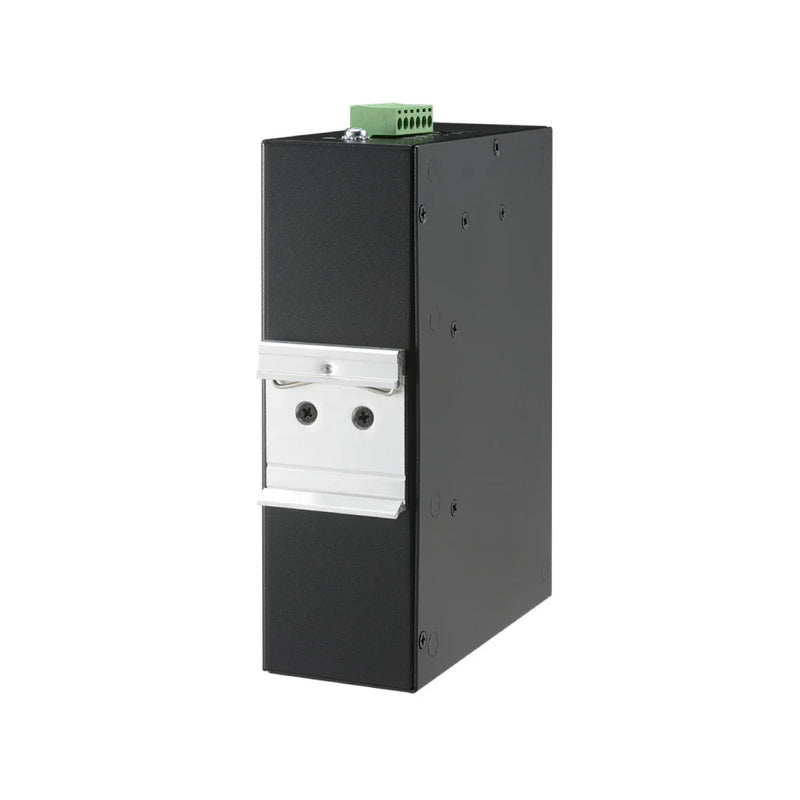

| Mounting | DIN-Rail |
| Operating Temperature | -10°C~60°C (14°F~140°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 90%RH (non-condensing) |
| Dimension (D x W x H) | 50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in) |
| Weight | 705 g (1.6 lb) |
Ordering Information
| Model | Description |
|---|---|
| INS-8224P | Unmanaged 4 x 10/100/1000 PoE+ & 2 x GbE SFP |
