VOLKTEK HNS-8615P 4 Ports GbE Managed PoE+ Switch with 1 RJ45 and 1 SFP Ports
SKU: HNS-8615P
Product Highlights
- 4 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port and 1 x 10/100/1000 RJ45
- 1 x FX/GbE SFP uplink port for long-distance connectivity
- Optimizes network performance with Flow Control and QoS
- Redundant Power Supply and Alarm Relay Contact on Terminal Block to ensure non-stop operations
- Operating temperature -10℃ to 60℃ (14°F~140°F) and IP30 metal housing
Features
High-Power Budget for PoE Network Devices
Compliant with PoE+ (IEEE 802.3at), the switch supplies 30W per each PoE port, and allows simple “plug and play” PoE for various types of high power-consuming PoE devices.
Manages Remote PDs from the Control Room
The switch management interface uses PD control features, like PD-alive check and PoE scheduling, to control remote devices from a central location.
- PD alive Check - check the live active status of the device and reboots devices when needed, reducing expensive trips to remote locations to save valuable time.
- PD scheduling - Ethernet switches can schedule the time they supply power to PDs to reduce power consumption and allocate enough power to important applications to save operational costs.

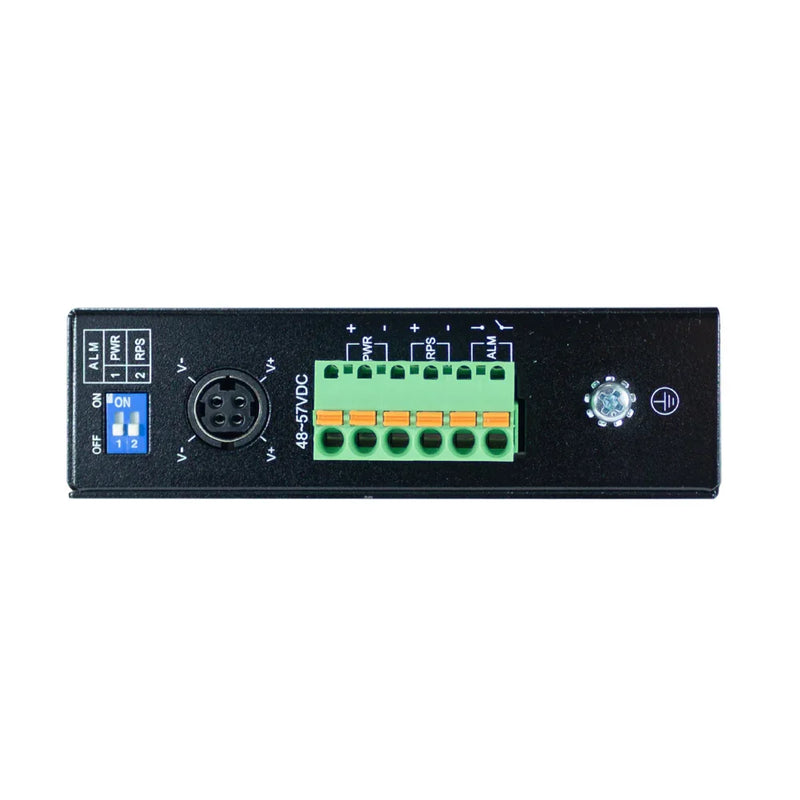

DIN Rail to Power Adapter (AC to DC) & Terminal Block
"DIN-Rail Power Adapter" function is the primary power source that converts AC to DC for board operation, while “6-pin Terminal Block” supports primary and secondary power input.
Simplified Installation w/ Compact Size
Every HNS-8615P is equipped with auto MDI/MDI-X on all ports for simple connection to other switches and hubs.
Efficient network monitoring and proactive capability
SNMP allows end-users to centrally manage different levels in a network, QoS, IGMP gives the capability to monitor the network performance.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3u | 100BASE-FX |
| IEEE 802.3z | 1000BASE-SX/LX |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
| IEEE 802.3af | Power over Ethernet |
| IEEE 802.3at | Power over Ethernet Plus |
| IEEE 802.3az | Energy Efficient Ethernet (EEE) |
| IEEE 802.1AB | LLDP |
| IEEE 802.1D | STP |
| IEEE 802.1w | RSTP |
| IEEE 802.1p | Class of Service |
| IEEE 802.1Q | VLAN tagging |
| IEEE 802.1X | Port Authentication |
Interface
| Ports | 4 x 10/100/1000BASE-T (PoE RJ45)
1 x 10/100/1000BASE-T (RJ45) 1 x FX/GbE SFP Slot |
|---|---|
| LED Panel | PWR, SFP, PoE, 1000, LNK/ACT |
| DIP Switch | Power voltage drop alarm setting (PWR & RPS) |
Power
| Input Voltage |
Terminal block (2 pins): 24~57VDC
Mini DIN (4 pins): 24~57V DC |
|---|---|
| Power Consumption |
System: 14W
PoE Power Budget: 120W |
| Connection | Teminal Block, Mini-DIN |
| Alarm Relay | One relay output, 1A @ 24V DC |
Mechanical and Environment
| Housing | Metal Case |
|---|---|

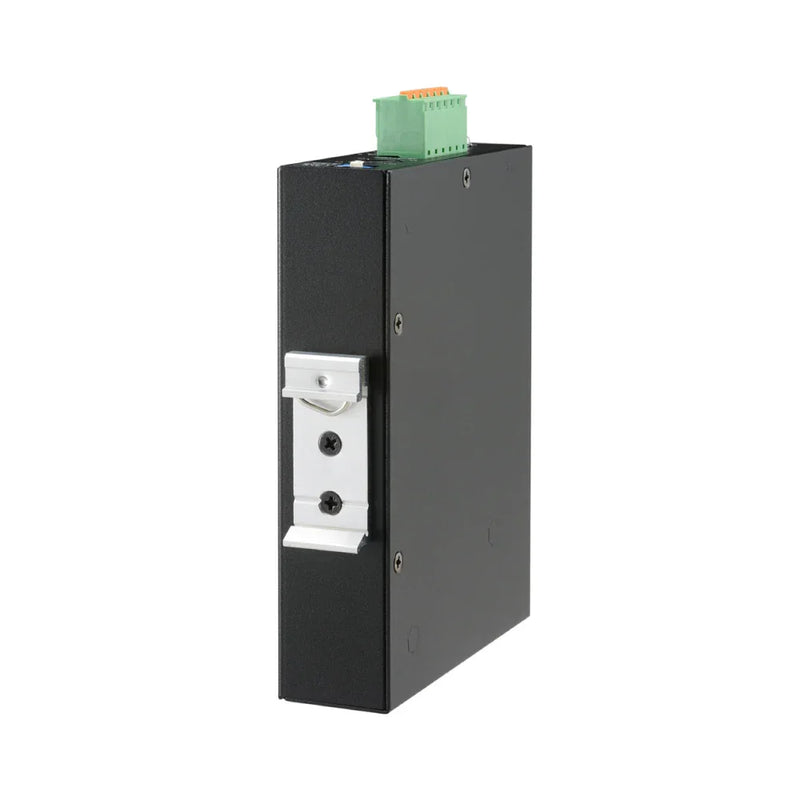

| Mounting | DIN-Rail |
| Operating Temperature | -10°C~60°C (14°F~140°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Dimension (D x W x H) | 31 x 136 x 105 mm (1.22 x 5.36 x 4.13 in) |
| Weight | 515 g (1.1 lb) |
Ordering Information
| Model | Description |
|---|---|
| HNS-8615P | L2+ Managed 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 1 x FX/GbE SFP Industrial Switch |
