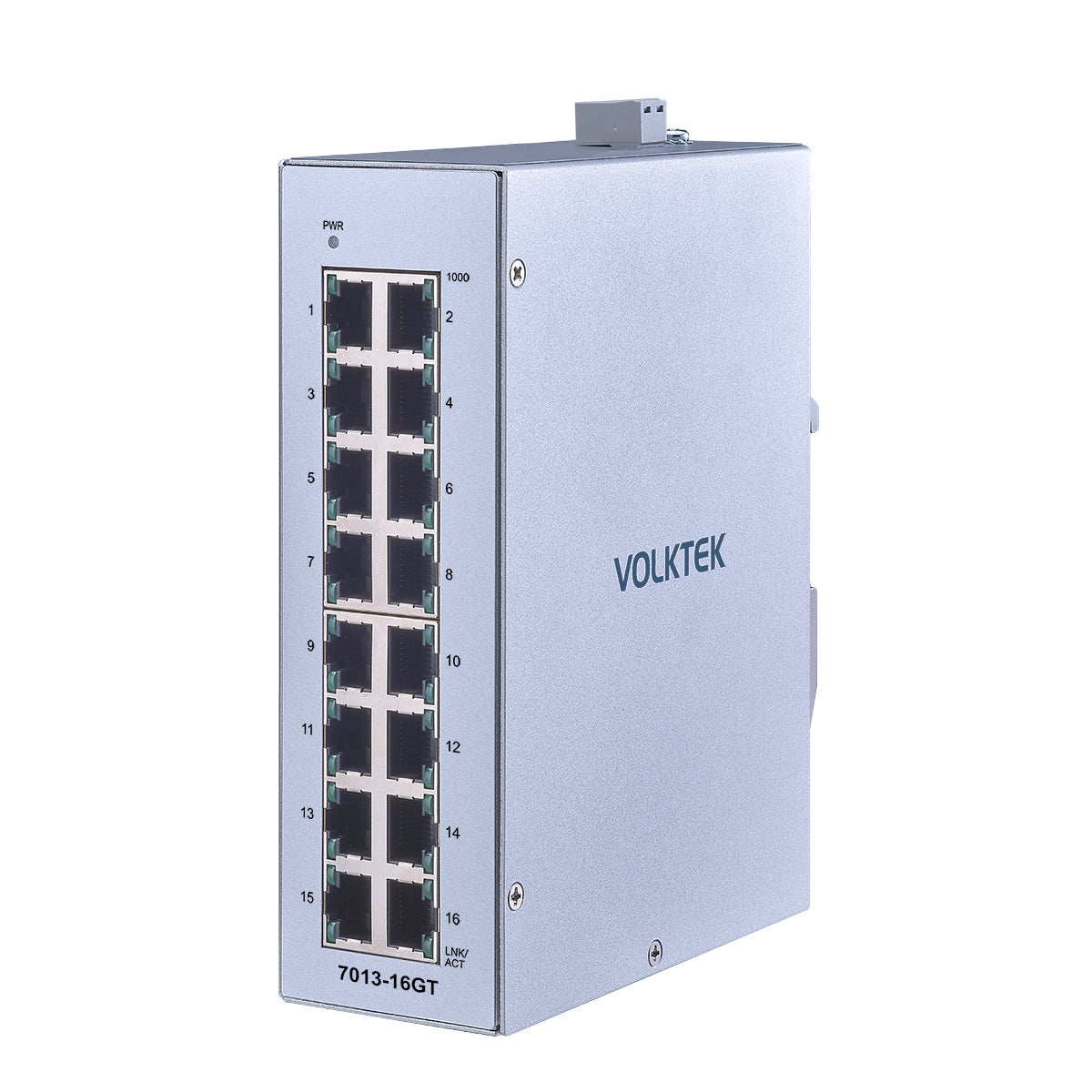

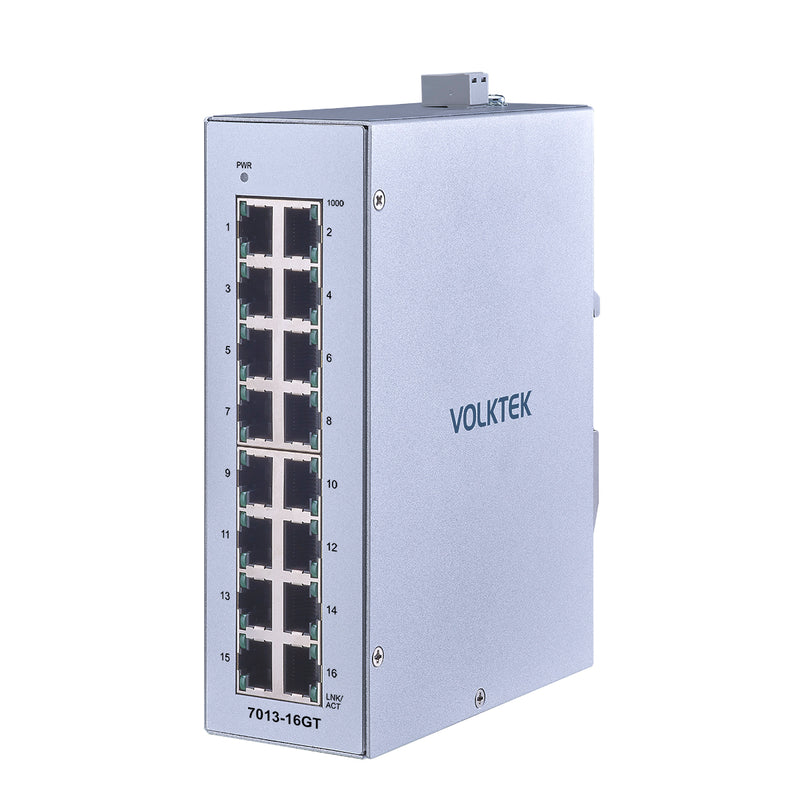

VOLKTEK Woodpecker 7013-16GT-I 16 Ports GbE Unmanaged Switch
SKU: WOODPECKER 7013-16GT
Product Highlights
- 16 x 10/100/1000 RJ45 ports for multi-axis robots and their auxiliary machines like PLCs, HMI, and printers in automation
- Energy Efficient Ethernet (IEEE 802.3az) standard to reduce power consumption
- Flow Control keeps flow at a constant rate to avoid overflow
- Industrial QoS prioritizes PROFINET packetsv
- Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 metal housing
Features
Robust Performance and Protection
Woodpecker 7013 Series is equipped with industrial grade components, enclosed with a rugged IP30 hardened housing to sustain in harsh industrial temperatures ranging between -40°C ~ 75°C, providing solid performance in mission-critical applications.
Industrial Grade EMC Protection Design
Woodpecker 7013 Series is designed with efficient EMC protection to secure the device against electromagnetic failures occurred from various sources such as external lighting or transmission of static electricity between devices with different electrical potentials.
Auto Negotiable Link Speed Control
To establish a fair and efficient communication among the devices which is having different link speeds, Woodpecker 7013 Series provides an auto negotiation feature which balances the data transmission speed between the switch and the connected PLCs.
High Port Density
High port density allows users to connect multiple devices to one single switch for applications of complex structure.
QoS
To guarantee the network works efficiently the device offer QoS features to guarantee that high-priority applications and proper traffic flow are carried out in networks with limited capacity.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
| IEEE 802.1p | Class of Service |
Interface
| Ports | 16x10/100/1000BASE-T (RJ45) |
|---|---|
| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Panel | PWR, RPS, ALM, 1000, LNK/ACT |

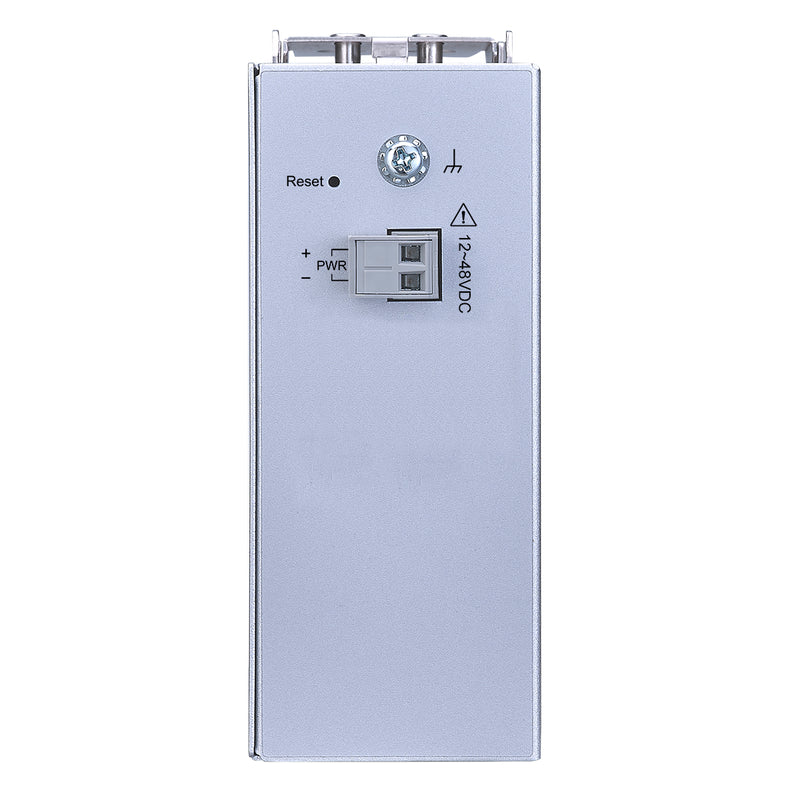

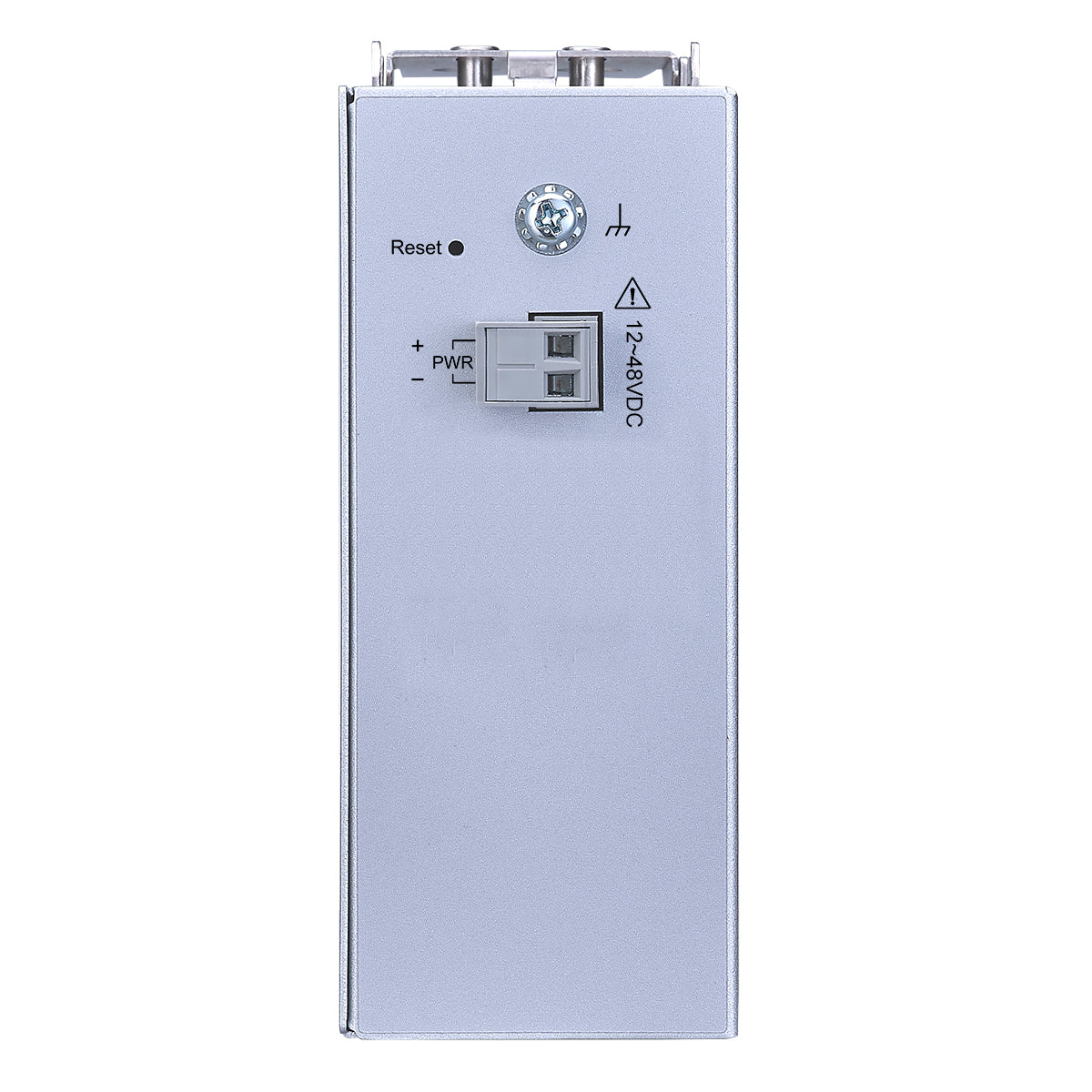

Power
| Input Voltage | Primary inputs：12~48VDC |
|---|---|
| Connection | Teminal Block |
| Power Consumption | 12W |
| Reverse Polarity | Present |
Mechanical and Environment
| Housing | Metal (IP30 Protection) |
|---|---|

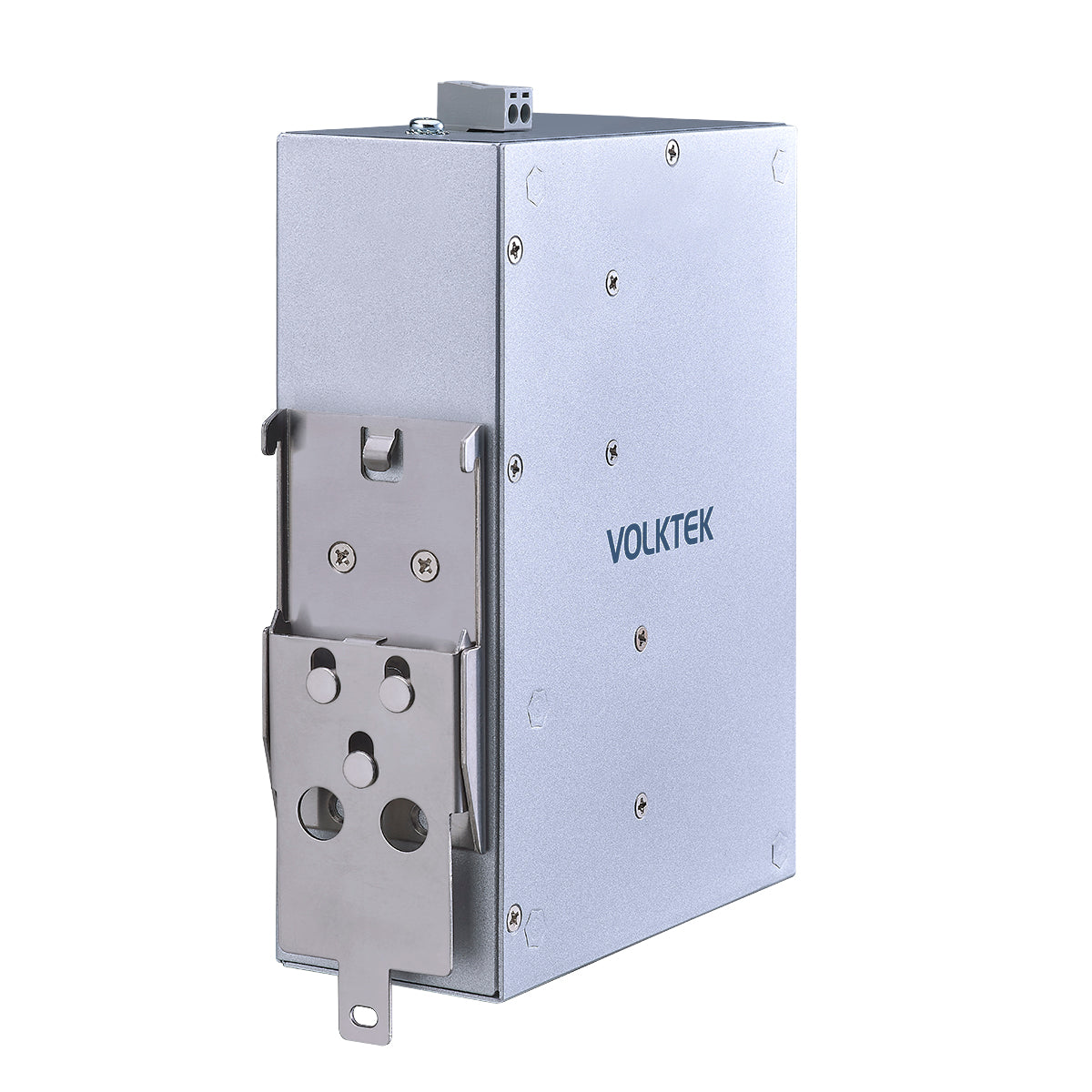

| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95 % RH (non-condensing) |
| Storage Humidity | 5 to 95 % RH (non-condensing) |
| Weight | 880g (1.94 lb) |
| Dimension (WxHxD) | 50 x 163.4 x 120.0 mm (1.97 x 6.43 x 4.72 in) |
Ordering Information
| Model | Description |
|---|---|
| Woodpecker 7013-16GT-I | Unmanaged 16 x 10/100/1000 RJ45 Industrial Switch |
