VOLKTEK IRF-631MC RS-232 to Multi-mode Fiber Converter, SC Connector, 2km

SKU: IRF-631MC
VOLKTEK IRF-631MC RS-232 to Multi-mode Fiber Converter, SC Connector, 2km
VOLKTEK IRF-631MC RS-232 to Multi-mode Fiber Converter, SC Connector, 2km
VOLKTEK IRF-631MC RS-232 to Multi-mode Fiber Converter, SC Connector, 2km
VOLKTEK IRF-631MC RS-232 to Multi-mode Fiber Converter, SC Connector, 2km

VOLKTEK IRF-631MC RS-232 to Multi-mode Fiber Converter, SC Connector, 2km

SKU: IRF-631MC
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way

IRF-631 is an RS-232 to the Fiber media converter. The device uses LED signaling to inform users of its transmission activity. Ideal for manufacturing floors with legacy devices that use serial port connectivity. The device is available in single- and multi-mode interface with data transmission delivery at distances of 2km/30km/60km/100km depending on request. For added flexibility, this media converter is available with ST, and SC connectors. This media converter operates between temperatures of 0°C~50°C (32°F~122°F). The device has a standard size to fit on an in-rack solution with multiple media converters.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • RS-232 to Fiber Converter
  • 1 x Serial RS-232 (DB-9 Male)
  • 1 x Fiber (ST/SC; Multi-mode / Single-mode)

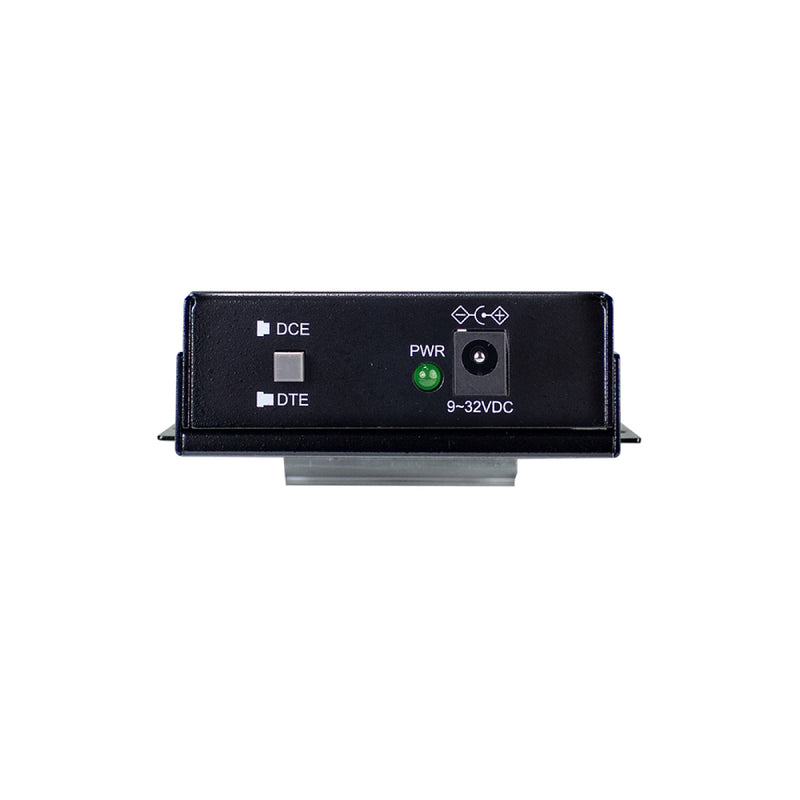

  • Push-button switch to select DTE & DCE
  • LEDs for at-a-glance device status
  • Operating temperature 0°C~50°C (32°F~122°F)
Features

Extendable Optical Connectivity

Extendable up to 2 km for multimode and 120 km for single-mode fiber.

Space-saving Design

Compact and DIN-RAIL mountable.

Easy Plug-and-Play

Compatible with DTE (Data Terminal Equipment) and DCE (Data Circuit-terminating Equipment) for data transmission.

User-Friendly Monitoring

LED status indicators for monitoring power supply and fiber connectivity.

Specifications

Standards

EIA/TIA422, 574
CCITT V.28

Interface

Ports1 x Serial RS-232 (DB-9 Male)
1 x Fiber (ST/SC; Multi-mode / Single-mode)
LED Panel PWR, LNK

Power

Input Voltage 9~32V DC
Power Consumption 2.4w

Mechanical and Environment

Housing Aluminum
Mounting Wall-Mount, DIN-Rail
Operating Temperature 0ºC~50ºC (32°F~122°F)
Storage Temperature-20ºC~80ºC (-4ºF~176ºF)
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 5% to 90%RH (non-condensing)
Dimension (D x W x H)109.2 x 90 x 31.5 mm (4.3 x 3.54 x 1.24 in)
Weight280 g (0.62 lb)

Ordering Information

ModelDescription
IRF-631MC RS-232 to Multi-mode Fiber Converter (SC Connector-2km)
RF-631MT RS-232 to Multi-mode Fiber Converter (ST Connector-2km)
IRF-631SCRS-232 to Single-mode Fiber Converter (SC Connector, 30km)
