VOLKTEK IRF-629MC RS-422/485 to Multi-mode Fiber Converter, ST Connector, 2km

SKU: IRF-629MC
VOLKTEK IRF-629MC RS-422/485 to Multi-mode Fiber Converter, ST Connector, 2km
VOLKTEK IRF-629MC RS-422/485 to Multi-mode Fiber Converter, ST Connector, 2km
VOLKTEK IRF-629MC RS-422/485 to Multi-mode Fiber Converter, ST Connector, 2km
VOLKTEK IRF-629MC RS-422/485 to Multi-mode Fiber Converter, ST Connector, 2km

VOLKTEK IRF-629MC RS-422/485 to Multi-mode Fiber Converter, ST Connector, 2km

SKU: IRF-629MC
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • Inventory on the way
IRF-629 is a RS-422/485 to Fiber media converter. The device uses LED signaling to inform users of its transmission activity. Ideal for manufacturing floors with legacy devices that use serial port connectivity. The device is available in single- and multi-mode interface with data transmission delivery at distances of 2km/30km/60km/100km depending on request. For added flexibility, this media converter is available with ST, and SC connectors. This media converter operates between temperatures of 0°C~50°C (32°F~122°F). The device has a standard size to fit on an in-rack solution with multiple media converters.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Logitech M100R Wired USB Mouse
LOGITECH M100R Corded Mouse
Enquire with us
LOGITECH G502 HERO High Performance Gaming Mouse
LOGITECH G502 HERO High Performance Gaming Mouse
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • RS-422/485 to Fiber Converter
  • 1 x Serial RS-422/485 (Terminal Block)
  • 1 x Fiber (ST/SC; Multi-mode / Single-mode)
  • DIP switch enable / disable functions
  • LED status indicators for system monitoring
  • Operating temperature 0°C~50°C (32°F~122°F)
Features

Extendable Optical Connectivity

Extendable up to 2 km for multimode and 120 km for single-mode fiber.

Space-saving Design

Compact and DIN-RAIL mountable.

Effective Control through DIP Switches

Easy-to-operate DIP switches for selection of 4-wire or 2-wire data transmission using RS 422/485 without any changes in network setup.

User-Friendly Monitoring

LED status indicators for monitoring power supply and fiber connectivity.

Specifications

Standards

Serial StandardsRS-232

Interface

Ports1 x Serial RS-422/485 (Terminal Block)
1 x Fiber (ST/SC; Multi-mode / Single-mode)
LED Panel PWR, LNK

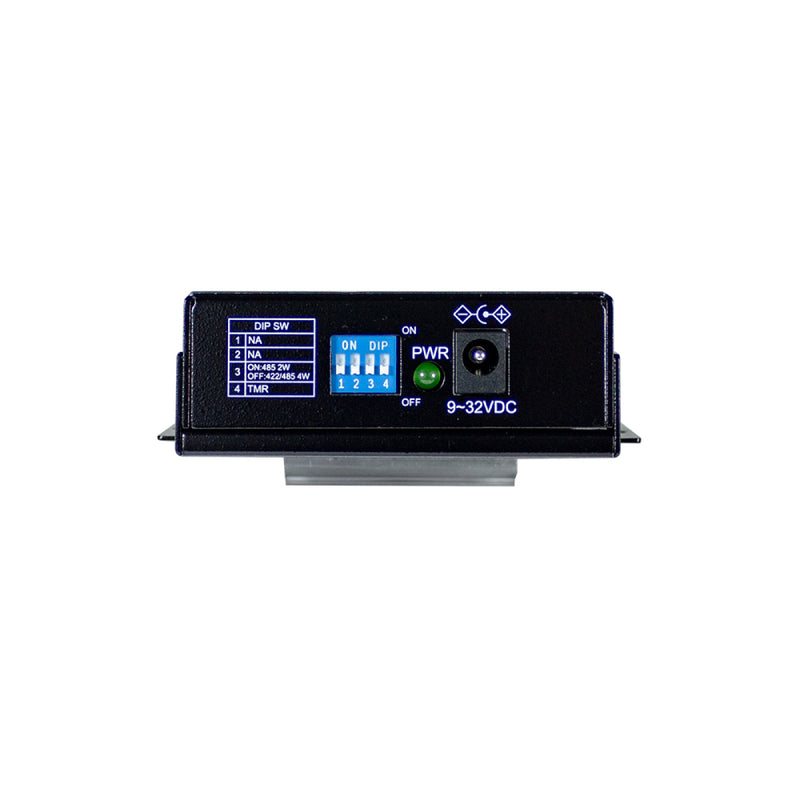

DIP DIP1: N/A
DIP2: N/A
DIP3: Enable / disable 2-wire/4-wire mode DIP4: Enable / disable terminator (TMR)

Power

Input Voltage 9~32V DC
Power Consumption 2.4w

Mechanical and Environment

Housing Aluminum
Mounting Wall-Mount, DIN-Rail
Operating Temperature 0ºC~50ºC (32°F~122°F)
Storage Temperature-20ºC~80ºC (-4ºF~176ºF)
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 5% to 90%RH (non-condensing)
Dimension (D x W x H)109.2 x 90 x 31.5 mm (4.3 x 3.54 x 1.24 in)
Weight280 g (0.62 lb)

Ordering Information

ModelDescription
IRF-629MC RS-232 to Multi-mode Fiber Converter (SC Connector-2km)
IRF-629MT RS-422/485 to Multi-mode Fiber Converter (ST Connector, 2km)
IRF-629SCRS-422/485 to Single-mode Fiber Converter (SC Connector, 30km)
