VOLKTEK IPI-442P-90-I Industrial Gigabit 90W PoE Injector

SKU: IPI-442P-90-I
VOLKTEK IPI-442P-90-I Industrial Gigabit 90W PoE Injector
VOLKTEK IPI-442P-90-I Industrial Gigabit 90W PoE Injector
VOLKTEK IPI-442P-90-I Industrial Gigabit 90W PoE Injector
VOLKTEK IPI-442P-90-I Industrial Gigabit 90W PoE Injector
VOLKTEK IPI-442P-90-I Industrial Gigabit 90W PoE Injector
VOLKTEK IPI-442P-90-I Industrial Gigabit 90W PoE Injector

VOLKTEK IPI-442P-90-I Industrial Gigabit 90W PoE Injector

SKU: IPI-442P-90-I
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
IPI-432P-90-I (90W) is a single port PoE++ industrial power injector that delivers data and power to powered devices (PDs) via Cat-5e or Cat-6 Ethernet cables. It allows data transmission at multiple rates 10/100/1000Mbps and power delivery up to 90 Watts. Suitable for the revolutionary PoE-based lighting system that creates a new breed of smart buildings where everything is connected to a vast Internet of Things (IoT). The IPI-432P-90-I is fan-less and could be deployed in the ceiling or outdoor cabinets for smart lighting or other network communication devices. It has LED signals to inform the amount of power used and alerts users when the power has surpassed the safe limits. Designed to work in industrial demanding environments, and enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. It operates between a wide temperature of -40℃~75℃ (-40°F~167°F). To ensure the connected devices operate reliably, it uses a Redundant Power Supply system and a Relay Alarm to issue alerts if power fails.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • 1 x 10/100/1000 Base-T RJ45 port
  • 1 x 10/100/1000 Base-T PSE port
  • 90W PoE+ (IEEE 802.3 bt) Power Injection
  • LED indication for usage and safety (for Power, RPS, ALM, PoE, NBT, Power Consumption)
  • IP30 Metal housing
  • Operating Temperature -40°C~75°C (-40°F-167°F)
Features

Easy and Quick Installation / Plug and Play

MDI/MDI-X feature enables the injector and PoE compatible devices to interact and transmit the right amount of energy needed for its operation.

Power Usage LED indicators

The injector's interface makes the amount of power consumed easily identifiable to quickly reboot the PD if needed or if the power exceeds the safe levels. The power usage LED indicators light up according to the amount of power consumed (15W, 30W and 60W).

Compact Size and Hardened Components

It's compact size, lightweight and industrial-grade design give users the freedom to locate the injector in different areas for devices of different functions.

Specifications

Standards

IEEE 802.3afPoE
IEEE 802.3at PoE+
IEEE 802.3bt 4PPoE, 4-pair PoE

Interface

Ports1 x 10/100/1000 Base-T RJ45 port , 1 x 10/100/1000 Base-T PSE port (90W)

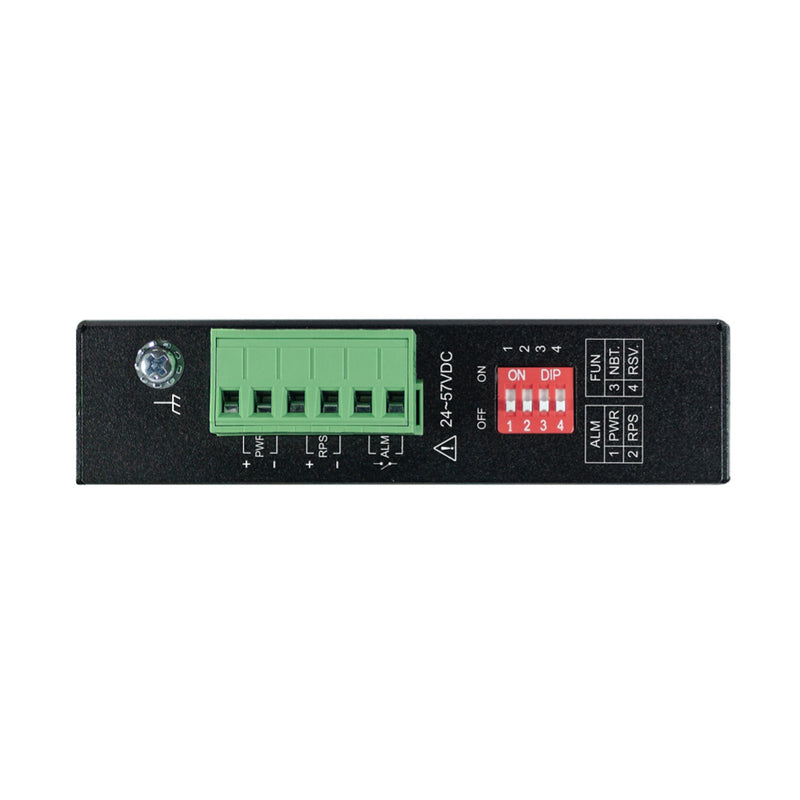

DIP Switch PWR, RPS, NBT, RSV
LED Panel PWR, RPS, ALM, PoE, NBT, 93~96W ,  PoE Usage (15,30,60,90)

Power

Power Input Dual 24~57V DC, Terminal Block
Power Consumption 120 Watt
PoE Mode IEEE 802.3af (PoE) , IEEE 802.3at (PoE+) , IEEE 802.3bt (4PPoE) , IEEE 802.3bt (Type 4)
PoE Type MidSpan
PoE Budget 90W
Alarm RelayOne relay output with current carrying capacity of 1A@ 24V DC

Mechanical and Environment

Housing Aluminum (IP30 Protection)

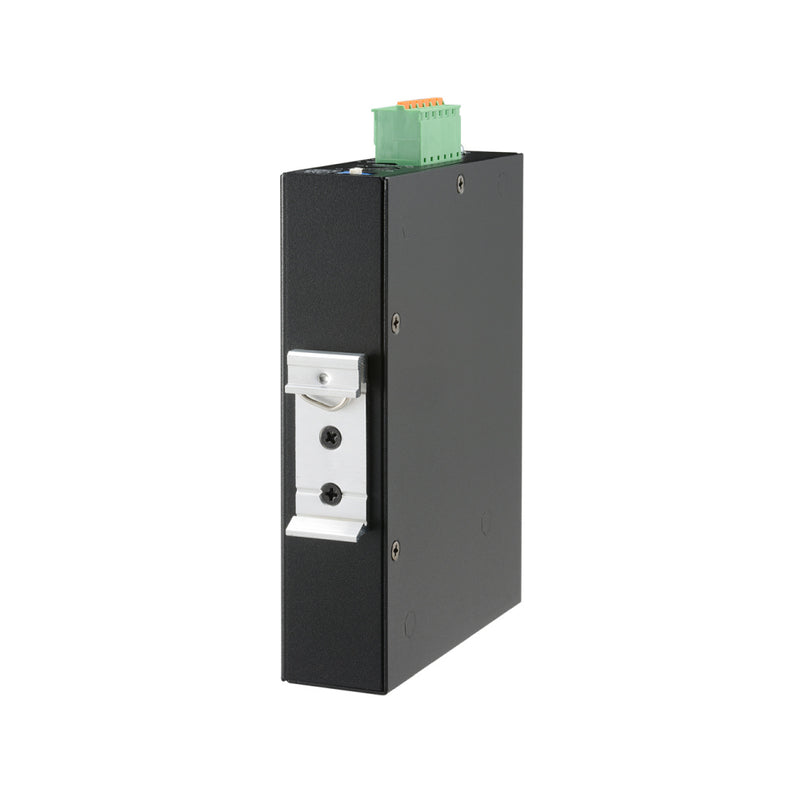

Mounting DIN Rail
Operating Temperature -40°C~75°C (-40°F~167°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95 % RH (non-condensing)
Storage Humidity 5 to 95 % RH (non-condensing)
Weight385 g (0.85 lb)
Dimension (WxHxD)25 x 116 x 100 mm (0.98 x 4.57 x 3.93 in)v

Ordering Information

ModelDescription
IPI-432P-90-I Industrial Gigabit 90W PoE Injector
