VOLKTEK INS-840G 16 Ports GbE Unmanaged Switch
SKU: INS-840G
Product Highlights
- 16 x 10/100/1000 RJ45 ports for multi-axis robots and their auxiliary machines like PLCs, HMI, and printers in automation
- Industrial Unmanaged Ethernet Switch with Premium Features
- Flow Control keeps flow at a constant rate to avoid overflow
- Prevents packet loss with VLAN Passthru by forwarding VLAN packets
- Industrial QoS prioritizes PROFINET packets and 802.1p Tag
- Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 metal housing
Features
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.
Redundant Power System
Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.
Auto Negotiable Link Speed Control
Auto negotiation of transmission speed between the switch and the connected PLC (Programmable Logic Controller).
Advanced QoS Support
QoS (Quality of Service) for efficient data transmission to mission-critical applications.
Eco-friendly Green Ethernet Technology
IEEE802.3az Energy Efficient Ethernet (EEE) compliant with Green Ethernet technology for automatic adjustment of power consumption.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
Interface
| Ports | 16 x 10/100/1000BASE-T (RJ45) |
|---|---|

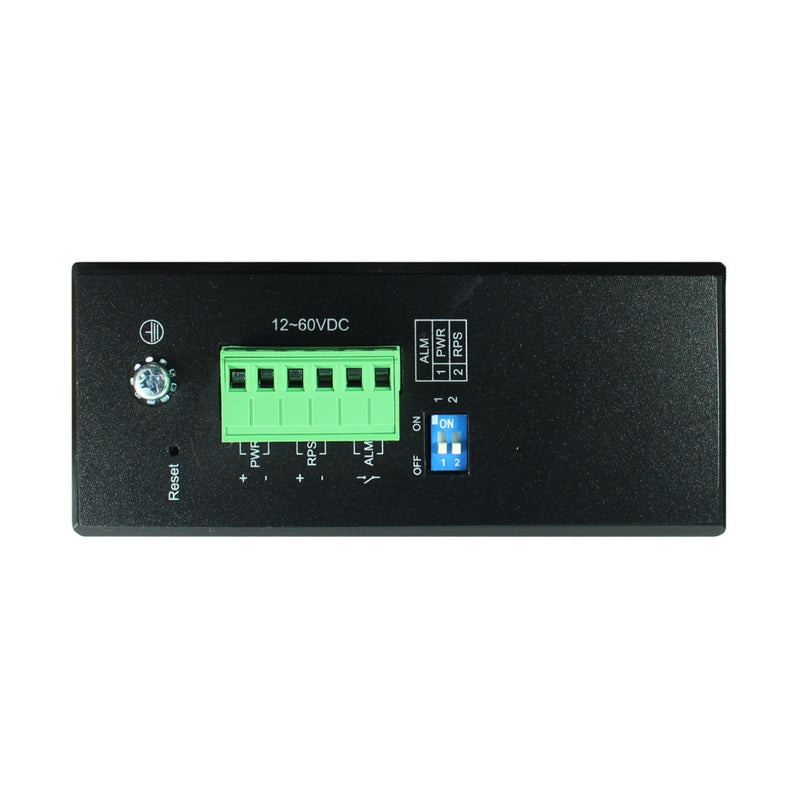

| DIP Switch | Primary/Redundant (PWR/RPS) power voltage drop alarm setting |
| LED Panel | PWR, RPS, ALM, 1000, LNK/ACT |
Power
| Input Voltage | Primary inputs:12~60VDC, Redundant inputs:12~60VDC |
|---|---|
| Connection | Terminal Block |
| Power Consumption | 12W (12V/1A) |
| Reverse Polarity | Present |
| Overload current | Present |
| Alarm Relay | One relay output, 1 A @ 24V DC |
Mechanical and Environment
| Housing | Aluminum (IP30 Protection) |
|---|---|

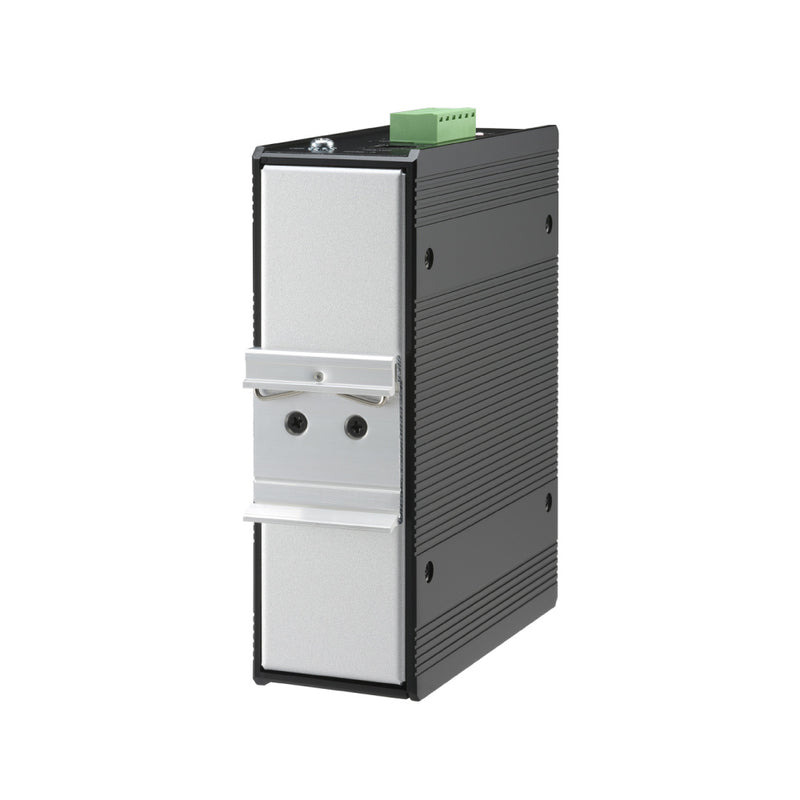

| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 840 g (1.8 lb) |
| Dimension (WxHxD) | 50 x 164.9 x 119.9 mm (1.97 x 6.49 x 4.72 in) |
Ordering Information
| Model | Description |
|---|---|
| INS-840G | Unmanaged 16 x 10/100/1000 RJ45 Industrial Switch |
