VOLKTEK INS-8408A 8 Ports GbE Unmanaged Switch

SKU: INS-8408A
VOLKTEK INS-8408A 8 Ports GbE Unmanaged Switch
VOLKTEK INS-8408A 8 Ports GbE Unmanaged Switch
VOLKTEK INS-8408A 8 Ports GbE Unmanaged Switch
VOLKTEK INS-8408A 8 Ports GbE Unmanaged Switch
VOLKTEK INS-8408A 8 Ports GbE Unmanaged Switch
VOLKTEK INS-8408A 8 Ports GbE Unmanaged Switch

VOLKTEK INS-8408A 8 Ports GbE Unmanaged Switch

SKU: INS-8408A
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • Inventory on the way
INS-8408A is an unmanaged 8-port, 10/100/1000 RJ45 downlink industrial switch for communication between controllers and devices in automation settings. The device can be used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. Additionally, it offers auto-negotiation on all its ports to aggregate devices easily in industrial Ethernet applications. The switch offers various in-built traffic optimization and network performance features to prioritize important industrial data packets.

This switch is built with industrial grade components, enclosed in IP30 metal to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Logitech M100R Wired USB Mouse
LOGITECH M100R Corded Mouse
Enquire with us
LOGITECH G502 HERO High Performance Gaming Mouse
LOGITECH G502 HERO High Performance Gaming Mouse
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • 8 x 10/100/1000 RJ45 ports for industrial devices like PLCs, HMI, and printers in automation
  • VLAN Passthru makes transmission of data more efficient
  • Redundant Power Supply and Alarm Relay Contact on Terminal Block to ensure non-stop operations
  • Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 metal housing
Features

Robust Electrical and Electromagnetic Safeguard

Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.

Eco-friendly Green Ethernet Technology

IEEE802.3az Energy Efficient Ethernet (EEE) compliant with Green Ethernet technology for automatic adjustment of power consumption.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE802.3azEnergy Efficient Ethernet (EEE)

Interface

Ports 8 x 10/100/1000Base-T (RJ45)
Connectors Terminal Block

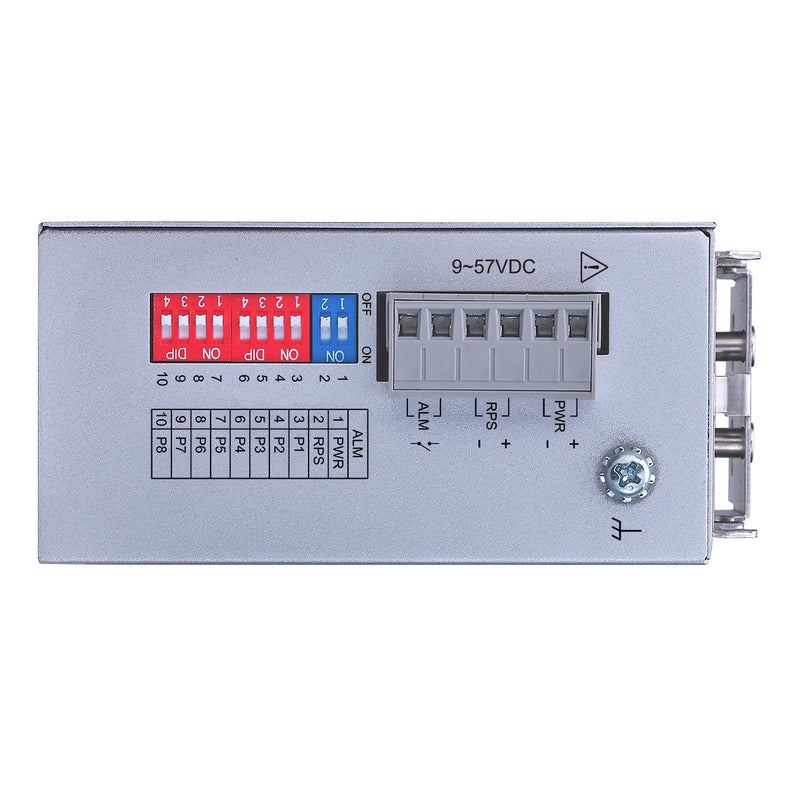

DIP SwitchPrimary/Redundant (PWR/RPS) power voltage drop alarm setting Per Port connectivity status alarm setting
LED PanelPWR, RPS, ALM, 1000M, LNK/ACT

Power

Input VoltagePrimary inputs：9V~57VDC,  Redundant inputs：9V~57VDC
Connection Terminal Block
Power Consumption5W
Alarm Relay One relay output, 1 A @ 24V DC
ESD protection8KV / 15KV
Surge protection3KV / 6KV (RJ45 Ports Line to ground)
Reverse PolarityPresent
Overload currentPresent

Mechanical and Environment

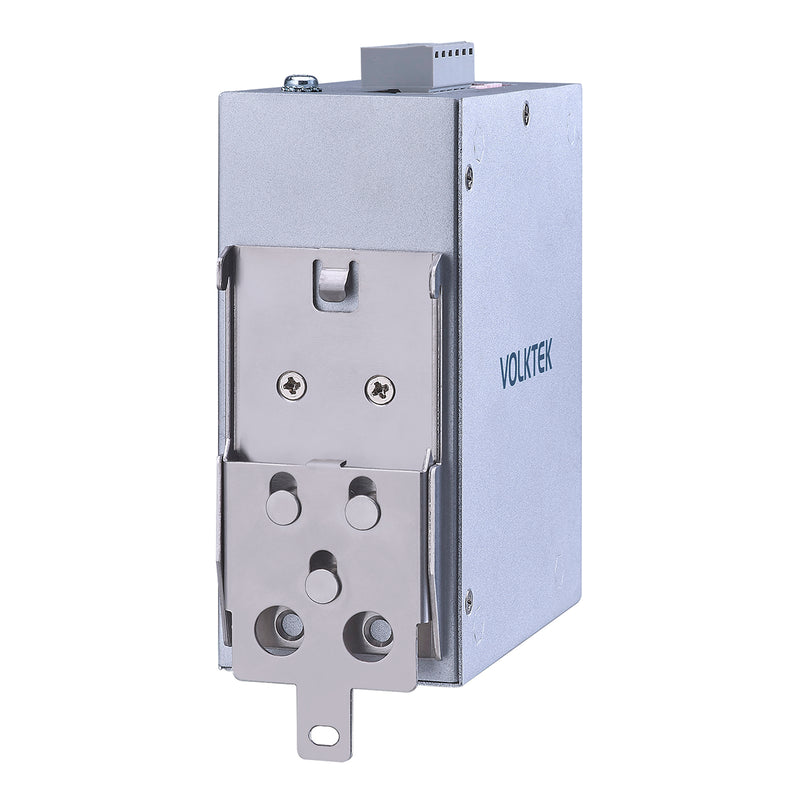

HousingAluminum (IP30 Protection)
Mounting DIN-Rail
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Operating Humidity5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight480 g (1.0 lb)
Dimension (WxHxD)50 x 119.2 x 99.9 mm (1.97 x 4.69 x 3.93 in)

Ordering Information

ModelDescription
INS-8408A Unmanaged 8 x 10/100/1000 RJ45 Industrial Switch
