VOLKTEK IMC-661P Gbe PoE+ to GbE SFP Industrial Converter
SKU: IMC-661P
Product Highlights
- 1 x 10/100/1000 PoE+ port and 1 x 100/1000 SFP port
- Conversion from long distance fiber transmission and noise-free communication to PoE+
- Link Fault Signaling to see connection status
- Uses technology Line LoopBack to discard some issues
- IP30 Aluminum housing with high thermal conductivity
- Operating temperatures -40℃~75℃ (-40°F~167°F)
Features
Connect one Powered Device with Intelligent PoE Technology
New surveillance cameras and WAPs use power saving PoE technology to connect to other devices. This media converter supplies 30 Watt power budget to 1 compliant device that works automatically once connected with the help of the plug and play feature
User-friendly Monitoring of Signal Strengths and Faulty Links
LFS (Link Fault Signaling) for easy determination of optical signal strengths and detection of faulty links on both copper and fiber ports.
Resistant to Extreme Environments Resistant to Extreme Environments
The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to extreme temperatures (-40°C~75°C), and resistance to interference makes this device infallible in demanding industrial environments around multiple types of machinery.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX/FX |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3z | 1000BASE-SX/LX |
| IEEE 802.3x | Flow Control |
| IEEE 802.3af | Power over Ethernet |
| IEEE 802.3at | Power over Ethernet Plus |
| IEEE 802.3az | Energy Efficient Ethernet (EEE) |
Interface
| Ports | 1 x 10/100/1000BASE-T (PoE RJ45) , 1 x 100FX/GE SFP slot |
|---|---|
| LED Panel | PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT |
Power
| Input Voltage | Primary: 48~57V DC Redundant: 48~57V DC |
|---|---|

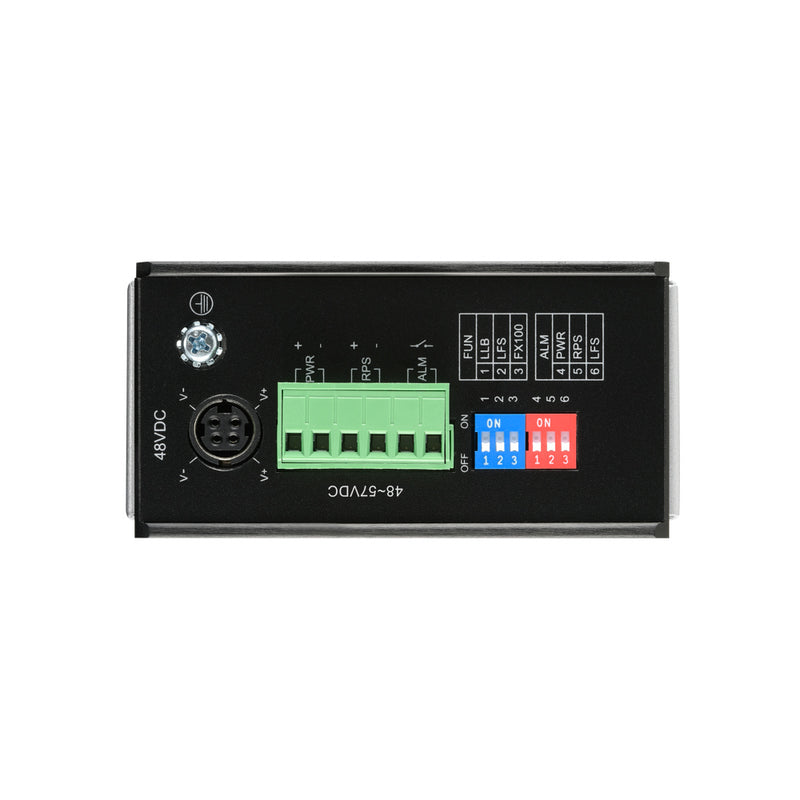

| Power Connection | 4-pin DC-Jack (48V DC)(Primary Power Input) , 6-pin Terminal block (Primary/Redundant Power Input) |
| Power Input Polarity Protection | Present |
| Power Voltage Drop Alarm | Primary/Redundant Power Input |
| Alarm Relay | One relay output with current carrying capacity of 1A @ 24V DC |
| Power Consumption | 7W (System) , 40W (with 1 PoE plus fully loaded) |
| ESD Protection | Present |
| Surge Protection | Present |
Mechanical and Environment
| Housing | Aluminum Case (IP30 protection) |
|---|---|

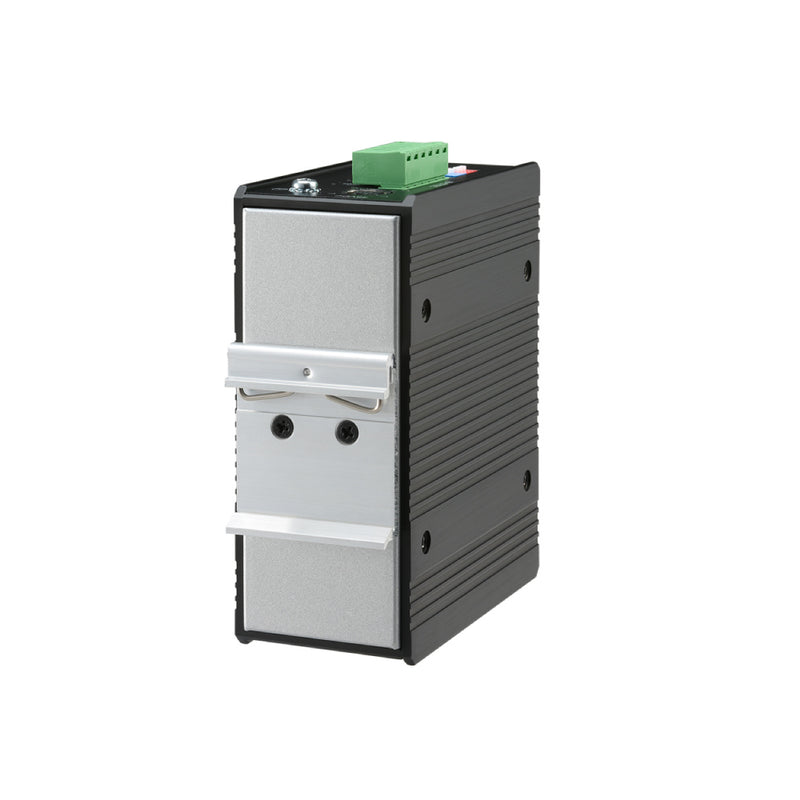

| Mounting | DIN-Rail, Wall Mount (optional) |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 10 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 450 g (1 lb) |
| Dimension (WxHxD) | 50 x 116 x 100 mm (1.97 x 4.57 x 3.94 in) |
Ordering Information
| Model | Description |
|---|---|
| IMC-661P | 1 x 10/100/1000 PoE+ to 1 x FX/GbE SFP Industrial Converter |
