IMC-661 is a 10/100/1000 RJ45 and one FX/GbE SFP industrial converter from fiber to copper for long-distance fiber connectivity to the network center. Compatible with third-party devices, the multi-rate RJ45 port adapts to different speeds and sends data to the SFP port compatible with modules of different speeds.

The media converter uses LED signals for users to monitor the link connectivity. The device uses Line LoopBack to diagnose and troubleshoot the device. It controls data transmission using flow control.

This media converter is built with industrial grade components and enclosed in an IP30 aluminum case with high thermal conductivity, which protects the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F), it suits extreme industrial applications. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • 1 x 10/100/1000 PoE+ port and 1 x 100/1000 SFP port
  • Conversion from Copper to long-distance fiber transmission and noise-free communication
  • Link Fault Signaling to see connection status
  • Uses technology Line LoopBack to discard some issues
  • IP30 Aluminum housing with high thermal conductivity
  • Operating temperatures -40℃~75℃ (-40°F~167°F)
Features

Connect one Powered Device with Intelligent PoE Technology

Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.

User-friendly Monitoring of Signal Strengths and Faulty Links

LFS (Link Fault Signaling) for easy determination of optical signal strengths and detection of faulty links on both copper and fiber ports.

Redundant Power System

Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z1000BASE-SX/LX
IEEE 802.3xFlow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)

Interface

Ports1 x 10/100/1000BASE-T (PoE RJ45) , 1 x 100FX/GE SFP slot

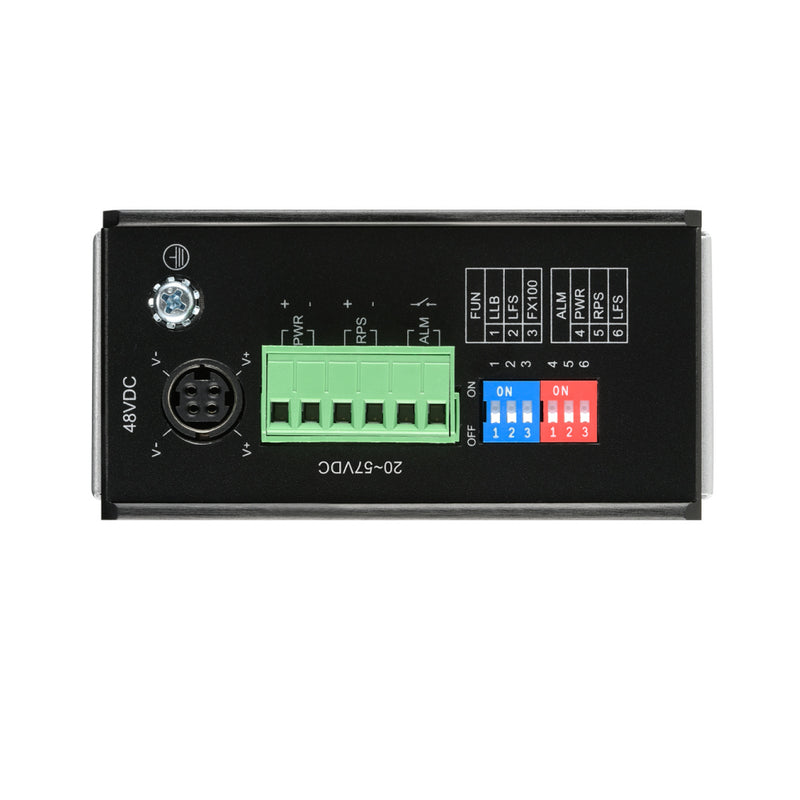

LED Panel PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT
DIP Switch Primary/Redundant Power Voltage Drop Alarm setting

Power

Input Voltage Primary: 20~57V DC
Redundant: 20~57V DC
Power Connection 4-pin DC-Jack (48V DC)(Primary Power Input) ,
6-pin Terminal block (Primary/Redundant Power Input)
Power Input Polarity Protection Present
Power Voltage Drop Alarm Primary/Redundant Power Input
Alarm Relay One relay output with current carrying capacity of 1A @ 24V DC
Power Consumption7W (System) , 40W (with 1 PoE plus fully loaded)
ESD ProtectionPresent
Surge ProtectionPresent

Mechanical and Environment

Housing Aluminum Case (IP30 protection)

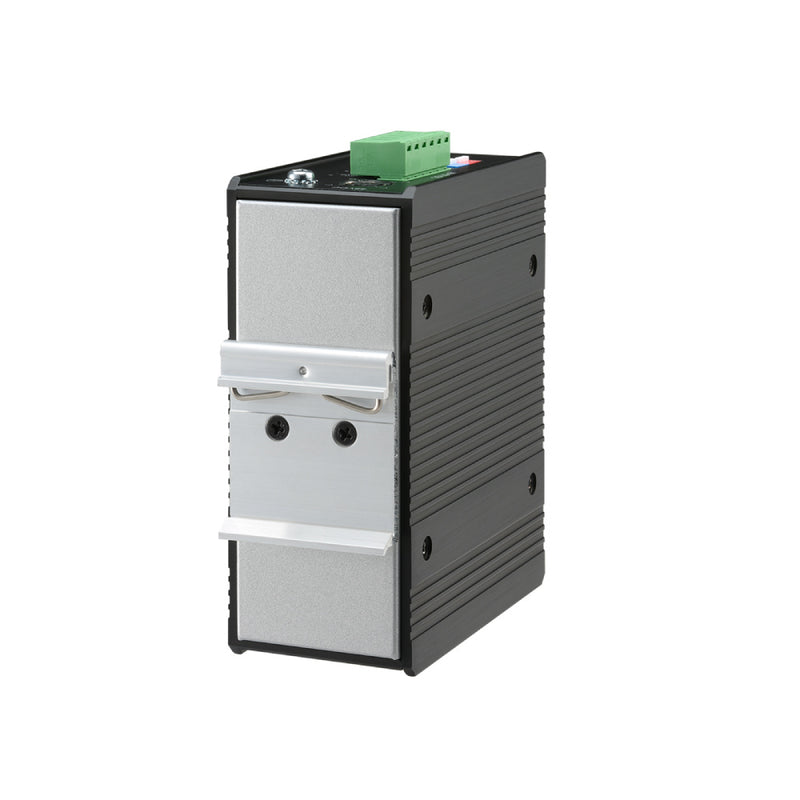

Mounting DIN-Rail, Wall Mount (optional)
Operating Temperature -40°C~75°C (-40°F~167°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Operating Humidity 10 to 95% RH (non-condensing)
Storage Humidity 5 to 95% RH (non-condensing)
Weight486 g (1.07 lb)
Dimension (WxHxD)50 x 116 x 100 mm (1.97 x 4.57 x 3.94 in)

Ordering Information

ModelDescription
IMC-661 1 x 10/100/1000 RJ45 to 1 x FX/GbE SFP Industrial Converter, -40°C~75°C
