IMC-561P is a 10/100/1000 PoE+ port and an FX/GbE SFP port industrial converter from fiber to PoE+ for long-distance PD connectivity to the network center using fiber. Compatible with third-party devices, the multi-rate RJ45 port adapts to different speeds and sends data to the SFP port compatible with modules of different speeds.

The media converter uses LED signals for users to monitor the link connectivity. The device uses Line LoopBack to diagnose and troubleshoot the device. It controls data transmission using flow control.

This media converter is built with industrial grade components and enclosed in an IP30 aluminum case with high thermal conductivity, which protects the device from tools and hazards. Hardened grade design for temperatures between -10℃ to 60℃ (14°F~140°F) for indoor and in-cabinet applications. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • 1 x 10/100/1000 PoE+ port and 1 x 100/1000Mbps SFP port
  • Conversion from long distance fiber transmission and noise-free communication to PoE
  • Link Fault Signaling to see connection status
  • Uses technology Line LoopBack to discard some issues
  • IP30 metal housing with high thermal conductivity
  • Operating temperatures -10℃ to 60℃ (14°F~140°F)
Features

Connect one Powered Device with Intelligent PoE Technology

New surveillance cameras and WAPs use power saving PoE technology to connect to other devices. This media converter supplies 30 Watt power budget to 1 compliant device that works automatically once connected with the help of the plug and play feature

User-friendly Monitoring of Signal Strengths and Faulty Links

LFS (Link Fault Signaling) for easy determination of optical signal strengths and detection of faulty links on both copper and fiber ports.

Resistant to Extreme Environments

The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Tolerant to mid-high temperatures -10℃ to 60℃ (14°F~140°F) which make it suitable for in cabinet environments and indoors, also next to multiple machinery.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z1000BASE-SX/LX
IEEE 802.3xFlow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3atPower over Ethernet Plus
IEEE 802.3azEnergy Efficient Ethernet (EEE)

Interface

Ports1 x 10/100/1000BASE-T (PoE RJ45) , 1 x 100FX/GE SFP slot
LED Panel PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT
DIP Switch Primary/Redundant Power Voltage Drop Alarm setting

Power

Input Voltage Primary: 48~57V DC Redundant: 48~57V DC

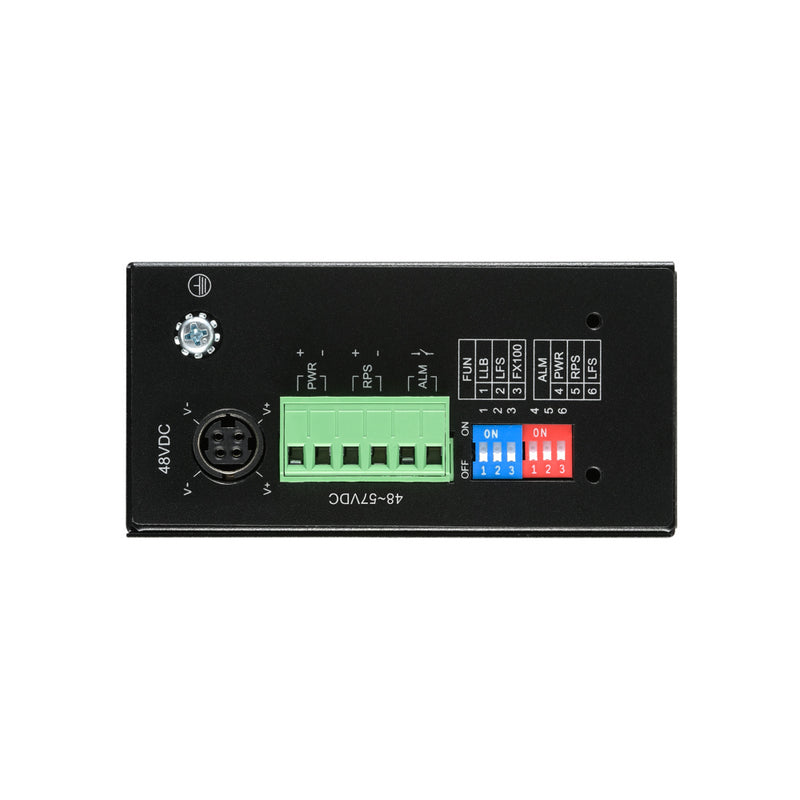

Power Connection 4-pin DC-Jack (48V DC)(Primary Power Input) , 6-pin Terminal block (Primary/Redundant Power Input)
Power Input Polarity Protection Present
Power Voltage Drop Alarm Primary/Redundant Power Input
Alarm Relay One relay output with current carrying capacity of 1A @ 24V DC
Power Consumption7W (System) , 40W (with 1 PoE plus fully loaded)
ESD ProtectionPresent
Surge ProtectionPresent

Mechanical and Environment

Housing Aluminum Case (IP30 protection)

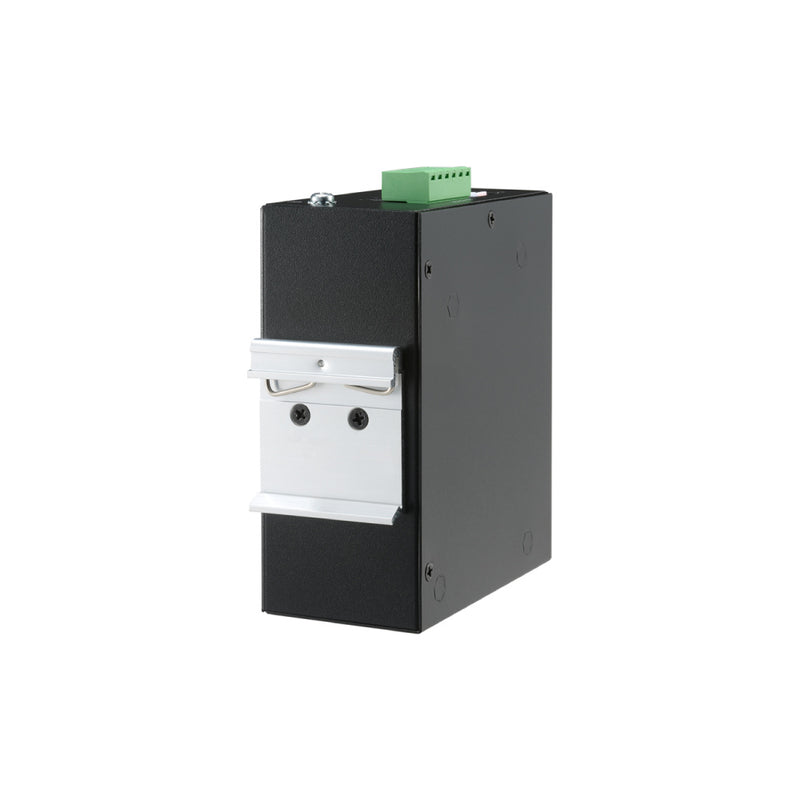

Mounting DIN-Rail, Wall Mount (optional)
Operating Temperature -40°C~75°C (-40°F~167°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Operating Humidity 10 to 95% RH (non-condensing)
Storage Humidity 5 to 95% RH (non-condensing)
Weight385 g (0.85 lb)
Dimension (WxHxD)50 x 116 x 100 mm (1.97 x 4.57 x 3.94 in)

Ordering Information

ModelDescription
IMC-561P 1 x 10/100/1000 PoE+ to 1 x FX/GbE SFP Hardened Converter
