VOLKTEK IEN-9425-SS 5 Ports GbE Substation Certified Unmanaged Switch with 2 SFP Ports

SKU: IEN-9425-SS
VOLKTEK IEN-9425-SS 5 Ports GbE Substation Certified Unmanaged Switch with 2 SFP Ports
VOLKTEK IEN-9425-SS 5 Ports GbE Substation Certified Unmanaged Switch with 2 SFP Ports
VOLKTEK IEN-9425-SS 5 Ports GbE Substation Certified Unmanaged Switch with 2 SFP Ports
VOLKTEK IEN-9425-SS 5 Ports GbE Substation Certified Unmanaged Switch with 2 SFP Ports
VOLKTEK IEN-9425-SS 5 Ports GbE Substation Certified Unmanaged Switch with 2 SFP Ports
VOLKTEK IEN-9425-SS 5 Ports GbE Substation Certified Unmanaged Switch with 2 SFP Ports

VOLKTEK IEN-9425-SS 5 Ports GbE Substation Certified Unmanaged Switch with 2 SFP Ports

SKU: IEN-9425-SS
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
IEN-9425-SS is a 5-port 10/100/1000 RJ45 downlink, and 2-port GbE SFP downlink unmanaged industrial-grade switch designed to meet the environmental requirements and conditions of substation applications. The downlink ports connect to industrial devices and controllers. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches or the control center.

To keep a stable transmission of data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE.

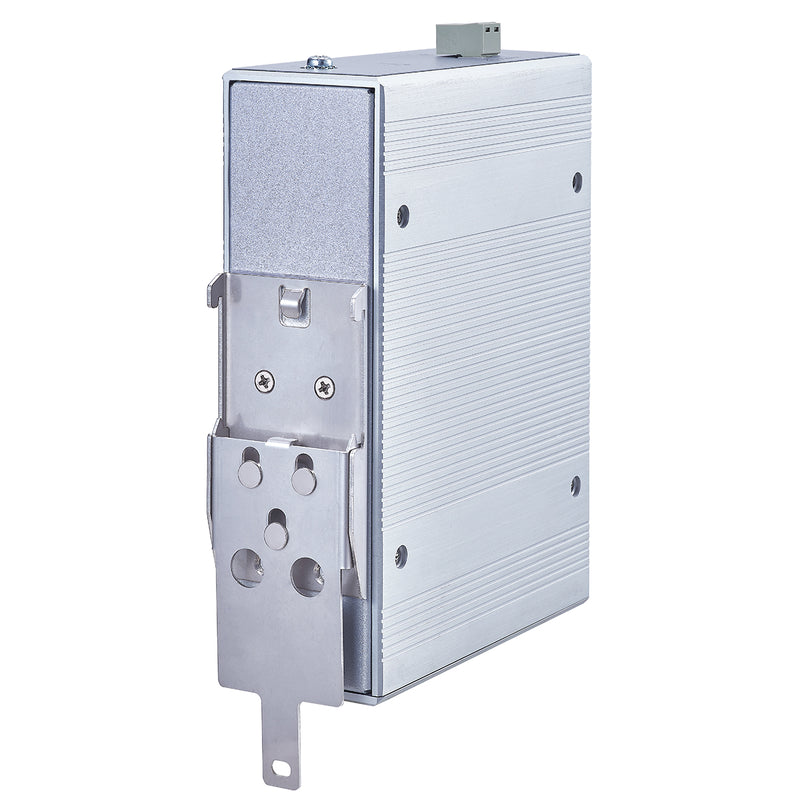

This switch is built with industrial-grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. Certified for use in substation applications, the device implements standard and safe communication and withstands vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F).

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • 5 x 10/100/1000 RJ45 ports and 2 x GbE SFP uplink ports for long-distance connectivity to control center and cascading
  • Optimizes network performance with Flow Control and QoS for enough bandwidth prioritizes transmission for industrial applications using EIP (EtherNet/IP), PROFINET, and GOOSE packets
  • Gives transmission priority to device and peripherals connected to Port #1
  • IEEE 1613 and IEC 61850-3 Certifications communication standard for safe and reliable substation operations
  • Operating temperatures-40℃~75℃ (-40°F~167°F) and IP30 Aluminum housingv
Features

Robust Electrical and Electromagnetic Safeguard

Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.

Redundant Power System

Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.

Advanced QoS Support

QoS (Quality of Service) for efficient data transmission to mission-critical applications and Storm Control for limitation of traffic at a predefined rate.

Eco-friendly Green Ethernet Technology

IEEE 802.3az Energy Efficient Ethernet (EEE) compliant with Green Ethernet technology capable of automatic adjustment of power consumption.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3z1000BASE-SX/LX
IEEE 802.3Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE 802.1pClass of Service

Interface

Ports5 x 10/100/1000BASE-T (RJ45)
2 x GbE SFP Slots
DIP Switch Power voltage drop alarm setting (PWR & RPS)
LED Panel PWR, SFP, 1000, LNK/ACT

Power

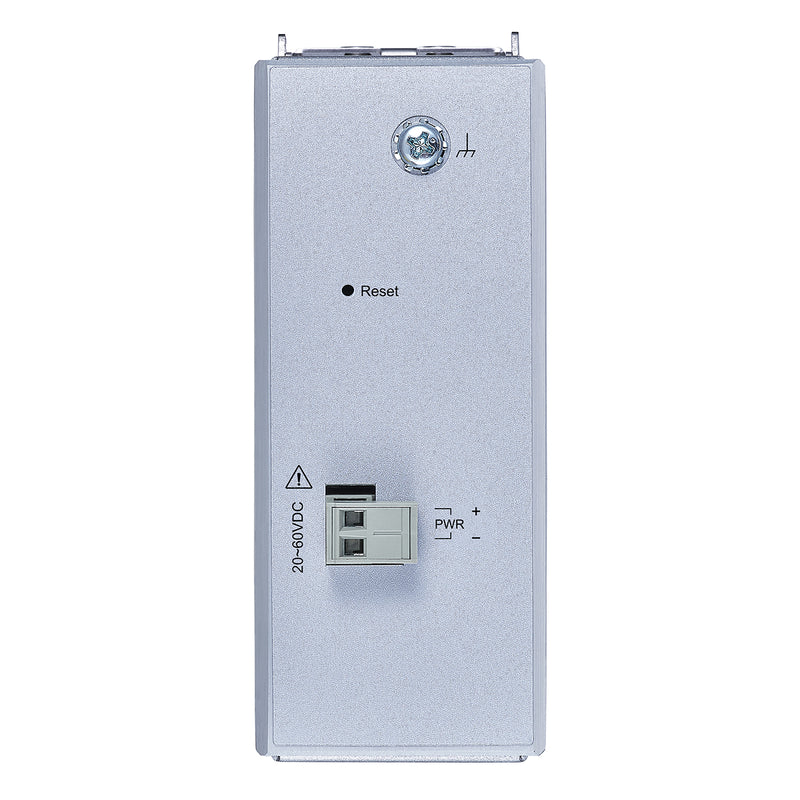

Input Voltage 20V~60VDC
Connection Teminal Block, Mini-DIN
Power Consumption System: 13W
Alarm RelayOne relay output with current carrying capacity of 1 A @ 24V DC

Mechanical and Environment

HousingAluminum (IP30 protection)
Mounting Kit DIN-Rail, Rack-mount
Operating Temperature -40°C~75°C (-40°F~167°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity 5 to 95% RH (non-condensing)
Weight869 g (1.9 lb)
Dimension (WxHxD)50 x 164.9 x 122.2 mm (1.97 x 6.49 x 4.81 in)

Ordering Information

ModelDescription
IEN-9425-SS Unmanaged 5 x 10/100/1000 RJ45 & 2 x GbE SFP Industrial Switch, Substation Approval
