VOLKTEK IEN-8648A-EIP 8 Ports GbE Ethernet/IP Switch with 4 SFP Ports
SKU: IEN-8648A-EIP
Product Highlights
- 8 x 10/100/1000 RJ45 ports and 4 x GbE SFP uplink ports for long-distance, noise-free to control devices and daisy chain connection
- Optimizes network performance with Storm and Flow Control and QoS for enough bandwidth
- DIP control lets users decide important port settings by pushing a simple switch
- Ethernet Approval, communication standard in industrial applications
- Operating temperatures -40℃ ~75℃ (-40°F~167°F) and IP30 Aluminum Housingv
Features
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.
Port-based and IEEE 802.1Q VLAN
GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) for segmentation of large networks into smaller parts and separate broadcast domains.v
Firmware Auto Backup
Auto backup of firmware to the secondary memory and activation of it from there in case of loss of the primary memory.
Redundant Power System
Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.
Efficient Traffic Prioritization
Effective QoS mechanisms for priority assignment, transmission of dedicated traffics to specific applications, and allocation of appropriate bandwidth to mission-critical communications.
Redundant Ring for Fast Recovery
Xpress Ring for rapid detection and recovery of link failure in milliseconds and ERPS (Ethernet Ring Protection Switching), Dual Homing, LACP (Link Aggregation Control Protocol), and RSTP (Rapid Spanning Tree Protocol) for continuous and consistent operation.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3u | 100BASE-FX |
| IEEE 802.3z | 1000BASE-SX/LX |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
| IEEE 802.3ad | Link Aggregation |
| IEEE 802.1AB | LLDP |
| IEEE 802.1ad | QinQ |
| IEEE 802.1D | STP |
| IEEE 802.1w | RSTP |
| IEEE 802.1s | MSTP |
| IEEE 802.1p | Class of Service |
| IEEE 802.1Q | VLAN Tagging |
| IEEE 802.1X | Port Authentication |
| IEEE 1588v2 | PTP |
Interface
| Ports | 8 x 10/100/1000BASE-T (RJ45)
4 x GbE SFP Slots 1 x RJ45 Console Port 1 x USB Port |
|---|---|

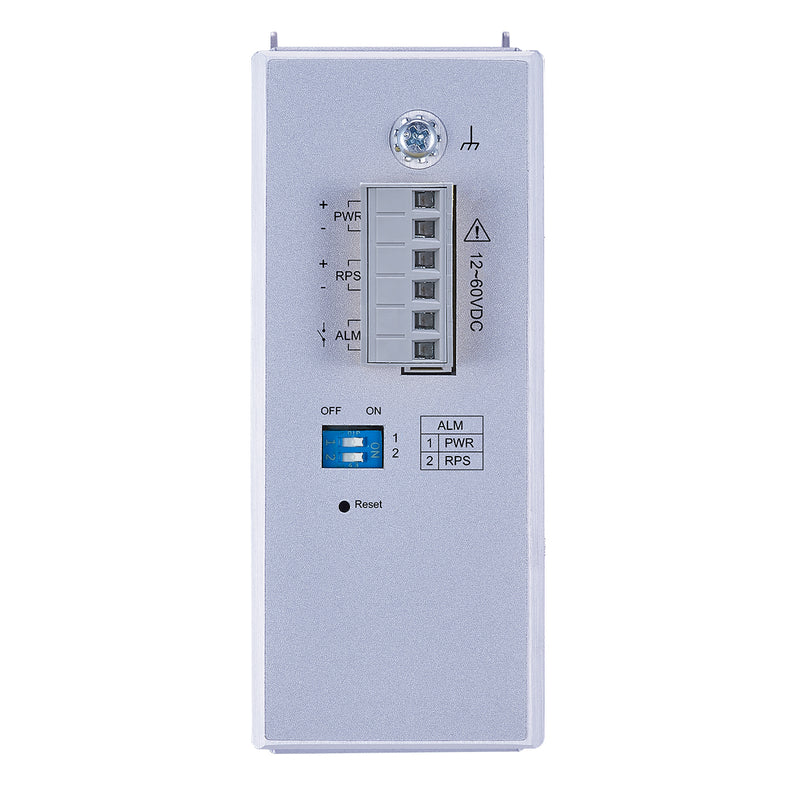

| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Panel | PWR, RPS, ALM, POST, SFP, 1000, LNK/ACTv |
Power
| Input Voltage | Primary inputs：12~60VDC
Redundant inputs：12~60VDC |
|---|---|
| Connector | Teminal Block |
| Power Consumption | System：18W |
| Alarm Relay | One relay output, 1 A @ 24V DC |
Mechanical and Environment
| Housing | Metal Case (IP30 protection) |
|---|---|

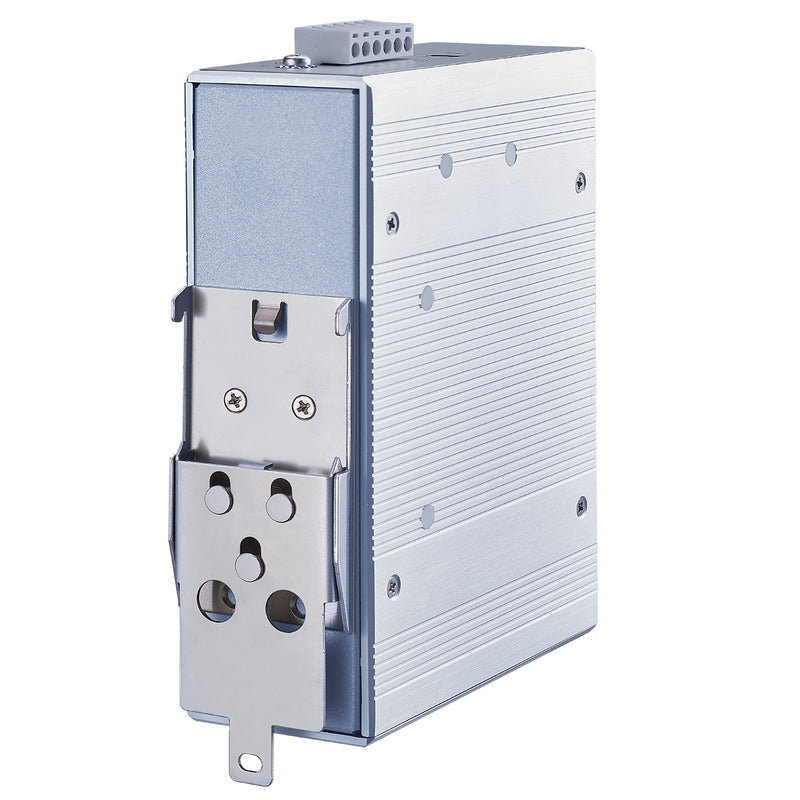

| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 955 g (2.1 lb) |
| Dimension (WxHxD) | 50 x 165 x 122.2 mm (1.97 x 6.50 x 4.81 in) |
Ordering Information
| Model | Description |
|---|---|
| IEN-8648A-EIP | Managed 8 x 10/100/1000 RJ45 & 4 x GbE SFP Switch, EtherNet/IP Approval, -40°C~75°C (-40°F~167°F) |
