VOLKTEK IEN-8648A 8 Ports GbE Managed Switch with 4 SFP Ports
SKU: IEN-8648A
Product Highlights
- 8 x 10/100/1000 RJ45 ports and 4 x GbE SFP uplink ports for long-distance to control devices and daisy chain
- 1 x Console Port for command-line interface and USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files
- Topology Map for network monitoringTopology Map for network monitoring
- Optimizes network performance with Storm and Flow Control and QoS
- Operating temperature -40℃~75℃ (-40°F~167°F) and IP30 Aluminum housing
Features
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.
Port-based and IEEE 802.1Q VLAN
GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) for segmentation of large networks into smaller parts and separate broadcast domains.
Firmware Auto BackupFirmware Auto Backup
Auto backup of firmware to the secondary memory and activation of it from there in case of loss of the primary memory.
Redundant Power System
Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.
Efficient Network Monitoring and Management
SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring.
Efficient Traffic Prioritization
Effective QoS mechanisms for priority assignment, transmission of dedicated traffics to specific applications, and allocation of appropriate bandwidth to mission-critical communications.
Redundant Ring for Fast Recovery
Xpress Ring for rapid detection and recovery of link failure in milliseconds and ERPS (Ethernet Ring protection Switching), Dual Homing, LACP (Link Aggregation Control Protocol), and RSTP (Rapid Spanning Tree Protocol) for continuous and consistent operation.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3u | 100BASE-FX |
| IEEE 802.3z | 1000BASE-SX/LX |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
| IEEE 802.3ad | Link Aggregation |
| IEEE 802.3az | Energy Efficient Ethernet (EEE) |
| IEEE 802.1AB | LLDP |
| IEEE 802.1D | STP |
| IEEE 802.1w | RSTP |
| IEEE 802.1p | Class of Service |
| IEEE 802.1Q | VLAN Tagging |
| IEEE 802.1X | Port Authentication |
| IEEE 1588v2 | PTP |
Interface
| Ports | 8 x 10/100/1000BASE-T (RJ45)
4 x GbE SFP Slots 1 x RJ45 Console Port 1 x USB Port |
|---|---|

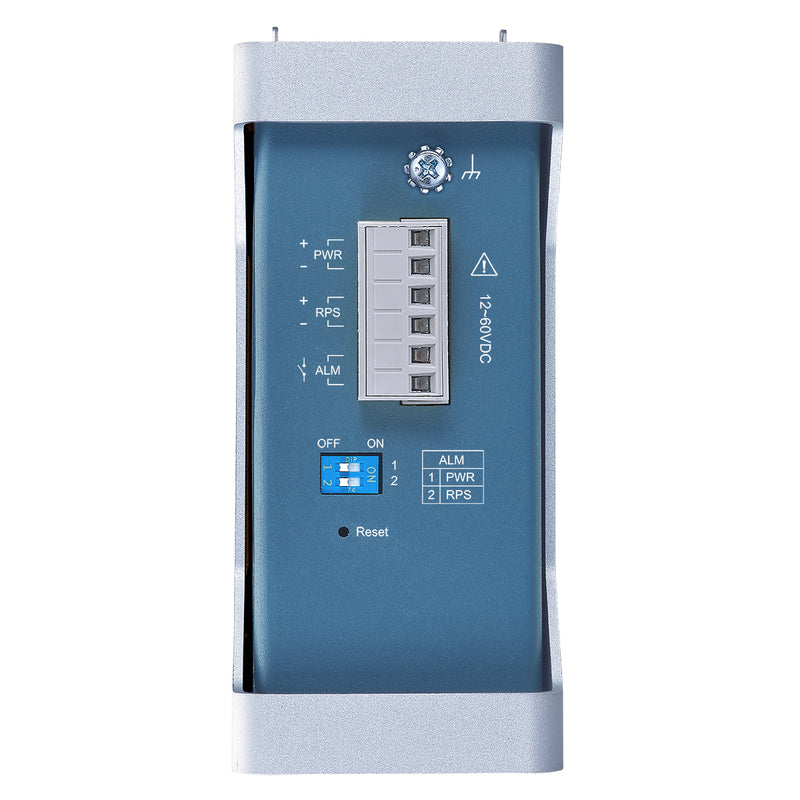

| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Panel | PWR, RPS, ALM, SFP, 1000, LNK/ACT |
Power
| Input Voltage | Primary inputs：12~60VDC
Redundant inputs：12~60VDC |
|---|---|
| Connector | Teminal Block |
| Power Consumption | System：18W |
| Alarm Relay | One relay output, 1 A @ 24V DC |
Mechanical and Environment
| Housing | Metal Case (IP30 protection) |
|---|---|

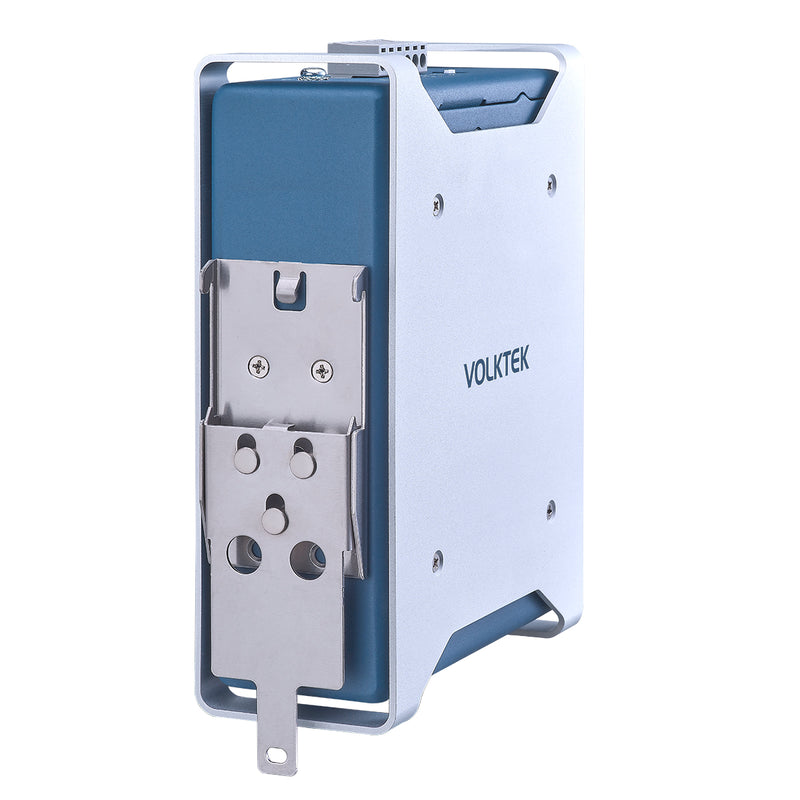

| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 955 g (2.1 lb) |
| Dimension (WxHxD) | 50 x 164.9 x 122.2 mm (1.97 x 6.49 x 4.81 in) |
Ordering Information
| Model | Description |
|---|---|
| IEN-8648A | Managed 8 x 10/100/1000 RJ45 & 4 x GbE SFP Industrial Switch |
