VOLKTEK IEN-8428P-24V 8 Ports GbE Unmanaged PoE+ Switch with 2 SFP Ports

SKU: IEN-8428P-24V
VOLKTEK IEN-8428P-24V 8 Ports GbE Unmanaged PoE+ Switch with 2 SFP Ports
VOLKTEK IEN-8428P-24V 8 Ports GbE Unmanaged PoE+ Switch with 2 SFP Ports
VOLKTEK IEN-8428P-24V 8 Ports GbE Unmanaged PoE+ Switch with 2 SFP Ports
VOLKTEK IEN-8428P-24V 8 Ports GbE Unmanaged PoE+ Switch with 2 SFP Ports
VOLKTEK IEN-8428P-24V 8 Ports GbE Unmanaged PoE+ Switch with 2 SFP Ports
VOLKTEK IEN-8428P-24V 8 Ports GbE Unmanaged PoE+ Switch with 2 SFP Ports

VOLKTEK IEN-8428P-24V 8 Ports GbE Unmanaged PoE+ Switch with 2 SFP Ports

SKU: IEN-8428P-24V
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way

IEN-8428P-24V is an unmanaged 8-port 10/100/1000 PoE+ downlink, and 2-port FX/GbE multi-rate SFP uplink industrial switch designed for indoor surveillance and internet access points applications. This PoE+ switch reduces costs by eliminating the need for multiple power outlets to power each individual powered device (PD) at distances up to 100 meters. All PSE (power sourcing equipment) and LAN ports use auto-negotiation technology to discover compatible devices without extra installation requirements. The SFP ports offer long-distance, noise-free fiber transmissions and adapt to speeds of 100 and 1000 Mbps to be compatible with third-party devices. The device uses port-based QoS to prioritize traffic on two ports, uses VLAN Passthru for continuous packet transfer, and uses industrial QoS, to prioritize Ethernet/IP, PROFINET, and GOOSE packets. The device can be discovered by monitoring systems with the help of an LLDP Filter, to visualize the switch in a network topology map.

Designed to work in industrial demanding environments, it’s enclosed in an IP30 aluminum case to protect the device from tools and hazards and high thermal conductivity for applications at temperatures ranging -40℃~75℃ (-40°F~167°F). The wide input power range from 24V to 57V enables the device to operate in factory ecosystems and other commercial/residential security applications without extra power outlet installation needed. To ensure the connected devices operate reliably, it uses a Redundant Power Supply system and a Relay Alarm to issues alerts if power fails.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • 8 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port
  • 2 x FX/GbE SFP uplink ports for long-distance connectivity to the control center and cascading
  • Port-based QoS and industrial QoS prioritizes EtherNet/IP, PROFINET, and GOOSE packets
  • Wide input power range (24V to 57V) for factory floor and typical surveillance applications
  • Redundant Power Supply and Alarm Relay Contact on Terminal Block to ensure non-stop operations
  • Operating temperature -40℃~75℃ (-40°F~167°F) and IP30 aluminum housing
Features

PoE Applications: Smart Surveillance and Wireless Access Points

Compliant with Type 1 and Type 2 PoE (IEEE 802.3 at) this switch offers up to 30W per port for energy-efficient applications. The switch allows simple “plug-n-play” for PDs to interact with devices as soon as they are connected.

VLAN Passthru: Constant Wending packet transfer

This feature avoids the loss of data transmission in unmanaged switches which constantly drop VLAN tagged frames as damaged. The feature VLAN Passthru passes the VLAN tagged frames unchanged, allowing this unmanaged switch to continue with a stable transmission.

Optimized Network Performance

The transmission of data to the control center or to other devices in real-time is crucial and assured with the help of the QoS (Quality of Service) and Flow Control features, the switch prioritizes data transmission and improves performance.

Industrial Protocol Priority

This switch is configured with EIP QoS, PROFINET QoS, and GOOSE QoS to prioritize and transmit industrial application packets in applications with these types of communication.

LLDP Filtering: Device Discovery

Unmanaged switches are perfect for plug & play networks avoiding all the complications of installing a modern and future-proofed network. The LLDP filter allows the discovery packets to be deleted to avoid device flapping issues.

Power Failure Protection: Redundant Power Input & Relay Output Alarm

To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm. If the primary power supply stops working the switch will start using the alternative power supply automatically and trigger a notification alarm to notify technicians in the event of power failure.

Resistant to Extreme Environments

The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to harsh temperatures (-10℃ to 60℃ / 14°F~140°F) and resistance to interference makes this device infallible in hardened environments around multiple types of machinery.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z1000BASE-SX/LX
IEEE 802.3xFlow Control
IEEE 802.1pClass of Service
IEEE 802.3afPower over Ethernet
IEEE 802.3atPower over Ethernet Plus
IEEE 802.3azEnergy Efficient Ethernet (EEE)

Interface

Ports8 x 10/100/1000BASE-T (PoE RJ45)
2 x 100FX/GbE SFP Slots
LED Panel PWR, RPS, ALM, POST, SFP, PoE, 1000M, LNK/ACT

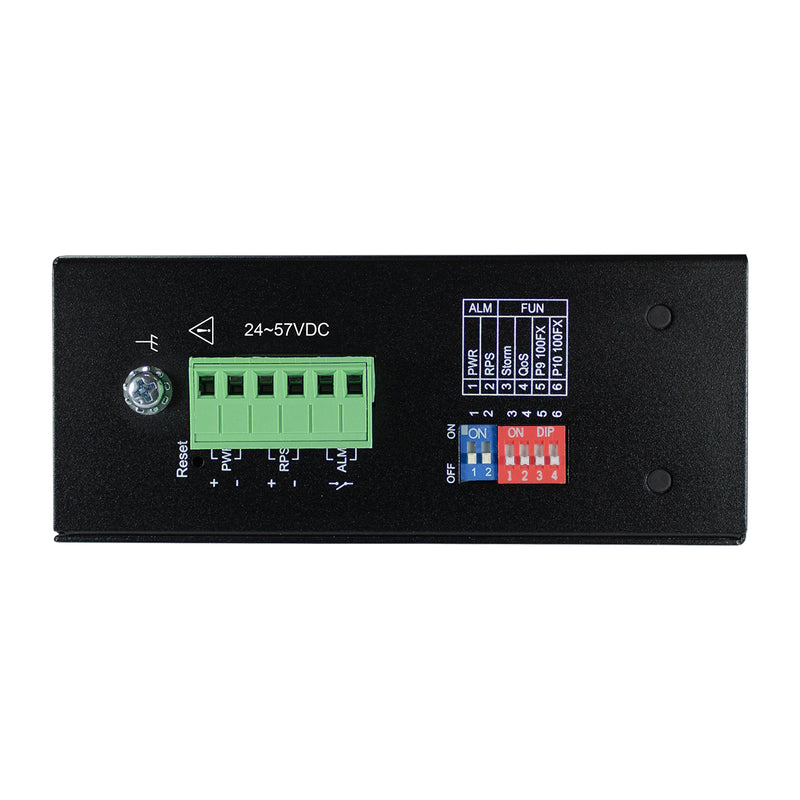

DIP Switch Power voltage drop alarm setting (PWR & RPS), Broadcast strom control setting (STORM), Port-based QoS setting (QoS on P1 & P2), Fiber port speed setting (100FX on P9 & P10)

Power

Input Voltage Adapter inputs: 24V~57V DC
Terminal block inputs: 24V~57V DC
Power Consumption System: 13W
PoE Power Budget: 124W @ 24V DC 240W @ 48V DC
Connection Teminal Block, Mini-DIN
Alarm RelayOne relay output, 1A @ 24V DC

Mechanical and Environment

Housing Aluminum (IP30 Protection)

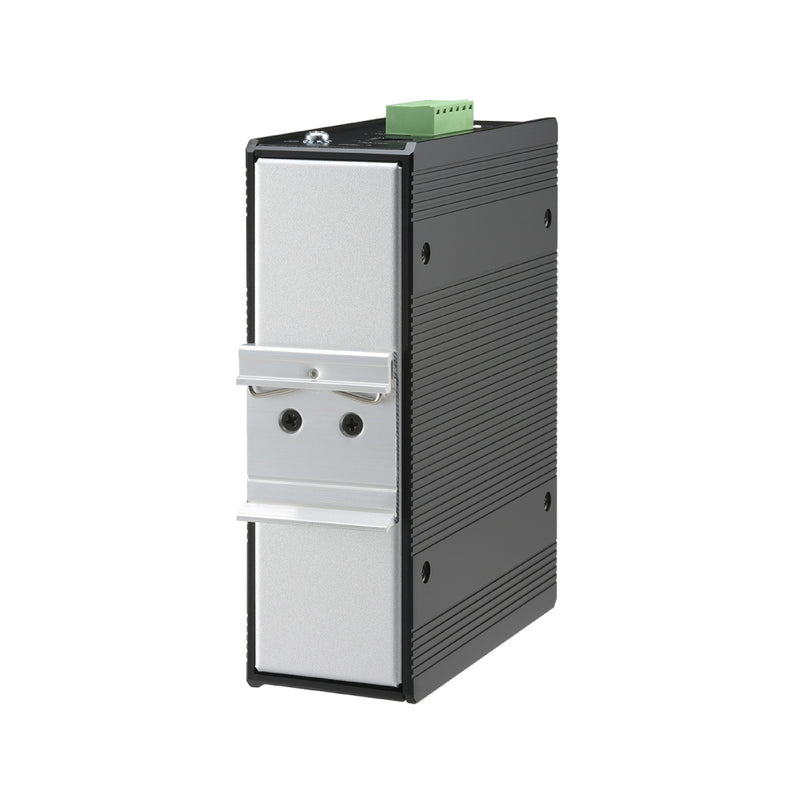

Mounting DIN-Rail
Operating Temperature -10°C~60°C (14°F~140°F)
Storage Temperature-40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity 5 to 95% RH (non-condensing)
Dimension (D x W x H)50 x 162 x 120 mm (1.97 x 6.36 x 4.72 in)
Weight950 g (2.1 lb)

Ordering Information

ModelDescription
IEN-8428P Unmanaged 8 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Switch
