VOLKTEK IEN-840GL 16 Ports GbE Lite Managed Switch
SKU: IEN-840GL
When a new switch is connected the Wizard helps technicians to set up network access, security, and login information. This allows to quickly finish the installation of all devices to later continue with remote configuration once the network connection is settled. For users that are not familiarized with these types of devices, the Wizard can solve a lot of trouble.
Product Highlights
- 16 x 10/100/1000 RJ45 ports for multi-axis robots and their auxiliary devices like PLCs, HMI, and printers in automation
- Saves costs on investment by supporting Modbus TCP communication with legacy and advanced industrial devices
- Allows to enable port authentication to increase security
- Optimizes network performance with Flow Control and QoS
- A Wizard for three-minute and three-step installation guided process
- Operating temperature -10℃ to 60℃ (14°F~140°F) and IP30 Aluminum housing
Features
LAMUNGAN - Monitoring and Management Platform
Lamungan is Volktek’s embedded monitoring and management platform, a user-friendly interface consisted of a Wizard, a Topology Map, and a Dashboard for users to achieve more in less time to save resources and increase efficiency. It aggregates four tools concerning device deployment and installation, network performance, device monitoring, and network configuration.
The Wizard - Three-step installation in three minutes
When a new switch is connected the Wizard helps technicians to set up network access, security, and login information. This allows to quickly finish the installation of all devices to later continue with remote configuration once the network connection is settled. For users that are not familiarized with these types of devices, the Wizard can solve a lot of trouble.
Topology Map - a Smart and Interactive Network at Glance
For easy problem finding and troubleshooting, a bird-eye view of the network gives OT and IT users a comprehensive understanding. The Ethernet switch uses smart technology to discover third-party devices, their interface, and the link path status in a tri-color code (green, amber, and red). Furthermore, users can set up the map with customized icons and background images.
Dashboard - Network Performance Visualization
The dashboard lets users visualize switch CPU performance and data transmission rates in a simple interface to quickly detect device and network issues and give fast assistance.
Third-Party Device Compatibility and Speed Adaptability
The multi-rate ports of this device are enabled to transmit data at different Ethernet speeds of 10/100/1000 Mbps on copper and adapt to the Ethernet speed of third-party devices based on their requirements. When legacy devices are connected to the switch, it auto-negotiates with the device, reducing the need for additional adaptors to adjust to a tight budget.
Optimized Network Performance
The transmission of data to the control center or to other devices in real-time is crucial and assured with the help of the QoS (Quality of Service) and Flow Control features, the switch prioritizes data transmission and improves performance.
Power Failure Protection: Redundant Power Input & Relay Output Alarm
To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm. If the primary power supply stops working the switch will start using the alternative power supply automatically and trigger a notification alarm to notify technicians in the event of power failure.
Resistant to Extreme Environments
The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to harsh temperatures (-10℃ to 60℃ / 14°F~140°F) and resistance to interference makes this device infallible in hardened environments around multiple types of machinery.
Specifications
Standards
| IEEE 802.3 | 10BASE-T |
|---|---|
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3 | Nway Auto-negotiation |
| IEEE 802.3x | Flow Control |
| IEEE 802.3az | Energy Efficient Ethernet (EEE) |
| IEEE 802.1AB | LLDP |
| IEEE 802.1D | STP |
| IEEE 802.1w | RSTP |
| IEEE 802.1p | Class of Service |
| IEEE 802.1Q | VLAN tagging |
| IEEE 802.1X | Port Authentication |
Interface
| Ports | 16 x 10/100/1000BASE-T (RJ45) |
|---|---|
| DIP Switch | Power voltage drop alarm setting (PWR/RPS) |
| LED Panel | PWR,RPS,ALM, 1000, LNK/ACT |
Power

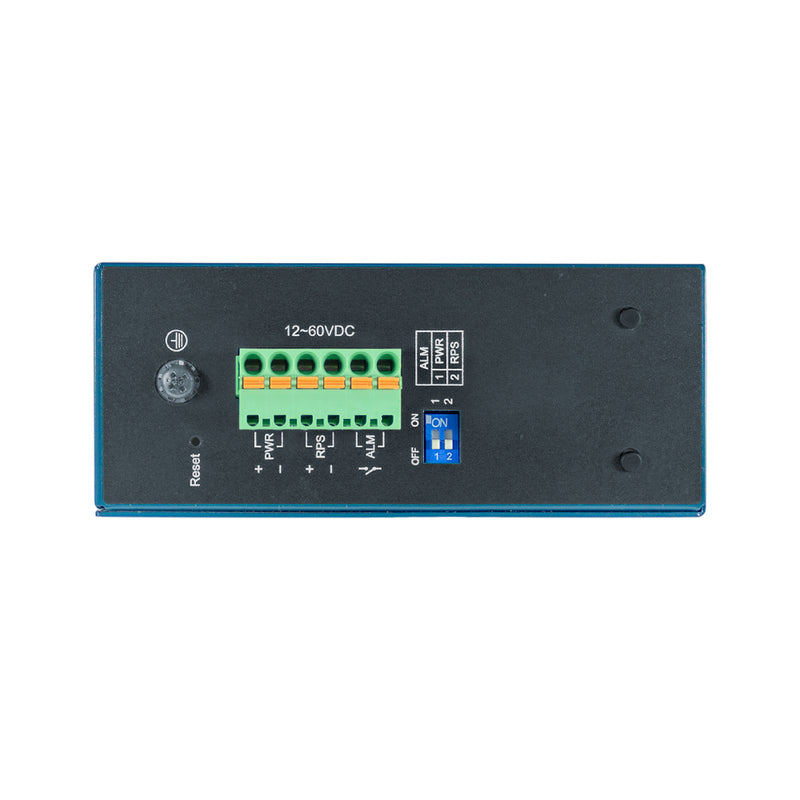

| Input Voltage | Primary Inputs: 12~60V DC Redundant Inputs: 12~60V DC |
|---|---|
| Connection | Teminal Block |
| Power Consumption | 18W (12V/1.5A) |
| Alarm Relay | One relay output, 1A @ 24V DC |
| Reverse Polarity | Present |
Mechanical and Environment
| Input Voltage | Aluminum (IP30 protection) |
|---|---|

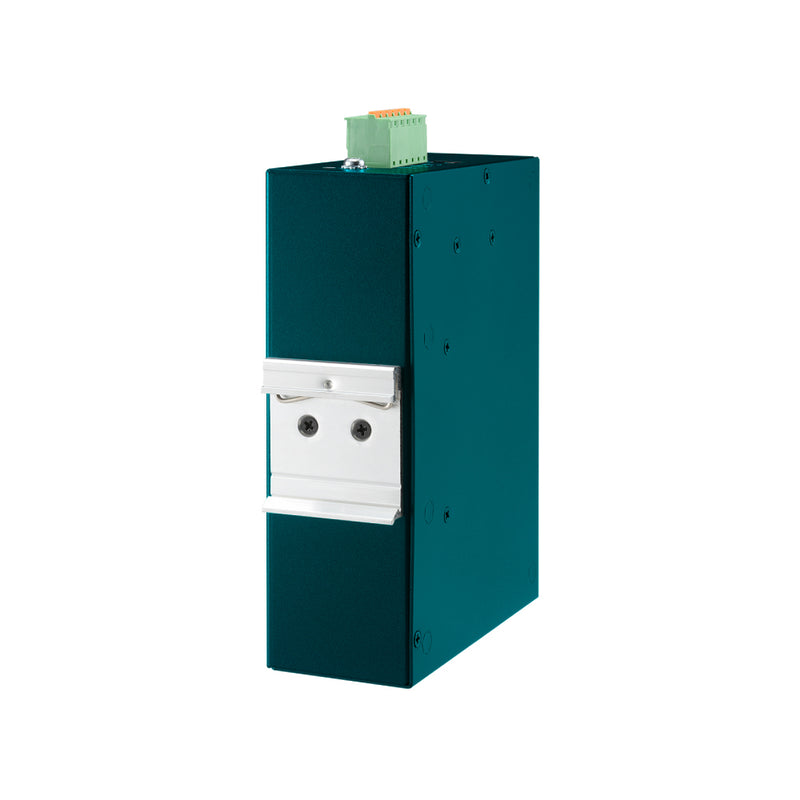

| Housing | DIN-Rail |
| Mounting | -10°C~60°C (14°F~140°F) |
| Operating Temperaturec | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 550 g (1.21 lb) |
| Dimension (WxHxD) | 50 x 160 x 120 mm (1.97 x 6.36 x 4.72 in) |
Ordering Information
| Model | Description |
|---|---|
| INS-840GL | Lite managed 16 x 10/100/1000 RJ45 Industrial Switch |
