• 4 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port and 1 x 10/100/1000 RJ45
• Optimizes network performance with Flow Control and QoS
• Redundant Power Supply and Alarm Relay Contact on Terminal Block to ensure non-stop operations
• Operating temperature -10℃ to 60℃ (14°F~140°F) and IP30 metal housing

High-Power Budget for PoE Network Devices

Compliant with PoE+ (IEEE 802.3at), the switch supplies 30W per each PoE port, and allows simple “plug and play” PoE for various types of high power-consuming PoE devices.

Manages Remote PDs from the Control Room

The switch management interface uses PD control features, like PD-alive check and PoE scheduling, to control remote devices from a central location.

• PD alive Check - check the live active status of the device and reboots devices when needed, reducing expensive trips to remote locations to save valuable time.
• PD scheduling - Ethernet switches can schedule the time they supply power to PDs to reduce power consumption and allocate enough power to important applications to save operational costs.

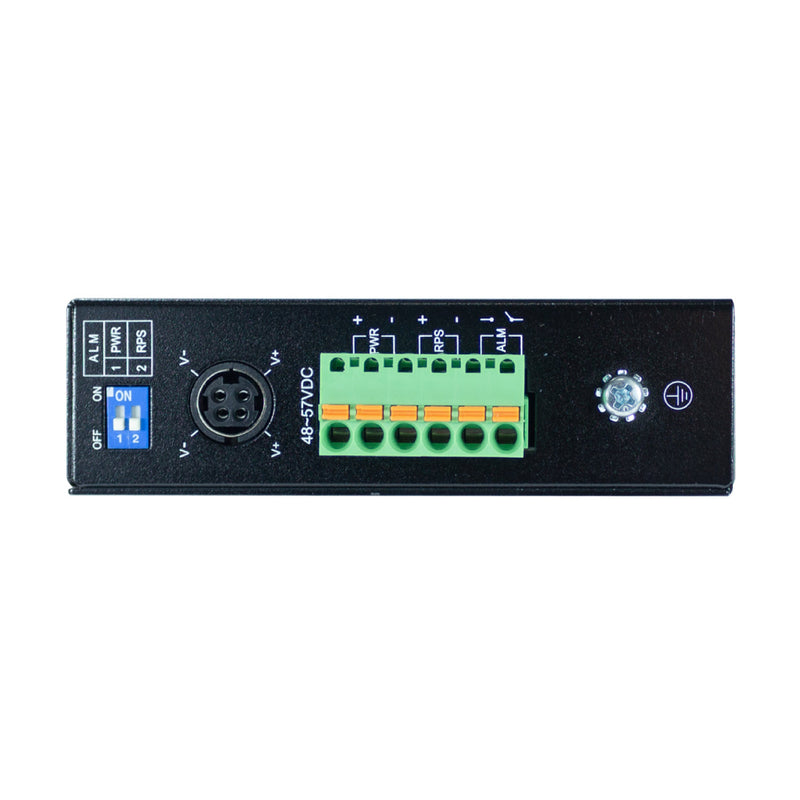

DIN Rail to Power Adapter (AC to DC) & Terminal Block

"DIN-Rail Power Adapter" function is the primary power source that converts AC to DC for board operation, while “6-pin Terminal Block” supports primary and secondary power input.

Simplified Installation w/ Compact Size

Every HNS-8615P is equipped with auto MDI/MDI-X on all ports for simple connection to other switches and hubs.

Efficient network monitoring and proactive capability

SNMP allows end-users to centrally manage different levels in a network, QoS, IGMP gives the capability to monitor the network performance.

Standards

Interface

Power

Mechanical and Environment

Ordering Information
