VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power

SKU: 9005-AC-C-16
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power

VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power

SKU: 9005-AC-C-16
Regular price Enquire with us
Enquire with us /
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way

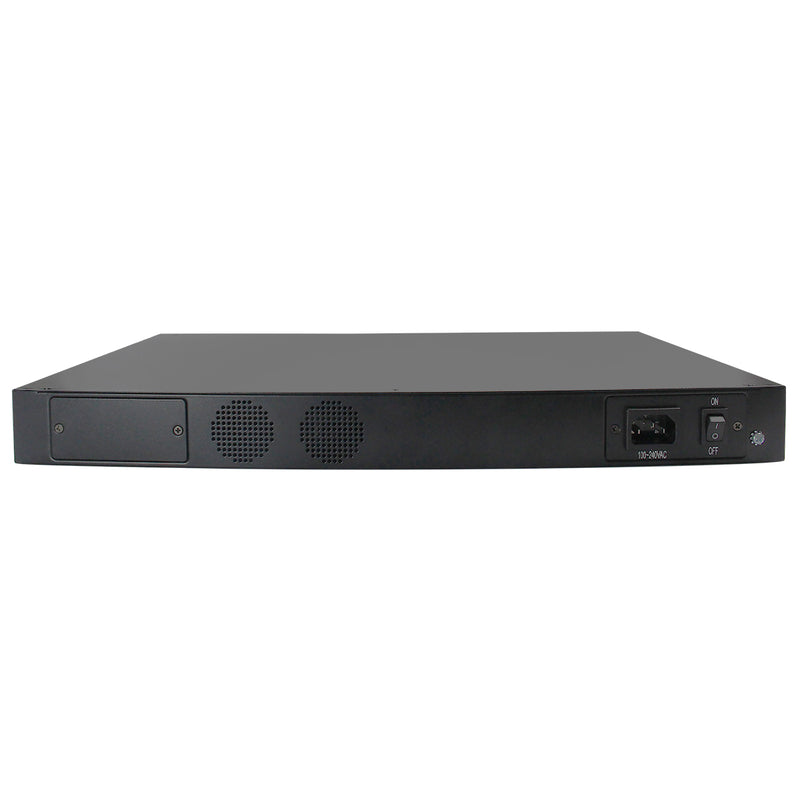

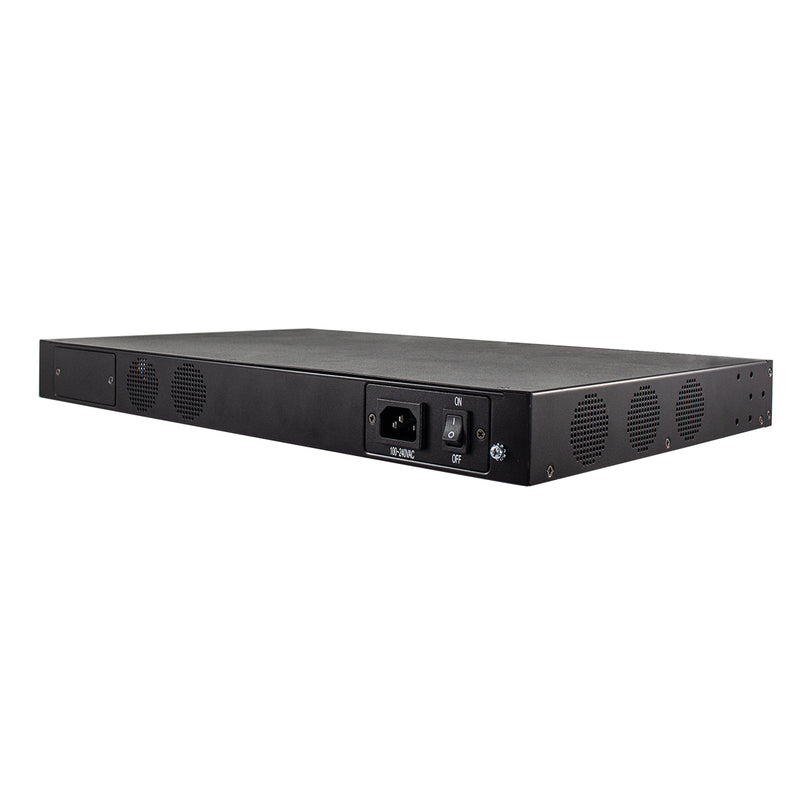

Hawkeye 9005-16GP2GS is a 16-port, 10/100/1000BASE-T PoE+ downlink, 2-port FX/GbE multi-rate SFP uplink managed high-port density mainly designed for indoor building surveillance applications without air conditioning, for more convenient, reduced, and inexpensive storage. This high-port density PoE+ switch manages all remote powered devices (PDs) centrally and smartly. The flexible power input of this device (AC or DC) gives space to varying PoE requirements to supply enough power to all connected PDs in large networks, and the plug-and-play feature allows to easily solve by hand connection errors without technical intervention. The multi-rate SFP ports are used to deliver long-distance fiber connectivity to the control center and for the ring and cascading connections. With a passive cooling system, this fanless switch works silently and supports temperatures for industrial, hardened, and commercial environments. The accumulation of debris is avoided, a common concern in fan-integrated devices. This switch is built with industrial-grade components, enclosed in IP30 aluminum to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, at varying temperatures for various types of environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us Enquire with us
Product Highlights
  • 16 PoE+ PSE ports, high port density, with smart control of PDs like IP Cameras, WAPs and VoIP Phones
  • 2 x FX/GbE multi-rate SFP uplink ports for long-distance connectivity
  • Ideal for connectivity in commercial properties and perimeter security applications
  • Fanless design for silent operation also avoids the accumulation of debris in the device
  • Flexible power input (AC or DC) based on users’ preference with varying PoE requirements
  • Operating temperatures -40ºC to 70ºC (-40ºF~158ºF) / -10ºC to 60ºC (14ºF~140ºF) / 0ºC to 50ºC (32ºF~122ºF) available on request
Features

Connects 16 Devices in one Interface

PoE Applications: Smart Surveillance and Wireless Access Points Compliant with Type 1 and Type 2 PoE (IEEE 802.3 at) this switch offers up to 30W per port for energy-efficient applications. The switch allows simple “plug-n-play” for PDs to interact with devices as soon as they are connected. This device is a high-port density switch with 16 ports to feed PDs for surveillance systems that cover complete floors.

Manages Remote PDs from the Control Room

The switch management interface uses PD control features, like PD-alive check and PoE scheduling, to control remote devices from a central location.

  • PD alive Check - check the live active status of the device and reboots devices when needed, reducing expensive trips to remote locations to save valuable time.
  • PD scheduling - Ethernet switches can schedule the time they supply power to PDs to reduce power consumption and allocate enough power to important applications to save operational costs.

Shielded against Cyberattacks

By securing the switch with a log-in password, only authorized users are allowed to access and configure the device. To increase security, the device complies with cybersecurity standards by using security protocols like TACACS+ (Terminal Access Controller Access-Control System Plus), RMON (Remote Network Monitoring) and protects from network intrusion and data leakage.

Loop-Free and Quick Recovery

Factory processes are time-sensitive and need to avoid at all costs the abrupt interruption of a system caused by loops. This device is equipped with ring protocols such as RSTP and ERPS to provide automatic backup paths to ensure loop-free transmission and quick recovery in sub-milliseconds when an active link fails.

Network at Glance with a Smart Topology Map

For easy problem finding and troubleshooting, a bird-eye view of the network gives OT and IT users a comprehensive understanding. The Ethernet switch uses smart technology to discover third-party devices, their interface, and link path status in a tri-color code (green, amber, and red). Furthermore, users can set up the map with customized icons and background images.

Protective Hardware Monitoring Features

Fiber transmission in industrial environments faces conditions that may impact the performance of the device negatively. To protect the interface the switch uses features like DDMI, to monitor values such as temperature, voltage, TX bias, TX power, and RX power to protect fiber transmission.

Resistant to Extreme Environments

The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to extreme temperatures (-40°C~75°C), and resistance to interference makes this device infallible in demanding industrial environments around multiple types of machinery.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z1000BASE-SX/LX
IEEE 802.3xFlow Control
IEEE 802.1ad QinQ
IEEE 802.3afPower over Ethernet
IEEE 802.3atPower over Ethernet Plus
IEEE 802.3azEnergy Efficient Ethernet
IEEE 802.3adLink Aggregation
IEEE 802.1D STP
IEEE 802.1wRSTP
IEEE 802.1pClass of Service
IEEE 802.1QVLAN Tagging
IEEE 802.1ABLLDP

Interface

Ports 16 x 10/100/1000BASE-T (PoE RJ45)
2 x FX/GbE SFP
1 x RJ45 Console Port

Power

Input Voltage 9005-16GP2GS-A-C/9005-16GP2GS-A-H: 100~240VAC, 50/60Hz
 9005-16GP2GS-D-I: 48~57VDC
Power Consumption 20W (System Only)
PoE Power Budget 9005-16GP2GS-A-C version:
220~240V AC 330Watt @ 50ºC (122ºF)
Derating to 280Watt @ 60ºC (140ºF)
PoE Power Budget9005-16GP2GS-A-H version:
100~127V AC 260Watt @ 50ºC (122ºF)
Derating to 240Watt @ 60ºC (140ºF)
PoE Power Budget 9005-16GP2GS-D-I version:
48~57V DC 480Watt @ 75ºC (167ºF)

Mechanical and Environment

Rack Space 19"
Form Factor Rackmount / DIN Rail
FAN Fanless
Altitude2000m (6561.68ft)
Operating Temperature 9005-24GP2GS-A-C: 0ºC to 50ºC (32ºF~122ºF)
 9005-24GP2GS-A-H: -10ºC to 60ºC (14ºF~140ºF)
 9005-24GP2GS-D-I: -40ºC to 70ºC (-40ºF~158ºF)
Storage Temperature -40ºC~85ºC (-40°F~185°F)
Operating Humidity5% to 95% (non-condensing)
Storage Humidity5% to 95% (non-condensing)
Dimensions (W x H x D)440 x 44 x 284mm (17.3 x 1.73 x 11.2in)
Weight4000g (8.8lb)

Ordering Information

ModelDescription
Hawkeye 9005-16GP2GS-A-C Managed 24 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Switch, Internal AC power supply, 50°C (122°F)
Hawkeye 9005-16GP2GS-A-H Managed 24 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Industrial Switch, Internal AC power supply, 60°C (140°F)
Hawkeye 9005-16GP2GS-D-I Managed 24 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Industrial Switch, DC power input, 70°C (158°F)
