VOLKTEK GPI-441 GbE PoE+ 90W Injector with PD Detection

SKU: GPI-441
VOLKTEK GPI-441 GbE PoE+ 90W Injector with PD Detection
VOLKTEK GPI-441 GbE PoE+ 90W Injector with PD Detection
VOLKTEK GPI-441 GbE PoE+ 90W Injector with PD Detection
VOLKTEK GPI-441 GbE PoE+ 90W Injector with PD Detection

VOLKTEK GPI-441 GbE PoE+ 90W Injector with PD Detection

SKU: GPI-441
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • Inventory on the way
GPI-441 is a single port, 90W (IEEE 802.3 bt) Power Injector for remote PoE++ devices. This device is a simple and inexpensive solution for Powered Devices in remote areas or at locations where there is no power sourcing equipment. It withstands temperatures between  0°C-40°C (32°F-104°F). It uses LED indicators to show when the device is in operation. By generating up to 90W, GPI-431 supplies remote power for modern applications such as dome surveillance cameras, lights, and smart kiosks.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Logitech M100R Wired USB Mouse
LOGITECH M100R Corded Mouse
Enquire with us
LOGITECH G502 HERO High Performance Gaming Mouse
LOGITECH G502 HERO High Performance Gaming Mouse
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • 1 x 10/100/1000 Base-T RJ45 port
  • 1 x 10/100/1000 Base-T PSE port
  • 90W PoE++ (IEEE 802.3 bt) Power Injection
  • LED Indication (Power Transmission)
  • Operating Temperature 0°C-40°C (32°F-104°F)
Features
  • One 10/100/1000Base-T port
  • 4-Pair 90W PoE (Power/Data)
  • Compliant with IEEE802.3, 802.3u, 802.3ab, 802.3af, 802.3at standards
  • Automatic detection of connected PoE devices
  • IEEE 802.3af/at backward compatible
  • Full-Range (100~240VAC) internal power supply
  • No Fan, natural cooling, small size, no noise
  • CE/FCC compliant
Specifications

Interface

Ports1 x 10/100/1000 Base-T RJ45 port ,  1 x 10/100/1000 Base-T PSE port (90W)
LED Panel Mode A, Mode B, Power

Power

Input Voltage 56V DC Max.
User Port Power 90W Max.

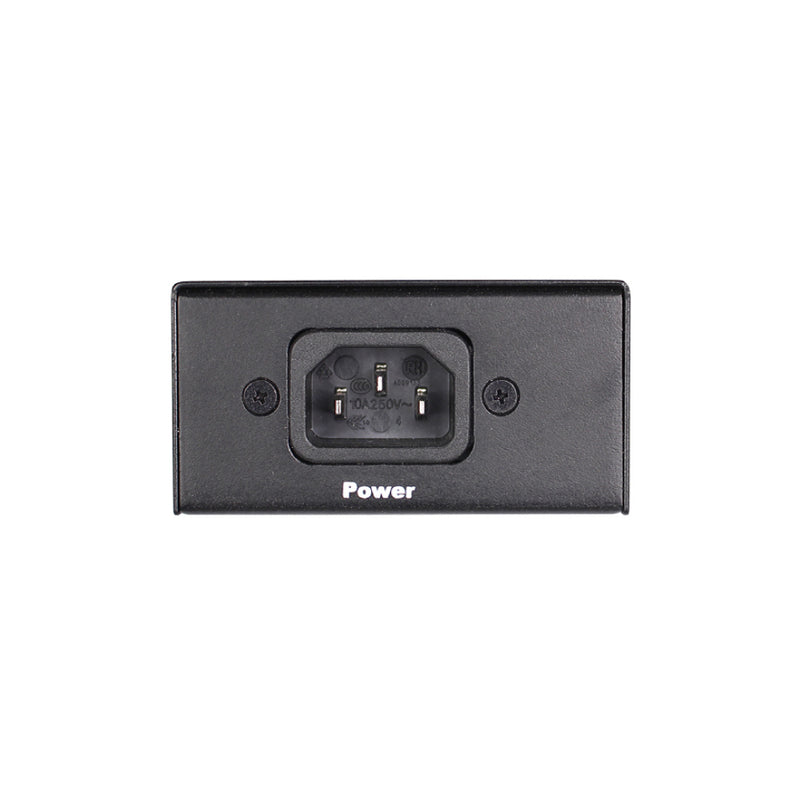

Input Power Voltage and Frequency 100-240V AC, 50 to 60 Hz

Mechanical and Environment

Operating Ambient Temperature 0°C~40°C (32°F~104°F)
Weight 530 g (1.17 lb)
Dimension (WxHxD) 180 x 71 x 37 mm (7.08 x 2.80 x 1.46 in)

Ordering Information

ModelDescription
GPI-441 GbE PoE+ 90W Injector with PD Detection
