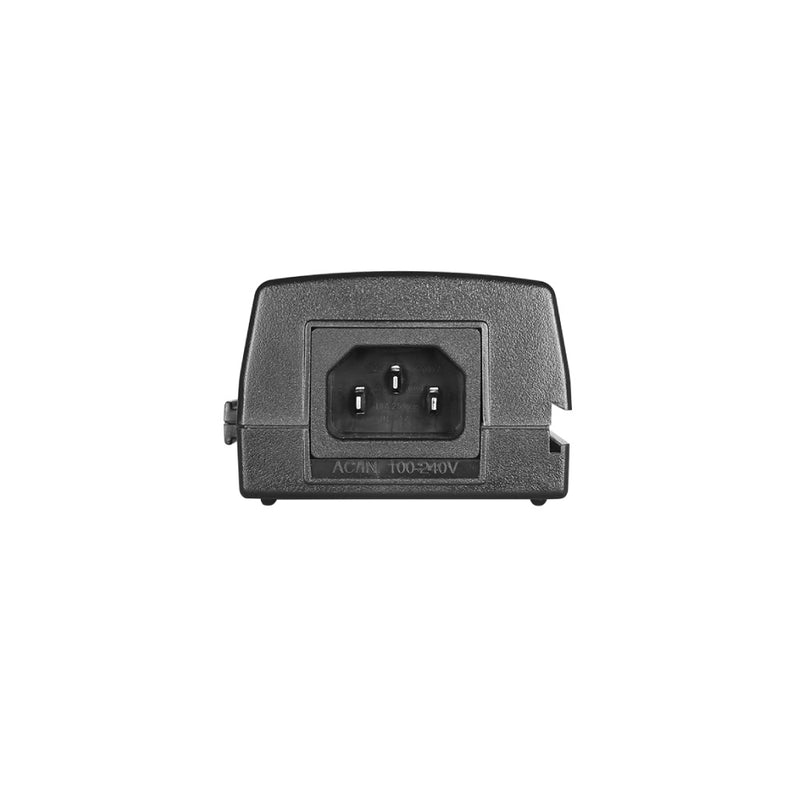

VOLKTEK GPI-421 GbE PoE+ 30W Injector with PD Detection

SKU: GPI-421
VOLKTEK GPI-421 GbE PoE+ 30W Injector with PD Detection
VOLKTEK GPI-421 GbE PoE+ 30W Injector with PD Detection
VOLKTEK GPI-421 GbE PoE+ 30W Injector with PD Detection
VOLKTEK GPI-421 GbE PoE+ 30W Injector with PD Detection

VOLKTEK GPI-421 GbE PoE+ 30W Injector with PD Detection

SKU: GPI-421
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
GPI-421 is a single port, 30W (IEEE 802.3 at) Power Injector for remote PoE+ devices. This device is a simple and inexpensive solution for Powered Devices in remote areas or at locations where there is no power sourcing equipment. It withstands temperatures between -10°C~45°C (14°F~113°F). It uses LED indicators to show when the device is in operation. By generating up to 30W, GPI-421 supplies remote power for modern applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras, and video phones.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
Sold Out
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Arlo Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
Back to All Products
Datasheet
Product Highlights
  • 1 x 10/100/1000 Base-T RJ45 port
  • 1 x 10/100/1000 Base-T PSE port
  • 30W PoE+ (IEEE 802.3 at) Power Injection
  • LED Indication (Power Transmission)
  • Operating Temperature -10°C~45°C (14°F~113°F)
Features
  • Up to 30W of PoE power feeding
  • Compatible with IEEE 802.3af and legacy PoE applications
  • Automatic detection and protection of non–standard Ethernet terminals
  • 10/100/1000Base-T LAN capable
  • Slide-in installation
Specifications

Interface

Ports1 x10/100/1000Mbps RJ45 1 x , 10/100/1000Mbps (30W PoE RJ45)
LED Panel PWR, PoE

Power

Input Voltage 52 V DC Max.
User Port Power 30W Max.
Input Power Voltage and Frequency 100~240 VAC, 50 to 60 Hz

Mechanical and Environment

Operating Ambient Temperature 0°C~50°C (32°F~122°F)
Weight 350 g (0.77 lb)
Dimension (WxHxD) 146 x 65 x 42 mm (5.74 x 2.56 x 1.65 in)

Ordering Information

ModelDescription
GPI-421 GbE PoE+ 30W Injector with PD Detection
