RESPONDS IN AN INSTANT
The X300’s dual-stage actuator design improves positional accuracy, negating the effects on head-track alignment that vibrations can cause. This design makes for more precise, faster read and write speeds for instant access to your data.
ACCURATE TRACKING
Vibration is one big enemy of reliable HDD operation. Toshiba’s Innovative Stable Platter Technology minimizes vibrations by stabilizing the motor shaft at both ends. And that means improved tracking accuracy and maximum performance during read and write operations.
KEEP DATA SECURE

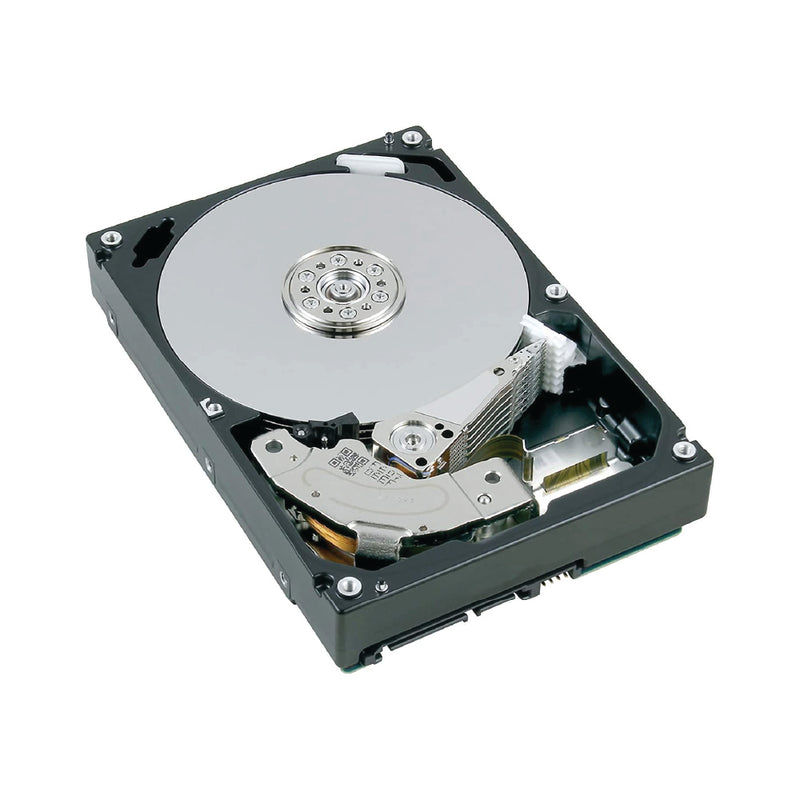

The X300’s design includes an internal shock sensor, ensuring no data is lost. In addition, ramp loading technology means that when the hard drive or desktop PC are being transported, the drive slider does not make contact with the disk, minimising the risk of wear or data loss.
BUILT TO DELIVER, DESIGNED TO LAST
Toshiba is renowned the world over for 50 years of leading innovation – and the power behind its range of hard drives is no exception. Designed for high capacity and excellent performance, you can be sure that Toshiba’s wealth of experience in hard drives is at work in your storage system.
Specs and Details
Form factor
3,5-inch
Interface
SATA 6.0 Gbit/s
Advanced Format (AF)
Yes
RoHS compatible
Yes
Halogen Free
yes
Shock Sensor
yes
Rotational speed
7,200 rpm
Buffer size
512 MB (16TB), 256 MB (6 - 14 TB), 128 MB (4 - 8 TB)
Average latency
4.17 ms
Native Command Queing (NCQ)
supported
MTTF
600,000 hours
Unrecoverable error rate
1 per 10E14 bits read
Supply voltage
5VDC (±5%) / 12VDC (±5%)
6.91 W typ. (16 TB), 6.77 W typ. (12 TB - 14 TB),
Consumption (operating)
9.92 W typ. (10 TB), 9.2 W typ. (8 TB), 11.3 W typ. (4 TB - 6 TB)
4.03 W typ. (16 TB), 4.54 W typ. (12 TB - 14 TB)
Consumption - Active Idle
7.22 W typ. (10 TB), 6.2 W typ. (8 TB), 7.5 W typ. (4 TB - 6 TB)
Temperature (operating / non-operating)
5 to 60° C / -40 to 70 °C
Vibration (operating)
0.75 G (5 to 300 Hz), 0.25 G (300 to 500 Hz)
Vibration (non-operating)
3.0 G (5 to 500Hz) (10 TB - 16 TB), 5 G (5 to 500Hz) or less (4 TB - 8 TB)
Shock (operating)
70 G / 2 ms duration
Shock (non-operating)
250 G / 2 ms duration (8 TB - 16 TB), 300 G / 2 ms duration (4 TB - 6 TB)
Acoustics (idle mode)
20 dB typ. (12 TB - 16 TB), 34 dB typ. (10 TB, 6 TB), 33 dB typ. (8 TB), 31 dB typ. (4 TB)
Dimensions
147 (L) x 101.6 (W) x 26.1 (H) mm
Weight (approx.)
770 g max. (6 TB-10 TB), 720 g max. (4 TB, 12 TB - 16 TB)
Limited warranty
2 years
Part number
HDWE140UZSVA 4TB 128MB
HDWR160UZSVA 6TB 256MB
HDWR180UZSVA 8TB 256MB
HDWR11AUZSVA 10TB 256MB
