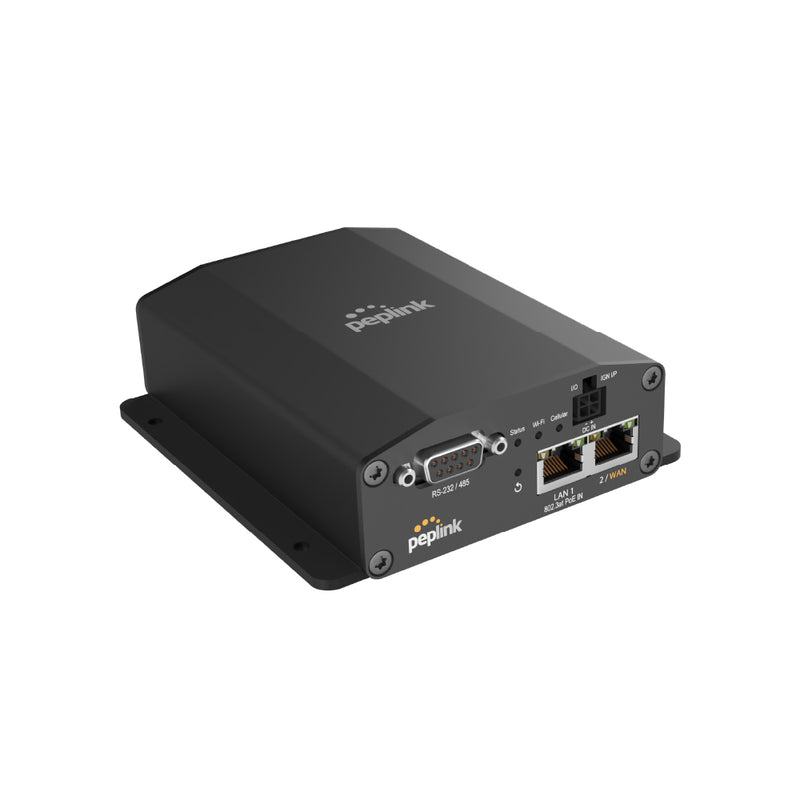

BR1 Mini M2M

Reliability in a small package

Engineered toward Industrial Devices

Featuring an RS-232/RS-485 serial port, the BR1 Mini M2M is your best solution to bring connectivity to versatile industrial equipment and IoT device.

Our advanced InTouch technology allows for secure remote monitoring and management of your linked industrial device through a single cloud platform.

Flexibility in Power and Ports

Power the device with PoE, Micro-Fit or our 4-pin to USB-C power cable allowing for flexible installations and portable deployments.

Reliability in a small package

Micro-Fit

PoE

Peplink 4-pin to USB-C Power Cable

Don’t limit yourself to a single device. The BR1 Mini M2M supports dual serial port Y-cables for even more efficiency.

Improved Dual-band Wi-Fi

Deploy more devices in the same location with no worry of network congestion. Have the option to collect data from your IoT machines from afar, helping admins save time and stay safe.

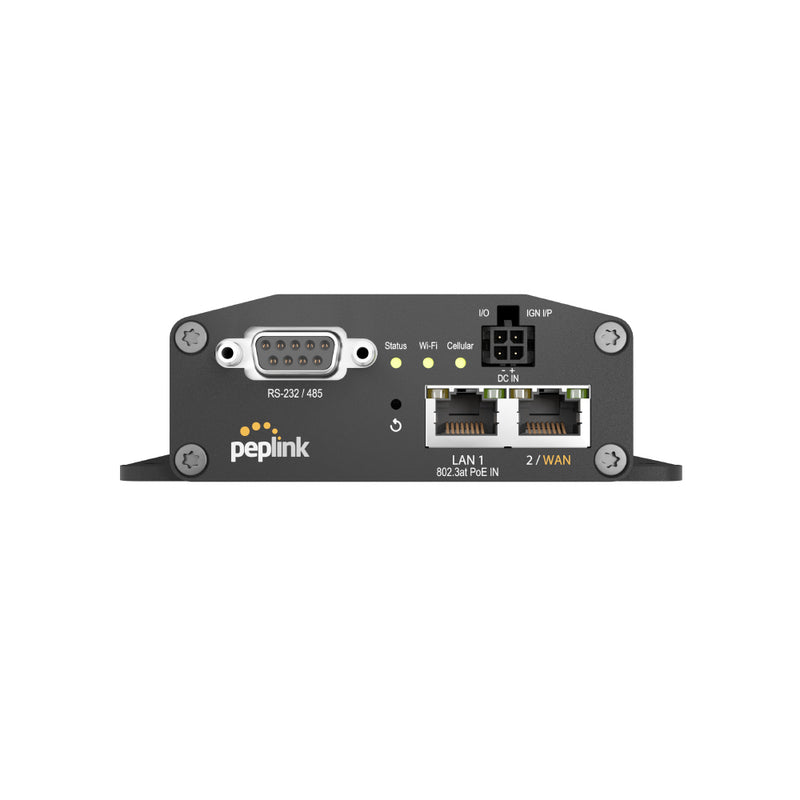

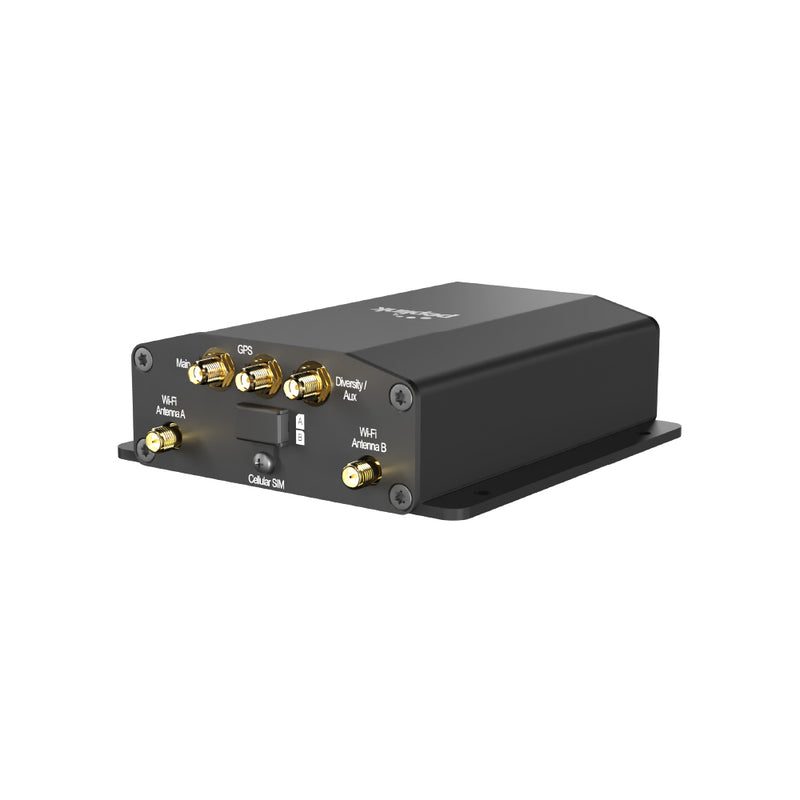

Ports & Connections

^ IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

Software

• Peplink Max Firmware

WAN

• Support for PPPoE, Static IP, DHCP
• WAN Link Health Check
• Bandwidth Allowance Monitor
• Support for Dynamic DNS services
• WAN Port Convertible into LAN Port

LAN

• DHCP Server for LAN Clients
• Extended DHCP Option
• DHCP Reservation
• DNS Proxy for LAN Clients
• VLAN on LAN Support

Security

• Stateful Firewall
• DoS Prevention
• Web Blocking

Complete VPN Solution

• SpeedFusion VPN/SpeedFusion
  - Hot Failover
  - Site-to-Site VPN
  - Hot Failover
  - 256-bit AES Encryption
  - Pre-shared Key Authentication

  IPsec VPN (Network-to-Network)^

Advanced QoS

• Individual Bandwidth Limit
• Application Prioritization
  - SIP, HTTPS, VPN QoS
  - Custom Application QoS

Networking

• NAT and IP Forwarding
• Static Routes
• Port Forwarding
• Many to One, One to One NAT
• NAT Pool
• SIP ALG, H.323 ALG
• UPnP, NAT-PMP

Captive Portal

• Support for Wired and Wireless LAN clients
• Support RADIUS Authentication
• Time and Usage Quotas on Open Access Mode
• Built-in Customizable Splash Page

Device Management

• Web Administrative Interface
• Command Line Interface
• InControl Cloud Management
• Email Notification
• Active Client & Session Lists
• Bandwidth Usage Statistics
• Syslog Service
• SNMP v1, v2c and v3

Embedded Modem

• 1 x CAT-4

4G Bands

• B1, B3, B5, B7, B8, B20, B38, B40, B41

3G Bands

• WCDMA/HSPA+/DC-HSPA+: B1, B5, B8

Package Content

• 1x BR1 Mini M2M
• 2x LTE Antennas (ACW-235)
• 2x Dual Band Wi-Fi Antennas (ACW-342)
• 1x GPS Active Antenna (ACW-232)
• 1x 12V 2A 4pin Power Supply (ACW-632)
