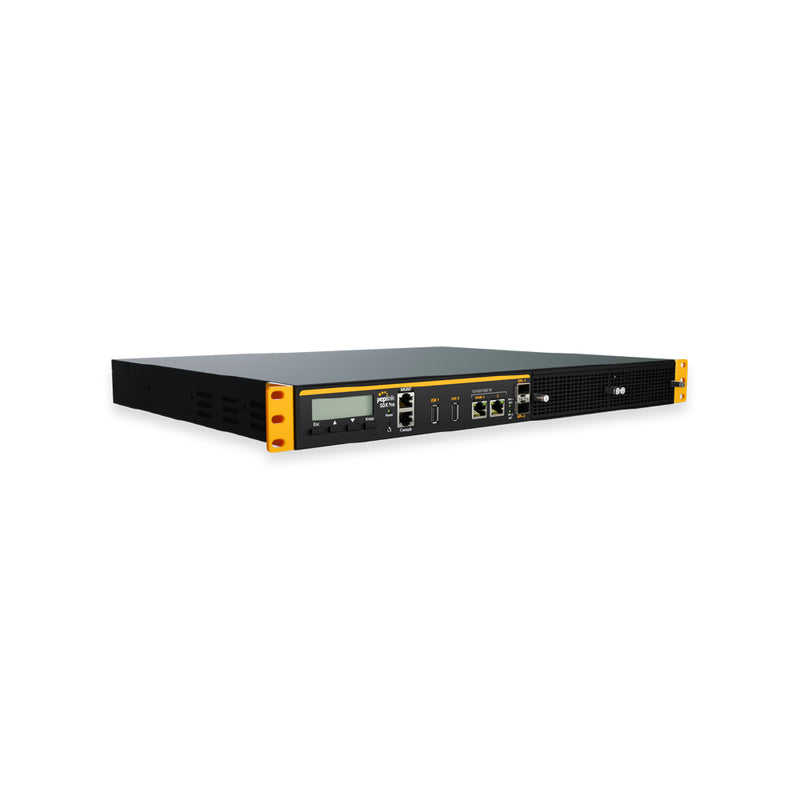

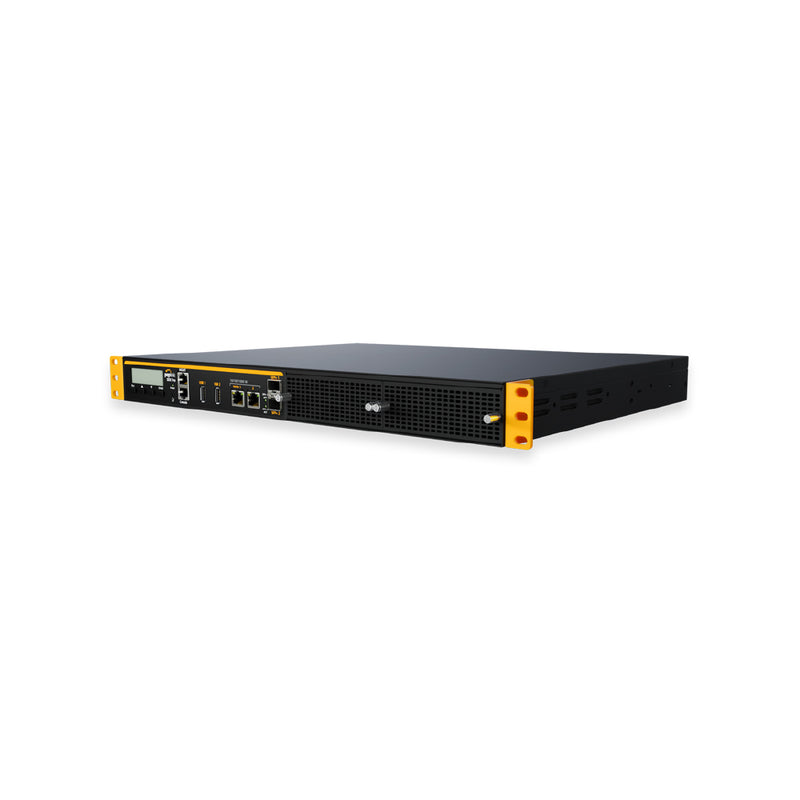

SDX Pro

Modular SD-WAN Router with Edge Computing Capability

In addition to the power of the SDX, the SDX Pro offers greater flexibility and functionality. It has two FlexModule slots, enabling you to customize the device with different modules to suit any deployment. It supports edge computing so it can deliver websites, applications, and docker containers to connected devices.

Compatible With:

Modular System. Ensure Flexibility

Future Proof Design

4G/5G cellular WAN

Add 4G/5G backup to enterprise networks. Add multiple cellular FlexModules for fast and unbreakable connectivity anywhere.

8x copper WAN/LAN

Connect PoE-enabled modems on the WAN, or connect PoE devices such as cameras, IP phones, and Wi-Fi APs on the LAN.

4x fiber WAN/LAN

Build an all-Fiber network by connecting Fiber WANs and LAN Switches.

56x SIM Capacity

Virtually deliver SIM cards from the FlexModule to Peplink cellular routers anywhere. Supports up to 56 SIM cards.

The SDX Pro has enough throughput to handle any high-bandwidth enterprise branch or mobile deployment.

Ready-Built Infrastructure

Your SDX Pro comes ready to connect to the SpeedFusion Cloud: a global network of secure endpoints with unique capabilities. Use the SpeedFusion Cloud as an unbreakable worldwide VPN, saving setup and maintenance costs.

Applications

Websites

Virtual Machines

Docker Containers

Applications

The SDX Pro is a one-box hosting solution that can deliver Docker containers, applications, and websites to its local network. By hosting resources near the network edge, you can reduce latency and make applications more responsive.

Uninterruptible Power

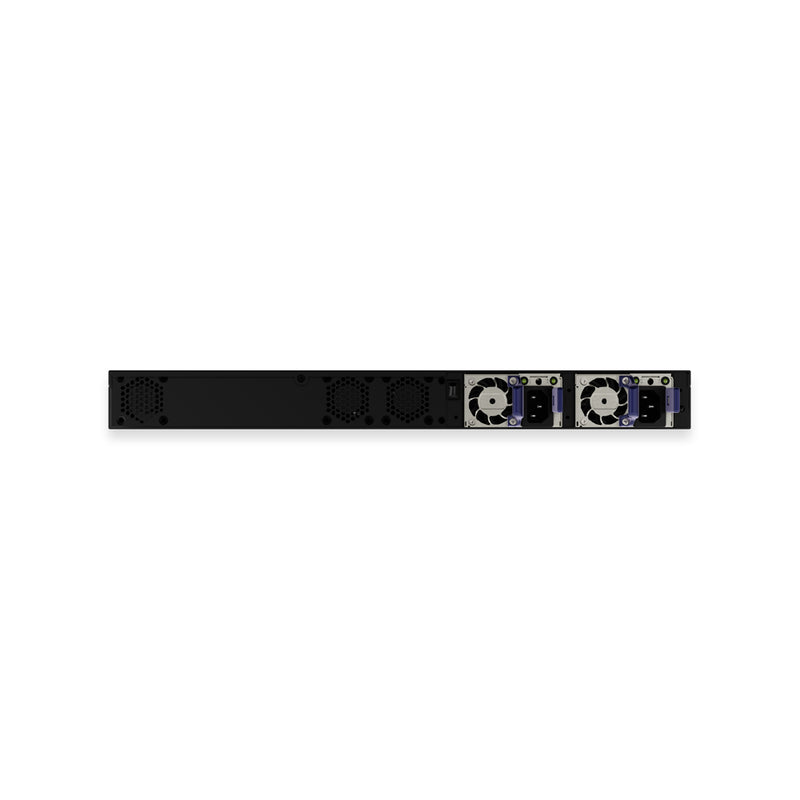

The SDX Pro is equipped with two power inputs and two hot-swappable power supplies. Only one of each is needed to function, ensuring continuous power delivery even if a cable gets disconnected or if a power supply drops out for any reason.

Ports and Connections

* WAN ports are configured as a LAN ports by default, configuration is changeable on the Web Admin.

Software

• Peplink Balance Firmware

WAN

• Support for PPPoE, Static IP, DHCP
• WAN Link Health Check
  - PING
  - DNS Lookup
  - HTTP
• Bandwidth Allowance Monitor
• IPv6 Support
• USB 4G/3G Modem Support
• Support for Dynamic DNS services
  - changeip.com
  - dyndns.org
  - no-ip.org
  - tzo.com
  - DNS-O-Matic
• WAN Port Convertible into LAN Port

LAN

• DHCP Server for LAN Clients
• Extended DHCP Option
• DHCP Reservation
• DNS Proxy for LAN Clients
• VLAN on LAN Support

Load Balancing

• Intelligent Failover
• Session Persistence
• Per-Service Load Distribution
• Multiple Algorithms
  - Weighted
  - Enforced
  - Persistence
  - Priority
  - Overflow
  - Least Used
  - Lowest Latency
  - Fastest Response Time

Security

• DoS Prevention
• Stateful Firewall
• Web Blocking

Complete VPN Solution

• SpeedFusion VPN
• Site-to-Site VPN
  - Bandwidth Bonding
  - Hot Failover
  - 256-bit AES Encryption
  - Pre-shared Key Authentication
  - Dynamic Routing
• PPTP/L2TP/OpenVPN Server
  - Local User, LDAP, RADIUS, Active Directory Authentication
• IPsec VPN (Network-to-Network)
  - X.509 Certificate Support
• GRE Tunnel (Network-to-Network)

Advanced QoS

• User Groups
  - Bandwidth Reservation
  - Individual Bandwidth Limit
• Application Prioritization
  - By User Groups
  - SIP, HTTPS, VPN QoS
  - Custom Application QoS

Networking

• NAT and IP Forwarding
• Static Routes
• Port Forwarding
• Many to One, One to One NAT
• NAT Pool
• SIP ALG, H.323 ALG
• UPnP, NAT-PMP
• WINS Server
• BGP, OSPFv2 and RIPv2 Support

AP Controller

• Support for Pepwave AP Series
• Auto AP Discovery
• Auto AP Firmware Management
• AP Profile Configuration
• Wi-Fi Usage Statistics

Captive Portal

• Support for Wired and Wireless LAN Clients
• Support RADIUS Authentication
• Support LDAP Authentication
• Time and Usage Quotas on Open Access Mode
• Built-in Customizable Splash Page

DNS

• Built-in Authoritative DNS
• Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records

Device Management

• Web Administrative Interface
• Command Line Interface
• InControl Cloud Management
• Email Notification
• Active Client & Session Lists
• Bandwidth Usage Statistics
• Syslog Service
• SNMP v1, v2c and v3

Power Requirements

• Universal Input 100V – 240V AC

Package Content

• Balance SDX Pro
• SDX Pro Base Chassis
• 1U 19″ Rack-mount Chassis (ACW-752)
• L-mount Set (ACW-750)
• 2x Power Cord (ACW-614)
• Rubber Foot Pad set
