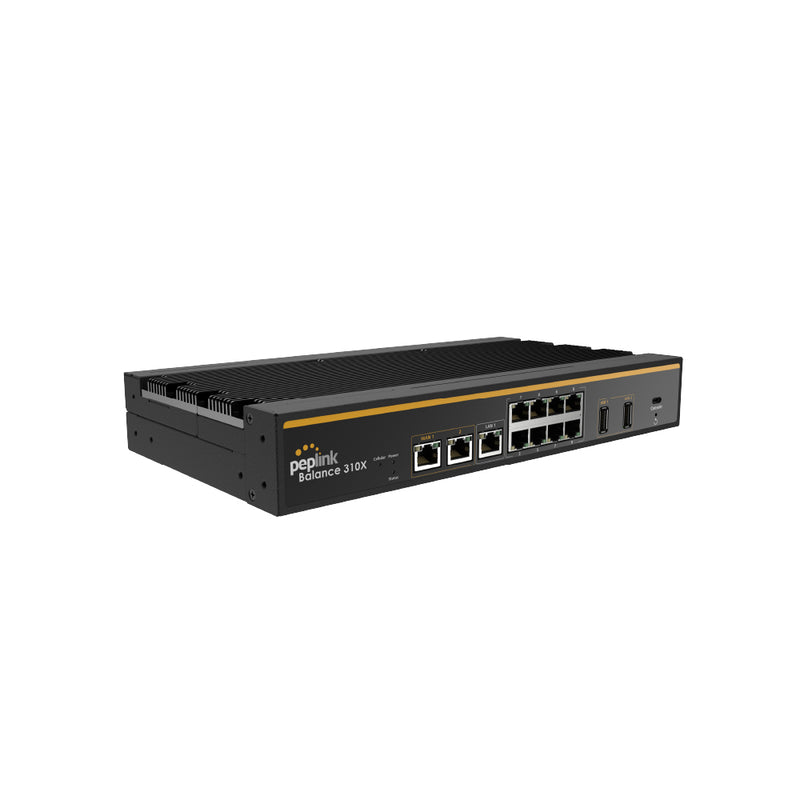

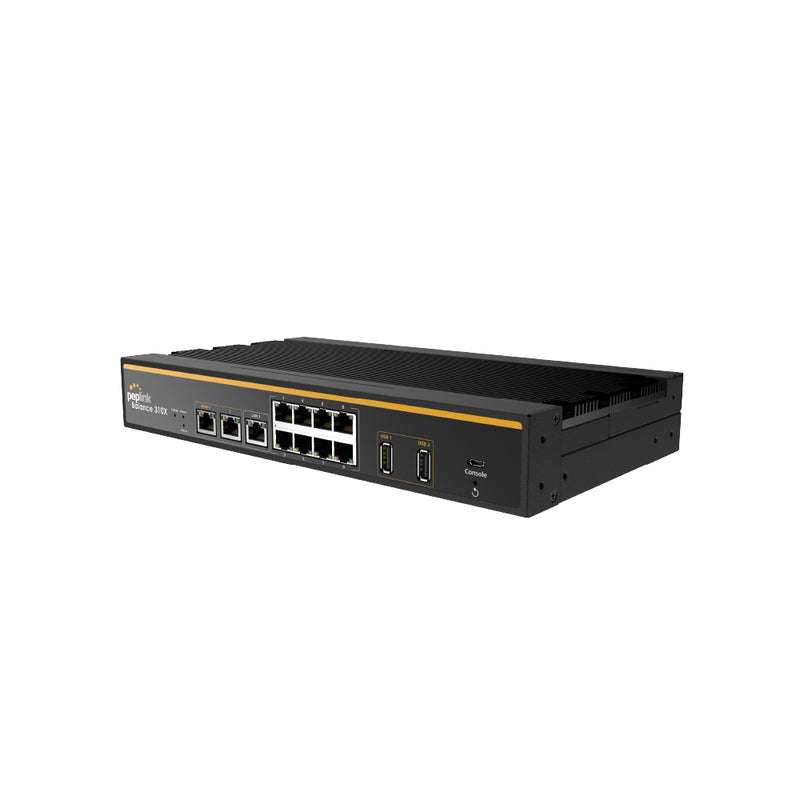

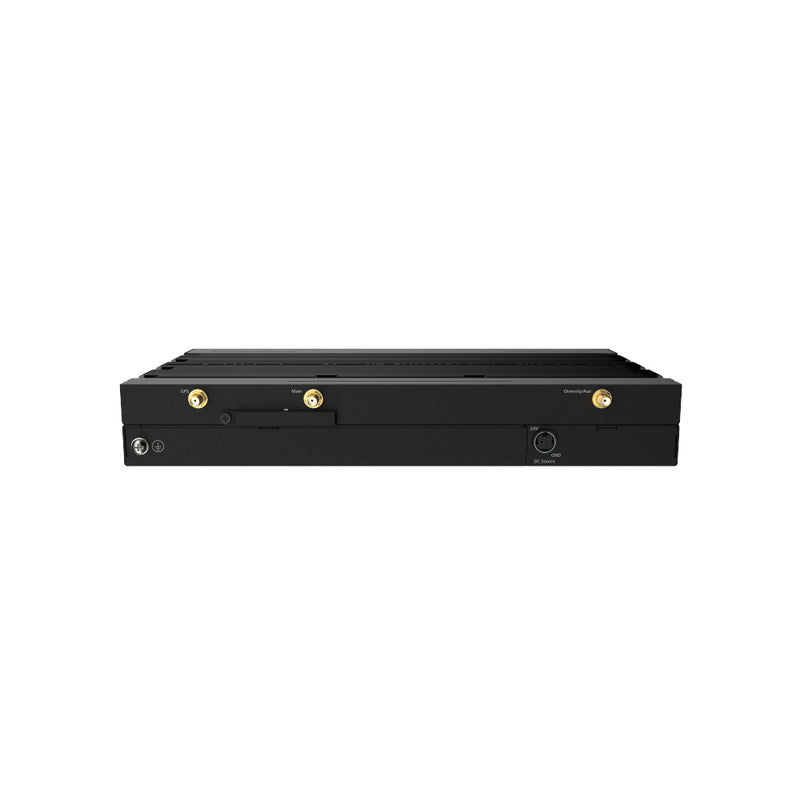

Balance 310
Enterprise SD-WAN router for Medium Sized Branches

The Balance 310X uses all GE ports and offers a routing throughput of 2.5 Gbps. It provides all the connectivity needed to support small and medium sized business operations.

Ultimate Performance for your Branch Office

30 VPN Peers

High Capacity. 500 Users

2.5 Gbps Throughput

Unbreakable Connectivity with LTE

The Balance 310X provides built-in LTE for seamless failover. Patented SpeedFusion technology combines multiple connections for jitter-free calls and high-speed transfers.

FirstNet Ready

FirstNet (Band 14) provides first responders with a specialized LTE network with more priority and network capacity. The Balance 310X supports Band 14, providing additional coverage as the situation demands.

Rugged Industrial-Grade Design

The Balance 310X has a fanless design and a wide temperature range. Drop it into demanding environments and run it for years without worry.

Scalable Cloud Management

The Balance 310X comes with the InControl central management system. Easily centralize firewall rules, outbound policy, VLAN, device configurations and more.

#PowerofPeplink

Experience on-demand connectivity with SpeedFusion Connect

Enabling the benefits of SpeedFusion has just gotten easier with SpeedFusion Connect. Allowing you to leverage the LTE of multiple connections and SpeedFusion technologies all under one subscription. Enabling backup connectivity has never been so simple!

*Compatible for use in the US and selected regions in Europe

WAN

• Support for PPPoE, Static IP, DHCP
• WAN Link Health Check
  - PING
  - IPv6 Suppor
  - DNS Lookup
  - HTTP
• Bandwidth Allowance Monitor
• USB 4G/3G Modem Support
• Intelligent Failover
• Support for Dynamic DNS services
  - changeip.com
  - dyndns.org
  - no-ip.org
  - tzo.com
  - DNS-O-Matic

LAN

• DHCP Server for LAN Clients
• Extended DHCP Option
• DHCP Reservation
• DNS Proxy for LAN Clients
• VLAN on LAN Support

Load Balancing

• Intelligent Failover
• Session Persistence
• Per-Service Load Distribution
• Multiple Algorithms
  - Weighted
  - Enforced
  - Persistence
  - Priority
  - Overflow
  - Least Used
  - Lowest Latency
  - Fastest Response Time


Security

• DoS Prevention
• Stateful Firewall
• Web Blocking
• Web Filtering Blacklist

Complete VPN Solution

• SpeedFusion VPN
• Site-to-Site VPN
  - Bandwidth Bonding
  - Hot Failover
  - 256-bit AES Encryption
  - Pre-shared Key Authentication
  - Dynamic Routing
• PPTP/L2TP/OpenVPN Server
  - Local User Active Directory Authentication
• IPsec VPN (Network-to-Network)
  - X.509 Certificate Support
• GRE Tunnel (Network-to-Network)

Advanced QoS

• User Groups
  - Bandwidth Reservation
  - Individual Bandwidth Limit
• Application Prioritization
  - By User Groups
  - SIP, HTTPS, VPN QoS
  - Custom Application QoS

Networking

• NAT and IP Forwarding
• Static Routes
• Port Forwarding
• Many to One, One to One NAT
• NAT Pool
• SIP ALG, H.323 ALG
• UPnP, NAT-PMP
• WINS Server
• VRRP HA Support
• BGP, OSPFv2 and RIPv2 Support

AP Controller

• Support for Pepwave AP Series
• Auto AP Discovery
• Auto AP Firmware Management
• AP Profile Configuration
• Wi-Fi Usage Statistics

Captive Portal

• Support for Wired and Wireless LAN Clients
• Support RADIUS Authentication
• Support LDAP Authentication
• Time and Usage Quotas on Open Access Mode
• Built-in Customizable Splash Page

DNS

• Built-in Authoritative DNS
  Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records

Device Management

• Web Administrative Interface
• Command Line Interface
• InControl Cloud Management
• Email Notification
• Active Client & Session Lists
• Bandwidth Usage Statistics
• Syslog Service
• SNMP v1, v2c and v3

Carrier
(BPL-310X-GLTE-S-T)

• Global / FirstNet / CAT-20

Embedded Modem
(BPL-310X-GLTE-S-T)

• 1

4G Bands
(BPL-310X-GLTE-S-T)

• B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46 (LAA), B48, B66, B71

3G Bands
(BPL-310X-GLTE-S-T)

• HSPA+/WCDMA: B1, B2, B3, B4, B5, B6, B8, B9, B19

Embedded Modems
(BPL-310X-5GD-T)

• 1x 5G

5G Bands
(BPL-310X-5GD-T)

• 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79

LTE Bands
(BPL-310X-5GD-T)

• B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71

Package Content

• Balance 310X
• 1x PSU 24V 2.5A (ACW-647)
• 2x or 4x LTE/5G Antennas (ACW-234)
• 1x GPS Antenna (ACW-232)
• Ear L-Mounts kit (ACW-513)
• Rubber Foot Pad Set
• Grounding Cable
