NETGEAR XSM4324S 24-Port Fully Managed Switch M4300-12X12F

SKU: XSM4324S-100NES
NETGEAR 24-Port Fully Managed Switch M4300-12X12F, 24x10G, 12x10GBASE-T, 12xSFP+, Half-Width Stackable, ProSAFE Lifetime Protection (XSM4324S)
NETGEAR XSM4324S 24-Port Fully Managed Switch M4300-12X12F
NETGEAR XSM4324S 24-Port Fully Managed Switch M4300-12X12F
NETGEAR XSM4324S 24-Port Fully Managed Switch M4300-12X12F
NETGEAR 24-Port Fully Managed Switch M4300-12X12F, 24x10G, 12x10GBASE-T, 12xSFP+, Half-Width Stackable, ProSAFE Lifetime Protection (XSM4324S)
NETGEAR XSM4324S 24-Port Fully Managed Switch M4300-12X12F
NETGEAR XSM4324S 24-Port Fully Managed Switch M4300-12X12F
NETGEAR XSM4324S 24-Port Fully Managed Switch M4300-12X12F

NETGEAR XSM4324S 24-Port Fully Managed Switch M4300-12X12F

SKU: XSM4324S-100NES
Suffix
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way

The NETGEAR M4300 Switch Series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB aggregation deployments with unrivaled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series.

Non-stop forwarding virtual chassis architectures provide advanced High Availability (HA) with hitless failover, that is, distributed link aggregation allows for load balancing and virtually zero downtime. License-free L3 feature set includes static routing, policy-based routing, RIP, VRRP, OSpiv as well as Multicast PIM routing. The NETGEAR M4300 Switch Series is ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

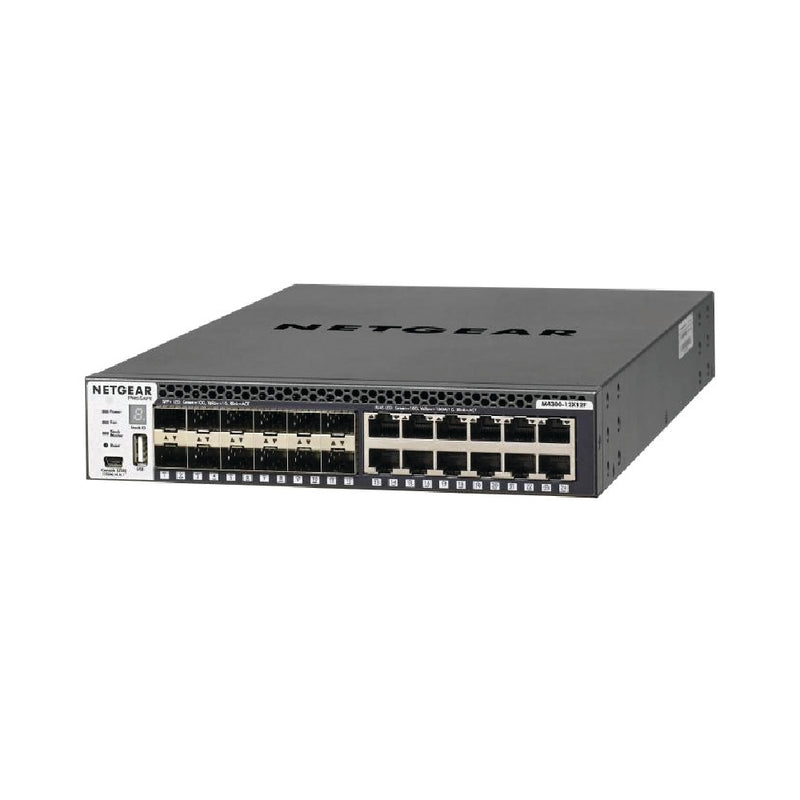

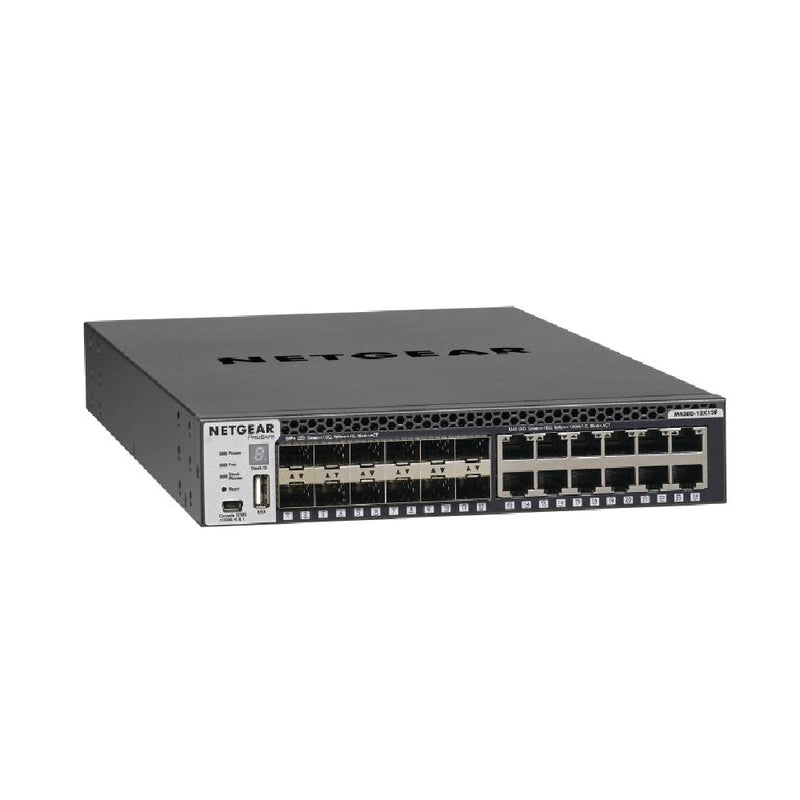

M4300-12X12F comes with 12 ports 10GBASE-T and 12 ports 10GBASE-X SFP+ in a half-width form factor. All 24 ports are independent and 1G backward compatible for progressive transition to 10G speeds. Ideal for server and storage aggregation: two half-width M4300 switches can be installed in a single rack space. M4300-12X12F is line-rate with 480Gbps fabric for SMB core applications as well as spine and leaf stacking architectures.

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from All Products
Sold Out
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
CADYCE CA-U34H USB 3.0 4-Port Hub
Enquire with us
Sold Out
HP Portable SSD P500 250GB/500GB/1TB
HP Portable SSD P500 250GB/500GB/1TB
HP P500 Portable SSD
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow
Enquire with us
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue
GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue
Enquire with us
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR
Enquire with us
LOGITECH M310T Wireless Mouse
LOGITECH M310T Wireless Mouse
LOGITECH M310T Wireless Mouse
Enquire with us
Back to All Products
SpecificationsProduct DatasheetInstallation GuideUser Manual

Features

High Availability (HA)

Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency

Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ Interoperability

Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency

Enables or disables ports based on link state of different ports

Advanced IPv4/IPv6 security

Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

Specifications

Product Number

XSM4324FS

Hardware Specifications

12 Ports Copper 100M / 1G / 10G

12 Ports SFP+ 1G / 10G

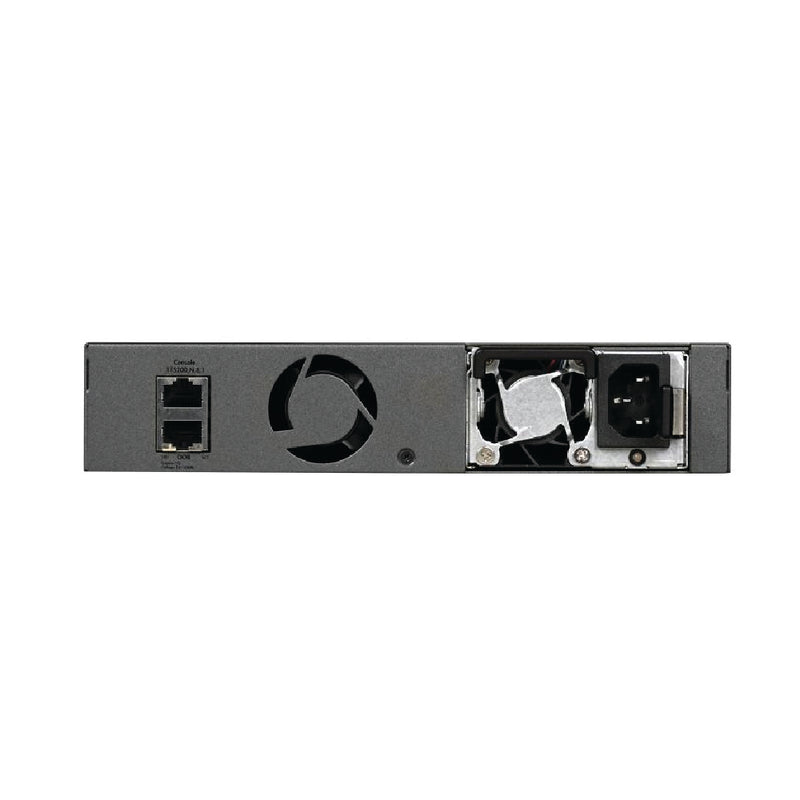

1 Modular Bay with One (1) 250W Modular PSU included APS250W

480 Gps Switching Fabric

Fixed Fan Front-to-Back 36.9dB Management Options Ethernet: Out-of-band 1G port (Back)

Console: RJ45 RS232 (Back) Console: Mini-USB (Front)

Storage: USB (Front)

Single-pane-of-glass NMS300 management platform with mass-configuration supportDual firmware image and configuration file for updates with minimum service interruption

Software Features

Model Description : Half-Width 24x10G Stackable Managed Switch with 12x10GBASE-T and 12xSFP+

Table Sizes

128K MAC 8k ARP / NDP

Up to 960 Gbps

Throughput up to 714 Mpps

Application Static Routing : 64v4 / 64v6 RIP: 512 OSPF: 512

Latency

<0.9µs 10G SFP+

<1.25µs 10G RJ45

IP Multicast : 1,024 IPv4 / 512 IPv6

Multicast IGMP Membership : 2k IPv4 / IPv6

M4300 Series features: : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM

VLANS

4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools

Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models

Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)

PoE+ Options (30W per port) with hot swap & redundant PSUs options

Ordering Number : XSM4324S

Acoustics : 36.9dB @ 25°C (77°F)

Power Consumption (Max) : 97 Watts

1G RJ45 Ports : -

10G RJ45 Ports : 12 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)

10G Fiber SFP+ Ports : 12 x SFP+ (1G and 10G speeds)

Power over Ethernet : -PoE Budget (Watts) : - Feature Set : Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing) Form Factor : Half-Width enabling one or two 10G switches in a single rack space for redundant top-of-rack 1 modular PSU

Warranty

Limited Lifetime Warranty
